Toyota Town/Masterace V,WG

1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

10 part groups · 4 illustrations

Illustrations

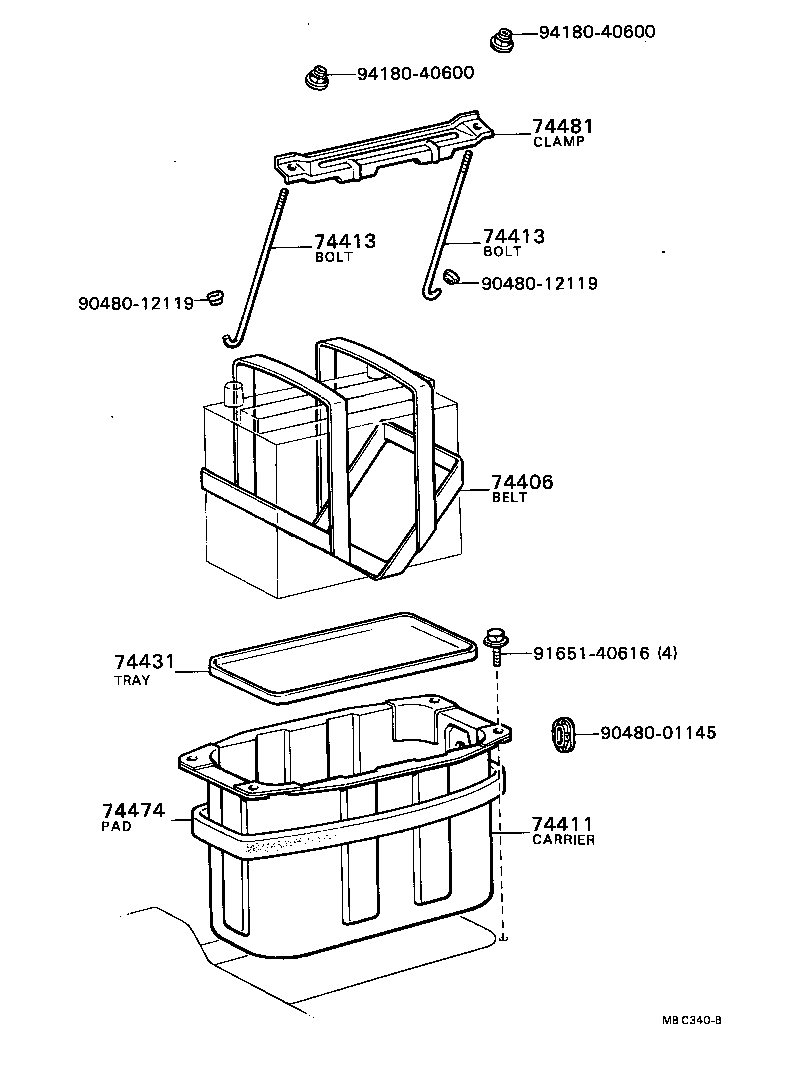

Figure MB8187B MB8187B 1978-08 → — Figure MB6041B MB6041B 1976-10 → 1981-01 Figure MB6041B MB6041B 1981-01 → — Figure MBC340B MBC340B 1981-01 → —

Part groups

PNCDescription
74406 Belt Sub-assy, Battery
74411 Carrier, Battery
74413 Bolt, Battery Clamp
74414 Bracket, Battery, FR
74415 Bracket, Battery, Rear
74417 Bracket, Battery Carrier
74431 Tray, Battery
74472 Pad, Battery Side
74474 Pad, Battery
74481 Clamp, Battery Hold Down
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
