Toyota Town/Masterace V,WG
1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan
Discontinued model
Data version 1983-03

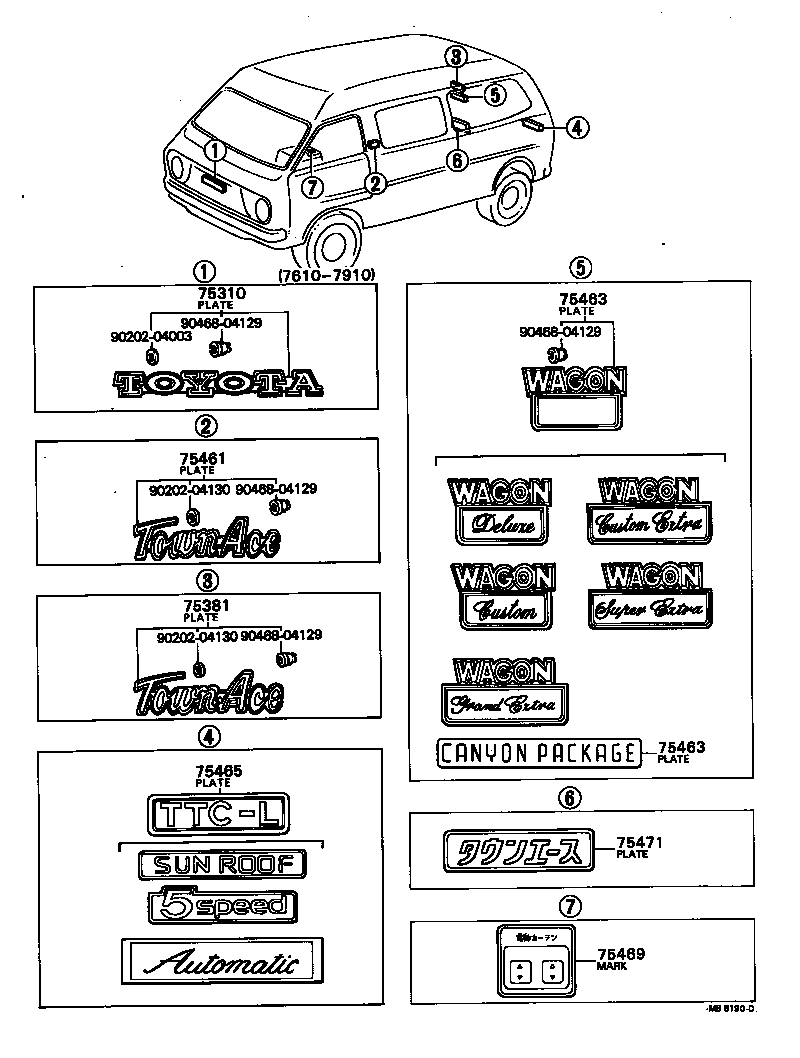

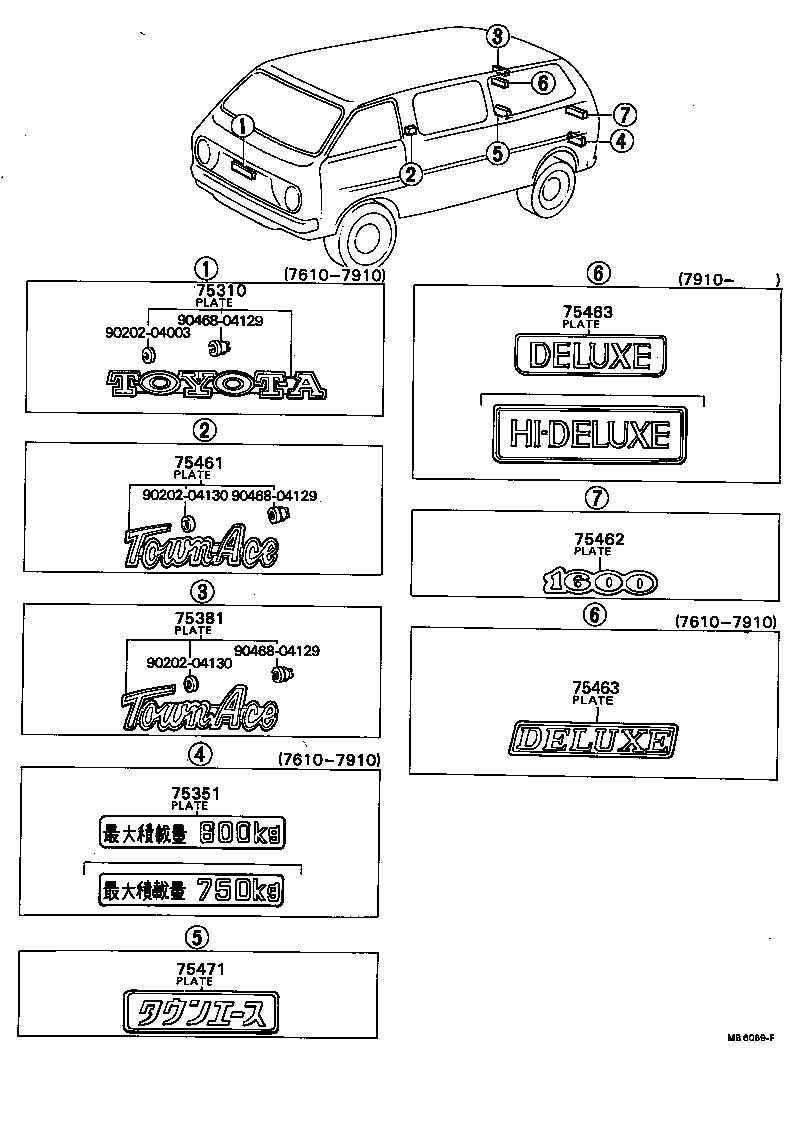

Emblem & Name Plate
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 75310 | Plate Assy, Front Panel |
| 75351 | Plate, Rear Name, NO.6 (MAXIMUM LOAD) |
| 75381 | Plate, Quarter Panel OR Side Panel Name (MODEL MARK) |
| 75461 | Plate, Rear Name, NO.2 (MODEL MARK) |
| 75462 | Plate, Rear Name, NO.3 (DISPLACEMENT) |
| 75463 | Plate, Rear Name, NO.4 (GRADE MARK) |
| 75465 | Plate, Rear Name, NO.5 (MECHANISM) |
| 75469 | Mark, Curtain Switch |
| 75471 | Plate, Rear Body Name, NO.1(MODEL MARK) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
