Toyota Town/Masterace V,WG

1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

38 part groups · 14 illustrations

Illustrations

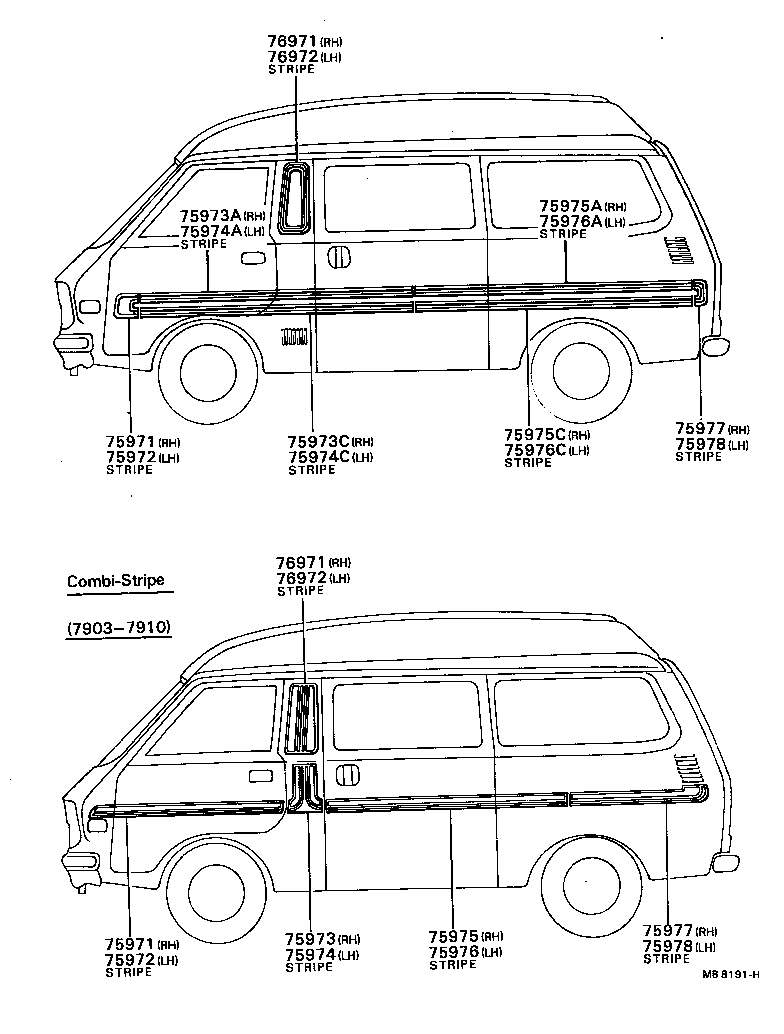

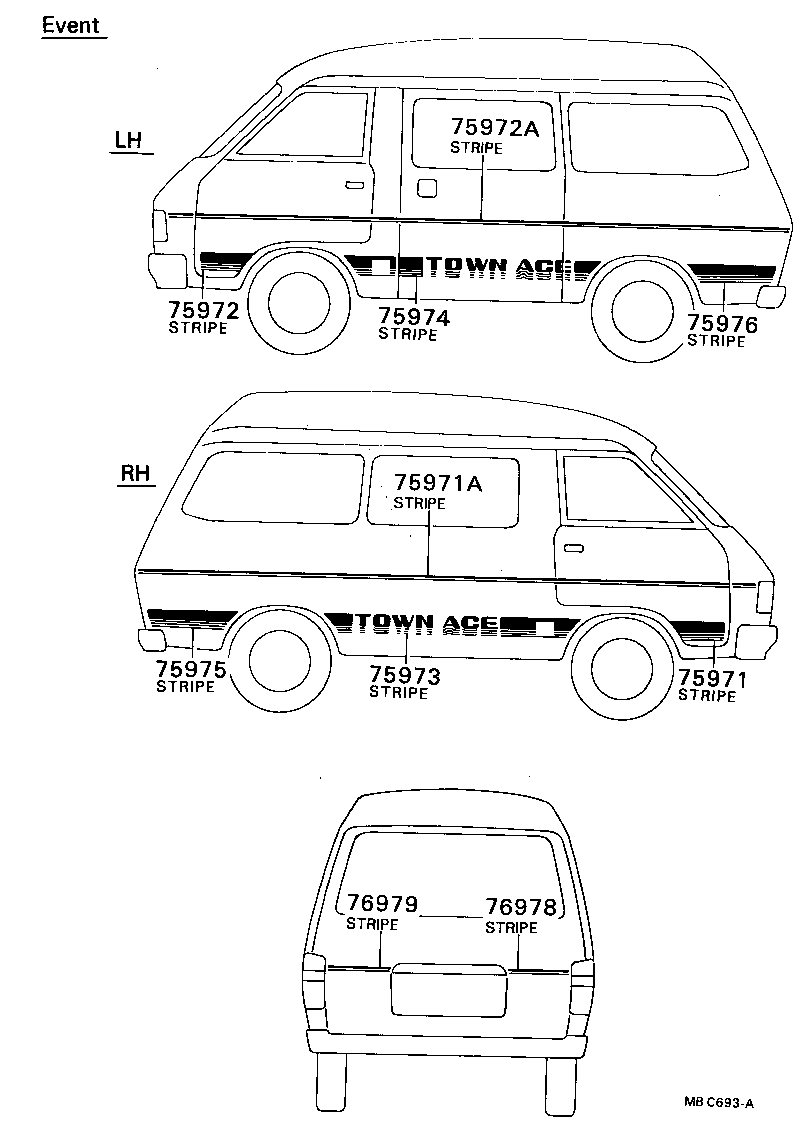

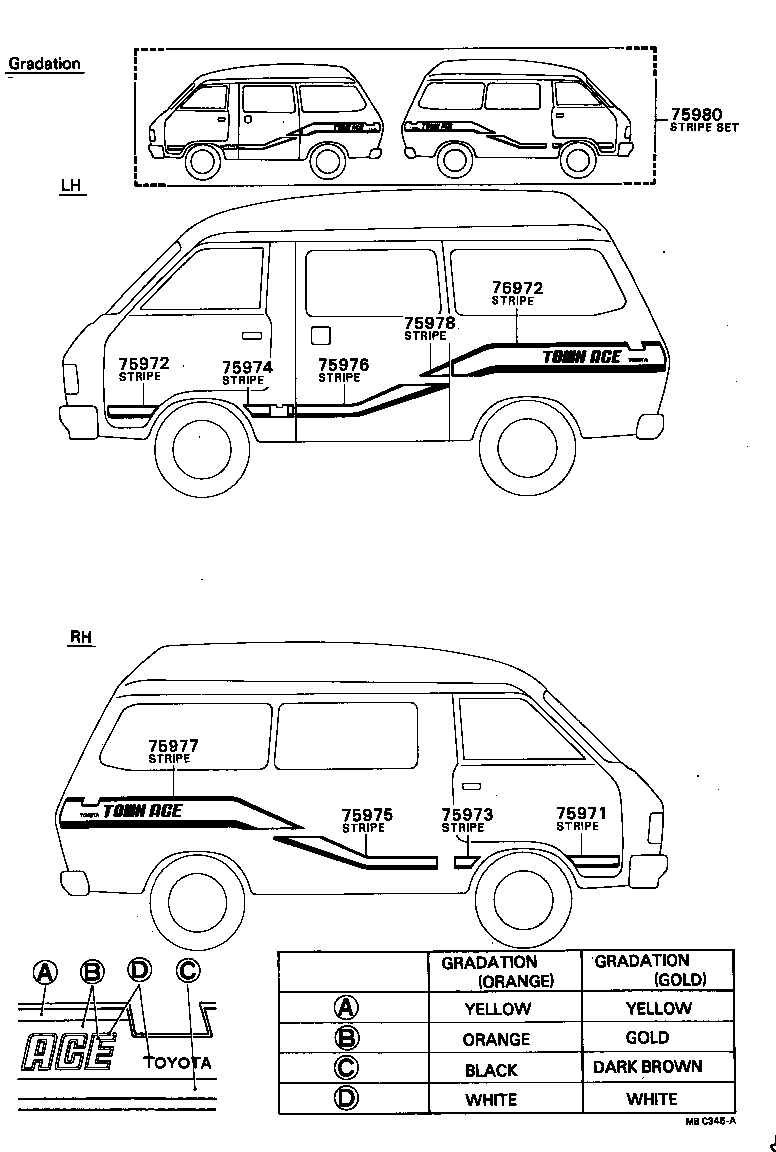

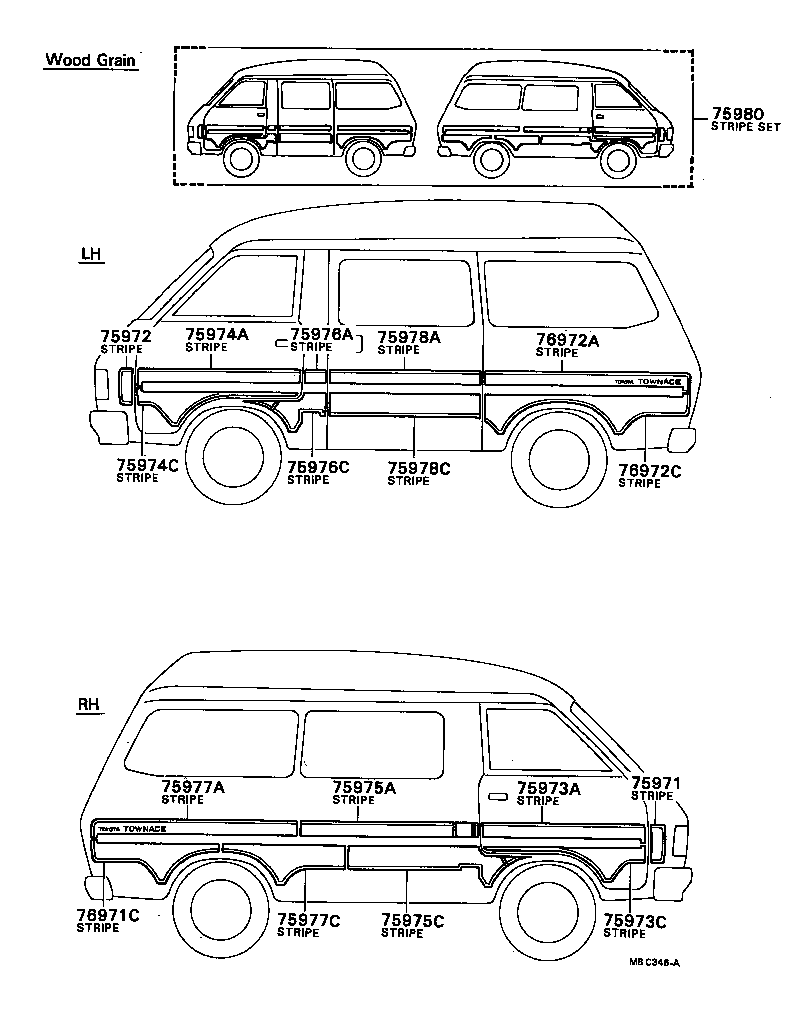

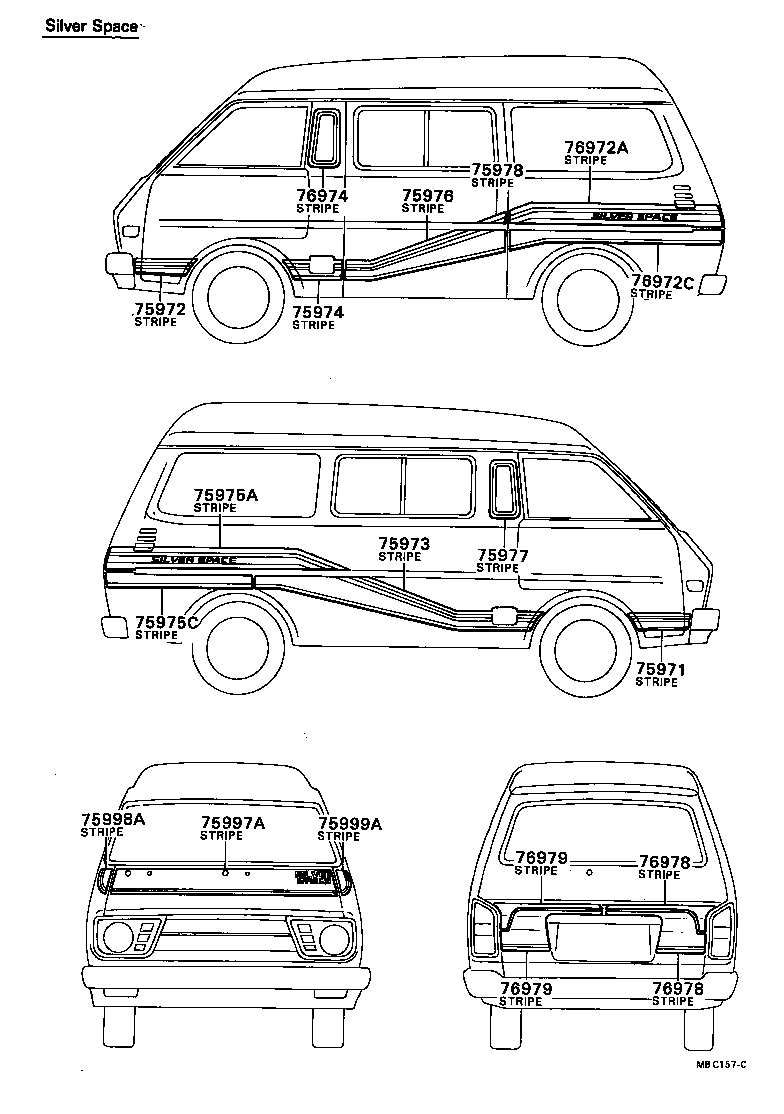

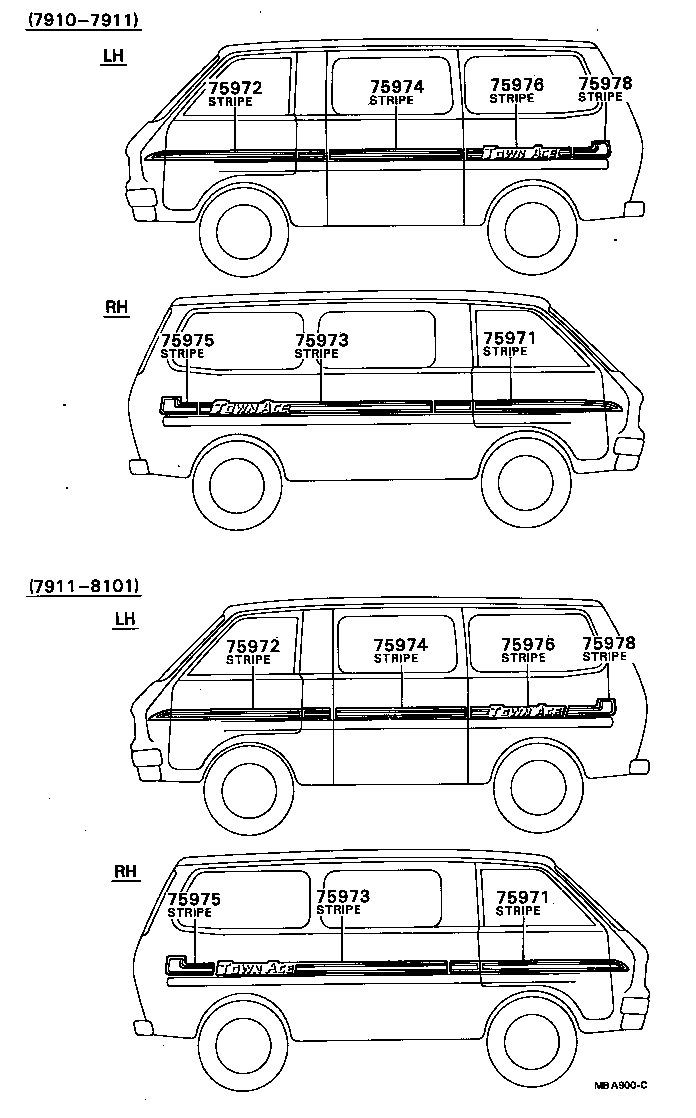

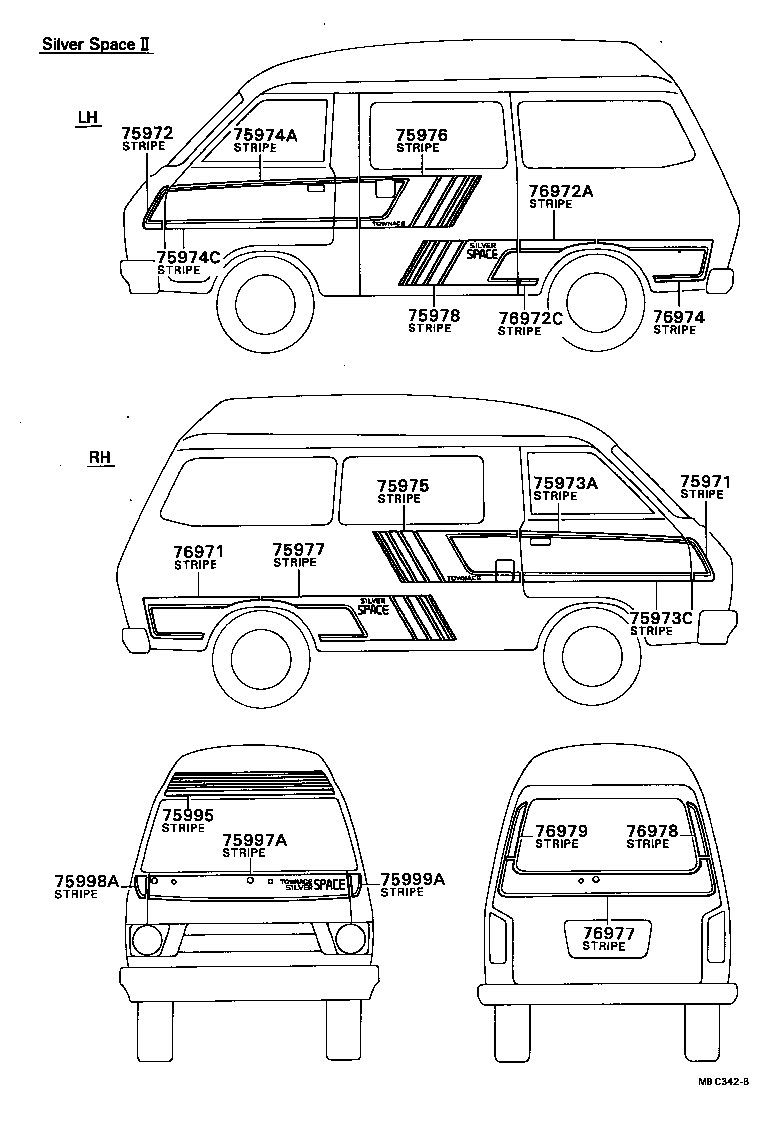

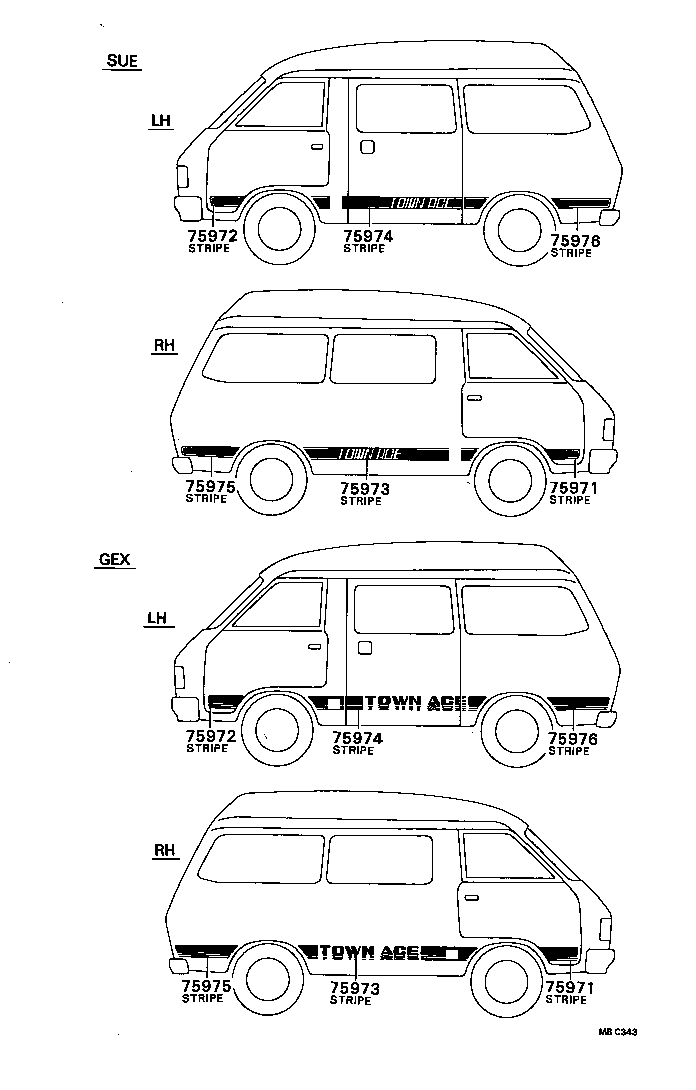

Figure MB6046B MB6046B 1976-10 → 1979-10 Figure MB7734D MB7734D 1977-06 → 1977-06 Figure MB8191H MB8191H 1978-08 → 1979-10 Figure MBA898D MBA898D 1979-10 → 1981-01 Figure MBA900C MBA900C 1979-10 → 1981-01 Figure MBA899B MBA899B 1979-10 → 1981-01 Figure MBB126B MBB126B 1979-10 → 1981-01 Figure MBC157C MBC157C 1980-06 → 1980-06 Figure MBC342B MBC342B 1980-09 → 1980-09 Figure MBC343 MBC343 1981-01 → — Figure MBC345A MBC345A 1981-01 → — Figure MBC346A MBC346A 1981-01 → — Figure MBD514 MBD514 1982-01 → — Figure MBC693A MBC693A 1981-06 → 1981-06

Part groups

PNCDescription
75971 Stripe, Side, RH NO.1
75971A Stripe, Side, RH NO.1 (FOR UPPER)
75972 Stripe, Side, LH NO.1
75972A Stripe, Side, LH NO.1 (FOR UPPER)
75973 Stripe, Side, RH NO.2
75973A Stripe, Side, RH NO.2 (FOR UPPER)
75973C Stripe, Side, RH NO.2 (FOR LOWER)
75974 Stripe, Center Pillar, LH NO.2
75974A Stripe, Side, LH NO.2(FOR UPPER)
75974C Stripe, Side, LH NO.2(FOR LOWER)
75975 Stripe, Side, RH Upr NO.3
75975A Stripe, Side, RH NO.3 (FOR UPPER)
75975C Stripe, Side, RH NO.3 (FOR LOWER)
75976 Stripe, Side, LH Upr
75976A Stripe, Side, LH NO.3 (FOR UPPER)
75976C Stripe, Side, LH NO.3 (FOR LOWER)
75977 Stripe, Side, RH NO.4
75977A Stripe, Side, RH NO.4(FOR UPPER)
75977C Stripe, Side, RH NO.4(FOR LOWER)
75978 Stripe, Side, LH NO.4
75978A Stripe, Side, LH NO.4(FOR UPPER)
75978C Stripe, Side, LH NO.4(FOR LOWER)
75980 Stripe Set
75995 Stripe, Front Roof
75997A Stripe, Front Panel
75998A Stripe, Front Panel, RH
75999A Stripe, Front Panel, LH
76971 Stripe, Side, RH NO.5
76971C Stripe, Side, RH NO.5 (FOR LOWER)
76972 Stripe, Quarter, Rear LH
76972A Stripe, Side, LH NO.5 (FOR UPPER)
76972C Stripe, Side, LH NO.5 (FOR LOWER)
76974 Stripe, Side, LH NO.6
76977 Stripe, Rear Body Back
76978 Stripe, Rear Body Back, RH
76979 Stripe, Rear Body Back, LH
76991 Stripe, Side Mark, RH NO.1
76992 Stripe, Side Mark, LH NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
