Toyota Town/Masterace V,WG

1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Tool Box & License Plate Bracket

9 part groups · 4 illustrations

Illustrations

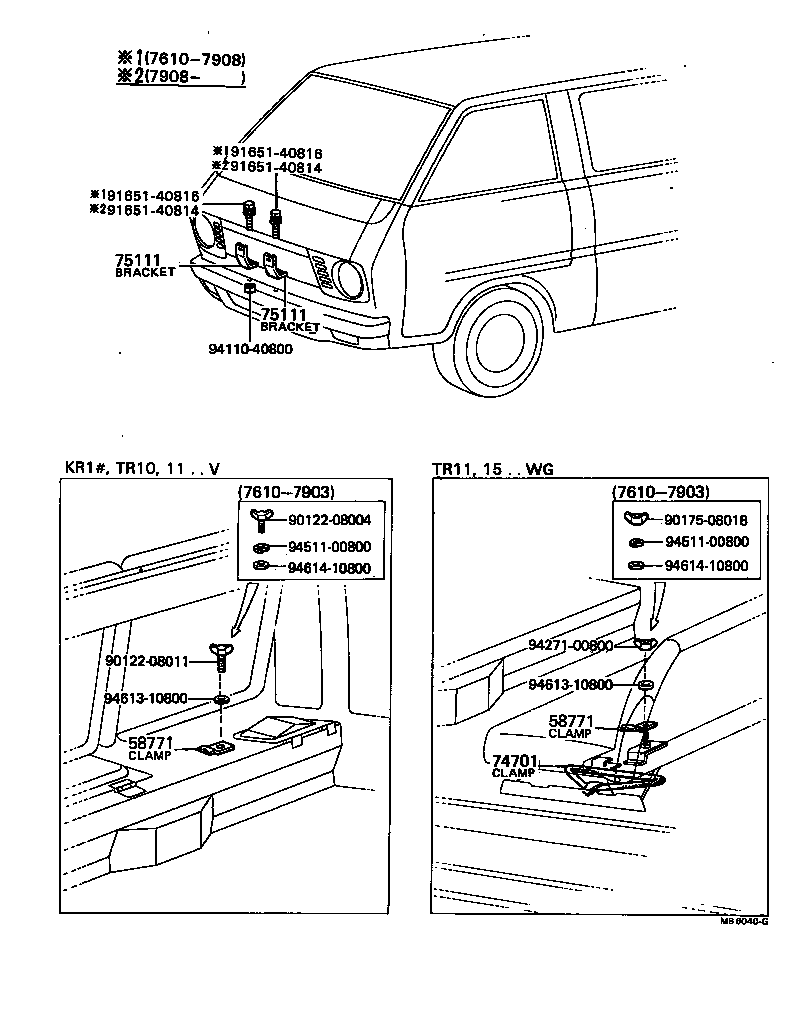

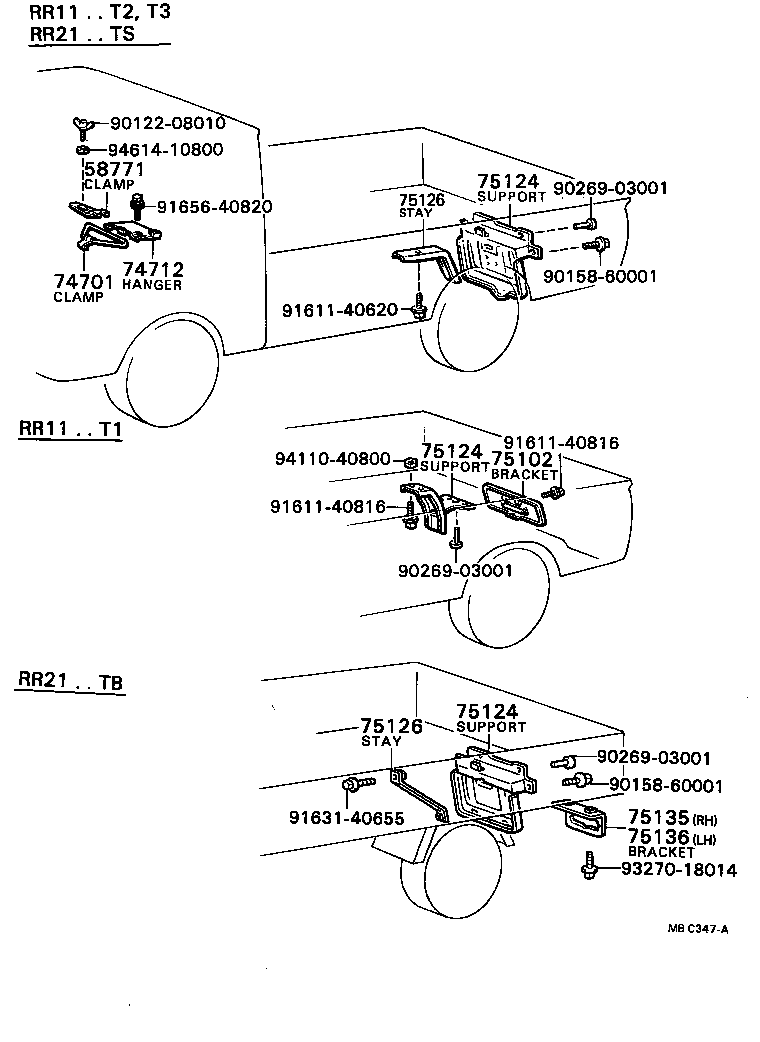

Figure MB8192C MB8192C 1978-08 → 1981-01 Figure MBC347A MBC347A 1981-01 → — Figure MB6040G MB6040G 1976-10 → — Figure MB6040G MB6040G 1978-10 → —

Part groups

PNCDescription
58771 Clamp, Jack, NO.1
74701 Clamp Sub-assy, Tool Bag
74712 Hanger, Jack Holder
75102 Bracket Sub-assy, Rear License Plate
75111 Bracket, Front License Plate
75124 Support, Rear License Bracket
75126 Stay, Rear License Plate Bracket, Lower
75135 Bracket, Combination Rear Lamp, RH
75136 Bracket, Combination Rear Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
