Toyota Town/Masterace V,WG
1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan
Discontinued model
Data version 1983-03

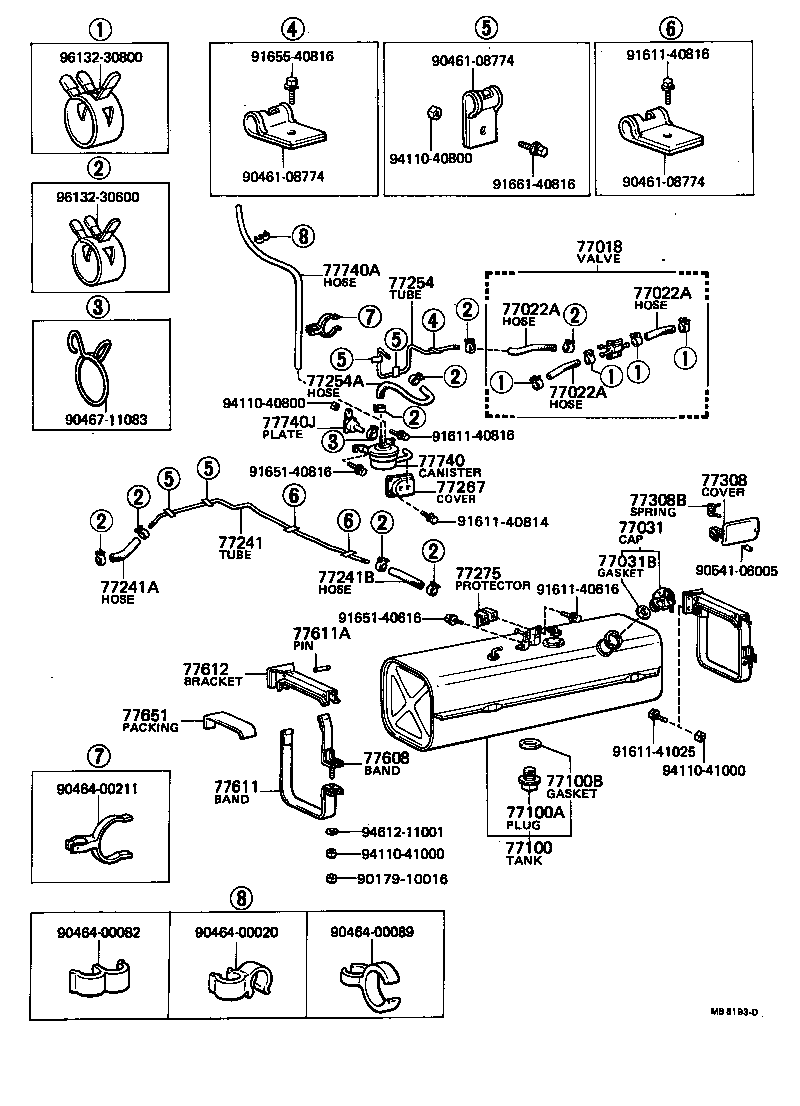

Fuel Tank & Tube
48 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 77018 | Valve Sub-assy, Fuel Vapour Separate |
| 77022 | Separator Sub-assy, Fuel Evaporative |
| 77022A | Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR) |
| 77031 | Cap Assy, Fuel Tank |
| 77031B | Gasket (FOR FUEL TANK CAP) |
| 77100 | Tank Assy, Fuel |
| 77100A | Plug(FOR FUEL TANK) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77100D | Hose, Fuel, NO.1(FOR FUEL TANK) |
| 77100E | Hose, Fuel, NO.2(FOR FUEL TANK) |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77202 | Tube Sub-assy, Breather |
| 77213 | Hose, Fuel Tank Sub Inlet |
| 77241 | Tube, Fuel Main, NO.1 |
| 77241A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1) |
| 77241B | Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1) |
| 77251 | Shield, Fuel Tank, Inlet, NO.1 |
| 77254 | Tube, Fuel Emission, NO.1 |
| 77254A | Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1) |
| 77254B | Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.1) |
| 77267 | Cover, Fuel Evaporative Tube |
| 77275 | Protector, Fuel Evaporative Separator |
| 77276 | Protector, Fuel Hose |
| 77277A | Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1) |
| 77277P | Protector(FOR FUEL RETURN HOSE) |
| 77308 | Cover Sub-assy, Fuel Inlet Box |
| 77308A | Cushion(FOR FUEL INLET BOX COVER) |
| 77308B | Spring, Torsion(FOR FUEL INLET BOX COVER) |
| 77608 | Band Sub-assy, Fuel Tank, NO.2 |
| 77611 | Band, Fuel Tank |
| 77611A | Pin (FOR FUEL TANK BAND) |
| 77612 | Bracket Sub-assy, Fuel Tank |
| 77614 | Seat, Fuel Tank Band |
| 77651 | Packing, Fuel Tank Bracket |
| 77740 | Canister Assy, Charcoal |
| 77740A | Hose, Fuel, NO.1(FOR CHARCOAL CANISTER) |
| 77740B | Hose, Fuel, NO.2(FOR CHARCOAL CANISTER) |
| 77740C | Hose, Fuel, NO.3(FOR CHARCOAL CANISTER) |
| 77740D | Hose, Fuel, NO.4(FOR CHARCOAL CANISTER) |
| 77740E | Hose, Fuel, NO.5(FOR CHARCOAL CANISTER) |
| 77740G | Tube, Fuel, NO.2(FOR CHARCOAL CANISTER) |
| 77740J | Plate,Canister Hose Support |
| 77742 | Way, 3(FOR CANISTER) |
| 77750 | Canister Assy, Charcoal |
| 77750A | Hose, Fuel, NO.1 (FOR CHARCOAL CANISTER) |
| 77750B | Hose, Fuel, NO.2 (FOR CHARCOAL CANISTER) |
| 77750C | Hose, Fuel, NO.3 (FOR CHARCOAL CANISTER) |
| 77750D | Hose, Fuel, NO.4 (FOR CHARCOAL CANISTER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
