Toyota Town/Masterace V,WG
1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan
Discontinued model
Data version 1983-03
Wiring & Clamp
30 part groups · 5 illustrations
Part groups

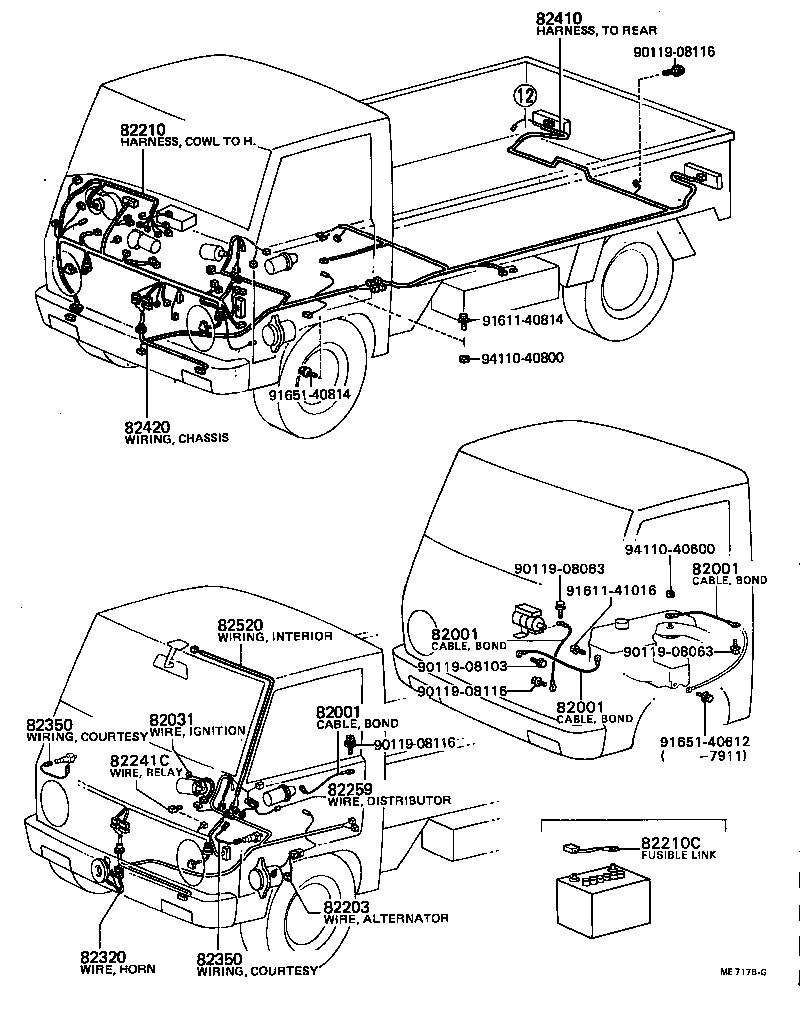

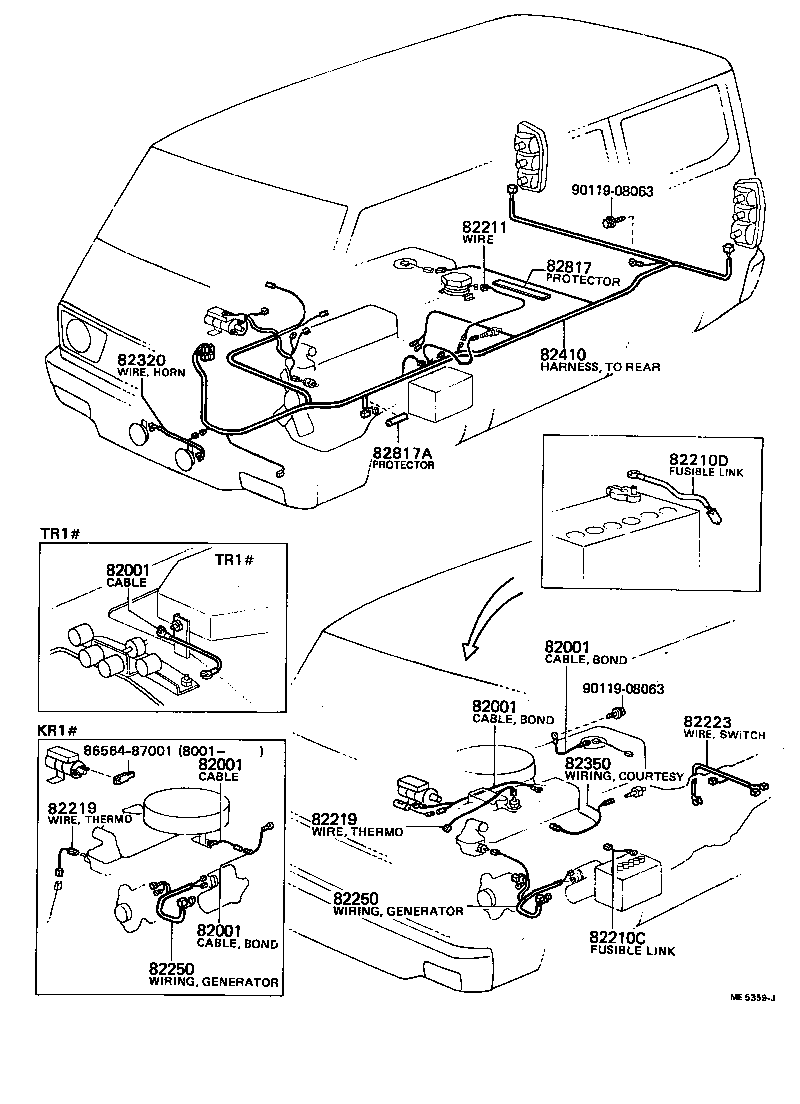

| PNC | Description |
|---|---|
| 82001 | Cable, Bond, NO.1 |
| 82031 | Wire Sub-assy, Ignition Coil |
| 82046 | Wire Sub-assy, Rear Window Defogger Earth |
| 82203 | Wire Sub-assy, Alternator |
| 82210 | Harness Assy, Wiring Cowl TO Headlamp, NO.1 |
| 82210C | Fusible Link |
| 82210D | Fusible Link |
| 82211 | Wire, Heater Blower Fan Switch |
| 82216 | Wire, Rear Window Defogger |
| 82219 | Wire, Thermo Sensor |
| 82223 | Wire, Switch |
| 82223B | Wire, Switch, NO.2 |
| 82223D | Wire, Switch, NO.3 |
| 82232 | Wire, Fog Lamp |
| 82235 | Wire, Room |
| 82241C | Wire, Relay |
| 82250 | Wiring Assy, TO Generator |
| 82259 | Wire, Distributor |
| 82320 | Wire Assy, TO Horn |
| 82350 | Wiring Assy, Courtesy Lamp Switch (FOR FR OR RR DOOR) |
| 82407 | Wire Sub-assy, Rear Wiper Motor |
| 82410 | Harness Assy, Wiring TO Rear Lamp |
| 82420 | Wiring Assy, Chassis |
| 82470 | Wire Assy, License Lamp Feed |
| 82510 | Wiring Assy, Roof |
| 82510A | Wiring Assy, Roof, NO.2 |
| 82520 | Wire Assy, Interior Lamp Feed |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82817A | Protector, Wiring Harness, NO.2 |
| 82825 | Protector, Wiring Harness |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
