Toyota Town/Masterace V,WG
1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan
Discontinued model
Data version 1983-03
Meter
20 part groups · 3 illustrations
Part groups

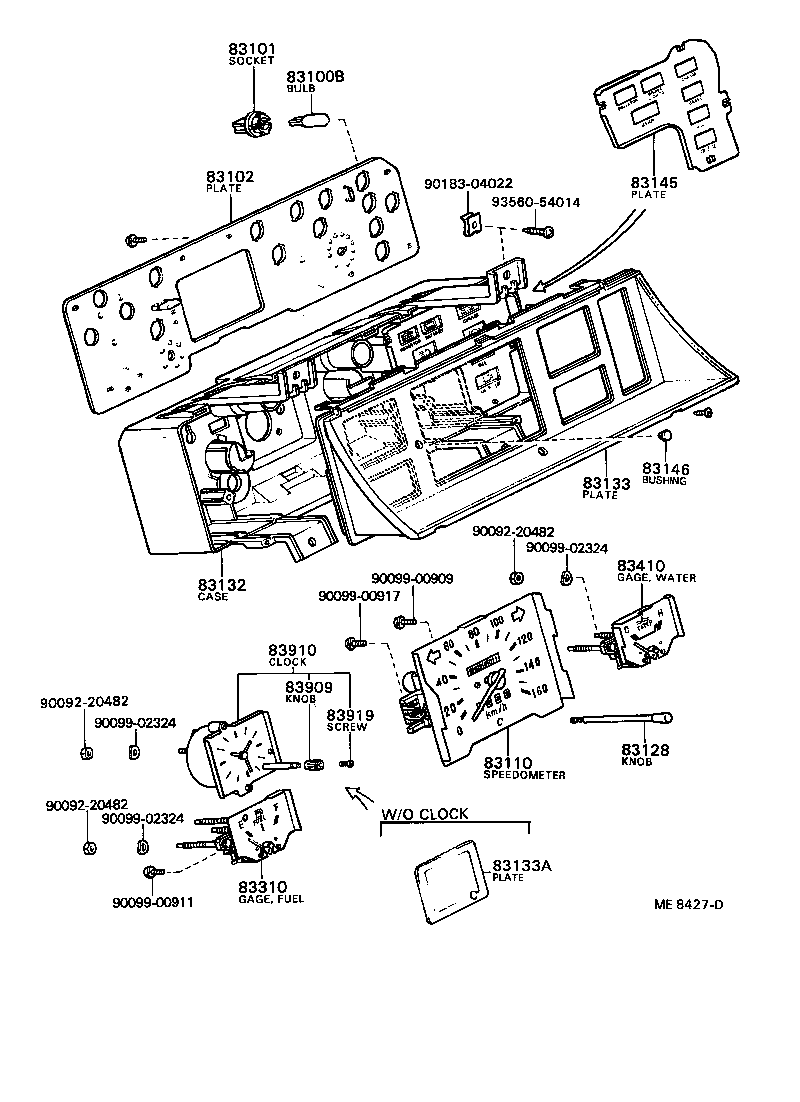

| PNC | Description |
|---|---|
| 83100 | Meter Assy, Combination |
| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83102 | Plate Sub-assy, Combination Meter Circuit, NO.1 |
| 83110 | Speedometer Assy |
| 83128 | Knob, Trip Counter |
| 83132 | Case, Combination Meter |
| 83133 | Plate, Combination Meter, NO.1 |
| 83133A | Plate, Combination Meter, NO.2 |
| 83136 | Glass, Gage Meter |
| 83138 | Glass, Speedometer |
| 83145 | Lens, Meter, NO.1 |
| 83146 | Grommet, Meter Glass |
| 83310 | Gage Assy, Fuel Receiver |
| 83410 | Gage Assy, Water Temperature Receiver |
| 83710 | Cable Assy, Speedometer Drive, NO.1 |
| 83909 | Knob, Clock |
| 83910 | Clock Assy |
| 83910B | Bulb, Clock Indicator |
| 83919 | Screw, Clock |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
