Toyota Town/Masterace V,WG

1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

12 part groups · 6 illustrations

Illustrations

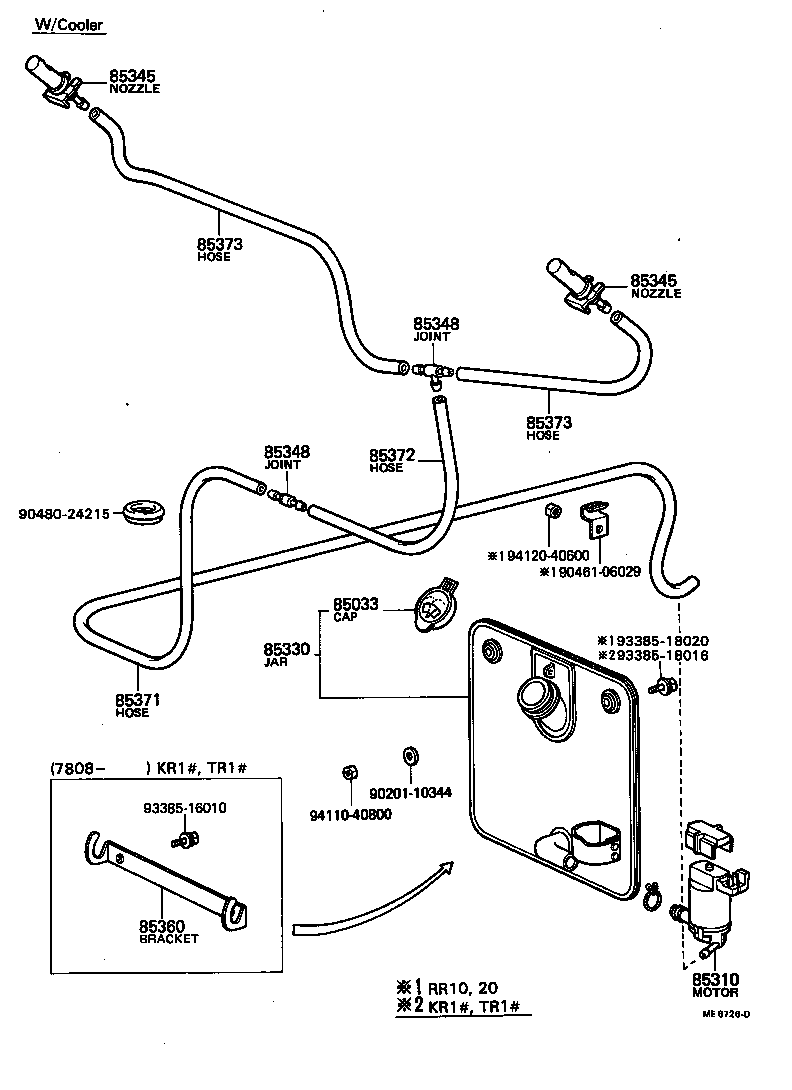

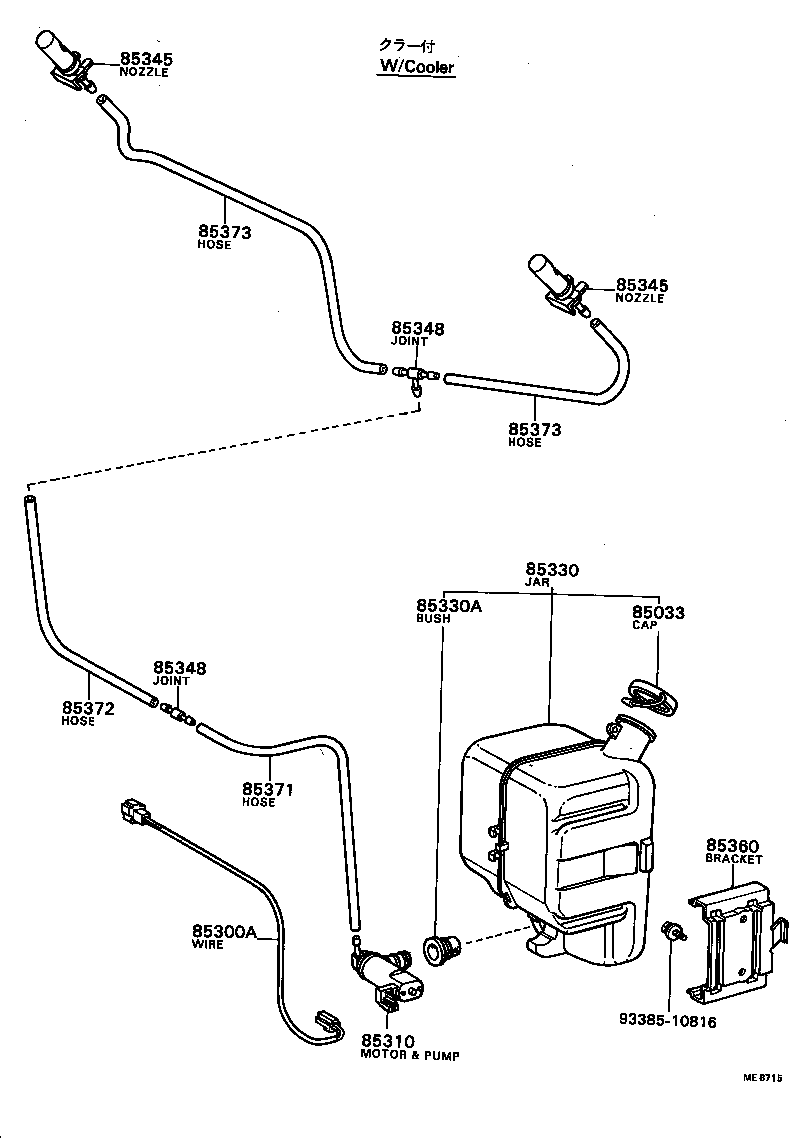

Figure ME5366C ME5366C 1976-10 → 1981-01 Figure ME5366C ME5366C 1978-08 → — Figure MEA256 MEA256 1981-01 → — Figure ME6726D ME6726D 1976-10 → 1981-01 Figure ME6726D ME6726D 1978-08 → 1979-11 Figure ME8715 ME8715 1979-11 → —

Part groups

PNCDescription
85033 Cap Assy, Windshield Washer
85300A Wire, Windshield Washer Motor
85310 Motor And Pump Assy, Windshield Washer
85314 Cover, Windshield Washer Motor
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85345 Nozzle, Windshield Washer
85348 Joint, Windshield Washer Hose, NO.1
85360 Bracket Assy, Windshield Washer
85371 Hose, Windshield Washer (FROM MOTOR TO JOINT)
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
