Toyota Town/Masterace V,WG

1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

24 part groups · 6 illustrations

Illustrations

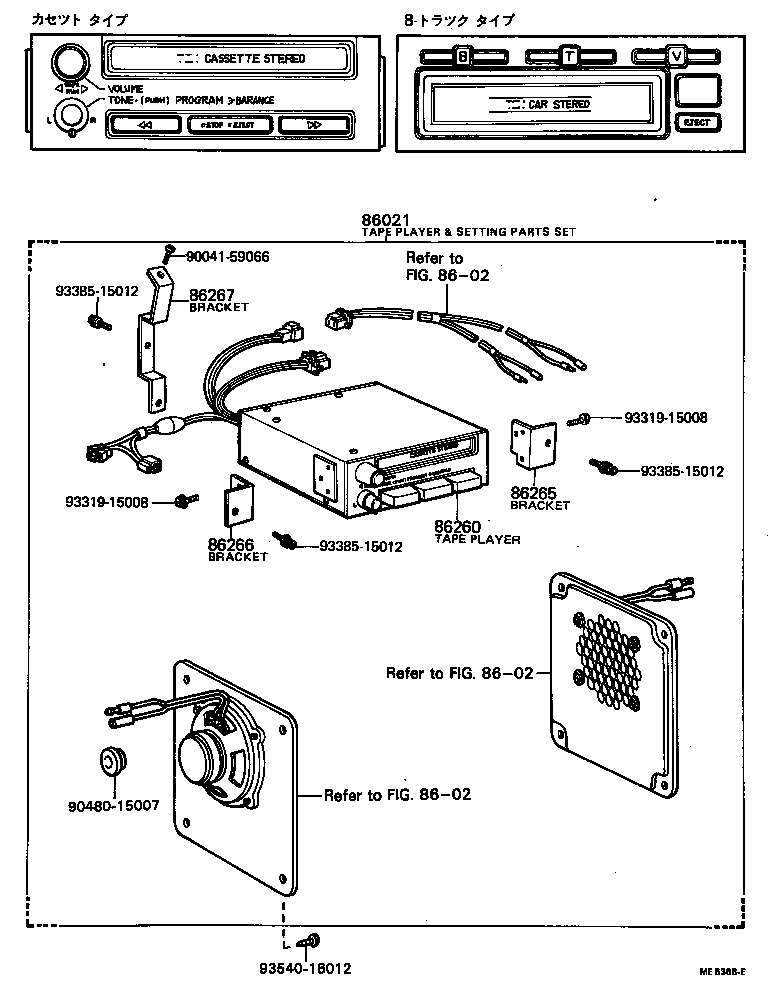

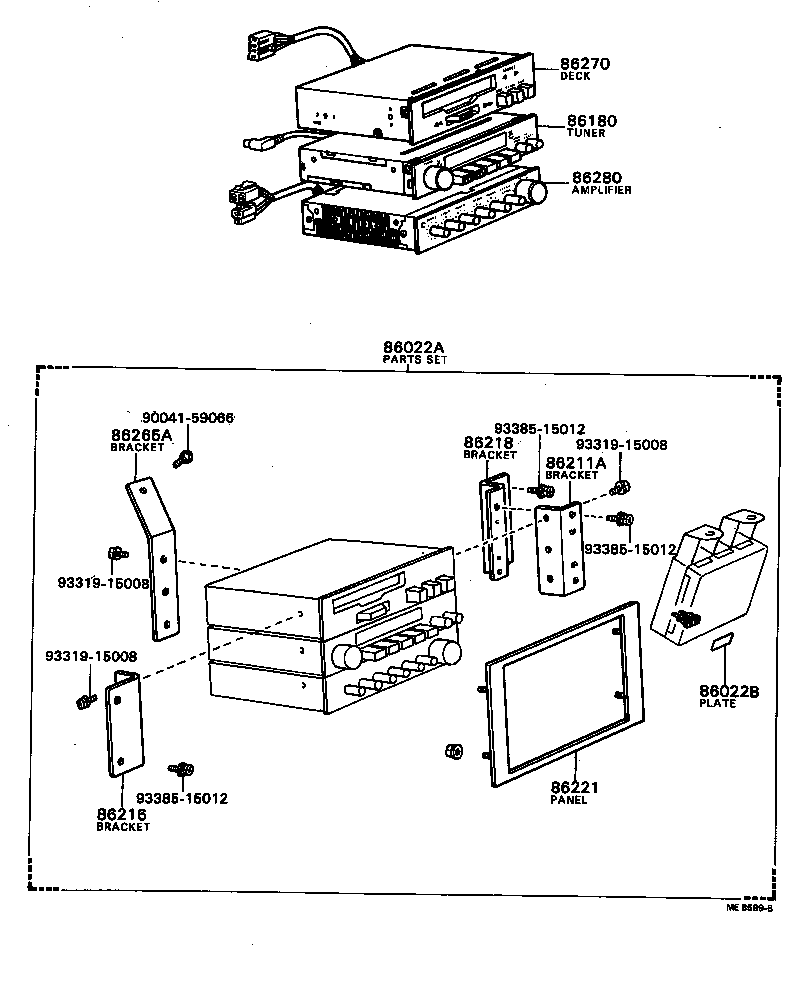

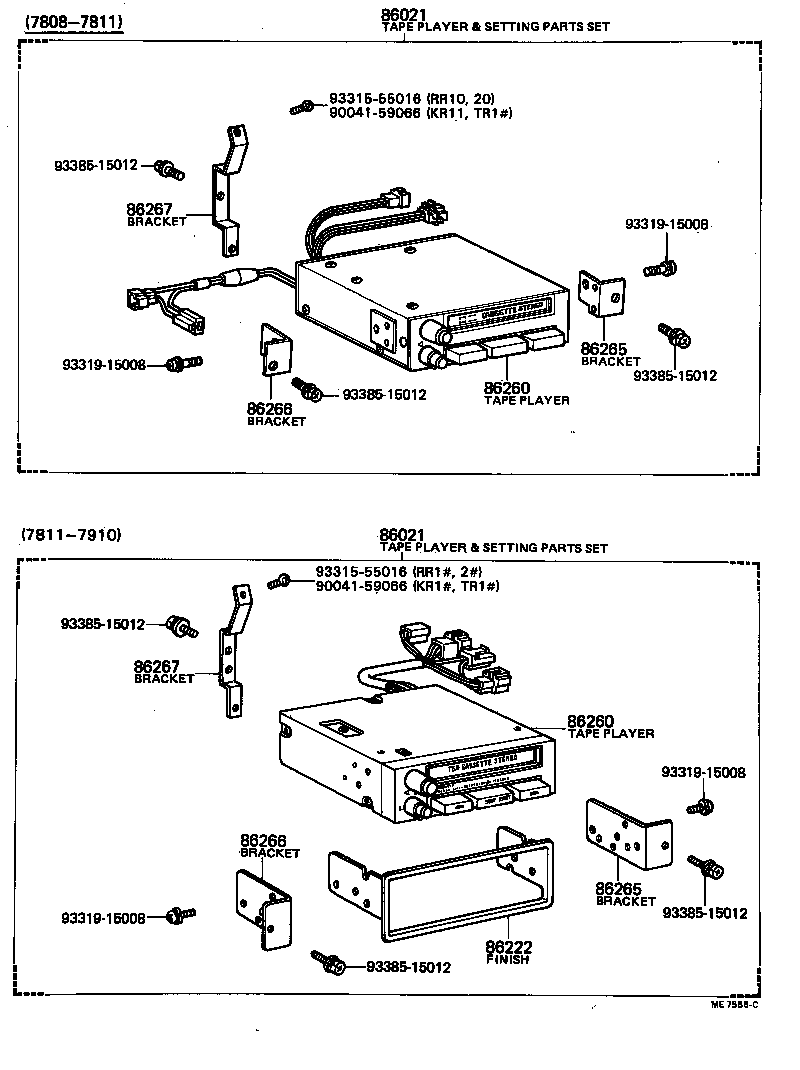

Figure ME5367G ME5367G 1976-10 → — Figure MEA286A MEA286A 1981-01 → — Figure ME5368E ME5368E 1976-10 → 1978-08 Figure ME7556C ME7556C 1978-08 → 1979-10 Figure MEA287A MEA287A 1979-10 → — Figure ME8589B ME8589B 1979-10 → —

Part groups

PNCDescription
86011 Radio & Setting Parts Set
86011A Condenser, Radio Setting
86021 Tape Player And Setting Parts Set
86022A Parts Set, Stereo Component Setting
86022B Plate, Caution
86120 Receiver Assy, Radio
86124 Knob, Radio Receiver Control
86125 Knob, Radio Receiver Switch
86180 Tuner Assy, Stereo Component
86211 Bracket, Radio, NO.1
86211A Bracket, Stereo Component, NO.1
86212 Bracket, Radio, NO.2
86213 Bracket, Radio, NO.3
86216 Bracket, Stereo Component, NO.2
86218 Bracket, Stereo Component, NO.3
86221 Panel, Stereo Component
86222 Finish, Tape Player
86260 Tape Player Assy
86265 Bracket, Tape Player, NO.1
86265A Bracket, Stereo Component, NO.4
86266 Bracket, Tape Player, NO.2
86267 Bracket, Tape Player, NO.3
86270 Deck Assy, Stereo Component
86280 Amplifier Assy, Stereo Component
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
