Toyota Town/Masterace V,WG

1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

16 part groups · 3 illustrations

Illustrations

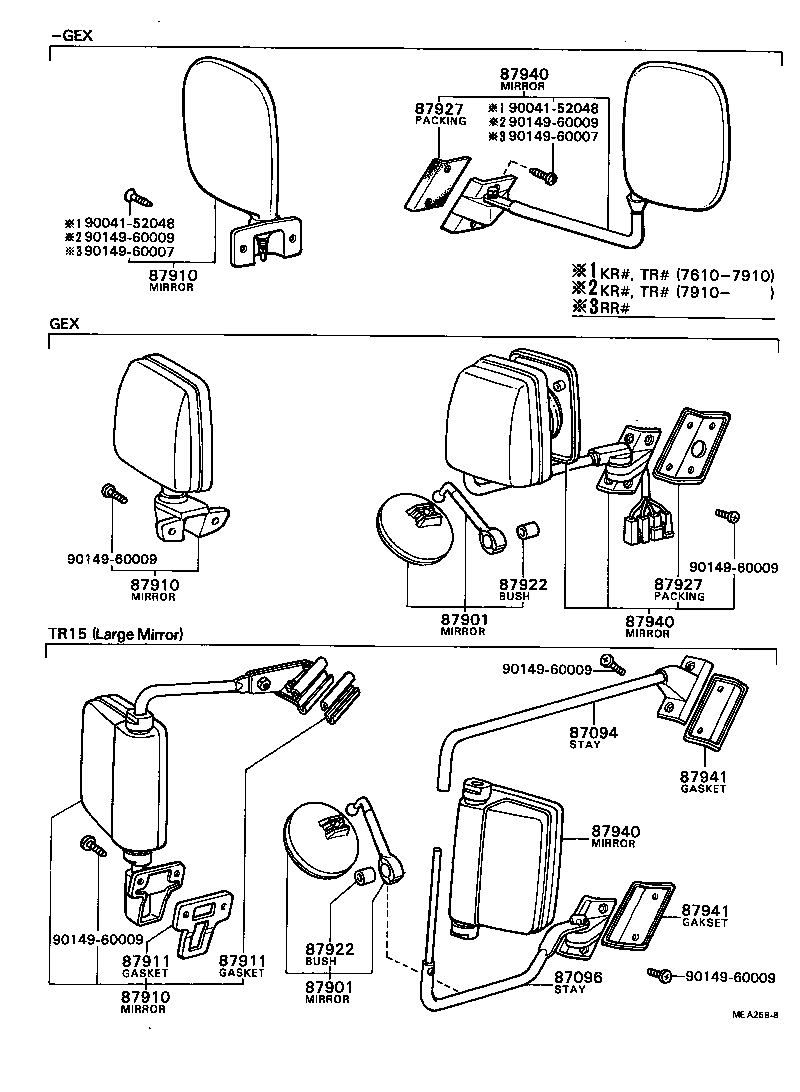

Figure ME5370F ME5370F 1976-10 → — Figure MEA258B MEA258B 1976-10 → — Figure MEA257B MEA257B 1981-01 → —

Part groups

PNCDescription
87094 Stay Sub-assy, Outer Rear View Mirror, Upper LH
87096 Stay Sub-assy, Outer Rear View Mirror, Lower LH
87810 Mirror Assy, Inner Rear View
87810B Bulb, Inner Rear View Mirror Lamp
87827 Absorber, Inner Rear View Mirror
87831 Spacer (FOR INSIDE MIRROR)
87834 Cover, Inner Rear View Mirror Stay Holder
87901 Mirror Sub-assy, Outer Under View
87910 Mirror Assy, Outer Rear View, RH
87911 Gasket, Outer Rear View Mirror, RH
87922 Bush, Rear View Mirror Support
87927 Packing, Rear View Outside Mirror Stay
87934 Packing, Outer Under View Mirror, Upper
87940 Mirror Assy, Outer Rear View, LH
87941 Gasket, Outer Rear View Mirror, LH
87950 Mirror Assy, Outer Under Rear View
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
