Toyota Town/Masterace V,WG
1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan
Discontinued model
Data version 1983-03

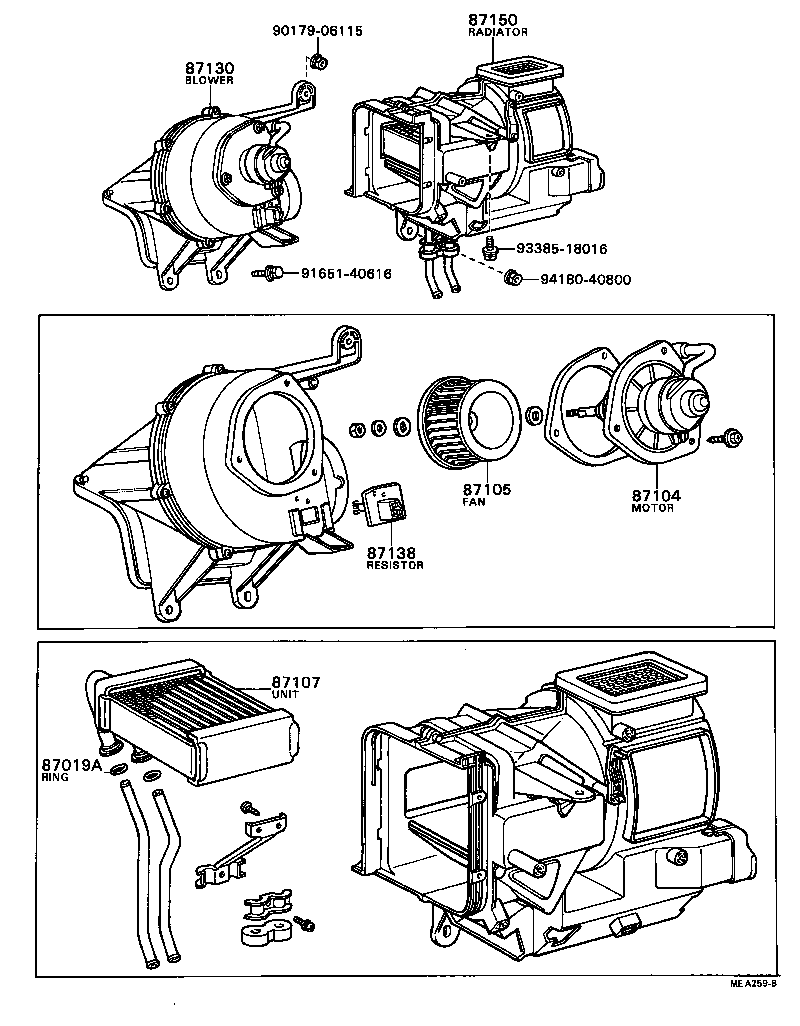

Heating & Air Conditioning - Heater Unit & Blower
21 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 87019A | Attachment, Heater |
| 87104 | Motor Sub-assy, Heater Blower |
| 87104R | Motor Sub-assy, Rear Heater Blower |
| 87105 | Fan Sub-assy, Heater Blower |
| 87105R | Fan Sub-assy, Rear Heater Blower |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87107R | Unit Sub-assy, Rear Heater |
| 87110 | Heater Assy |

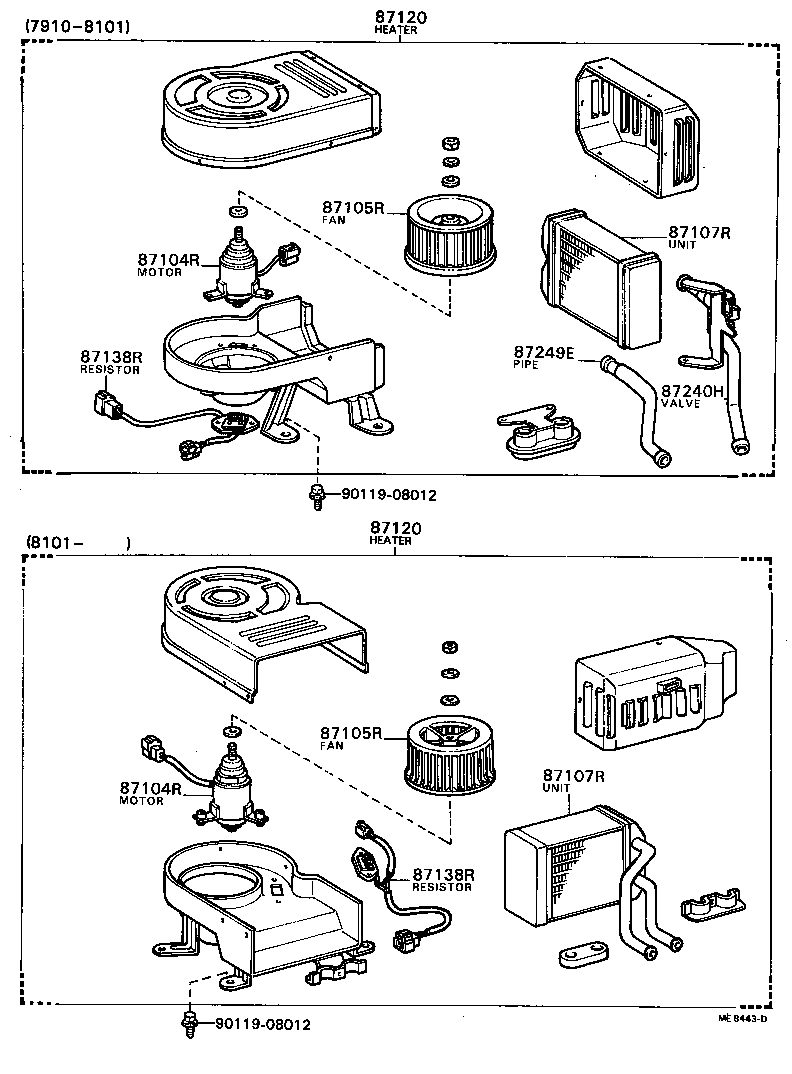

| 87120 | Heater Assy, Rear |
| 87123 | Knob, Heater |
| 87130 | Blower Assy, Heater, Front |
| 87138 | Resistor, Heater Blower |
| 87138R | Resistor, Rear Heater Blower |
| 87150 | Radiator Assy, Heater |
| 87173 | Protector, Water Valve, Heater |
| 87188 | Packing, Heater Blower Motor |
| 87240H | Valve Assy, Water Unit |
| 87245F | Hose, Heater Water, Inlet F |
| 87246F | Hose, Heater Water, Outlet F |
| 87249E | Pipe, Heater Water Outlet, E (FOR HEATER UNIT) |
| 87291 | Stay, Heater |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
