Toyota Town/Masterace V,WG

1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

50 part groups · 7 illustrations

Illustrations

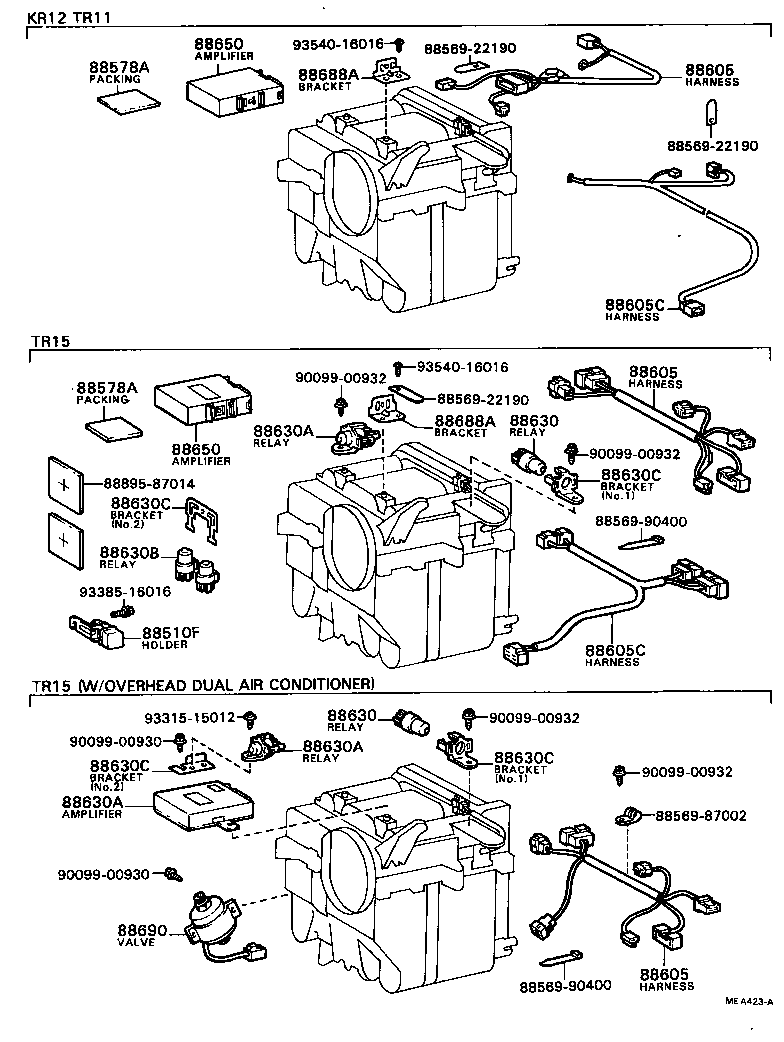

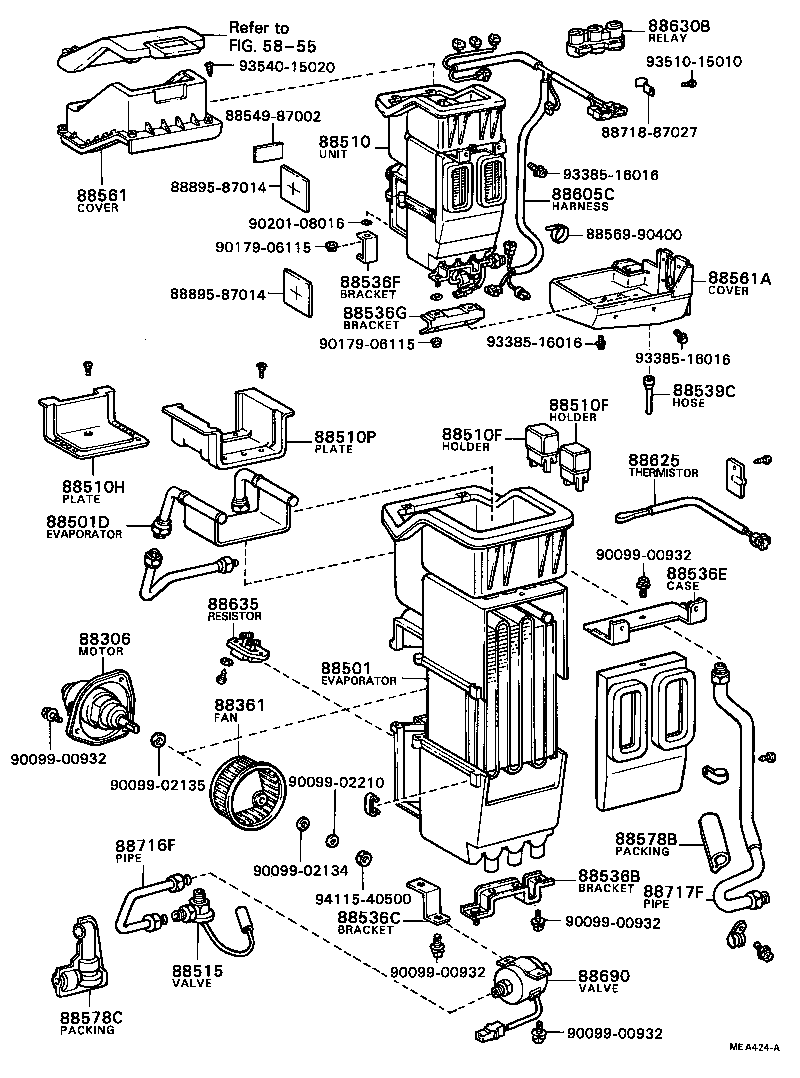

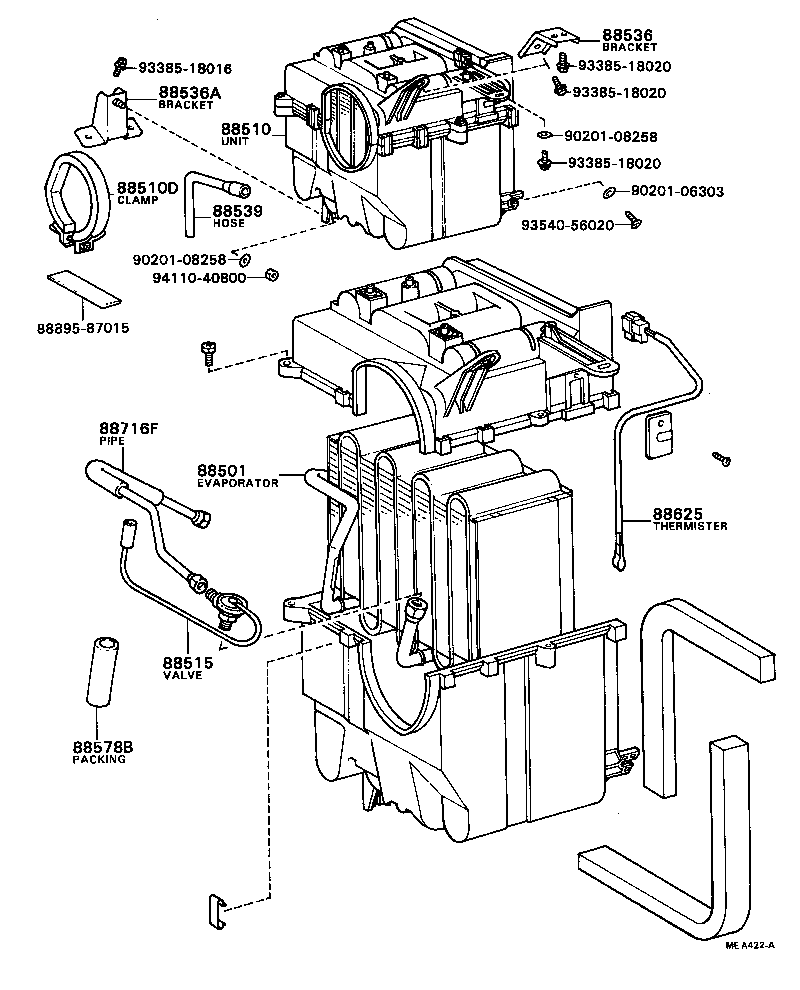

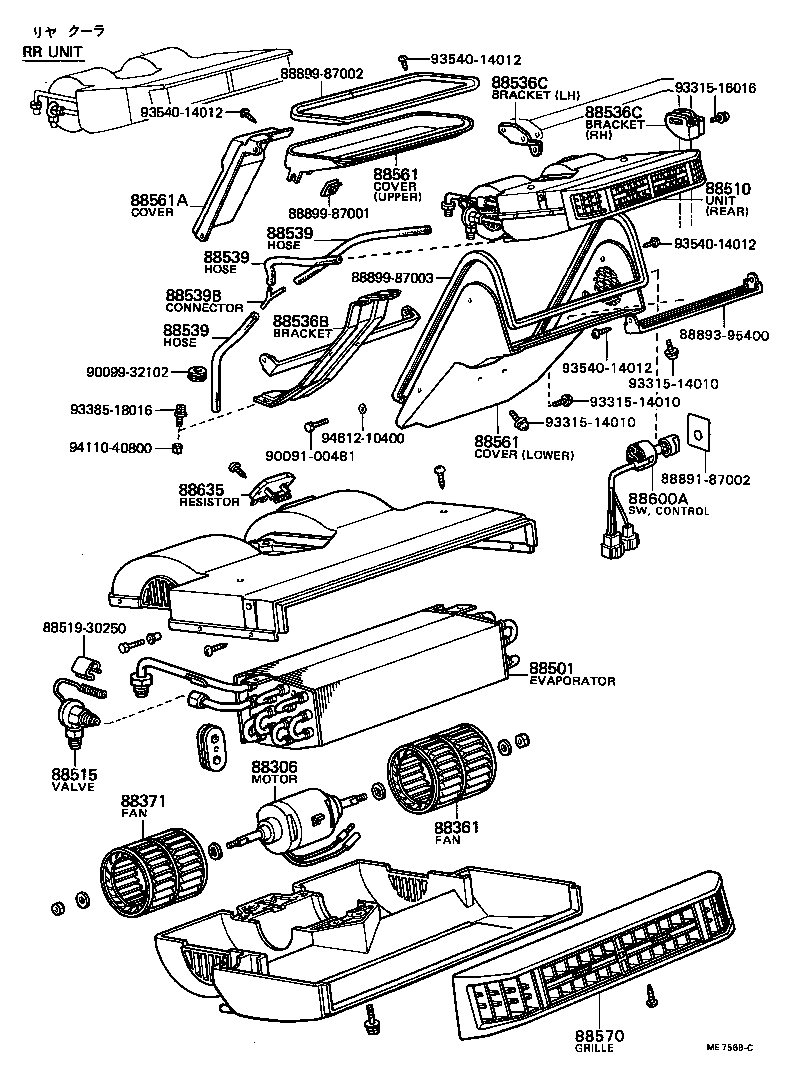

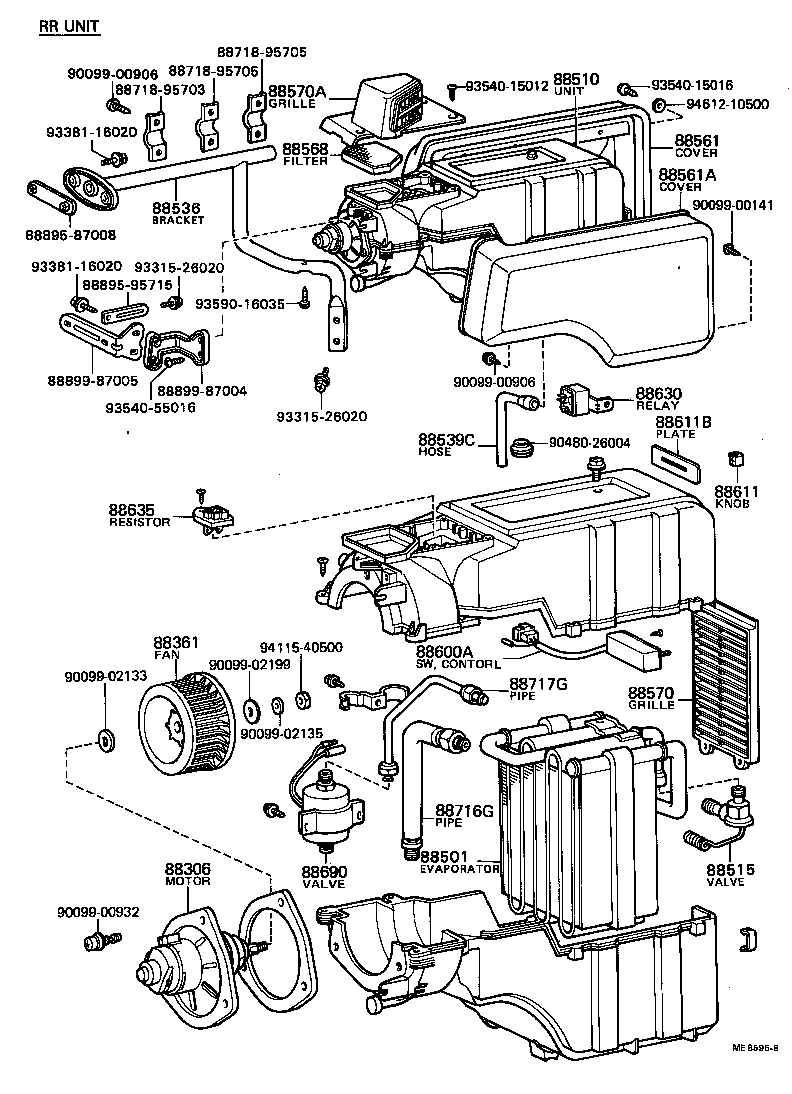

Figure ME6728F ME6728F 1976-10 → 1981-01 Figure ME6728F ME6728F 1981-01 → — Figure MEA422A MEA422A 1981-01 → — Figure MEA423A MEA423A 1981-01 → — Figure ME7568C ME7568C 1978-08 → 1979-10 Figure ME8595B ME8595B 1979-10 → 1981-01 Figure MEA424A MEA424A 1981-01 → —

Part groups

PNCDescription
88306 Motor Sub-assy, Cooler Blower, NO.1
88361 Fan, Cooler Blower, NO.1
88371 Fan, Cooler Blower, NO.2
88501 Evaporator Sub-assy, Cooler, NO.1
88501D Evaporator Sub-assy, Cooler, NO.2
88510 Unit Assy, Cooler
88510D Clamp, Cooler Unit
88510F Holder, Fuse
88510H Plate, Cooler Unit, NO.1
88510P Plate, Cooler Unit, NO.2
88515 Valve, Cooler Expansion
88536 Bracket, Cooling Unit, NO.1
88536A Bracket, Cooling Unit, NO.2
88536B Bracket, Cooling Unit, NO.3
88536C Bracket, Cooling Unit, NO.4
88536E Bracket, Cooling Unit, NO.5
88536F Bracket, Cooling Unit, NO.6
88536G Bracket, Cooling Unit, NO.7
88539 Hose, Cooler Unit Drain, NO.1
88539B Connector, Cooler Drain Hose
88539C Hose, Cooler Unit Drain, NO.2
88561 Cover, Cooler Unit
88561A Cover, Cooler Unit, A
88568 Filter, Cooler Unit Cover
88570 Grille Sub-assy, Cooler Air Outlet
88570A Grille Assy, Air Outlet
88571 Grille, Air Outlet
88578A Packing, Cooler Stabilizer Amplifier
88578B Packing, Cooling Unit, NO.1
88578C Packing, Cooling Unit, NO.2
88600 Control Assy, Air Conditioner
88600A Switch Assy, Air Conditioner Control
88601F Bracket, Cooler Control Switch
88605 Harness Sub-assy, Cooler Wiring, NO.1
88605C Harness Sub-assy, Cooler Wiring, NO.2
88611 Knob, Cooler Control Switch
88611B Plate, Cooler Control Switch
88625 Thermistor, Cooler, NO.1
88630 Relay Assy, Cooler
88630A Relay Assy, Cooler
88630B Relay Assy, Cooler
88630C Bracket, Cooler Relay
88635 Resistor, Cooler Unit Blower
88650 Amplifier Assy, Cooler Stabilizer
88688A Bracket, Cooler Stabilizer Amplifier
88690 Valve Assy, Cooler Magnet
88716F Pipe, Cooler Refrigerant Liquid, F
88716G Pipe, Cooler Refrigerant Liquid, G
88717F Pipe, Cooler Refrigerant Suction, F
88717G Pipe, Cooler Refrigerant Suction, G
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
