Toyota Town/Masterace V,WG

1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

24 part groups · 9 illustrations

Illustrations

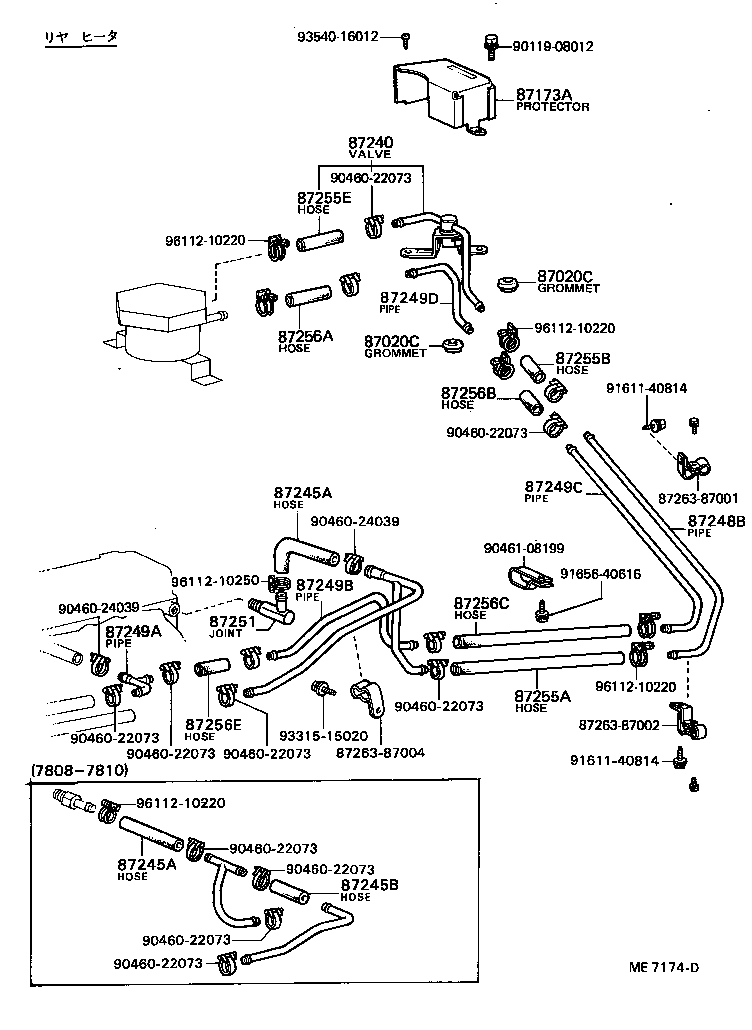

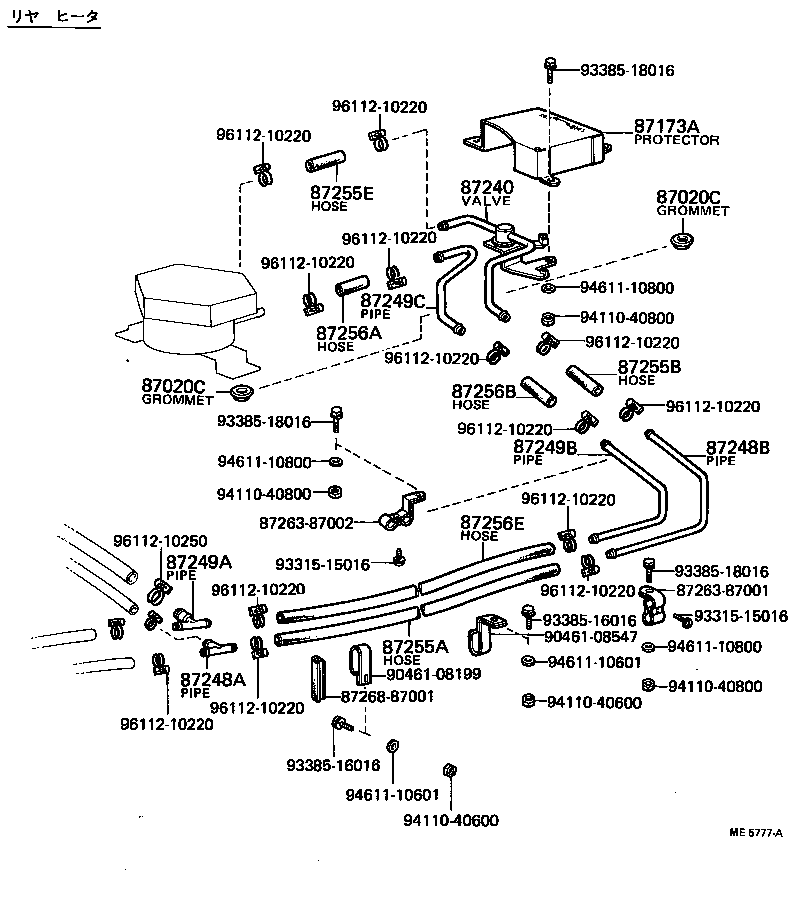

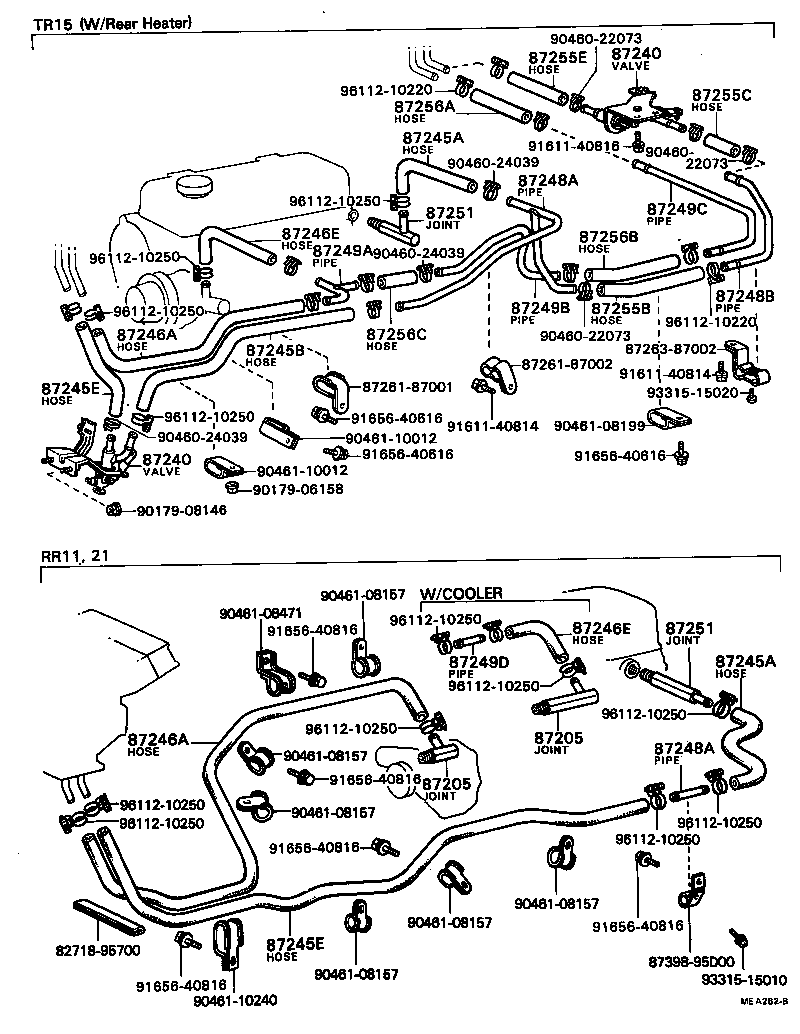

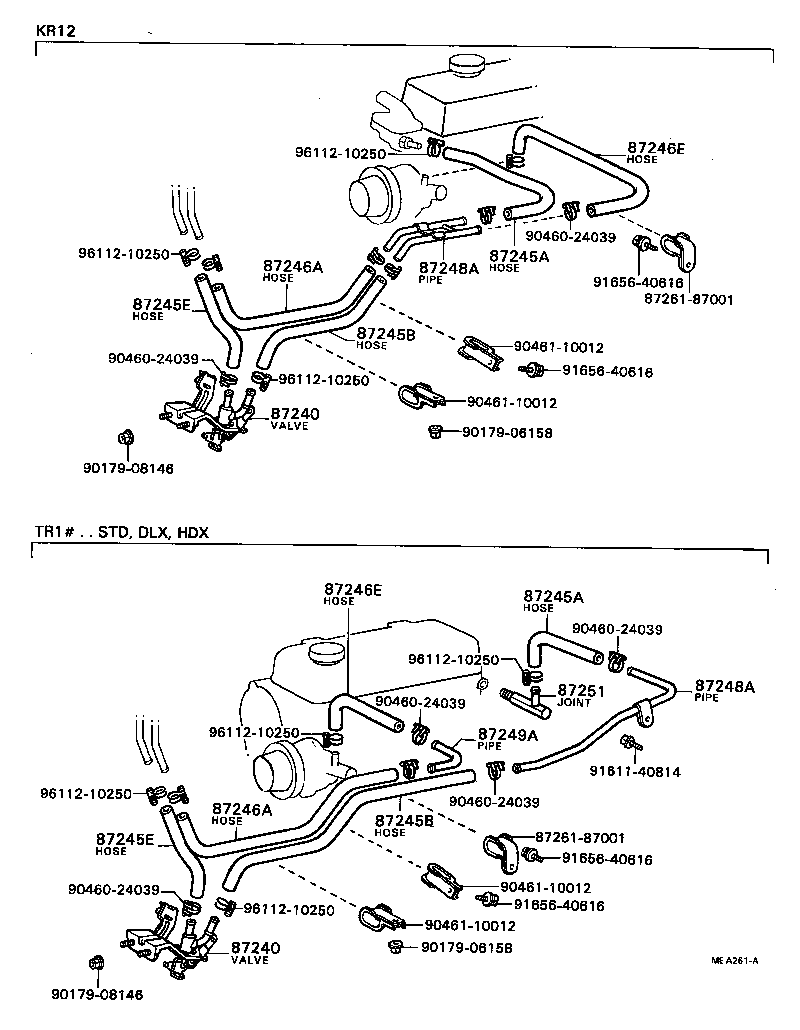

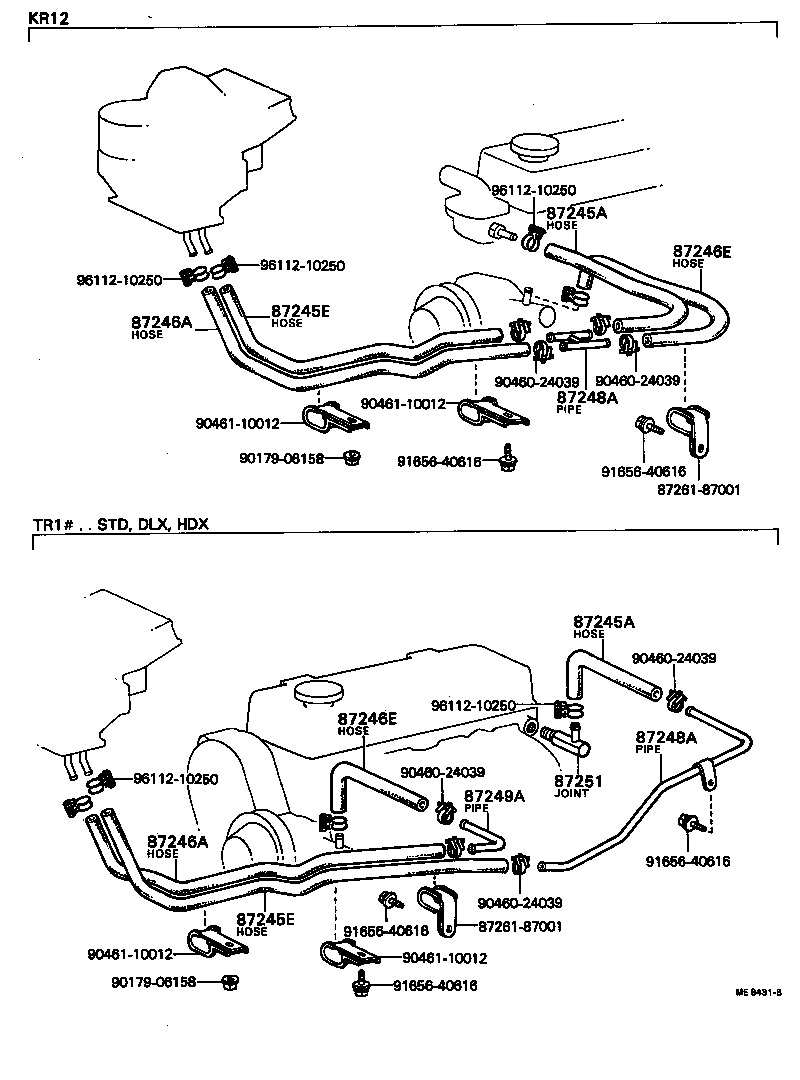

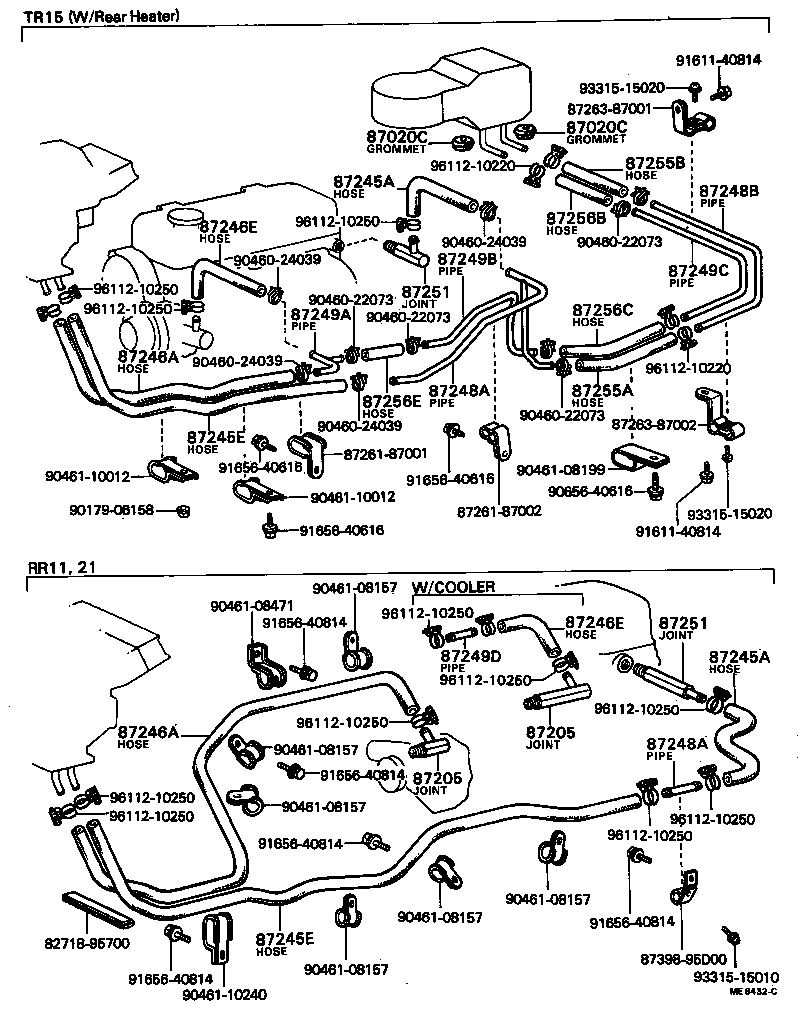

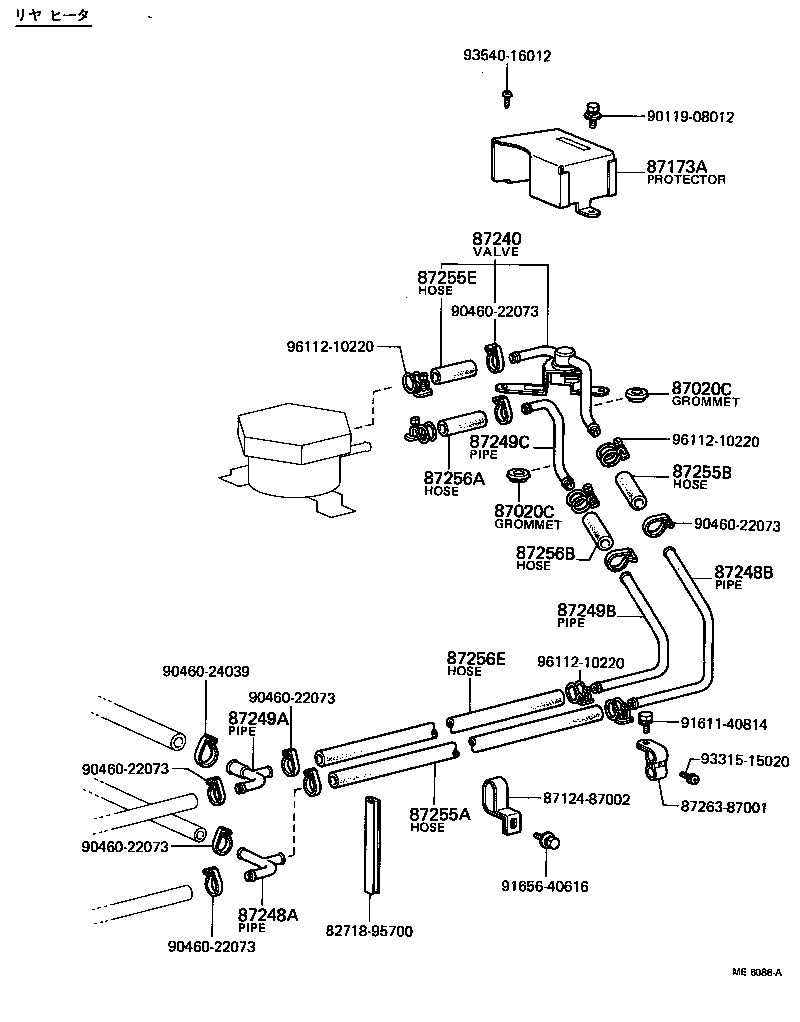

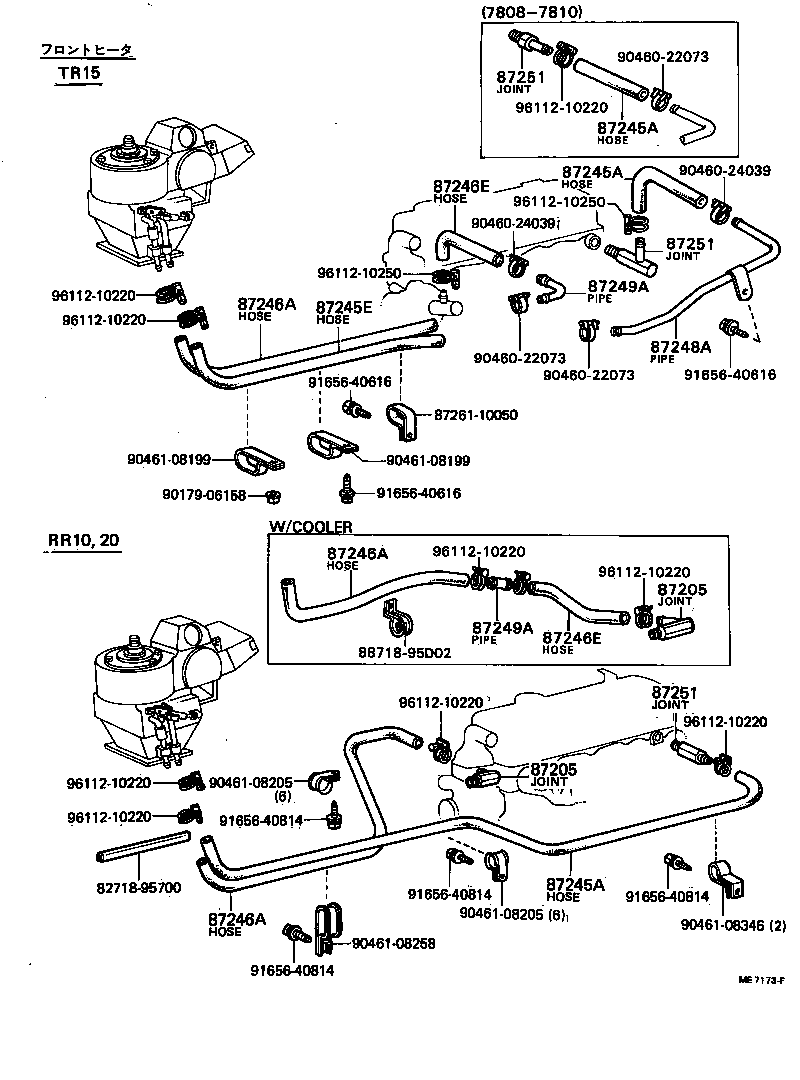

Figure ME5373C ME5373C 1976-10 → 1979-10 Figure ME7173F ME7173F 1976-10 → 1979-10 Figure ME5777A ME5777A 1976-10 → 1977-01 Figure ME6086A ME6086A 1977-01 → 1978-08 Figure ME7174D ME7174D 1978-08 → 1979-10 Figure ME8431B ME8431B 1979-10 → 1981-01 Figure ME8432C ME8432C 1979-10 → 1981-01 Figure MEA261A MEA261A 1981-01 → — Figure MEA262B MEA262B 1981-01 → —

Part groups

PNCDescription
87020C Grommet, Rear Heater Water Hose
87173A Protector, Water Valve
87205 Joint OR Union, Front Heater Hose Through OR Inlet Valve
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87246E Hose, Heater Water, Outlet E
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87249C Pipe, Heater Water Outlet, C
87249D Pipe, Heater Water Outlet, D
87251 Joint OR Union, Water Hose Through
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87255B Hose, Rear Heater Water Inlet, B
87255C Hose, Rear Heater Water Inlet, C
87255E Hose, Rear Heater Water Inlet, E(TO HEATER UNIT)
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256B Hose, Rear Heater Water Outlet, B
87256C Hose, Rear Heater Water Outlet, C
87256E Hose, Rear Heater Water Outlet, E (TO ENGINE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
