Toyota Town/Masterace V,WG
1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan
Discontinued model
Data version 1983-03

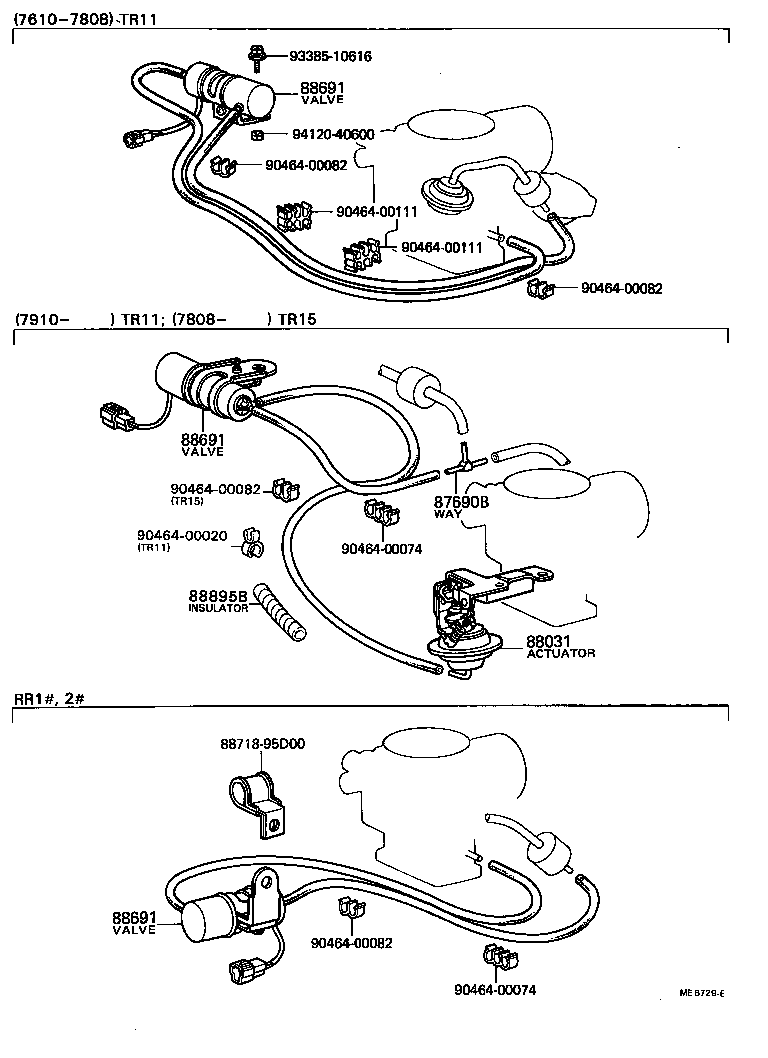

Heating & Air Conditioning - Vacuum Piping
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87690B | Way, 3 |
| 87690C | Filter Assy, Gas |
| 88031 | Actuator Set, Idle-up |
| 88031N | Bracket, Idle-up Actuator |
| 88691 | Valve, Magnet (FOR IDLE UP DEVICE) |
| 88895B | Insulator, Hose (FOR IDLE UP DEVICE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
