Toyota Town/Masterace V,WG

1976-10 → 1982-10 · chassis KR1#,RR1#,2#,TR1# · catalogue 651110 · Japan

Discontinued model Data version 1983-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

50 part groups · 8 illustrations

Illustrations

ME6730C 1976-10 → 1981-01

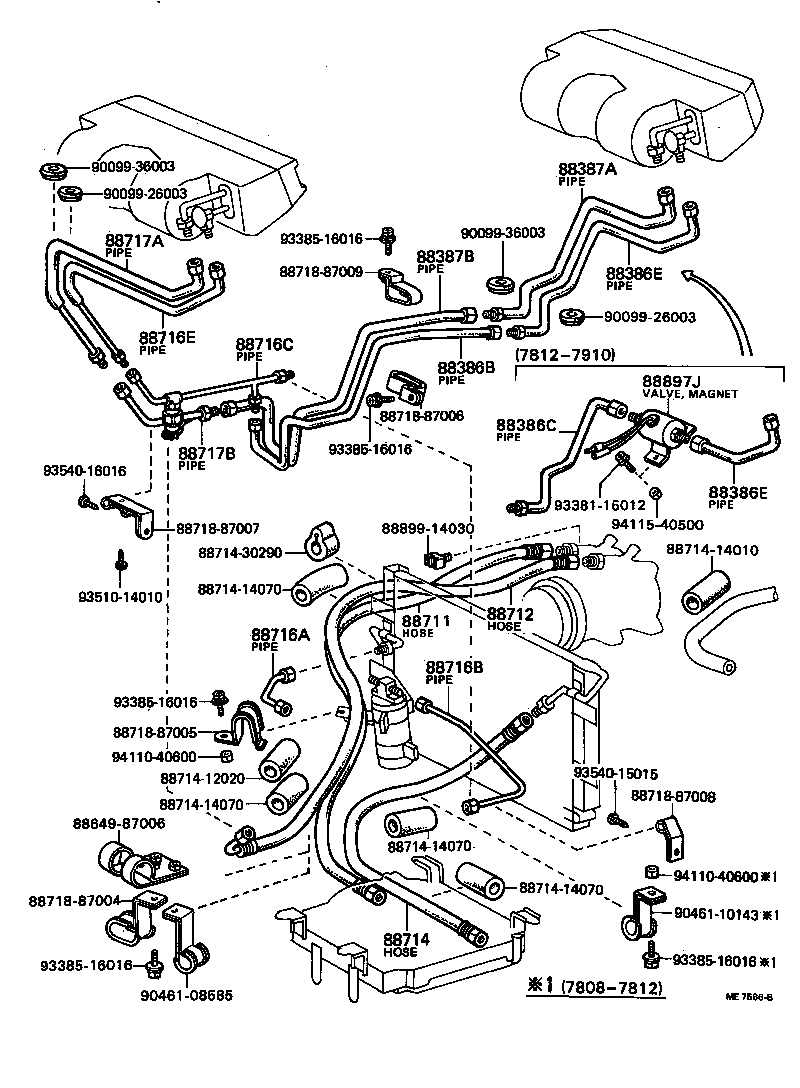

ME7566B 1978-08 → 1981-01

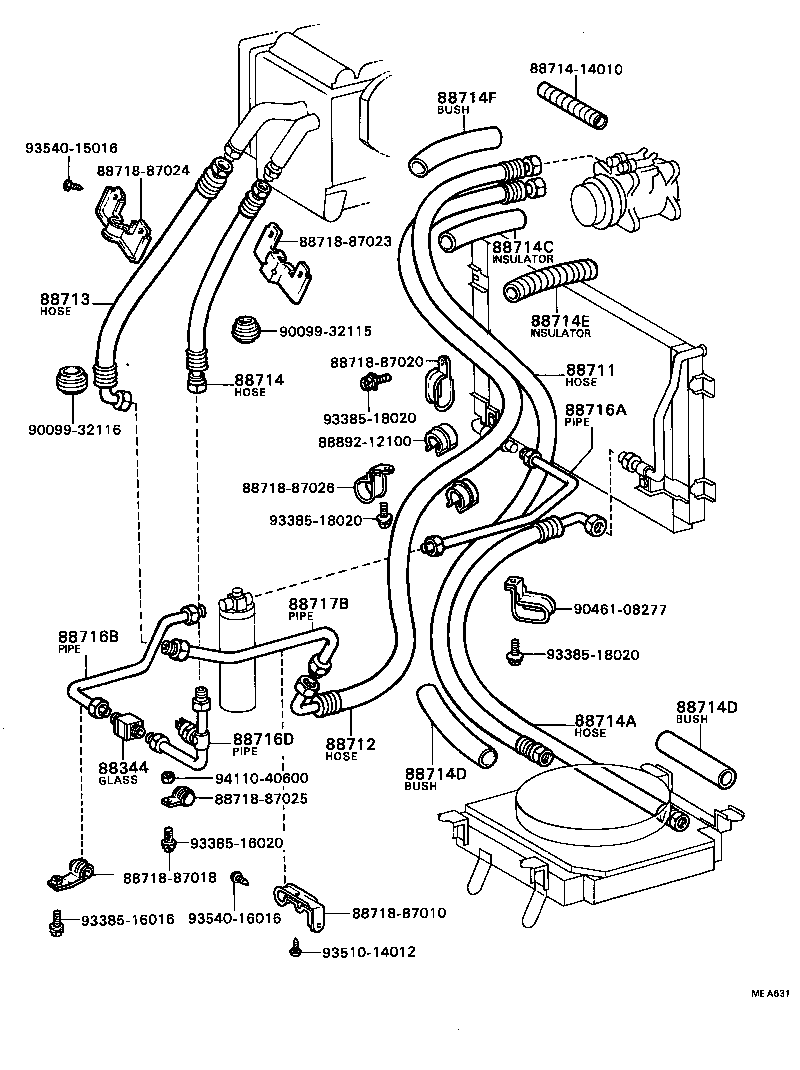

MEA631 1981-08 → —

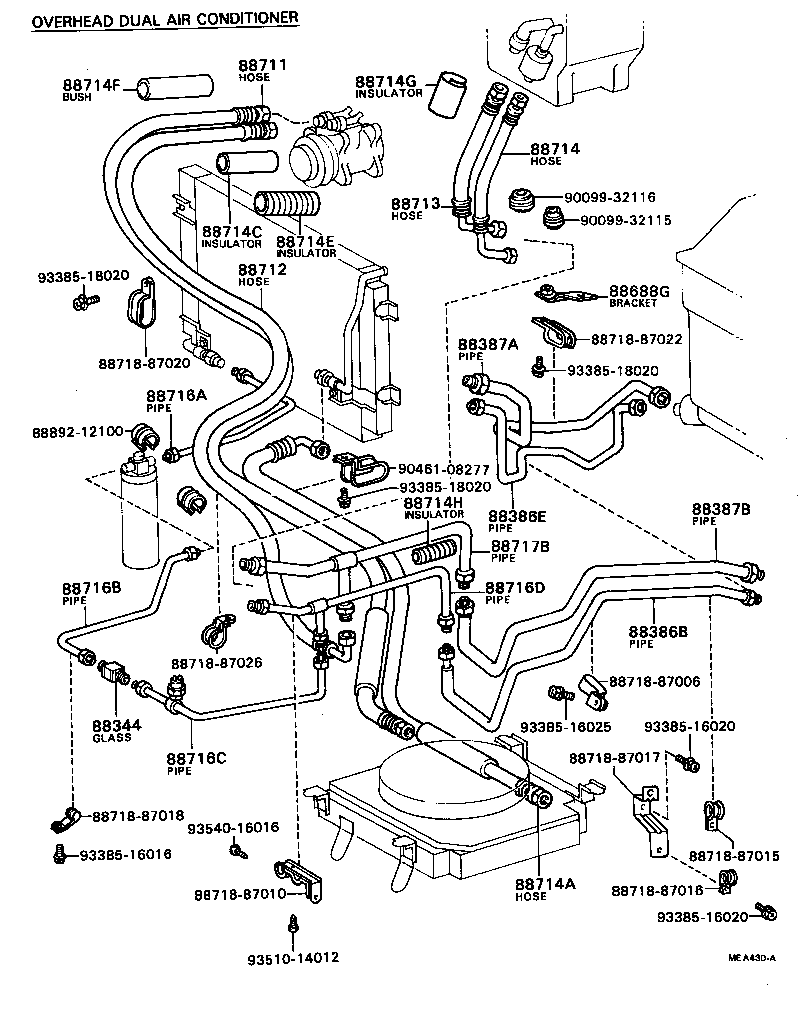

MEA430A 1981-01 → —

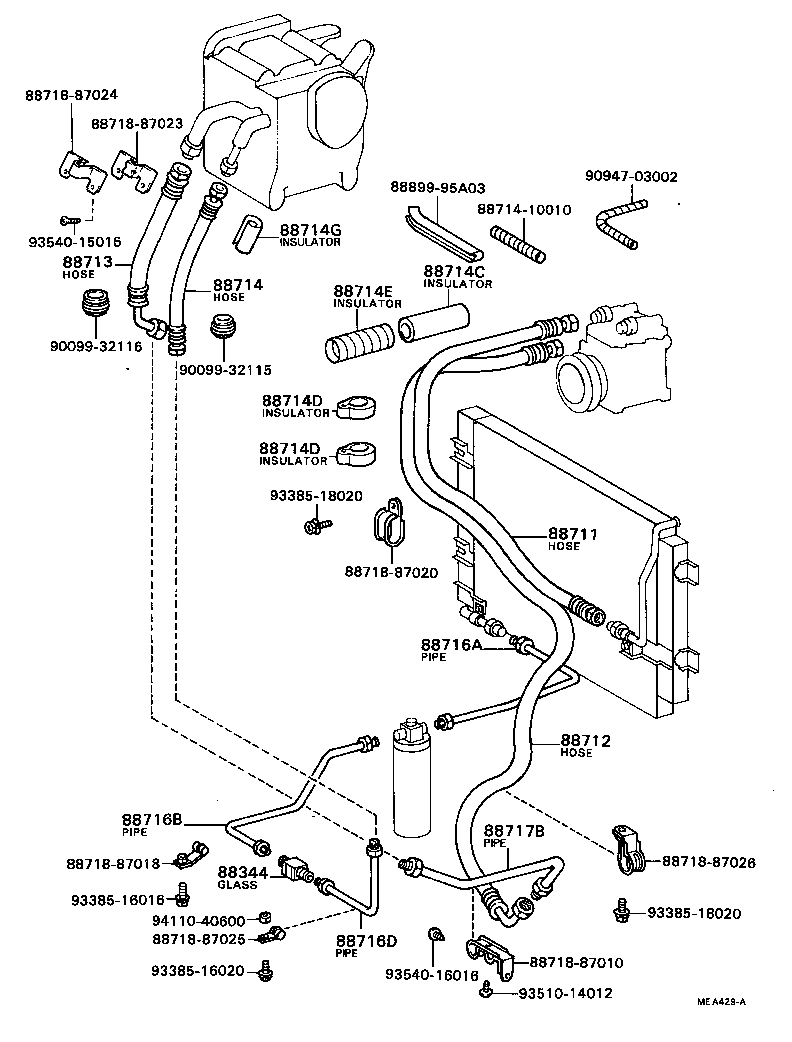

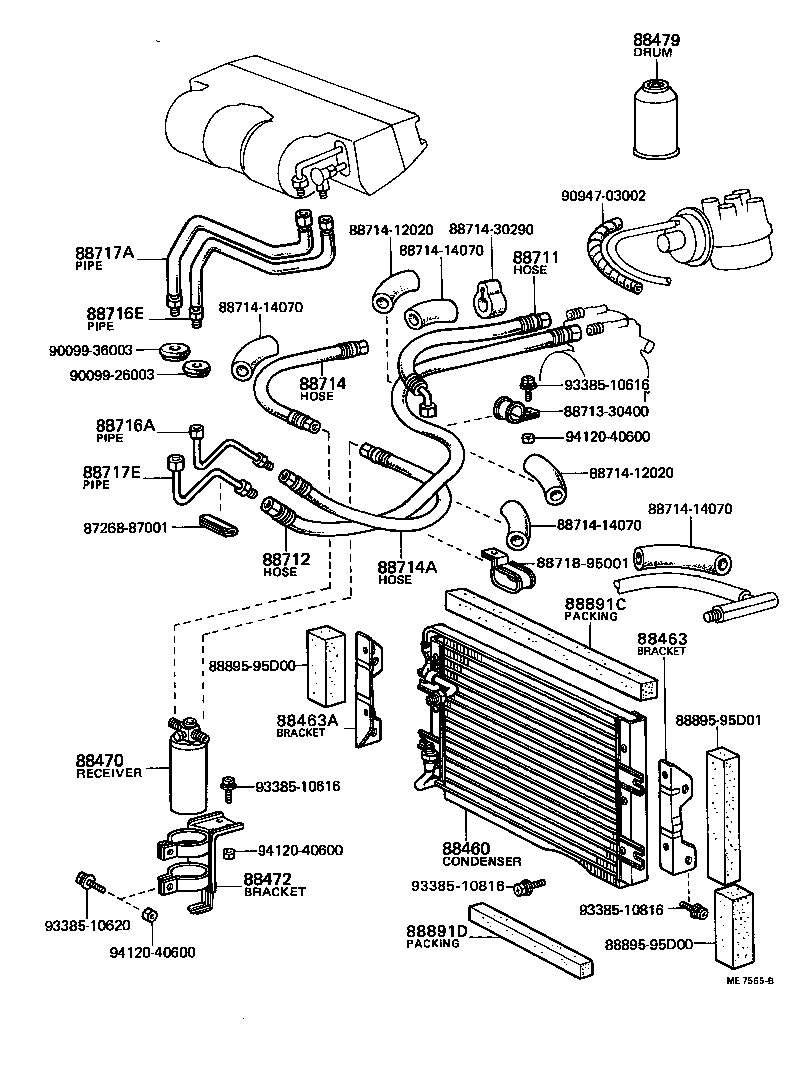

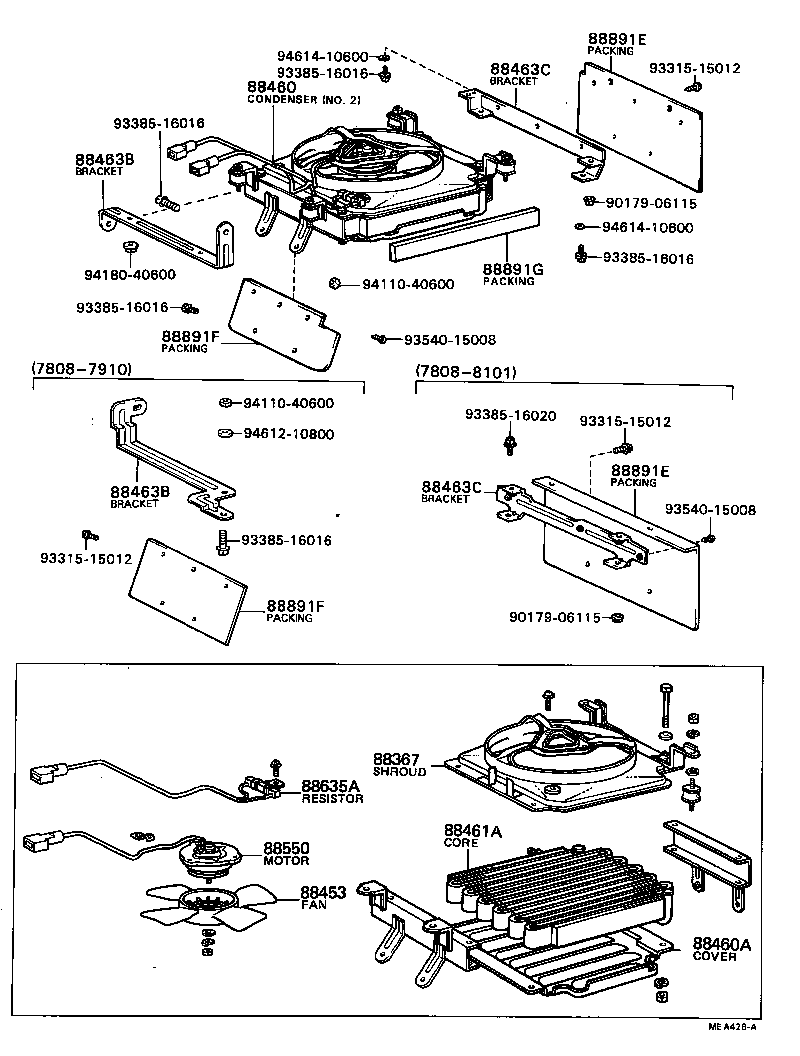

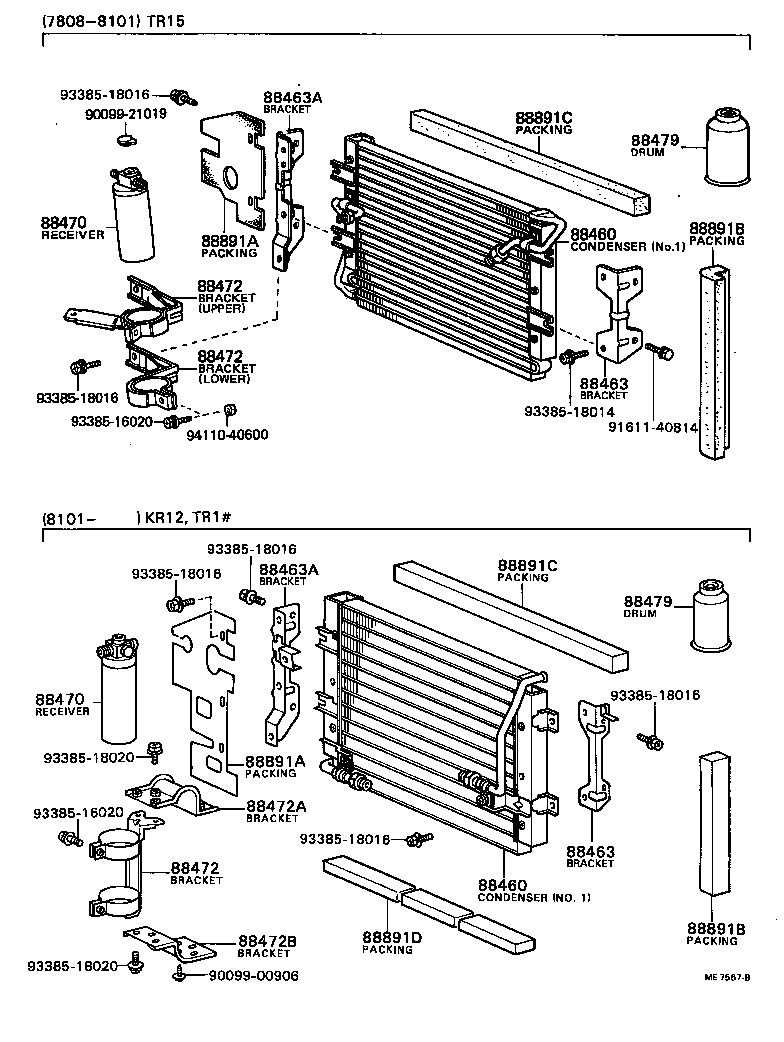

Part groups

PNC	Description
88344	Glass Sub-assy, Sight
88367	Shroud, Cooler Blower Fan
88386B	Pipe, Rear Cooler Refrigerant Liquid, B
88386C	Pipe, Rear Cooler Refrigerant Liquid, C
88386E	Pipe, Rear Cooler Refrigerant Liquid, E (TO COOLER UNIT)
88387A	Pipe, RR Cooler Refrigerant Suction, A (FROM COOLER UNIT)
88387B	Pipe, Rear Cooler Refrigerant Suction, B
88453	Fan, Cooling (FOR CONDENSER)
88460	Condenser Assy, Cooler
88460A	Cover, Cooler Condenser
88461A	Core, Cooler Condenser
88463	Bracket, Cooler Condenser, NO.1
88463A	Bracket, Cooler Condenser, NO.2
88463B	Bracket, Cooler Condenser, NO.3
88463C	Bracket, Cooler Condenser, NO.4
88470	Receiver & Dryer Assy, Cooler
88472	Bracket, Receiver Tank, NO.1
88472A	Bracket, Receiver Tank, NO.2
88472B	Bracket, Receiver Tank, NO.3
88479	Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88550	Motor Assy, Blower (FOR CONDENSER)
88635A	Resistor, Blower (FOR COOLER CONDENSER MOTOR)
88688G	Bracket, Cooler Refrigerant Pipe
88711	Hose, Cooler Refrigerant Discharge, NO.1
88712	Hose, Cooler Refrigerant Suction, NO.1
88713	Hose, Cooler Refrigerant Suction, NO.2
88714	Hose, Cooler Refrigerant Liquid, NO.1
88714A	Hose, Cooler Refrigerant Liquid, NO.2
88714C	Insulator, Cooler Refrigerant Hose, NO.1
88714D	Insulator, Cooler Refrigerant Hose, NO.2
88714E	Insulator, Cooler Refrigerant Hose, NO.3
88714F	Insulator, Cooler Refrigerant Hose, NO.4
88714G	Insulator, Cooler Refrigerant Pipe, NO.1
88714H	Insulator, Cooler Refrigerant Pipe, NO.2
88716A	Pipe, Cooler Refrigerant Liquid, A
88716B	Pipe, Cooler Refrigerant Liquid, B
88716C	Pipe, Cooler Refrigerant Liquid, C
88716D	Pipe, Cooler Refrigerant Liquid, D
88716E	Pipe, Cooler Refrigerant Liquid, E
88717A	Pipe, Cooler Refrigerant Suction, A
88717B	Pipe, Cooler Refrigerant Suction, B
88717E	Pipe, Cooler Refrigerant Suction, E
88891A	Packing A (FOR COOLER)
88891B	Packing B (FOR COOLER)
88891C	Packing C (FOR COOLER)
88891D	Packing D (FOR COOLER)
88891E	Packing E (FOR COOLER)
88891F	Packing F (FOR COOLER)
88891G	Packing G (FOR COOLER)
88897J	Valve, Cooler Magnet

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
