Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

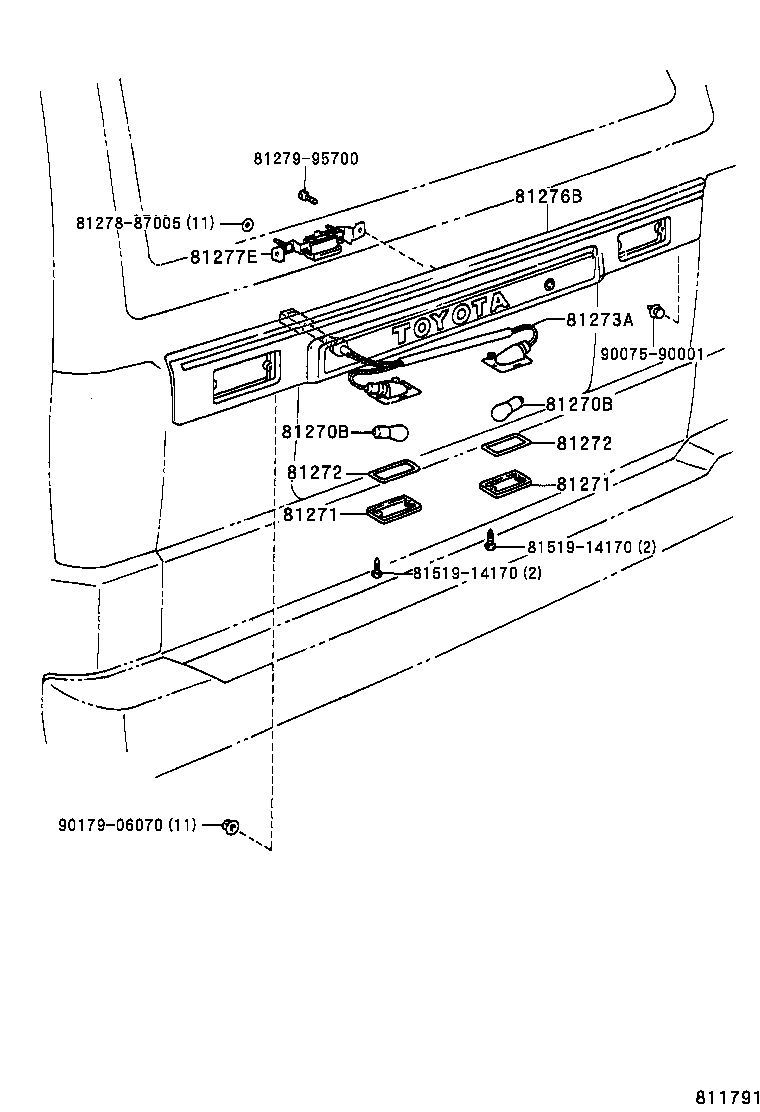

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81270B — Bulb (FOR LICENSE PLATE LAMP) | ||||
| 99132-11075 note |
Bulb (FOR LICENSE PLATE LAMP)
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥160 | |
| 81271 — Lens, License Plate Lamp | ||||
| 81271-87004 |
Lens, License Plate Lamp
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥620 | |
| 81272 — Gasket, License Plate Lamp Lens | ||||
| 81272-87004 |
Gasket, License Plate Lamp Lens
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥240 | |
| 81273A — Body, License Plate Lamp | ||||
| 81273-87010 |
Body, License Plate Lamp
1985-08 → 1988-08
ended
|
YR20 MRF 08S;YR20 HRF +5 | ¥1,970 | |
| 81276B — Cover, License Plate Lamp | ||||
| 81276-87011 |
Cover, License Plate Lamp
1985-08 → 1988-08
ended
|
YR20 MRF 08S;YR20 HRF +5 | ¥14,700 | |
| 81277E — Handle, License Plate Lamp | ||||
| 81277-87010 |
Handle, License Plate Lamp
1985-08 → 1988-08
ended
|
YR20 MRF 08S;YR20 HRF +5 | ¥3,830 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
