Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

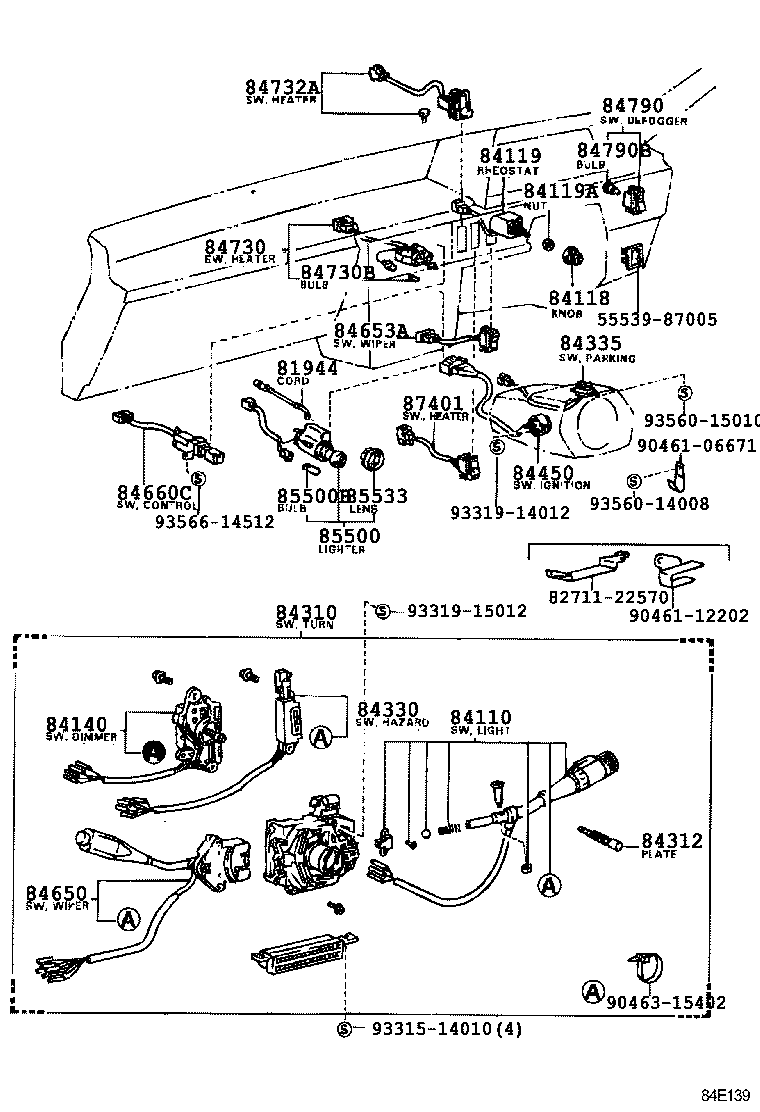

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81944 — Cord, Optical Fiber | ||||
| 81944-30010 |
Cord, Optical Fiber
1982-11 → 1988-08
ended
|
CR21,30,YR20,21,30 E,Q,X | ¥1,200 | |
| 84110 — Switch Assy, Light Control, NO.1 | ||||
| 84112-29305 |
Switch Assy, Light Control, NO.1
1982-11 → 1987-08
ended
|
CR2#,KR26,YR2#,3# B,D,E,G,N,R | ¥5,300 | |
| 84112-29305 |
Switch Assy, Light Control, NO.1
1987-08 → 1988-08
ended
|
CR26,27,KR26,YR26 | ¥5,300 | |
| 84112-29305 |
Switch Assy, Light Control, NO.1
1985-10 → 1988-08
ended
|
CR36 D | ¥5,300 | |
| 84112-29315 note |
Switch Assy, Light Control, NO.1
1982-11 → 1985-08
ended
|
CR26 N;CR21,27,YR2# 4FC,5F | ¥5,300 | |
| 84112-29315 note |
Switch Assy, Light Control, NO.1
1987-08 → 1988-08
ended
|
YR26 N | ¥5,300 | |
| 84112-29315 note |
Switch Assy, Light Control, NO.1
1985-08 → 1987-08
ended
|
CR21,28,30 | ¥5,300 | |
| 84112-29315 note |
Switch Assy, Light Control, NO.1
1985-08 → 1988-08
ended
|
CR26,27,36 N | ¥5,300 | |
| 84112-29315 note |
Switch Assy, Light Control, NO.1
1985-08 → 1986-08
ended
|
YR28 05S | ¥5,300 | |
| 84112-29315 note |
Switch Assy, Light Control, NO.1
1985-08 → 1987-08
ended
|
YR20 MRF 08S;YR20 HRF +5 | ¥5,300 | |
| 84112-39395 |
Switch Assy, Light Control, NO.1
1987-08 → 1988-08
ended
|
CR21,28,37,YR28 B,D,G | ¥5,200 | |
| 84112-39405 note |
Switch Assy, Light Control, NO.1
1987-08 → 1988-08
ended
|
YR20 HRF E;YR20 MRF +5 | ¥5,300 | |
| 84118 — Knob, Light Control Rheostat | ||||
| 84118-87001 |
Knob, Light Control Rheostat
1982-11 → 1985-08
ended
|
YR20,21 Q | ¥950 | |
| 84119 — Rheostat, Light Control | ||||
| 84119-87002 |
Rheostat, Light Control
1984-08 → 1985-08
ended
|
YR20,21 Q | ¥6,200 | |
| 84119-95700 |
Rheostat, Light Control
1982-11 → 1984-08
ended
|
YR20,21 Q | ¥6,200 | |
| 84119A — Bolt OR Nut, Rheostat Control Set | ||||
| 90170-07002 |
Bolt OR Nut, Rheostat Control Set
1982-11 → 1985-08
ended
|
YR20,21 Q | ¥230 | |
| 84140 — Switch Assy, Headlamp Dimmer | ||||
| 84140-29095 note |
Switch Assy, Headlamp Dimmer
1985-08 → 1987-08
ended
|
CR21,28,30 | ¥4,940 | |
| 84140-29095 note |
Switch Assy, Headlamp Dimmer
1987-08 → 1988-08
ended
|
YR26 N | ¥4,940 | |
| 84140-29095 note |
Switch Assy, Headlamp Dimmer
1985-08 → 1988-08
ended
|
CR26,27,36 N | ¥4,940 | |
| 84140-29095 note |
Switch Assy, Headlamp Dimmer
1985-08 → 1987-08
ended
|
YR20 MRF 08S;YR20 HRF +5 | ¥4,940 | |
| 84140-29095 note |
Switch Assy, Headlamp Dimmer
1985-08 → 1986-08
ended
|
YR28 05S | ¥4,940 | |
| 84140-29095 note |
Switch Assy, Headlamp Dimmer
1982-11 → 1985-08
ended
|
CR26 N;CR21,27,YR2# 4FC,5F | ¥4,940 | |
| 84140-29155 |
Switch Assy, Headlamp Dimmer
1982-11 → 1987-08
ended
|
CR2#,KR26,YR2#,3# B,D,E,G,N,R | ¥4,920 | |
| 84140-29155 |
Switch Assy, Headlamp Dimmer
1985-10 → 1988-08
ended
|
CR36 D | ¥4,920 | |
| 84140-29155 |
Switch Assy, Headlamp Dimmer
1987-08 → 1988-08
ended
|
CR26,27,KR26,YR26 | ¥4,920 | |
| 84140-35050 |
Switch Assy, Headlamp Dimmer
1987-08 → 1988-08
ended
|
CR21,28,37,YR28 B,D,G | ¥2,860 | |
| 84140-35060 note |
Switch Assy, Headlamp Dimmer
1987-08 → 1988-08
ended
|
YR20 HRF E;YR20 MRF +5 | ¥4,920 | |
| 84310 — Switch Assy, Turn Signal | ||||
| 84310-28070 |
Switch Assy, Turn Signal
1982-11 → 1986-08
ended
|
KR26 R | ¥18,200 | |
| 84310-28080 |
Switch Assy, Turn Signal
1987-08 → 1988-08
ended
|
CR26,27,KR26,YR26 | ¥19,000 | |
| 84310-28080 |
Switch Assy, Turn Signal
1985-10 → 1988-08
ended
|
CR36 D | ¥19,000 | |
| 84310-28080 |
Switch Assy, Turn Signal
1982-11 → 1987-08
ended
|
CR2#,KR26,YR2#,36 B,D,E,G,N | ¥19,000 | |
| 84310-28090 note |
Switch Assy, Turn Signal
1985-08 → 1987-08
ended
|
CR21,28,30 | ¥19,000 | |
| 84310-28090 note |
Switch Assy, Turn Signal
1985-08 → 1988-08
ended
|
CR26,27,36 N | ¥19,000 | |
| 84310-28090 note |
Switch Assy, Turn Signal
1985-08 → 1986-08
ended
|
YR28 05S | ¥19,000 | |
| 84310-28090 note |
Switch Assy, Turn Signal
1982-11 → 1985-08
ended
|
CR26 N;CR21,27,YR2# 4FC,5F | ¥19,000 | |
| 84310-28090 note |
Switch Assy, Turn Signal
1987-08 → 1988-08
ended
|
YR26 N | ¥19,000 | |
| 84310-28090 note |
Switch Assy, Turn Signal
1985-08 → 1987-08
ended
|
YR20 MRF 08S;YR20 HRF +5 | ¥19,000 | |
| 84310-28170 |
Switch Assy, Turn Signal
1987-08 → 1988-08
ended
|
YR20 MRF (D,G);YR20 HRF +3 | ¥19,000 | |
| 84310-28180 note |
Switch Assy, Turn Signal
1987-08 → 1988-08
ended
|
YR20 HRF E;YR20 MRF +5 | ¥19,000 | |
| 84312 — Plate, Horn Contact | ||||
| 84312-12040 |
Plate, Horn Contact
1987-08 → 1988-08
ended
|
YR20 HRF E;YR20 HRF +4 | ¥760 | |
| 84312-20011 |
Plate, Horn Contact
1987-08 → 1988-08
ended
|
CR26,27,36,KR26,YR26 | ¥850 | |
| 84312-20011 |
Plate, Horn Contact
1982-11 → 1987-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥850 | |
| 84330 — Switch Assy, Hazard Warning Signal | ||||
| 84332-29135 |
Switch Assy, Hazard Warning Signal
1982-11 → 1987-08
ended
|
CR2#,KR26,YR2#,3# B,D,E,G,N,R | ¥4,460 | |
| 84332-29135 |
Switch Assy, Hazard Warning Signal
1987-08 → 1988-08
ended
|
YR20 MRF (D,G);YR20 HRF +3 | ¥4,460 | |
| 84332-29135 |
Switch Assy, Hazard Warning Signal
1987-08 → 1988-08
ended
|
CR26,27,KR26,YR26 | ¥4,460 | |
| 84332-29135 |
Switch Assy, Hazard Warning Signal
1985-10 → 1988-08
ended
|
CR36 D | ¥4,460 | |
| 84332-29145 note |
Switch Assy, Hazard Warning Signal
1985-08 → 1986-08
ended
|
YR28 05S | ¥4,460 | |
| 84332-29145 note |
Switch Assy, Hazard Warning Signal
1987-08 → 1988-08
ended
|
YR20 HRF E;YR20 MRF +5 | ¥4,460 | |
| 84332-29145 note |
Switch Assy, Hazard Warning Signal
1987-08 → 1988-08
ended
|
YR26 N | ¥4,460 | |
| 84332-29145 note |
Switch Assy, Hazard Warning Signal
1985-08 → 1988-08
ended
|
CR26,27,36 N | ¥4,460 | |
| 84332-29145 note |
Switch Assy, Hazard Warning Signal
1985-08 → 1987-08
ended
|
CR21,28,30 | ¥4,460 | |
| 84332-29145 note |
Switch Assy, Hazard Warning Signal
1985-08 → 1987-08
ended
|
YR20 MRF 08S;YR20 HRF +5 | ¥4,460 | |
| 84332-29145 note |
Switch Assy, Hazard Warning Signal
1982-11 → 1985-08
ended
|
CR26 N;CR21,27,YR2# 4FC,5F | ¥4,460 | |
| 84335 — Switch Assy, Parking Lamp | ||||
| 84330-16010 |
Switch Assy, Parking Lamp
1982-11 → 1987-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥2,430 | |
| 84450 — Switch Assy, Ignition OR Starter | ||||
| 84450-27040 |
Switch Assy, Ignition OR Starter
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥5,200 | |
| 84450-28020 |
Switch Assy, Ignition OR Starter
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥4,330 | |
| 84650 — Switch Assy, Windshield Wiper | ||||
| 84652-28170 |
Switch Assy, Windshield Wiper
1987-08 → 1988-08
ended
|
YR20 MRF (D,G);YR20 HRF +3 | ¥8,100 | |
| 84652-28180 note |
Switch Assy, Windshield Wiper
1987-08 → 1988-08
ended
|
YR20 HRF E;YR20 MRF +5 | ¥8,100 | |
| 84652-29605 |
Switch Assy, Windshield Wiper
1982-11 → 1986-08
ended
|
KR26 R | ¥7,900 | |
| 84652-29615 |
Switch Assy, Windshield Wiper
1982-11 → 1987-08
ended
|
CR2#,KR26,YR2#,3# B,D,E,G,N | ¥7,900 | |
| 84652-29615 |
Switch Assy, Windshield Wiper
1987-08 → 1988-08
ended
|
CR26,27,KR26,YR26 | ¥7,900 | |
| 84652-29615 |
Switch Assy, Windshield Wiper
1985-10 → 1988-08
ended
|
CR36 D | ¥7,900 | |
| 84652-29625 note |
Switch Assy, Windshield Wiper
1982-11 → 1985-08
ended
|
CR26 N;CR21,27,YR2# 4FC,5F | ¥7,900 | |
| 84652-29625 note |
Switch Assy, Windshield Wiper
1987-08 → 1988-08
ended
|
YR26 N | ¥7,900 | |
| 84652-29625 note |
Switch Assy, Windshield Wiper
1985-08 → 1988-08
ended
|
CR26,27,36 N | ¥7,900 | |
| 84652-29625 note |
Switch Assy, Windshield Wiper
1985-08 → 1987-08
ended
|
CR21,28,30 | ¥7,900 | |
| 84652-29625 note |
Switch Assy, Windshield Wiper
1985-08 → 1987-08
ended
|
YR20 MRF 08S;YR20 HRF +5 | ¥7,900 | |
| 84652-29625 note |
Switch Assy, Windshield Wiper
1985-08 → 1986-08
ended
|
YR28 05S | ¥7,900 | |
| 84653A — Switch, Rear Wiper | ||||
| 84653-14020 |
Switch, Rear Wiper
1982-11 → 1984-08
ended
|
YR20,21 07S | ¥6,800 | |
| 84653-14050 |
Switch, Rear Wiper
1982-11 → 1984-08
ended
|
CR21,YR20,21 08S | ¥5,700 | |
| 84653-14050 |
Switch, Rear Wiper
1982-11 → 1984-08
ended
|
CR26,KR26,YR26 D,N | ¥5,700 | |
| 84653-87001 |
Switch, Rear Wiper
1984-08 → 1985-08
ended
|
CR21,YR20,21 E,G | ¥5,500 | |
| 84653-87001 |
Switch, Rear Wiper
1985-08 → 1988-08
ended
|
YR20 ,E,G,N HRF E;YR20 +6 | ¥5,500 | |
| 84653-87001 |
Switch, Rear Wiper
1984-08 → 1985-08
ended
|
CR26,27,KR26,YR26 D,N | ¥5,500 | |
| 84653-87002 |
Switch, Rear Wiper
1984-08 → 1985-08
ended
|
YR20,21 07S | ¥6,100 | |
| 84653-87002 |
Switch, Rear Wiper
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 Q | ¥6,100 | |
| 84660C — Switch, Cooler | ||||
| 88610-28051 note |
Switch, Cooler
1985-08 → 1988-08
ended
|
YR20 MRF 08S;YR20 HRF +5 | — | |
| 88610-87002 |
Switch, Cooler
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | — | |
| 88610-87002 |
Switch, Cooler
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | — | |
| 84730 — Switch Assy, Heater Blower | ||||
| 84732-28020 note |
Switch Assy, Heater Blower
1984-08 → 1988-08
ended
|
YR20,21,3# | ¥3,040 | |
| 84732-28020 note |
Switch Assy, Heater Blower
1984-08 → 1988-08
ended
|
CR26,27,36 | ¥3,040 | |
| 84732-28020 note |
Switch Assy, Heater Blower
1984-08 → 1988-08
ended
|
YR26 V4D N | ¥3,040 | |
| 84732-28020 note |
Switch Assy, Heater Blower
1984-08 → 1988-08
ended
|
CR21,30,37 | ¥3,040 | |
| 84732-87009 note |
Switch Assy, Heater Blower
1982-11 → 1984-08
ended
|
YR20,21 | ¥3,430 | |
| 84732-87009 note |
Switch Assy, Heater Blower
1982-11 → 1984-08
ended
|
YR26 V4D N | ¥3,430 | |
| 84732-87009 note |
Switch Assy, Heater Blower
1982-11 → 1984-08
ended
|
CR21;CR26 V4D 05S | ¥3,430 | |
| 84732-87010 note |
Switch Assy, Heater Blower
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥4,620 | |
| 84732-87013 note |
Switch Assy, Heater Blower
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 Q | — | |
| 84732-87014 note |
Switch Assy, Heater Blower
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 Q | — | |
| 84730B — Bulb, Heater Blower Switch | ||||
| 90981-11014 note |
Bulb, Heater Blower Switch
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥120 | |
| 84732A — Switch, Rear Heater Blower | ||||
| 84730-28020 |
Switch, Rear Heater Blower
1984-08 → 1988-08
ended
|
YR20,21,28,3# | ¥4,460 | |
| 84730-28020 |
Switch, Rear Heater Blower
1984-08 → 1988-08
ended
|
CR26,27,28,36 | ¥4,460 | |
| 84730-28020 |
Switch, Rear Heater Blower
1984-08 → 1988-08
ended
|
YR26 V4D N | ¥4,460 | |
| 84730-28020 |
Switch, Rear Heater Blower
1984-08 → 1988-08
ended
|
CR21,30,37 | ¥4,460 | |
| 84730-95703 |
Switch, Rear Heater Blower
1982-11 → 1984-08
ended
|
YR20,21 | ¥5,900 | |
| 84730-95703 |
Switch, Rear Heater Blower
1982-11 → 1984-08
ended
|
YR26 V4D N | ¥5,900 | |
| 84730-95703 |
Switch, Rear Heater Blower
1982-11 → 1984-08
ended
|
CR21;CR26 V4D 05S | ¥5,900 | |
| 88610-28031 note |
Switch, Rear Heater Blower
1984-08 → 1985-08
ended
|
CR21,YR20,21 E,G,Q,X | — | |
| 88610-28032 note |
Switch, Rear Heater Blower
1985-08 → 1988-08
ended
|
YR20 MRF 08S;YR20 HRF +5 | — | |
| 84790 — Switch Assy, Rear Window Defogger | ||||
| 84790-24010 |
Switch Assy, Rear Window Defogger
1982-11 → 1988-08
ended
|
CR2#,3#,YR2#,3# | ¥4,180 | |
| 84790B — Bulb(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10110 note |
Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
1982-11 → 1988-08
ended
|
CR2#,3#,YR2#,3# | ¥450 | |
| 85500 — Lighter Assy, Cigarette | ||||
| 85500-87004 |
Lighter Assy, Cigarette
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# B,D,G,N,R | ¥3,860 | |
| 85500-87006 note |
Lighter Assy, Cigarette
1982-11 → 1988-08
ended
|
CR21,30,YR20,21,30 E,Q,X | ¥3,830 | |
| 85500-87007 note |
Lighter Assy, Cigarette
1982-11 → 1988-08
ended
|
CR21,30,YR20,21,30 E,Q,X | ¥4,980 | |
| 85500B — Bulb, Cigarette Lighter | ||||
| 90981-11014 note |
Bulb, Cigarette Lighter
1982-11 → 1988-08
ended
|
CR21,30,YR20,21,30 E,Q,X | ¥120 | |
| 85533 — Lens, Cigarette Lighter Indicator | ||||
| 85533-20011 |
Lens, Cigarette Lighter Indicator
1982-11 → 1988-08
ended
|
CR21,30,YR20,21,30 E,Q,X | ¥750 | |
| 87401 — Switch, Heater Idle UP | ||||
| 87401-87001 |
Switch, Heater Idle UP
1982-11 → 1983-12
ended
|
CR26 V4D;CR21,YR20,26 | ¥3,880 | |
| 87401-87001 |
Switch, Heater Idle UP
1983-12 → 1988-08
ended
|
YR20,26,28 | ¥3,880 | |
| 87401-87001 |
Switch, Heater Idle UP
1984-08 → 1988-08
ended
|
CR21,27,28,30 4FC | ¥3,880 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
