Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

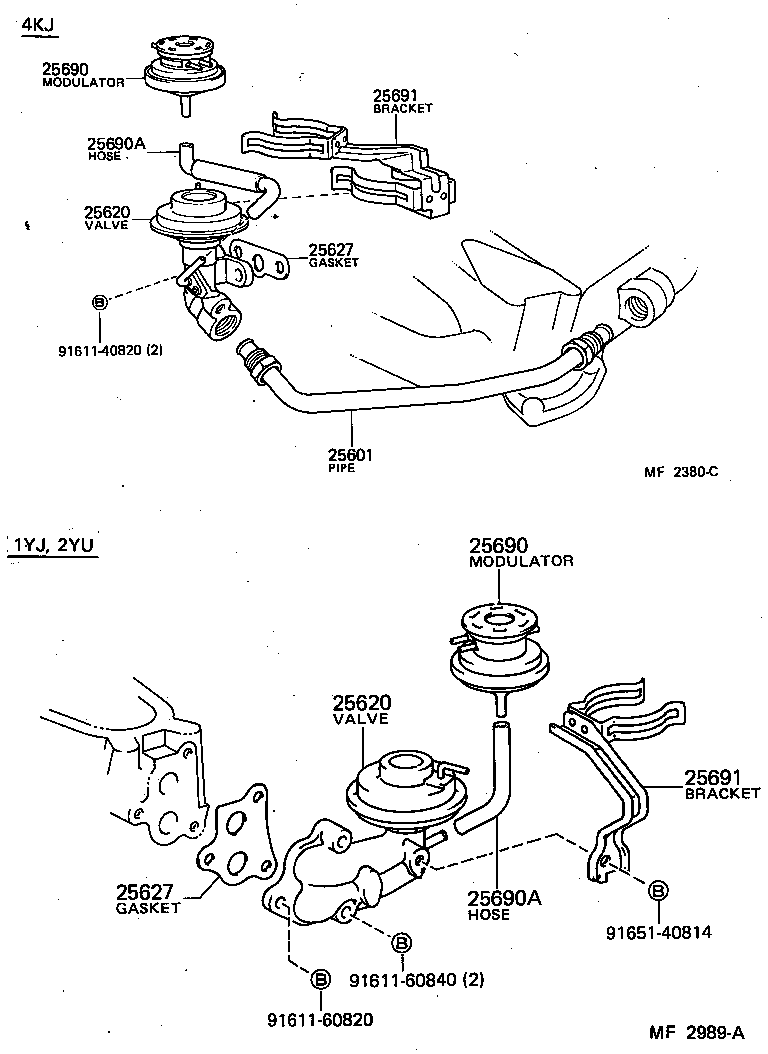

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 25601 — Pipe Sub-assy, Egr, NO.1 | ||||
| 25601-13010 |
Pipe Sub-assy, Egr, NO.1
1985-08 → 1988-08
ended
|
4KJ KR26 | ¥4,290 | |
| 25601-13020 |
Pipe Sub-assy, Egr, NO.1
1982-11 → 1985-08
ended
|
4KJ KR26 | — | |
| 25620 — Valve Assy, Egr | ||||
| 25620-13140 |
Valve Assy, Egr
1982-11 → 1985-09
ended
|
4KJ KR26 | ¥17,100 | |
| 25620-13160 |
Valve Assy, Egr
1985-09 → 1988-08
ended
|
4KJ KR26 | ¥18,300 | |
| 25620-71010 |
Valve Assy, Egr
1982-11 → 1988-08
ended
|
2YU YR20,28;1YJ YR26 MTM | ¥21,100 | |
| 25620-71020 |
Valve Assy, Egr
1982-11 → 1988-08
ended
|
1YJ YR26 4FC | ¥21,000 | |
| 25627 — Gasket, Egr Valve | ||||
| 25627-13010 |
Gasket, Egr Valve
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥310 | |
| 25627-71010 |
Gasket, Egr Valve
1982-11 → 1988-08
ended
|
1YJ,2YU YR20,26,28 | ¥260 | |
| 25690 — Modulator Assy, Egr Vacuum | ||||
| 25870-13050 |
Modulator Assy, Egr Vacuum
1982-11 → 1985-08
ended
|
4KJ KR26 | ¥7,700 | |
| 25870-13120 |
Modulator Assy, Egr Vacuum
1985-08 → 1988-08
ended
|
4KJ KR26 | ¥8,100 | |
| 25870-71010 |
Modulator Assy, Egr Vacuum
1982-11 → 1986-06
ended
|
2YU YR20,28 | ¥7,700 | |
| 25870-71011 |
Modulator Assy, Egr Vacuum
1986-06 → 1988-08
ended
|
2YU YR20 HRF 5F +7 | ¥7,500 | |
| 25870-71020 |
Modulator Assy, Egr Vacuum
1982-11 → 1986-06
ended
|
1YJ YR26 | ¥7,700 | |
| 25870-71021 |
Modulator Assy, Egr Vacuum
1986-06 → 1988-08
ended
|
1YJ YR26 | ¥7,900 | |
| 25690A — Hose(FOR EGR VACUUM MODULATOR) | ||||
| 25695-13010 |
Hose(FOR EGR VACUUM MODULATOR)
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥1,090 | |
| 90445-11078 |
Hose(FOR EGR VACUUM MODULATOR)
1984-08 → 1988-08
ended
|
1YJ,2YU YR20,26,28 | ¥300 | |
| 90910-06037 |
Hose(FOR EGR VACUUM MODULATOR)
1982-11 → 1984-08
ended
|
1YJ,2YU YR20,26 | ¥280 | |
| 25691 — Bracket, Egr Vacuum Modulator | ||||
| 25691-13010 |
Bracket, Egr Vacuum Modulator
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥880 | |
| 25691-71010 |
Bracket, Egr Vacuum Modulator
1982-11 → 1984-08
ended
|
1YJ,2YU YR20,26 | ¥670 | |
| 25691-71030 |
Bracket, Egr Vacuum Modulator
1984-08 → 1988-08
ended
|
1YJ,2YU YR20,26,28 | ¥660 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
