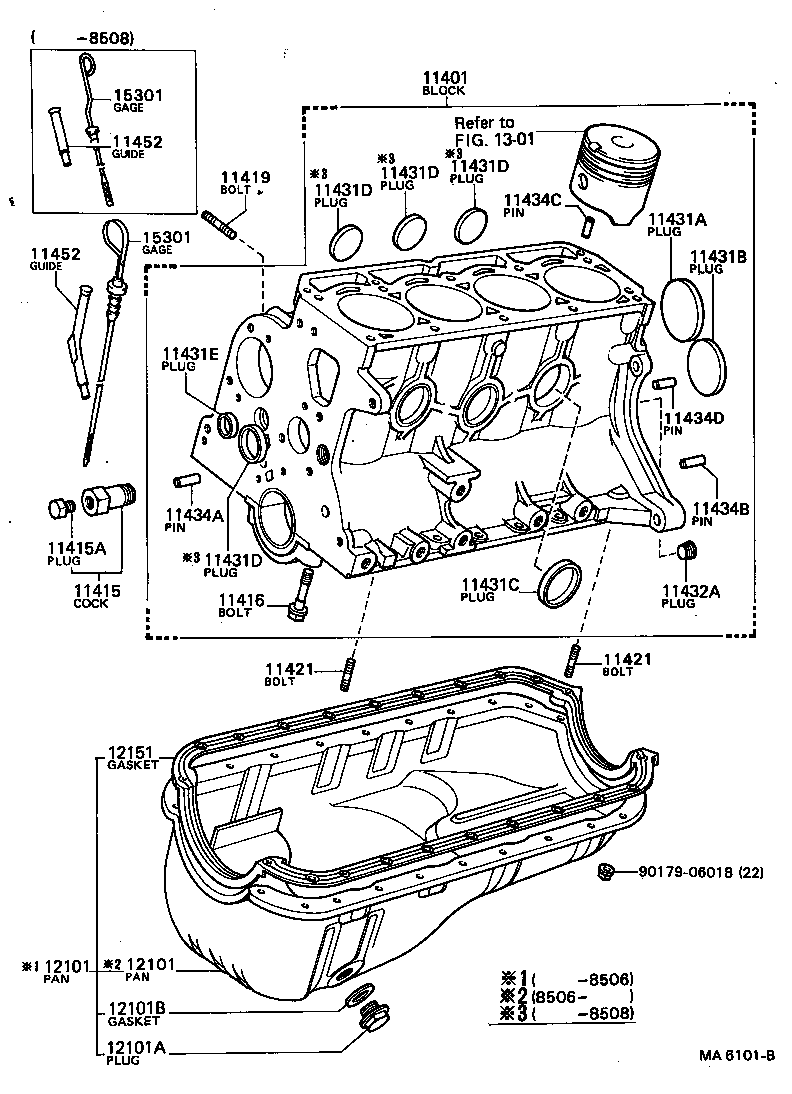

Exploded illustration MA6101B 11401 — BLOCK SUB-ASSY, CYLINDER (22 parts) 15301 — GAGE SUB-ASSY, OIL LEVEL (10 parts) 1301 — not listed in this catalogue 11452 — GUIDE, OIL LEVEL GAGE (9 parts) 11431D — PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) (4 parts) 11431D — PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) (4 parts) 11419 — BOLT, STUD(FOR FUEL PUMP) (1 parts) 11431D — PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) (4 parts) 11434C — PIN, STRAIGHT (FOR CYLINDER HEAD SET) (2 parts) 11431A — PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) (3 parts) 15301 — GAGE SUB-ASSY, OIL LEVEL (10 parts) 11452 — GUIDE, OIL LEVEL GAGE (9 parts) 11431B — PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) (3 parts) 11431E — PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) (3 parts) 11434D — PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) (2 parts) 11434B — PIN, STRAIGHT(FOR CLUTCH HOUSING SET) (3 parts) 11434A — PIN, STRAIGHT(FOR TIMING GEAR COVER SET) (3 parts) 11415A — PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) (8 parts) 11431D — PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) (4 parts) 11431C — PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) (4 parts) 11415 — COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) (8 parts) 11432A — PLUG, W/HEAD TAPER SCREW, NO.1 (1 parts) 11416 — BOLT(FOR CRANKSHAFT BEARING CAP SET) (3 parts) 11421 — BOLT, STUD(FOR OIL PAN) (3 parts) 11421 — BOLT, STUD(FOR OIL PAN) (3 parts) 12151 — GASKET, OIL PAN (2 parts) 9017906018 — not listed in this catalogue 12101 — PAN SUB-ASSY, OIL (9 parts) 12101 — PAN SUB-ASSY, OIL (9 parts) 12101B — GASKET(FOR OIL PAN DRAIN PLUG) (13 parts) 12101A — PLUG(FOR OIL PAN DRAIN) (8 parts)
MA6101B · 29 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
124 parts on this figure
Part number Description Fitment Price
11401 — Block Sub-assy, Cylinder
11401-19037 Block Sub-assy, Cylinder
1982-11 → 1984-11 ended
4KJ KR26 ¥173,000
11401-19038 Block Sub-assy, Cylinder
1984-11 → 1988-08 ended
4KJ KR26 ¥168,000
11401-69096 Block Sub-assy, Cylinder
1982-11 → 1983-03 ended
1C CR26 ¥292,000
11401-69125 Block Sub-assy, Cylinder
1983-03 → 1983-07 ended
1C CR26 —
11401-69126 Block Sub-assy, Cylinder
1983-07 → 1985-05 ended
1C CR26 ¥264,000
11401-69127 Block Sub-assy, Cylinder
1985-05 → 1985-08 ended
1C CR26 ¥292,000
11401-69145 Block Sub-assy, Cylinder
1983-04 → 1983-07 ended
2C CR21 —
11401-69146 Block Sub-assy, Cylinder
1983-07 → 1985-08 ended
2C CR21,27 ¥261,000
11401-69205 Block Sub-assy, Cylinder
1985-08 → 1986-08 ended
1C CR26 ¥251,000
11401-69206 Block Sub-assy, Cylinder
1986-08 → 1986-09 ended
1C CR26 ¥252,000
11401-69207 Block Sub-assy, Cylinder
1986-09 → 1988-08 ended
1C CR26 ¥253,000
11401-69225 Block Sub-assy, Cylinder
1985-08 → 1986-08 ended
2C CR21,27,28,36 ¥274,000
11401-69226 Block Sub-assy, Cylinder
1986-08 → 1987-01 ended
2C CR21,27,28,36 ¥265,000
11401-69236 Block Sub-assy, Cylinder
1987-01 → 1988-08 ended
2C CR21,27,28,36 ¥264,000
11401-69245 Block Sub-assy, Cylinder
1985-08 → 1986-08 ended
2CT CR21,30 ¥264,000
11401-69275 Block Sub-assy, Cylinder
1986-08 → 1988-08 ended
2CT CR21,28,30,37 ¥262,000
11401-79065 Block Sub-assy, Cylinder
1982-11 → 1985-02 ended
2YU YR20 —
11401-79066 Block Sub-assy, Cylinder
1985-02 → 1988-08 ended
2YU YR20 HRF 5F +7 ¥206,000
11401-79075 Block Sub-assy, Cylinder
1982-11 → 1985-02 ended
1YJ YR26 —
11401-79076 Block Sub-assy, Cylinder
1985-02 → 1988-08 ended
1YJ YR26 ¥184,000
11401-79085 Block Sub-assy, Cylinder
1983-05 → 1985-02 ended
3YEU YR21 ¥209,000
11401-79086 Block Sub-assy, Cylinder
1985-02 → 1988-08 ended
3YEU YR21,3# ¥212,000
11415 — Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
90910-09070 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
1984-06 → 1985-04 ended
1YJ,2YU,3YEU YR2# ¥640
90910-09075 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
1982-11 → 1984-06 ended
1C,2C CR2# ¥700
90910-09088 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
1984-06 → 1988-08 ended
1C,2C# CR2#,3# ¥670
96431-03833 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
1982-11 → 1984-06 ended
1YJ,2YU,3YEU YR2# ¥640
96431-03850 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
1982-11 → 1985-04 ended
4KJ KR26 ¥640
96431-53828 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
1985-04 → 1988-08 ended
2YU EU YR20 YR21,26,28,3# +9 ¥640
96431-53828 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
1986-05 → 1988-08 ended
4KJ KR26 ¥640
96431-53850 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
1985-04 → 1986-05 ended
4KJ KR26 ¥410
11415A — Plug, Water Drain Cock(FOR CYLINDER BLOCK)
90109-10023 Plug, Water Drain Cock(FOR CYLINDER BLOCK)
1982-11 → 1984-06 ended
1C,2C CR2# ¥370
90910-09072 Plug, Water Drain Cock(FOR CYLINDER BLOCK)
1984-06 → 1985-04 ended
1YJ,2YU,3YEU YR2# ¥640
90910-09087 Plug, Water Drain Cock(FOR CYLINDER BLOCK)
1984-06 → 1988-08 ended
1C,2C# CR2#,3# ¥230
96431-23814 Plug, Water Drain Cock(FOR CYLINDER BLOCK)
1982-11 → 1984-06 ended
1YJ,2YU,3YEU YR2# ¥610
96431-23814 note Plug, Water Drain Cock(FOR CYLINDER BLOCK)
1984-06 → 1985-04 ended
4KJ KR26 ¥610
96431-23814 Plug, Water Drain Cock(FOR CYLINDER BLOCK)
1982-11 → 1984-06 ended
4KJ KR26 ¥610
96432-23814 note Plug, Water Drain Cock(FOR CYLINDER BLOCK)
1985-04 → 1988-08 ended
4KJ KR26 ¥640
96432-23814 note Plug, Water Drain Cock(FOR CYLINDER BLOCK)
1985-04 → 1988-08 ended
2YU EU YR20 YR21,26,28,3# +9 ¥640
11416 — Bolt(FOR CRANKSHAFT BEARING CAP SET)
90910-02019 note Bolt(FOR CRANKSHAFT BEARING CAP SET)
1982-11 → 1988-08 ended
4KJ KR26 ¥240
90910-02032 Bolt(FOR CRANKSHAFT BEARING CAP SET)
1982-11 → 1988-08 ended
1YJ,2YU,3YEU YR2#,3# ¥320
90910-02061 note Bolt(FOR CRANKSHAFT BEARING CAP SET)
1982-11 → 1988-08 ended
1C,2C# CR2#,3# ¥230
11419 — Bolt, Stud(FOR FUEL PUMP)
90116-08102 Bolt, Stud(FOR FUEL PUMP)
1982-11 → 1988-08 ended
4KJ KR26 ¥220
11421 — Bolt, Stud(FOR OIL PAN)
90116-06006 note Bolt, Stud(FOR OIL PAN)
1982-11 → 1983-08 ended
4KJ KR26 ¥210
90116-06006 note Bolt, Stud(FOR OIL PAN)
1983-08 → 1988-08 ended
4KJ KR26 ¥210
90116-06012 note Bolt, Stud(FOR OIL PAN)
1982-11 → 1983-08 ended
4KJ KR26 ¥200
11431A — Plug, Tight, NO.1(FOR CYLINDER BLOCK)
90331-47025 note Plug, Tight, NO.1(FOR CYLINDER BLOCK)
1982-11 → 1988-08 ended
4KJ KR26 ¥230
96411-01800 Plug, Tight, NO.1(FOR CYLINDER BLOCK)
1982-11 → 1988-08 ended
1YJ,2YU,3YEU YR2#,3# ¥240
96411-43500 note Plug, Tight, NO.1(FOR CYLINDER BLOCK)
1982-11 → 1988-08 ended
1C,2C# CR2#,3# ¥260
11431B — Plug, Tight, NO.2(FOR CYLINDER BLOCK)
96411-43000 note Plug, Tight, NO.2(FOR CYLINDER BLOCK)
1982-11 → 1988-08 ended
1C,2C# CR2#,3# ¥240
96411-43500 note Plug, Tight, NO.2(FOR CYLINDER BLOCK)
1982-11 → 1988-08 ended
1YJ,2YU,3YEU YR2#,3# ¥260
96411-44500 Plug, Tight, NO.2(FOR CYLINDER BLOCK)
1982-11 → 1988-08 ended
4KJ KR26 ¥260
11431C — Plug, Tight, NO.3(FOR CYLINDER BLOCK)
96411-11800 note Plug, Tight, NO.3(FOR CYLINDER BLOCK)
1982-11 → 1986-12 ended
1C,2C# CR2#,3# ¥250
96411-41800 note Plug, Tight, NO.3(FOR CYLINDER BLOCK)
1986-12 → 1988-08 ended
1C,2C# CR2#,3# ¥110
96411-43500 note Plug, Tight, NO.3(FOR CYLINDER BLOCK)
1982-11 → 1988-08 ended
4KJ KR26 ¥260
96411-45000 Plug, Tight, NO.3(FOR CYLINDER BLOCK)
1982-11 → 1988-08 ended
1YJ,2YU,3YEU YR2#,3# ¥280
11431D — Plug, Tight, NO.4(FOR CYLINDER BLOCK)
96411-11800 note Plug, Tight, NO.4(FOR CYLINDER BLOCK)
1982-11 → 1986-12 ended
1C,2C# CR2#,3# ¥250
96411-41800 note Plug, Tight, NO.4(FOR CYLINDER BLOCK)
1986-12 → 1988-08 ended
1C,2C# CR2#,3# ¥110
96411-42500 note Plug, Tight, NO.4(FOR CYLINDER BLOCK)
1982-11 → 1985-08 ended
4KJ KR26 ¥240
96411-45000 note Plug, Tight, NO.4(FOR CYLINDER BLOCK)
1982-11 → 1988-08 ended
1YJ,2YU,3YEU YR2#,3# ¥280
11431E — Plug, Tight, NO.5(FOR CYLINDER BLOCK)
96411-11800 note Plug, Tight, NO.5(FOR CYLINDER BLOCK)
1982-11 → 1986-12 ended
1C,2C# CR2#,3# ¥250
96411-41800 note Plug, Tight, NO.5(FOR CYLINDER BLOCK)
1986-12 → 1988-08 ended
1C,2C# CR2#,3# ¥110
96412-01800 Plug, Tight, NO.5(FOR CYLINDER BLOCK)
1982-11 → 1988-08 ended
4KJ KR26 ¥130
11432A — Plug, W/Head Taper Screw, NO.1
90344-53011 Plug, W/Head Taper Screw, NO.1
1982-11 → 1988-08 ended
4KJ KR26 ¥240
11434A — Pin, Straight(FOR TIMING GEAR COVER SET)
90250-08014 note Pin, Straight(FOR TIMING GEAR COVER SET)
1982-11 → 1988-08 ended
1YJ YR26 ¥100
90250-08120 note Pin, Straight(FOR TIMING GEAR COVER SET)
1982-11 → 1988-08 ended
4KJ KR26 ¥140
90250-08120 note Pin, Straight(FOR TIMING GEAR COVER SET)
1982-11 → 1988-08 ended
1YJ,2YU,3YEU YR2#,3# ¥140
11434B — Pin, Straight(FOR CLUTCH HOUSING SET)
90250-08120 note Pin, Straight(FOR CLUTCH HOUSING SET)
1982-11 → 1988-08 ended
1YJ,2YU,3YEU YR2#,3# ¥140
90250-10113 note Pin, Straight(FOR CLUTCH HOUSING SET)
1982-11 → 1988-08 ended
4KJ KR26 ¥120
90250-10113 note Pin, Straight(FOR CLUTCH HOUSING SET)
1982-11 → 1988-08 ended
1YJ,2YU,3YEU YR2#,3# ¥120
11434C — Pin, Straight (FOR CYLINDER HEAD SET)
90250-08120 note Pin, Straight (FOR CYLINDER HEAD SET)
1982-11 → 1988-08 ended
4KJ KR26 ¥140
90253-14001 note Pin, Straight (FOR CYLINDER HEAD SET)
1982-11 → 1988-08 ended
1C,2C# CR2#,3# ¥200
11434D — Pin, Straight(FOR ENGINE REAR OIL SEAL)
90250-06068 note Pin, Straight(FOR ENGINE REAR OIL SEAL)
1982-11 → 1988-08 ended
1C,2C# CR2#,3# ¥260
90250-08120 note Pin, Straight(FOR ENGINE REAR OIL SEAL)
1982-11 → 1988-08 ended
4KJ KR26 ¥140
11452 — Guide, Oil Level Gage
11452-13030 Guide, Oil Level Gage
1985-08 → 1988-08 ended
4KJ KR26 ¥1,090
11452-24010 Guide, Oil Level Gage
1982-11 → 1985-08 ended
4KJ KR26 ¥780
11452-64020 Guide, Oil Level Gage
1982-11 → 1988-08 ended
1C,2C CR2#,36 ¥2,230
11452-64020 Guide, Oil Level Gage
1987-08 → 1988-08 ended
2CT CR21,28,30,37 ¥2,230
11452-64040 Guide, Oil Level Gage
1985-08 → 1987-08 ended
2CT CR21,30 ¥2,140
11452-71010 Guide, Oil Level Gage
1982-11 → 1983-08 ended
1YJ,2YU,3YEU YR2# ¥1,400
11452-71010 Guide, Oil Level Gage
1983-08 → 1984-04 ended
1YJ,2YU YR20,26 ¥1,400
11452-71020 Guide, Oil Level Gage
1984-04 → 1988-08 ended
1YJ,2YU,3YEU YR2#,3# ¥1,480
11452-71020 Guide, Oil Level Gage
1983-08 → 1984-03 ended
3YEU YR21 ¥1,480
12101 — Pan Sub-assy, Oil
12101-13030 Pan Sub-assy, Oil
1985-06 → 1988-08 ended
4KJ KR26 ¥10,900
12101-19035 Pan Sub-assy, Oil
1982-11 → 1983-08 ended
4KJ KR26 ¥10,800
12101-19036 Pan Sub-assy, Oil
1983-08 → 1985-01 ended
4KJ KR26 ¥10,900
12101-19037 Pan Sub-assy, Oil
1985-01 → 1985-06 ended
4KJ KR26 ¥10,800
12101-64010 Pan Sub-assy, Oil
1982-11 → 1985-08 ended
1C,2C CR2# ¥22,500
12101-64030 Pan Sub-assy, Oil
1985-08 → 1988-08 ended
2CT CR21,28,30,37 ¥19,700
12101-64060 Pan Sub-assy, Oil
1985-08 → 1988-08 ended
1C,2C CR2#,36 ¥19,500
12101-71010 Pan Sub-assy, Oil
1982-11 → 1985-04 ended
1YJ,2YU,3YEU YR2# ¥14,600
12101-71011 Pan Sub-assy, Oil
1985-04 → 1988-08 ended
2YU EU YR20 YR21,26,28,3# +9 ¥14,200
12101A — Plug(FOR OIL PAN DRAIN)
90341-12012 Plug(FOR OIL PAN DRAIN)
1985-04 → 1988-08 ended
2YU EU YR20 YR21,26,28,3# +9 ¥160
90341-12012 Plug(FOR OIL PAN DRAIN)
1985-01 → 1988-08 ended
4KJ KR26 ¥160
90341-18089 Plug(FOR OIL PAN DRAIN)
1982-11 → 1985-01 ended
1YJ,2YU,3YEU YR2# ¥310
90341-18089 Plug(FOR OIL PAN DRAIN)
1985-04 → 1988-08 ended
1C,2C# CR2#,3# ¥310
90341-18089 Plug(FOR OIL PAN DRAIN)
1985-01 → 1985-04 ended
1C,2C CR2# ¥310
90341-18089 Plug(FOR OIL PAN DRAIN)
1982-11 → 1985-01 ended
4KJ KR26 ¥310
90341-18089 Plug(FOR OIL PAN DRAIN)
1982-11 → 1985-01 ended
1C,2C CR2# ¥310
90341-18089 Plug(FOR OIL PAN DRAIN)
1985-01 → 1985-04 ended
1YJ,3YEU 8S,09S) YR21,26;2YU YR20 +9 ¥310
12101B — Gasket(FOR OIL PAN DRAIN PLUG)
90430-12009 note Gasket(FOR OIL PAN DRAIN PLUG)
1985-04 → 1985-04 ended
1YJ,3YEU 8S,09S) YR21,26;2YU YR20 +9 ¥180
90430-12011 Gasket(FOR OIL PAN DRAIN PLUG)
1985-01 → 1988-08 ended
4KJ KR26 ¥230
90430-12011 note Gasket(FOR OIL PAN DRAIN PLUG)
1985-04 → 1988-03 ended
2YU EU YR20 YR21,26,28,3# +9 ¥230
90430-12019 note Gasket(FOR OIL PAN DRAIN PLUG)
1988-03 → 1988-08 ended
2YU D,E,N,Q) YR20 HRF +8 ¥120
90430-12019 Gasket(FOR OIL PAN DRAIN PLUG)
1988-03 → 1988-08 ended
1C,2C CR26,27 ¥120
90430-18013 Gasket(FOR OIL PAN DRAIN PLUG)
1986-08 → 1988-08 ended
1C,2C# CR2#,3# ¥240
90430-18013 Gasket(FOR OIL PAN DRAIN PLUG)
1985-05 → 1985-08 ended
1C,2C CR2# ¥240
90430-18244 Gasket(FOR OIL PAN DRAIN PLUG)
1985-08 → 1986-08 ended
1C,2C# CR2#,3# ¥180
90430-18244 Gasket(FOR OIL PAN DRAIN PLUG)
1982-11 → 1986-08 ended
1C,2C CR2# ¥180
90430-18244 Gasket(FOR OIL PAN DRAIN PLUG)
1982-11 → 1986-08 ended
4KJ KR26 ¥180
90430-18244 note Gasket(FOR OIL PAN DRAIN PLUG)
1985-04 → 1985-05 ended
1C,2C CR2# ¥180
90430-18244 note Gasket(FOR OIL PAN DRAIN PLUG)
1985-01 → 1985-04 ended
1C,2C CR2# ¥180
90430-18244 note Gasket(FOR OIL PAN DRAIN PLUG)
1982-11 → 1986-08 ended
1YJ,2YU,3YEU YR2# ¥180
12151 — Gasket, Oil Pan
12151-13010 Gasket, Oil Pan
1982-11 → 1983-08 ended
4KJ KR26 ¥2,220
12151-13011 Gasket, Oil Pan
1983-08 → 1988-08 ended
4KJ KR26 ¥3,500
15301 — Gage Sub-assy, Oil Level
15301-13040 Gage Sub-assy, Oil Level
1985-08 → 1988-08 ended
4KJ KR26 ¥1,060
15301-24010 Gage Sub-assy, Oil Level
1982-11 → 1985-08 ended
4KJ KR26 ¥1,120
15301-64020 Gage Sub-assy, Oil Level
1987-08 → 1988-08 ended
1C,2C CR26,27,36 ¥1,140
15301-64020 Gage Sub-assy, Oil Level
1987-08 → 1988-08 ended
2CT CR21,28,30,37 ¥1,140
15301-64020 Gage Sub-assy, Oil Level
1982-11 → 1987-08 ended
1C,2C CR2#,36 ¥1,140
15301-64030 Gage Sub-assy, Oil Level
1985-08 → 1987-08 ended
2CT CR21,30 ¥1,260
15301-71010 Gage Sub-assy, Oil Level
1983-08 → 1984-04 ended
1YJ,2YU YR20,26 ¥1,180
15301-71010 Gage Sub-assy, Oil Level
1982-11 → 1983-08 ended
1YJ,2YU,3YEU YR2# ¥1,180
15301-71020 Gage Sub-assy, Oil Level
1984-04 → 1988-08 ended
1YJ,2YU,3YEU YR2#,3# ¥1,060
15301-71020 Gage Sub-assy, Oil Level
1983-08 → 1984-03 ended
3YEU YR21 ¥1,060
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
