Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

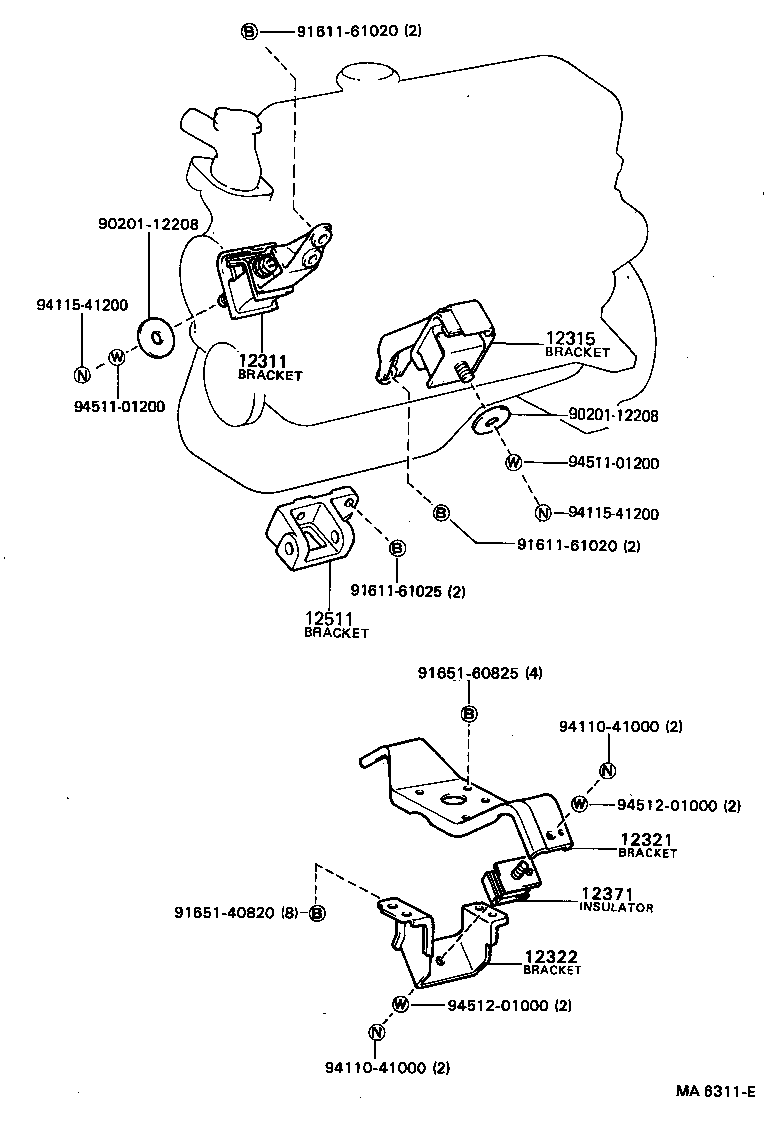

Exploded illustration MA6311E 9161161020 — not listed in this catalogue 9020112208 — not listed in this catalogue 9411541200 — not listed in this catalogue 12315 — BRACKET, ENGINE MOUNTING, FRONT NO.1 LH (4 parts) 12311 — BRACKET, ENGINE MOUNTING, FRONT NO.1 RH (4 parts) 9451101200 — not listed in this catalogue 9020112208 — not listed in this catalogue 9451101200 — not listed in this catalogue 9411541200 — not listed in this catalogue 9161161020 — not listed in this catalogue 9161161025 — not listed in this catalogue 12511 — BRACKET, ALTERNATOR, NO.1 (7 parts) 9165160825 — not listed in this catalogue 9411041000 — not listed in this catalogue 9451201000 — not listed in this catalogue 12321 — BRACKET, ENGINE MOUNTING, REAR, NO.1 (9 parts) 12371 — INSULATOR, ENGINE MOUNTING, REAR NO.1 (3 parts) 9165140820 — not listed in this catalogue 12322 — BRACKET, ENGINE MOUNTING, REAR NO.2 (6 parts) 9451201000 — not listed in this catalogue 9411041000 — not listed in this catalogue
MA6311E · 6 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
33 parts on this figure
Part number Description Fitment Price
12311 — Bracket, Engine Mounting, Front NO.1 RH
12301-13090 Bracket, Engine Mounting, Front NO.1 RH
1982-11 → 1988-08 ended
4KJ KR26 ¥7,900
12311-64020 Bracket, Engine Mounting, Front NO.1 RH
1982-11 → 1985-08 ended
1C,2C CR2# ¥3,870
12311-64060 Bracket, Engine Mounting, Front NO.1 RH
1985-08 → 1988-08 ended
1C,2C# CR2#,3# ¥2,500
12311-71010 Bracket, Engine Mounting, Front NO.1 RH
1982-11 → 1988-08 ended
1YJ,2YU,3YEU YR2#,3# ¥2,560
12315 — Bracket, Engine Mounting, Front NO.1 LH
12302-13090 Bracket, Engine Mounting, Front NO.1 LH
1982-11 → 1983-08 ended
4KJ KR26 ¥8,200
12302-13091 Bracket, Engine Mounting, Front NO.1 LH
1983-08 → 1988-08 ended
4KJ KR26 ¥8,100
12315-64020 Bracket, Engine Mounting, Front NO.1 LH
1982-11 → 1988-08 ended
1C,2C# CR2#,3# ¥5,200
12315-71010 Bracket, Engine Mounting, Front NO.1 LH
1982-11 → 1988-08 ended
1YJ,2YU,3YEU YR2#,3# ¥3,010
12321 — Bracket, Engine Mounting, Rear, NO.1
12303-54010 Bracket, Engine Mounting, Rear, NO.1
1986-04 → 1988-08 ended
3YEU YR3# ¥4,130
12303-54010 Bracket, Engine Mounting, Rear, NO.1
1986-04 → 1988-08 ended
2C# CR3# ¥4,130
12303-64020 Bracket, Engine Mounting, Rear, NO.1
1985-10 → 1986-04 ended
3YEU YR30 ¥4,150
12303-64020 Bracket, Engine Mounting, Rear, NO.1
1985-10 → 1986-04 ended
2C# CR3# ¥4,150
12303-71010 Bracket, Engine Mounting, Rear, NO.1
1982-11 → 1988-08 ended
1YJ,2YU,3YEU YR2# 4FC ¥7,300
12303-71010 Bracket, Engine Mounting, Rear, NO.1
1982-11 → 1988-08 ended
2C# CR21,27,28 4FC ¥7,300
12321-13030 Bracket, Engine Mounting, Rear, NO.1
1982-11 → 1988-08 ended
4KJ KR26 ¥4,180
12321-64010 Bracket, Engine Mounting, Rear, NO.1
1982-11 → 1988-08 ended
1C,2C# CR21,26,28 5F ¥6,000
12321-71020 Bracket, Engine Mounting, Rear, NO.1
1982-11 → 1988-08 ended
1YJ,2YU,3YEU YR2# MTM ¥3,060
12322 — Bracket, Engine Mounting, Rear NO.2
12322-13030 note Bracket, Engine Mounting, Rear NO.2
1982-11 → 1988-08 ended
4KJ KR26 ¥2,760
12322-13030 note Bracket, Engine Mounting, Rear NO.2
1982-11 → 1988-08 ended
1C,2C# CR21,26,28 5F ¥2,760
12322-13030 note Bracket, Engine Mounting, Rear NO.2
1982-11 → 1988-08 ended
1YJ,2YU,3YEU YR2# MTM ¥2,760
12326-13010 note Bracket, Engine Mounting, Rear NO.2
1982-11 → 1988-08 ended
1C,2C# CR21,26,28 5F ¥2,830
12326-13010 note Bracket, Engine Mounting, Rear NO.2
1982-11 → 1988-08 ended
1YJ,2YU,3YEU YR2# MTM ¥2,830
12326-13010 note Bracket, Engine Mounting, Rear NO.2
1982-11 → 1988-08 ended
4KJ KR26 ¥2,830
12371 — Insulator, Engine Mounting, Rear NO.1
12371-13051 Insulator, Engine Mounting, Rear NO.1
1982-11 → 1988-08 ended
4KJ KR26 ¥3,010
12371-13051 Insulator, Engine Mounting, Rear NO.1
1982-11 → 1988-08 ended
1C,2C# CR21,26,28 5F ¥3,010
12371-13051 Insulator, Engine Mounting, Rear NO.1
1982-11 → 1988-08 ended
1YJ,2YU,3YEU YR2# MTM ¥3,010
12511 — Bracket, Alternator, NO.1
12501-73010 Bracket, Alternator, NO.1
1983-05 → 1985-05 ended
3YEU YR21 ¥3,140
12501-73011 Bracket, Alternator, NO.1
1985-05 → 1985-08 ended
3YEU YR21 ¥3,180
12501-73011 Bracket, Alternator, NO.1
1985-08 → 1988-08 ended
2YU YR21,26,28,3# YR20 HRF +8 ¥3,180
12511-24011 Bracket, Alternator, NO.1
1982-11 → 1988-08 ended
4KJ KR26 ¥3,060
12511-64011 Bracket, Alternator, NO.1
1982-11 → 1985-08 ended
1C,2C CR2# ¥3,060
12511-64030 Bracket, Alternator, NO.1
1985-08 → 1988-08 ended
1C,2C# CR2#,3# ¥4,780
12511-71010 Bracket, Alternator, NO.1
1982-11 → 1985-08 ended
1YJ,2YU YR20,26 ¥3,410
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
