Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

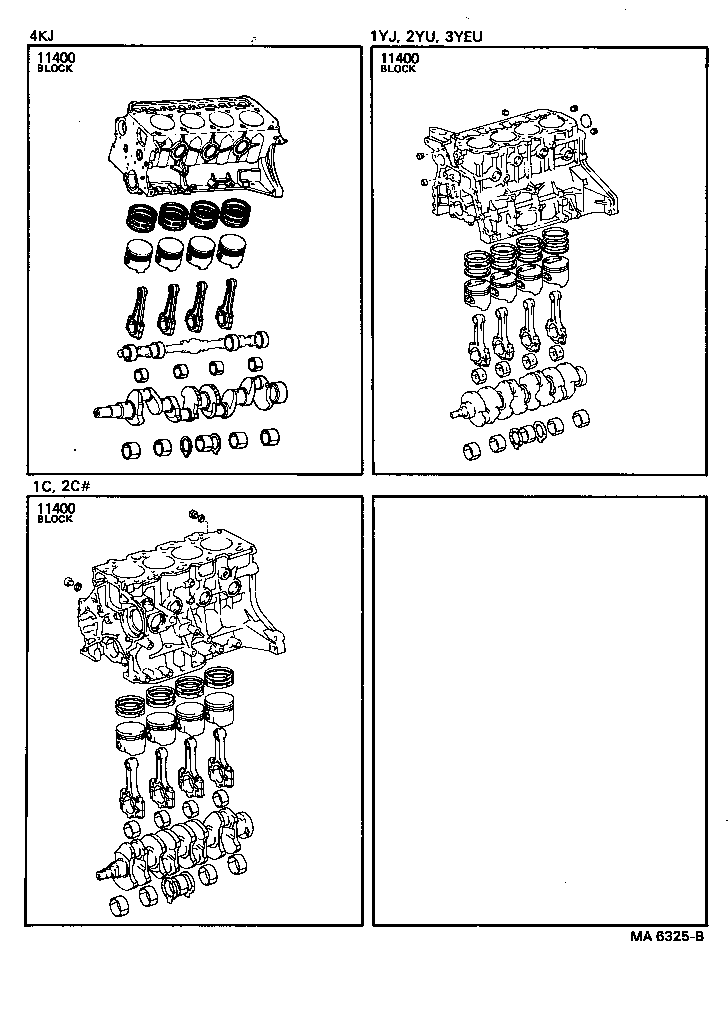

20 parts on this figure

Part number	Description	Fitment	Price
11400 — Block Assy, Short
11400-13010	Block Assy, Short 1982-11 → 1984-11 ended	4KJ KR26	¥221,000
11400-13011	Block Assy, Short 1984-11 → 1988-08 ended	4KJ KR26	¥236,000
11400-64020	Block Assy, Short 1982-11 → 1983-03 ended	1C CR26	¥438,000
11400-64021	Block Assy, Short 1983-03 → 1983-07 ended	1C CR26	—
11400-64022	Block Assy, Short 1983-07 → 1985-08 ended	1C CR26	¥398,000
11400-64030 note	Block Assy, Short 1983-04 → 1983-07 ended	2C CR21	—
11400-64060 note	Block Assy, Short 1983-07 → 1985-08 ended	2C CR21 5F	¥374,000
11400-64070	Block Assy, Short 1983-04 → 1985-08 ended	2C CR21,27	¥392,000
11400-64150	Block Assy, Short 1985-08 → 1986-08 ended	2CT CR21,30	¥392,000
11400-64151	Block Assy, Short 1986-08 → 1988-08 ended	2CT CR21,28,30,37	¥394,000
11400-64160	Block Assy, Short 1985-08 → 1986-08 ended	2C CR21,27,28,36	¥392,000
11400-64161	Block Assy, Short 1986-08 → 1988-08 ended	2C CR21,27,28,36	¥394,000
11400-64170	Block Assy, Short 1985-08 → 1986-08 ended	1C CR26	¥378,000
11400-64171	Block Assy, Short 1986-08 → 1988-08 ended	1C CR26	¥379,000
11400-71010	Block Assy, Short 1982-11 → 1985-02 ended	1YJ YR26	¥253,000
11400-71011	Block Assy, Short 1985-02 → 1988-08 ended	1YJ YR26	¥255,000
11400-72020	Block Assy, Short 1982-11 → 1985-02 ended	2YU YR20	¥309,000
11400-72021	Block Assy, Short 1985-02 → 1988-08 ended	2YU YR20 HRF 5F +7	¥280,000
11400-73010	Block Assy, Short 1983-05 → 1985-02 ended	3YEU YR21	¥308,000
11400-73011	Block Assy, Short 1985-02 → 1988-08 ended	3YEU YR21,3#	¥310,000

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
