Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

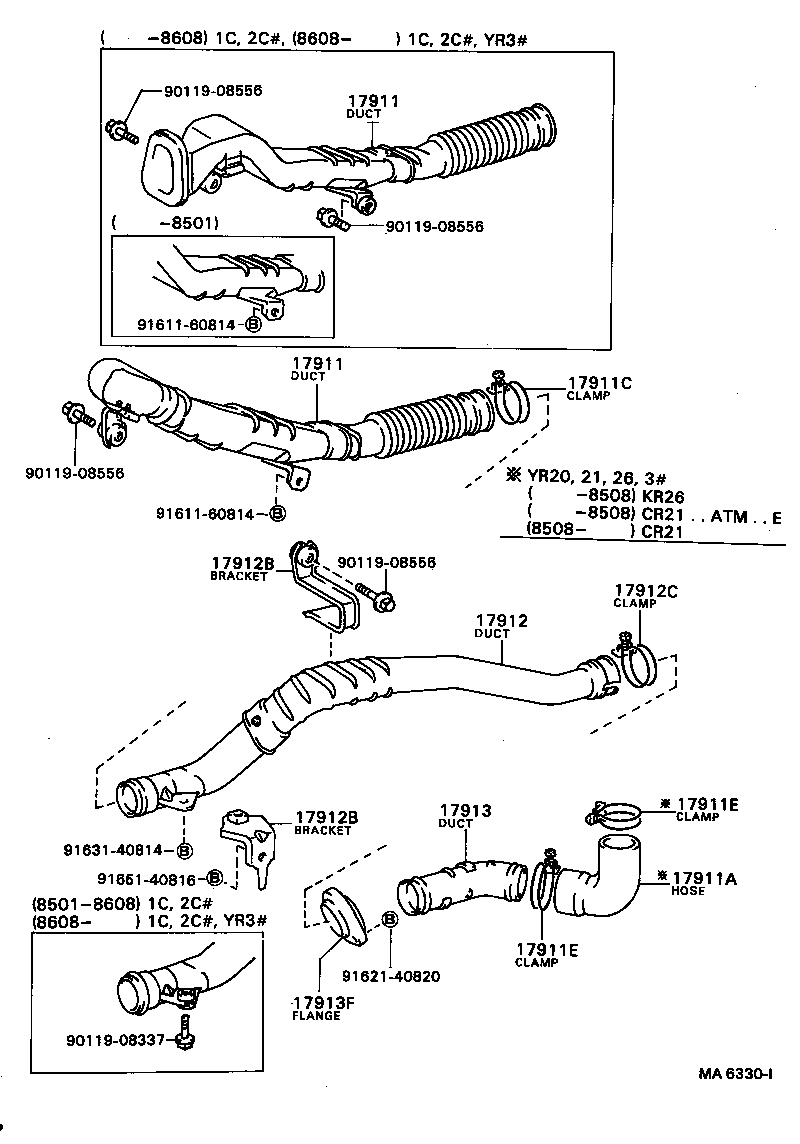

Exploded illustration MA6330I 9011908556 — not listed in this catalogue 17911 — DUCT, COOL AIR INTAKE, NO.1 (9 parts) 9011908556 — not listed in this catalogue 9161160814 — not listed in this catalogue 17911 — DUCT, COOL AIR INTAKE, NO.1 (9 parts) 17911C — CLAMP, COOL AIR INTAKE DUCT, NO.1 (3 parts) 9011908556 — not listed in this catalogue 9161160814 — not listed in this catalogue 17912B — BRACKET, COOL AIR INTAKE DUCT, NO.2 (12 parts) 9011908556 — not listed in this catalogue 17912C — CLAMP, COOL AIR INTAKE DUCT, NO.2 (3 parts) 17912 — DUCT, COOL AIR INTAKE, NO.2 (10 parts) 17911E — CLAMP, COOL AIR INTAKE HOSE, NO.1 (11 parts) 17913 — DUCT, COOL AIR INTAKE, NO.3 (7 parts) 17912B — BRACKET, COOL AIR INTAKE DUCT, NO.2 (12 parts) 9163140814 — not listed in this catalogue 9165140816 — not listed in this catalogue 17911A — HOSE, COOL AIR INTAKE, NO.1 (6 parts) 17911E — CLAMP, COOL AIR INTAKE HOSE, NO.1 (11 parts) 9162140820 — not listed in this catalogue 17913F — FLANGE, COOL AIR INTAKE DUCT, NO.3 (3 parts) 9011908337 — not listed in this catalogue
MA6330I · 12 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
64 parts on this figure
Part number Description Fitment Price
17911 — Duct, Cool Air Intake, NO.1
52810-87002 Duct, Cool Air Intake, NO.1
1982-11 → 1986-08 ended
4KJ KR26 ¥6,700
52810-87002 Duct, Cool Air Intake, NO.1
1982-11 → 1986-08 ended
1YJ,2YU,3YEU YR2#,30 ¥6,700
52810-87002 Duct, Cool Air Intake, NO.1
1986-08 → 1988-08 ended
4KJ KR26 ¥6,700
52810-87002 Duct, Cool Air Intake, NO.1
1986-08 → 1988-08 ended
2YU ,D,E,N) YR20 HRF +8 ¥6,700
52810-87003 Duct, Cool Air Intake, NO.1
1982-11 → 1985-01 ended
1C,2C CR2# —
52810-87004 Duct, Cool Air Intake, NO.1
1985-01 → 1985-08 ended
1C,2C CR2# ¥6,700
52810-87006 Duct, Cool Air Intake, NO.1
1985-08 → 1986-08 ended
1C,2C# CR2#,3# ¥7,500
52810-87006 Duct, Cool Air Intake, NO.1
1986-08 → 1988-08 ended
1C,2C# CR2#,3# ¥7,500
52810-87006 Duct, Cool Air Intake, NO.1
1986-08 → 1988-08 ended
3YEU YR3# ¥7,500
17911A — Hose, Cool Air Intake, NO.1
52831-87001 Hose, Cool Air Intake, NO.1
1982-11 → 1984-01 ended
4KJ KR26 —
52831-87001 Hose, Cool Air Intake, NO.1
1984-01 → 1985-08 ended
4KJ KR26 —
52831-87001 Hose, Cool Air Intake, NO.1
1982-11 → 1984-01 ended
1YJ,2YU YR20,26 —
52831-87002 Hose, Cool Air Intake, NO.1
1984-08 → 1985-08 ended
2C CR21 4FC E ¥4,350
52831-87002 Hose, Cool Air Intake, NO.1
1983-05 → 1988-08 ended
3YEU YR21,3# ¥4,350
52831-87003 Hose, Cool Air Intake, NO.1
1984-01 → 1985-08 ended
1YJ,2YU YR20,26 ¥4,420
17911C — Clamp, Cool Air Intake Duct, NO.1
96111-10650 Clamp, Cool Air Intake Duct, NO.1
1982-11 → 1988-08 ended
1C,2C# CR2#,3# ¥240
96111-10650 Clamp, Cool Air Intake Duct, NO.1
1982-11 → 1988-08 ended
4KJ KR26 ¥240
96111-10650 Clamp, Cool Air Intake Duct, NO.1
1982-11 → 1988-08 ended
1YJ,2YU,3YEU YR2#,3# ¥240
17911E — Clamp, Cool Air Intake Hose, NO.1
96111-10600 note Clamp, Cool Air Intake Hose, NO.1
1982-11 → 1984-01 ended
1YJ,2YU YR20,26 ¥110
96111-10600 note Clamp, Cool Air Intake Hose, NO.1
1984-01 → 1985-08 ended
4KJ KR26 ¥110
96111-10600 note Clamp, Cool Air Intake Hose, NO.1
1982-11 → 1984-01 ended
4KJ KR26 ¥110
96111-10690 note Clamp, Cool Air Intake Hose, NO.1
1982-11 → 1985-08 ended
4KJ KR26 ¥160
96111-10690 note Clamp, Cool Air Intake Hose, NO.1
1982-11 → 1985-08 ended
1C,2C CR2# ¥160
96111-10690 note Clamp, Cool Air Intake Hose, NO.1
1982-11 → 1985-08 ended
1YJ,2YU,3YEU YR2# ¥160
96111-10690 note Clamp, Cool Air Intake Hose, NO.1
1985-08 → 1988-08 ended
1C,2C# CR2#,3# ¥160
96111-10690 note Clamp, Cool Air Intake Hose, NO.1
1985-08 → 1988-08 ended
3YEU YR21,3# ¥160
96111-10730 note Clamp, Cool Air Intake Hose, NO.1
1984-01 → 1985-08 ended
1YJ,2YU YR20,26 ¥160
96111-10800 note Clamp, Cool Air Intake Hose, NO.1
1984-08 → 1985-08 ended
2C CR21 4FC E ¥160
96111-10800 note Clamp, Cool Air Intake Hose, NO.1
1983-05 → 1988-08 ended
3YEU YR21,3# ¥160
17912 — Duct, Cool Air Intake, NO.2
52820-87002 Duct, Cool Air Intake, NO.2
1982-11 → 1985-01 ended
1C,2C CR2# ¥7,500
52820-87002 Duct, Cool Air Intake, NO.2
1982-11 → 1985-01 ended
4KJ KR26 ¥7,500
52820-87002 Duct, Cool Air Intake, NO.2
1982-11 → 1985-01 ended
1YJ,2YU,3YEU YR2# ¥7,500
52820-87003 Duct, Cool Air Intake, NO.2
1985-01 → 1988-08 ended
4KJ KR26 ¥7,600
52820-87003 Duct, Cool Air Intake, NO.2
1985-01 → 1988-08 ended
2YU MRF YR20 (08S,09S) +8 ¥7,600
52820-87004 Duct, Cool Air Intake, NO.2
1985-01 → 1988-08 ended
1C,2C# CR2# ¥7,600
52820-95D00 Duct, Cool Air Intake, NO.2
1985-10 → 1986-08 ended
3YEU YR30 ¥6,600
52820-95D01 Duct, Cool Air Intake, NO.2
1986-08 → 1988-08 ended
2C# CR3# ¥6,600
52820-95D01 Duct, Cool Air Intake, NO.2
1986-08 → 1988-08 ended
3YEU YR3# ¥6,600
52820-95D01 Duct, Cool Air Intake, NO.2
1985-10 → 1986-08 ended
2C# CR3# ¥6,600
17912B — Bracket, Cool Air Intake Duct, NO.2
52805-87001 note Bracket, Cool Air Intake Duct, NO.2
1982-11 → 1988-08 ended
1C,2C# CR2#,3# ¥3,180
52805-87001 note Bracket, Cool Air Intake Duct, NO.2
1982-11 → 1988-08 ended
4KJ KR26 ¥3,180
52805-87001 note Bracket, Cool Air Intake Duct, NO.2
1982-11 → 1988-08 ended
1YJ,2YU,3YEU YR2#,3# ¥3,180
52852-87002 note Bracket, Cool Air Intake Duct, NO.2
1982-11 → 1985-01 ended
1C,2C CR2# ¥650
52852-87002 note Bracket, Cool Air Intake Duct, NO.2
1982-11 → 1985-01 ended
4KJ KR26 ¥650
52852-87002 note Bracket, Cool Air Intake Duct, NO.2
1982-11 → 1985-01 ended
1YJ,2YU,3YEU YR2# ¥650
52852-87002 note Bracket, Cool Air Intake Duct, NO.2
1985-01 → 1986-08 ended
4KJ KR26 ¥650
52852-87002 note Bracket, Cool Air Intake Duct, NO.2
1985-01 → 1986-08 ended
2YU EU YR20 YR21,26,28,30 +9 ¥650
52852-87002 Bracket, Cool Air Intake Duct, NO.2
1986-08 → 1988-08 ended
4KJ KR26 ¥650
52852-87002 Bracket, Cool Air Intake Duct, NO.2
1986-08 → 1988-08 ended
2YU ,D,E,N) YR20 HRF +8 ¥650
52852-87003 note Bracket, Cool Air Intake Duct, NO.2
1986-08 → 1988-08 ended
1C,2C# CR2#,3# ¥640
52852-87003 note Bracket, Cool Air Intake Duct, NO.2
1985-01 → 1986-08 ended
1C,2C# CR2#,3# ¥640
17912C — Clamp, Cool Air Intake Duct, NO.2
96111-10650 Clamp, Cool Air Intake Duct, NO.2
1982-11 → 1988-08 ended
1C,2C# CR2#,3# ¥240
96111-10650 Clamp, Cool Air Intake Duct, NO.2
1982-11 → 1988-08 ended
4KJ KR26 ¥240
96111-10650 Clamp, Cool Air Intake Duct, NO.2
1982-11 → 1988-08 ended
1YJ,2YU,3YEU YR2#,3# ¥240
17913 — Duct, Cool Air Intake, NO.3
52815-87001 Duct, Cool Air Intake, NO.3
1982-11 → 1985-08 ended
4KJ KR26 ¥2,160
52815-87001 Duct, Cool Air Intake, NO.3
1982-11 → 1985-08 ended
1C,2C CR2# ¥2,160
52815-87001 Duct, Cool Air Intake, NO.3
1982-11 → 1985-08 ended
1YJ,2YU,3YEU YR2# ¥2,160
52815-87001 Duct, Cool Air Intake, NO.3
1985-08 → 1988-08 ended
1C,2C# CR2#,3# ¥2,160
52815-87001 Duct, Cool Air Intake, NO.3
1985-08 → 1988-08 ended
3YEU YR21,3# ¥2,160
52815-87002 Duct, Cool Air Intake, NO.3
1985-08 → 1988-08 ended
4KJ KR26 ¥2,690
52815-87002 Duct, Cool Air Intake, NO.3
1985-08 → 1988-08 ended
2YU ,D,E,N,Q) YR20 HRF +8 ¥2,690
17913F — Flange, Cool Air Intake Duct, NO.3
52809-87001 Flange, Cool Air Intake Duct, NO.3
1982-11 → 1988-08 ended
1C,2C# CR2#,3# ¥2,020
52809-87001 Flange, Cool Air Intake Duct, NO.3
1982-11 → 1988-08 ended
4KJ KR26 ¥2,020
52809-87001 Flange, Cool Air Intake Duct, NO.3
1982-11 → 1988-08 ended
1YJ,2YU,3YEU YR2#,3# ¥2,020
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
