Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

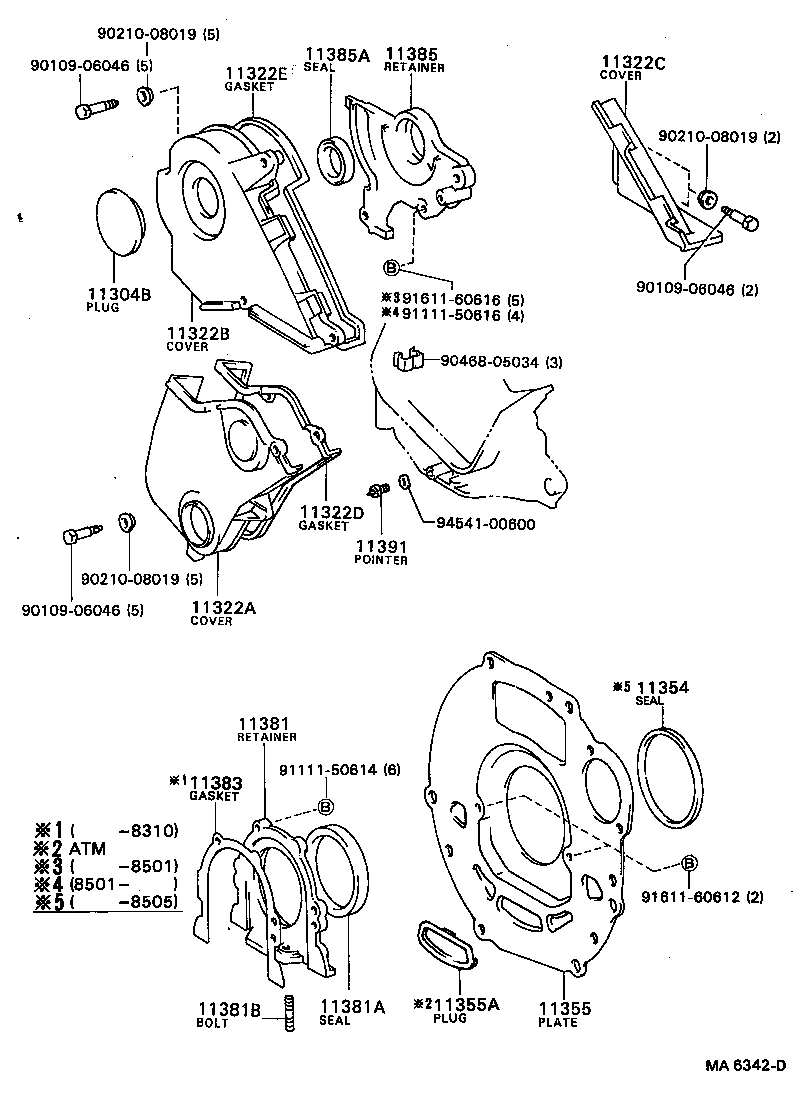

Exploded illustration MA6342D 9021008019 — not listed in this catalogue 11385 — RETAINER, CAMSHAFT OIL SEAL (2 parts) 11385A — SEAL, OIL(FOR CAMSHAFT) (2 parts) 11322C — COVER, TIMING BELT, NO.3 (2 parts) 9010906046 — not listed in this catalogue 11322E — GASKET, TIMING BELT COVER, NO.2 (1 parts) 9021008019 — not listed in this catalogue 9010906046 — not listed in this catalogue 11304B — PLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2) (1 parts) 9161160616 — not listed in this catalogue 9111150616 — not listed in this catalogue 11322B — COVER, TIMING BELT, NO.2 (1 parts) 9046805034 — not listed in this catalogue 11322D — GASKET, TIMING BELT COVER, NO.1 (1 parts) 9454100600 — not listed in this catalogue 11391 — POINTER, TIMING (3 parts) 9021008019 — not listed in this catalogue 11322A — COVER, TIMING BELT, NO.1 (1 parts) 9010906046 — not listed in this catalogue 11354 — SEAL, FLYWHEEL HOUSING DUST (2 parts) 11381 — RETAINER, ENGINE REAR OIL SEAL (6 parts) 9111150614 — not listed in this catalogue 11383 — GASKET, ENGINE REAR OIL SEAL RETAINER (3 parts) 9161160612 — not listed in this catalogue 11355A — PLUG, HOLE(FOR REAR END PLATE) (4 parts) 11381A — SEAL, ENGINE REAR OIL (4 parts) 11381B — BOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER) (2 parts) 11355 — PLATE, REAR END (8 parts)
MA6342D · 16 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
43 parts on this figure
Part number Description Fitment Price
11304B — Plug, Semi Circular(FOR CHAIN COVER NO.2)
90950-01357 note Plug, Semi Circular(FOR CHAIN COVER NO.2)
1982-11 → 1988-08 ended
1C,2C# CR2#,3# ¥610
11322A — Cover, Timing Belt, NO.1
11321-64010 Cover, Timing Belt, NO.1
1982-11 → 1988-08 ended
1C,2C# CR2#,3# ¥2,220
11322B — Cover, Timing Belt, NO.2
11322-64010 Cover, Timing Belt, NO.2
1982-11 → 1988-08 ended
1C,2C# CR2#,3# ¥2,440
11322C — Cover, Timing Belt, NO.3
11323-64010 Cover, Timing Belt, NO.3
1982-11 → 1986-02 ended
1C,2C# CR2#,3# ¥1,880
11323-64011 Cover, Timing Belt, NO.3
1986-02 → 1988-08 ended
1C,2C# CR2#,3# ¥1,720
11322D — Gasket, Timing Belt Cover, NO.1
11328-64020 Gasket, Timing Belt Cover, NO.1
1982-11 → 1988-08 ended
1C,2C# CR2#,3# ¥1,610
11322E — Gasket, Timing Belt Cover, NO.2
11329-64020 Gasket, Timing Belt Cover, NO.2
1982-11 → 1988-08 ended
1C,2C# CR2#,3# ¥1,870
11354 — Seal, Flywheel Housing Dust
11354-64010 Seal, Flywheel Housing Dust
1982-11 → 1985-05 ended
1C,2C CR2# ¥980
11354-71010 Seal, Flywheel Housing Dust
1982-11 → 1988-08 ended
1YJ,2YU,3YEU YR2#,3# ¥900
11355 — Plate, Rear End
11305-13010 Plate, Rear End
1982-11 → 1985-03 ended
4KJ KR26 ¥4,750
11355-24043 Plate, Rear End
1985-03 → 1988-08 ended
4KJ KR26 ¥4,300
11355-64010 Plate, Rear End
1982-11 → 1985-05 ended
1C,2C CR21,26 5F ¥7,400
11355-64011 Plate, Rear End
1985-05 → 1988-08 ended
1C,2C# CR21,26,28,3# 5F ¥7,400
11355-64020 Plate, Rear End
1984-08 → 1985-05 ended
2C CR21,27 4FC ¥7,000
11355-64021 Plate, Rear End
1985-05 → 1988-08 ended
2C# CR21,27,28,30 4FC ¥7,000
11355-71010 Plate, Rear End
1982-11 → 1988-08 ended
1YJ,2YU,3YEU YR2#,3# MTM ¥7,400
11355-71020 Plate, Rear End
1982-11 → 1988-08 ended
1YJ,2YU,3YEU YR2#,3# 4FC ¥7,400
11355A — Plug, Hole(FOR REAR END PLATE)
90950-01160 Plug, Hole(FOR REAR END PLATE)
1982-11 → 1988-08 ended
1YJ,2YU,3YEU YR2#,3# 4FC ¥260
90950-01343 Plug, Hole(FOR REAR END PLATE)
1985-03 → 1988-08 ended
4KJ KR26 ¥840
90950-01358 Plug, Hole(FOR REAR END PLATE)
1984-08 → 1986-06 ended
2C# CR21,27,28,30 4FC ¥780
90950-01548 Plug, Hole(FOR REAR END PLATE)
1986-06 → 1988-08 ended
2C# CR21,27,28,30 4FC ¥260
11381 — Retainer, Engine Rear Oil Seal
11381-13010 Retainer, Engine Rear Oil Seal
1982-11 → 1983-03 ended
4KJ KR26 ¥5,100
11381-13011 Retainer, Engine Rear Oil Seal
1983-03 → 1988-08 ended
4KJ KR26 ¥4,590
11381-64010 Retainer, Engine Rear Oil Seal
1982-11 → 1983-10 ended
1C,2C CR2# ¥5,100
11381-64011 Retainer, Engine Rear Oil Seal
1983-10 → 1985-05 ended
1C,2C CR2# ¥4,550
11381-64012 Retainer, Engine Rear Oil Seal
1985-05 → 1988-08 ended
1C,2C# CR2#,3# ¥4,280
11381-71010 Retainer, Engine Rear Oil Seal
1982-11 → 1988-08 ended
1YJ,2YU,3YEU YR2#,3# ¥4,790
11381A — Seal, Engine Rear Oil
90311-70004 Seal, Engine Rear Oil
1982-11 → 1988-08 ended
4KJ KR26 ¥1,080
90311-80003 Seal, Engine Rear Oil
1982-11 → 1988-08 ended
1YJ,2YU,3YEU YR2#,3# ¥1,160
90311-90002 Seal, Engine Rear Oil
1982-11 → 1985-08 ended
1C,2C CR2# ¥1,080
90311-90003 Seal, Engine Rear Oil
1985-08 → 1988-08 ended
1C,2C# CR2#,3# ¥1,080
11381B — Bolt, Stud(FOR ENGINE REAR OIL SEAL RETAINER)
90116-06033 Bolt, Stud(FOR ENGINE REAR OIL SEAL RETAINER)
1982-11 → 1988-08 ended
1C,2C# CR2#,3# ¥250
90116-06035 note Bolt, Stud(FOR ENGINE REAR OIL SEAL RETAINER)
1982-11 → 1988-08 ended
4KJ KR26 ¥220
11383 — Gasket, Engine Rear Oil Seal Retainer
11383-13010 Gasket, Engine Rear Oil Seal Retainer
1982-11 → 1988-08 ended
4KJ KR26 ¥360
11383-25010 Gasket, Engine Rear Oil Seal Retainer
1982-11 → 1988-08 ended
1YJ,2YU,3YEU YR2#,3# ¥400
11383-64010 Gasket, Engine Rear Oil Seal Retainer
1982-11 → 1983-10 ended
1C,2C CR2# ¥590
11385 — Retainer, Camshaft Oil Seal
11382-64010 Retainer, Camshaft Oil Seal
1982-11 → 1985-01 ended
1C,2C CR2# ¥5,400
11382-64011 Retainer, Camshaft Oil Seal
1985-01 → 1988-08 ended
1C,2C# CR2#,3# ¥4,800
11385A — Seal, Oil(FOR CAMSHAFT)
90311-38017 Seal, Oil(FOR CAMSHAFT)
1982-11 → 1985-01 ended
1C,2C CR2# ¥320
90311-38025 Seal, Oil(FOR CAMSHAFT)
1985-01 → 1988-08 ended
1C,2C# CR2#,3# ¥350
11391 — Pointer, Timing
11391-64010 Pointer, Timing
1984-08 → 1985-08 ended
2C CR21,27 4FC ¥430
11391-64010 Pointer, Timing
1985-08 → 1988-08 ended
1C,2C# CR2#,3# ¥430
11391-64020 Pointer, Timing
1982-11 → 1985-08 ended
1C,2C CR21,26 5F ¥380
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
