Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

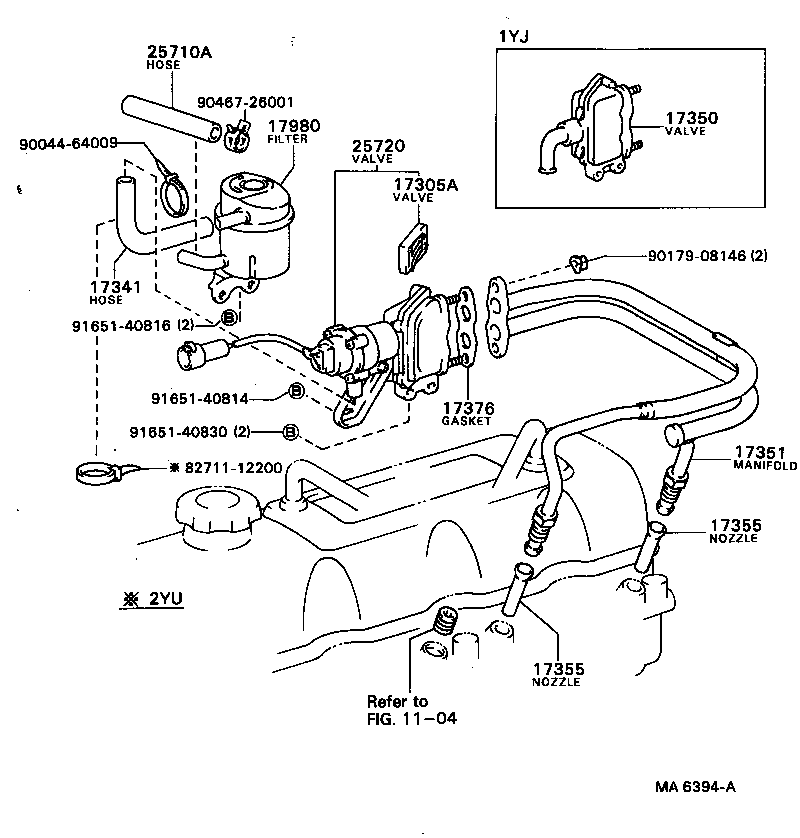

Exploded illustration MA6394A 25710A — HOSE(FOR AIR BY-PASS VALVE TO AIR SWITCHING VALVE) (1 parts) 9046726001 — not listed in this catalogue 17350 — VALVE ASSY, REED (1 parts) 17980 — FILTER ASSY, AIR SUCTION (5 parts) 9004464009 — not listed in this catalogue 25720 — VALVE ASSY, ELECTRIC AIR CONTROL (1 parts) 17305A — VALVE SUB-ASSY, REED (2 parts) 9017908146 — not listed in this catalogue 17341 — HOSE, NO.1(FOR AIR INJECTION SYSTEM) (1 parts) 9165140816 — not listed in this catalogue 9165140814 — not listed in this catalogue 17376 — GASKET, AIR TUBE, NO.1 (1 parts) 9165140830 — not listed in this catalogue 17351 — MANIFOLD, AIR INJECTION (1 parts) 8271112200 — not listed in this catalogue 17355 — NOZZLE, AIR INJECTION (1 parts) 17355 — NOZZLE, AIR INJECTION (1 parts) 1104 — not listed in this catalogue
MA6394A · 10 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
14 parts on this figure
Part number Description Fitment Price
17305A — Valve Sub-assy, Reed
17305-28010 note Valve Sub-assy, Reed
1982-11 → 1988-08 ended
2YU YR20,28 ¥2,830
17305-71010 note Valve Sub-assy, Reed
1982-11 → 1988-08 ended
2YU YR20,28 ¥3,170
17341 — Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341-71010 Hose, NO.1(FOR AIR INJECTION SYSTEM)
1982-11 → 1988-08 ended
1YJ,2YU YR20,26,28 ¥1,650
17350 — Valve Assy, Reed
17350-71010 Valve Assy, Reed
1982-11 → 1988-08 ended
1YJ YR26 ¥13,200
17351 — Manifold, Air Injection
17306-71010 Manifold, Air Injection
1982-11 → 1988-08 ended
1YJ,2YU YR20,26,28 ¥10,300
17355 — Nozzle, Air Injection
17355-71010 Nozzle, Air Injection
1982-11 → 1988-08 ended
1YJ,2YU YR20,26,28 ¥920
17376 — Gasket, Air Tube, NO.1
17376-71010 Gasket, Air Tube, NO.1
1982-11 → 1988-08 ended
1YJ,2YU YR20,26,28 ¥400
17980 — Filter Assy, Air Suction
17980-71011 Filter Assy, Air Suction
1982-11 → 1983-03 ended
1YJ,2YU YR2# ¥21,700
17980-71011 Filter Assy, Air Suction
1983-02 → 1986-08 ended
2YU YR20,28 ¥21,700
17980-71012 Filter Assy, Air Suction
1986-08 → 1988-08 ended
2YU YR20 HRF 5F +7 ¥19,600
17980-71030 Filter Assy, Air Suction
1983-03 → 1986-08 ended
1YJ YR26 ¥22,400
17980-71031 Filter Assy, Air Suction
1986-08 → 1988-08 ended
1YJ YR26 ¥22,400
25710A — Hose(FOR AIR BY-PASS VALVE TO AIR SWITCHING VALVE)
90445-29003 Hose(FOR AIR BY-PASS VALVE TO AIR SWITCHING VALVE)
1982-11 → 1988-08 ended
1YJ,2YU YR20,26,28 —
25720 — Valve Assy, Electric Air Control
25720-71010 Valve Assy, Electric Air Control
1982-11 → 1988-08 ended
2YU YR20,28 ¥41,500
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
