Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

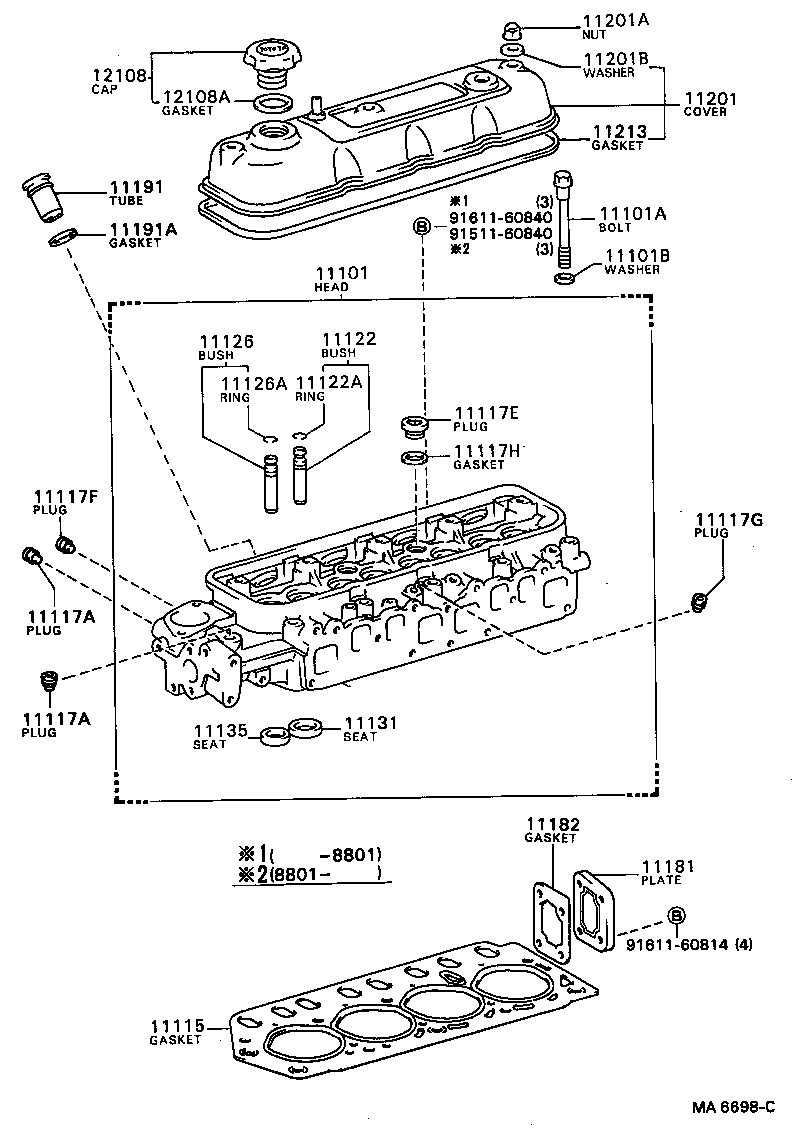

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11101 — Head Sub-assy, Cylinder | ||||
| 11101-13011 |
Head Sub-assy, Cylinder
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥69,500 | |
| 11101-64010 |
Head Sub-assy, Cylinder
1982-11 → 1983-01
ended
|
1C CR26 | ¥132,000 | |
| 11101-64011 |
Head Sub-assy, Cylinder
1983-01 → 1985-04
ended
|
1C CR26 | ¥131,000 | |
| 11101-64012 |
Head Sub-assy, Cylinder
1985-04 → 1985-08
ended
|
1C CR26 | ¥131,000 | |
| 11101-64020 |
Head Sub-assy, Cylinder
1983-04 → 1985-04
ended
|
2C CR21,27 | ¥107,000 | |
| 11101-64021 |
Head Sub-assy, Cylinder
1985-04 → 1985-08
ended
|
2C CR21,27 | ¥107,000 | |
| 11101-64060 |
Head Sub-assy, Cylinder
1985-08 → 1988-08
ended
|
1C CR26 | ¥107,000 | |
| 11101-64070 |
Head Sub-assy, Cylinder
1985-08 → 1987-08
ended
|
2CT CR21,30 | ¥113,000 | |
| 11101-64080 |
Head Sub-assy, Cylinder
1985-08 → 1987-01
ended
|
2C CR21,27,28,36 | ¥133,000 | |
| 11101-64090 |
Head Sub-assy, Cylinder
1987-08 → 1988-08
ended
|
2CT CR21,28,30,37 | ¥119,000 | |
| 11101-64100 |
Head Sub-assy, Cylinder
1987-01 → 1988-01
ended
|
2C CR21,27,28,36 | ¥119,000 | |
| 11101-64120 |
Head Sub-assy, Cylinder
1988-01 → 1988-08
ended
|
2C CR27,36 | ¥119,000 | |
| 11101-71010 |
Head Sub-assy, Cylinder
1982-11 → 1988-08
ended
|
1YJ,2YU YR20,26,28 | ¥82,400 | |
| 11101-71020 |
Head Sub-assy, Cylinder
1983-05 → 1985-08
ended
|
3YEU YR21 | ¥74,800 | |
| 11101-73020 |
Head Sub-assy, Cylinder
1985-08 → 1988-08
ended
|
3YEU YR21,3# | ¥91,200 | |
| 11101A — Bolt(FOR CYLINDER HEAD SET) | ||||
| 90105-11011 note |
Bolt(FOR CYLINDER HEAD SET)
1982-11 → 1985-08
ended
|
1C,2C CR2# | ¥640 | |
| 90105-11012 note |
Bolt(FOR CYLINDER HEAD SET)
1982-11 → 1985-08
ended
|
1C,2C CR2# | ¥670 | |
| 90105-11018 note |
Bolt(FOR CYLINDER HEAD SET)
1985-08 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥460 | |
| 90105-11019 note |
Bolt(FOR CYLINDER HEAD SET)
1985-08 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥580 | |
| 90105-12056 |
Bolt(FOR CYLINDER HEAD SET)
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥480 | |
| 90910-02069 |
Bolt(FOR CYLINDER HEAD SET)
1982-11 → 1988-05
ended
|
4KJ KR26 | ¥380 | |
| 90910-02069 |
Bolt(FOR CYLINDER HEAD SET)
1988-05 → 1988-08
ended
|
4KJ KR26 | ¥380 | |
| 90910-02074 note |
Bolt(FOR CYLINDER HEAD SET)
1988-05 → 1988-08
ended
|
4KJ KR26 | ¥350 | |
| 11101B — Washer, Plate(FOR CYLINDER HEAD SET) | ||||
| 90201-10005 |
Washer, Plate(FOR CYLINDER HEAD SET)
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥160 | |
| 90201-12222 |
Washer, Plate(FOR CYLINDER HEAD SET)
1982-11 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥220 | |
| 90201-13021 |
Washer, Plate(FOR CYLINDER HEAD SET)
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥220 | |
| 11115 — Gasket, Cylinder Head | ||||
| 11115-13031 |
Gasket, Cylinder Head
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥2,360 | |
| 11115-64010 |
Gasket, Cylinder Head
1982-11 → 1983-07
ended
|
1C CR26 | ¥7,900 | |
| 11115-64030 |
Gasket, Cylinder Head
1983-04 → 1983-07
ended
|
2C CR21 | ¥7,400 | |
| 11115-64050 |
Gasket, Cylinder Head
1983-07 → 1985-04
ended
|
1C CR26 | ¥7,700 | |
| 11115-64060 |
Gasket, Cylinder Head
1983-07 → 1985-08
ended
|
2C CR21,27 | ¥7,300 | |
| 11115-64070 |
Gasket, Cylinder Head
1985-04 → 1988-08
ended
|
1C CR26 | ¥8,100 | |
| 11115-64080 |
Gasket, Cylinder Head
1985-08 → 1986-10
ended
|
2C# CR21,27,28,3# | ¥7,400 | |
| 11115-64100 |
Gasket, Cylinder Head
1986-10 → 1988-08
ended
|
2C# CR21,27,28,3# | ¥7,400 | |
| 11115-71010 |
Gasket, Cylinder Head
1982-11 → 1985-08
ended
|
1YJ,2YU,3YEU YR2# | ¥6,200 | |
| 11115-71011 |
Gasket, Cylinder Head
1985-08 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥6,100 | |
| 11117A — Plug, W/Head Taper Screw, NO.1 | ||||
| 90341-18063 |
Plug, W/Head Taper Screw, NO.1
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥380 | |
| 90344-53002 |
Plug, W/Head Taper Screw, NO.1
1983-05 → 1984-07
ended
|
3YEU YR21 | ¥240 | |
| 90344-53011 |
Plug, W/Head Taper Screw, NO.1
1984-07 → 1988-08
ended
|
3YEU YR21,3# | ¥240 | |
| 11117E — Plug, W/Head Straight Screw, NO.1 | ||||
| 90341-20002 |
Plug, W/Head Straight Screw, NO.1
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥180 | |
| 11117F — Plug, W/Head Straight Screw, NO.2 | ||||
| 90340-16002 |
Plug, W/Head Straight Screw, NO.2
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥390 | |
| 11117G — Plug, W/Head Straight Screw, NO.3 | ||||
| 90340-18003 |
Plug, W/Head Straight Screw, NO.3
1982-11 → 1988-08
ended
|
1YJ,2YU YR20,26,28 | ¥590 | |
| 11117H — Gasket(FOR WATER HOLE) | ||||
| 90430-10204 note |
Gasket(FOR WATER HOLE)
1982-11 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥230 | |
| 90430-12005 note |
Gasket(FOR WATER HOLE)
1982-11 → 1985-01
ended
|
1C,2C CR2# | ¥110 | |
| 90430-12010 note |
Gasket(FOR WATER HOLE)
1985-01 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥200 | |
| 90430-20004 |
Gasket(FOR WATER HOLE)
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥200 | |
| 90430-33133 note |
Gasket(FOR WATER HOLE)
1982-11 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥200 | |
| 11122 — Bush, Intake Valve Guide | ||||
| 11122-24020 note |
Bush, Intake Valve Guide
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥1,030 | |
| 11122-64010 note |
Bush, Intake Valve Guide
1985-01 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥900 | |
| 11122-71020 note |
Bush, Intake Valve Guide
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥860 | |
| 11123-24020 note |
Bush, Intake Valve Guide
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥940 | |
| 11123-64010 note |
Bush, Intake Valve Guide
1985-01 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥900 | |
| 11123-71020 note |
Bush, Intake Valve Guide
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥860 | |
| 11126-24020 note |
Bush, Intake Valve Guide
1982-11 → 1985-01
ended
|
1C,2C CR2# | ¥1,030 | |
| 11127-24020 note |
Bush, Intake Valve Guide
1982-11 → 1985-01
ended
|
1C,2C CR2# | ¥1,030 | |
| 11122A — Ring, Shaft Snap (FOR VALVE GUIDE BUSH) | ||||
| 90520-12049 |
Ring, Shaft Snap (FOR VALVE GUIDE BUSH)
1982-11 → 1985-01
ended
|
1C,2C CR2# | ¥170 | |
| 90520-12049 |
Ring, Shaft Snap (FOR VALVE GUIDE BUSH)
1982-11 → 1985-01
ended
|
4KJ KR26 | ¥170 | |
| 90520-12049 |
Ring, Shaft Snap (FOR VALVE GUIDE BUSH)
1982-11 → 1985-01
ended
|
1YJ,2YU,3YEU YR2# | ¥170 | |
| 90520-12049 |
Ring, Shaft Snap (FOR VALVE GUIDE BUSH)
1985-01 → 1988-08
ended
|
4KJ KR26 | ¥170 | |
| 90520-12049 |
Ring, Shaft Snap (FOR VALVE GUIDE BUSH)
1985-01 → 1988-08
ended
|
2YU EU YR20 YR21,26,28,3# +9 | ¥170 | |
| 11126 — Bush, Exhaust Valve Guide | ||||
| 11122-24020 note |
Bush, Exhaust Valve Guide
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥1,030 | |
| 11123-24020 note |
Bush, Exhaust Valve Guide
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥940 | |
| 11126-24020 note |
Bush, Exhaust Valve Guide
1982-11 → 1985-01
ended
|
1C,2C CR2# | ¥1,030 | |
| 11126-64010 note |
Bush, Exhaust Valve Guide
1985-04 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥860 | |
| 11126-64020 note |
Bush, Exhaust Valve Guide
1985-01 → 1985-04
ended
|
1C,2C CR2# | ¥860 | |
| 11126-71020 note |
Bush, Exhaust Valve Guide
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥860 | |
| 11127-24020 note |
Bush, Exhaust Valve Guide
1982-11 → 1985-01
ended
|
1C,2C CR2# | ¥1,030 | |
| 11127-64010 note |
Bush, Exhaust Valve Guide
1985-04 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥860 | |
| 11127-64020 note |
Bush, Exhaust Valve Guide
1985-01 → 1985-04
ended
|
1C,2C CR2# | ¥860 | |
| 11127-71020 note |
Bush, Exhaust Valve Guide
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥860 | |
| 11126A — Ring, Shaft Snap(FOR VALVE GUIDE BUSH) | ||||
| 90520-12049 |
Ring, Shaft Snap(FOR VALVE GUIDE BUSH)
1982-11 → 1985-01
ended
|
1C,2C CR2# | ¥170 | |
| 90520-12049 |
Ring, Shaft Snap(FOR VALVE GUIDE BUSH)
1982-11 → 1985-01
ended
|
4KJ KR26 | ¥170 | |
| 90520-12049 |
Ring, Shaft Snap(FOR VALVE GUIDE BUSH)
1982-11 → 1985-01
ended
|
1YJ,2YU,3YEU YR2# | ¥170 | |
| 90520-12049 |
Ring, Shaft Snap(FOR VALVE GUIDE BUSH)
1985-01 → 1988-08
ended
|
4KJ KR26 | ¥170 | |
| 90520-12049 |
Ring, Shaft Snap(FOR VALVE GUIDE BUSH)
1985-01 → 1988-08
ended
|
2YU EU YR20 YR21,26,28,3# +9 | ¥170 | |
| 11131 — Seat, Intake Valve | ||||
| 11131-24010 note |
Seat, Intake Valve
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥920 | |
| 11131-63010 note |
Seat, Intake Valve
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥1,350 | |
| 11132-24010 note |
Seat, Intake Valve
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥1,200 | |
| 11132-63010 note |
Seat, Intake Valve
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥1,350 | |
| 11135 — Seat, Exhaust Valve | ||||
| 11135-13010 note |
Seat, Exhaust Valve
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥920 | |
| 11135-71010 note |
Seat, Exhaust Valve
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥2,030 | |
| 11136-13010 note |
Seat, Exhaust Valve
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥930 | |
| 11136-71010 note |
Seat, Exhaust Valve
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥3,110 | |
| 11181 — Plate, Cylinder Head, Rear | ||||
| 11181-13020 |
Plate, Cylinder Head, Rear
1987-05 → 1988-08
ended
|
4KJ KR26 | ¥3,440 | |
| 11181-24020 |
Plate, Cylinder Head, Rear
1982-11 → 1987-05
ended
|
4KJ KR26 | ¥3,440 | |
| 11181-64010 |
Plate, Cylinder Head, Rear
1982-11 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥1,260 | |
| 11181-71010 |
Plate, Cylinder Head, Rear
1982-11 → 1988-08
ended
|
1YJ,2YU YR20,26,28 | ¥3,830 | |
| 11181-73010 |
Plate, Cylinder Head, Rear
1983-05 → 1988-08
ended
|
3YEU YR21,3# | ¥2,660 | |
| 11182 — Gasket, Cylinder Head Rear Plate | ||||
| 11182-24010 |
Gasket, Cylinder Head Rear Plate
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥520 | |
| 11182-64010 |
Gasket, Cylinder Head Rear Plate
1982-11 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥800 | |
| 11182-71010 |
Gasket, Cylinder Head Rear Plate
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥520 | |
| 11191 — Tube, Spark Plug | ||||
| 11191-22010 |
Tube, Spark Plug
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥820 | |
| 11191-22010 |
Tube, Spark Plug
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥820 | |
| 11191A — Gasket(FOR SPARK PLUG TUBE) | ||||
| 90430-31141 |
Gasket(FOR SPARK PLUG TUBE)
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥260 | |
| 90430-31141 |
Gasket(FOR SPARK PLUG TUBE)
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥260 | |
| 11201 — Cover Sub-assy, Cylinder Head | ||||
| 11201-13021 |
Cover Sub-assy, Cylinder Head
1982-11 → 1987-12
ended
|
4KJ KR26 | ¥6,800 | |
| 11201-19026 |
Cover Sub-assy, Cylinder Head
1987-12 → 1988-08
ended
|
4KJ KR26 | ¥10,900 | |
| 11201-64060 |
Cover Sub-assy, Cylinder Head
1985-08 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥14,700 | |
| 11201-69075 |
Cover Sub-assy, Cylinder Head
1982-11 → 1985-08
ended
|
1C,2C CR2# | ¥18,100 | |
| 11201-79035 |
Cover Sub-assy, Cylinder Head
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥11,400 | |
| 11201A — Nut, Cap(FOR CYLINDER HEAD COVER) | ||||
| 90176-08007 |
Nut, Cap(FOR CYLINDER HEAD COVER)
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥220 | |
| 94171-10800 |
Nut, Cap(FOR CYLINDER HEAD COVER)
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥130 | |
| 11201B — Washer, Seal(FOR CYLINDER HEAD COVER) | ||||
| 90210-09001 |
Washer, Seal(FOR CYLINDER HEAD COVER)
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥260 | |
| 90210-09007 |
Washer, Seal(FOR CYLINDER HEAD COVER)
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥580 | |
| 11213 — Gasket, Cylinder Head Cover | ||||
| 11213-22010 |
Gasket, Cylinder Head Cover
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥1,040 | |
| 11213-64020 |
Gasket, Cylinder Head Cover
1982-11 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥2,160 | |
| 11213-71020 |
Gasket, Cylinder Head Cover
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥910 | |
| 12108 — Cap Sub-assy, Oil Filler | ||||
| 12180-13010 |
Cap Sub-assy, Oil Filler
1982-11 → 1983-01
ended
|
1C CR26 | ¥1,060 | |
| 12180-13010 |
Cap Sub-assy, Oil Filler
1982-11 → 1983-01
ended
|
4KJ KR26 | ¥1,060 | |
| 12180-13010 |
Cap Sub-assy, Oil Filler
1983-01 → 1983-03
ended
|
4KJ KR26 | ¥1,060 | |
| 12180-13030 |
Cap Sub-assy, Oil Filler
1985-08 → 1988-08
ended
|
4KJ KR26 | ¥730 | |
| 12180-13030 |
Cap Sub-assy, Oil Filler
1986-01 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥730 | |
| 12180-61010 |
Cap Sub-assy, Oil Filler
1987-05 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥1,010 | |
| 12180-70010 |
Cap Sub-assy, Oil Filler
1983-03 → 1985-08
ended
|
4KJ KR26 | ¥1,060 | |
| 12180-70010 |
Cap Sub-assy, Oil Filler
1983-01 → 1986-01
ended
|
1C,2C# CR2#,3# | ¥1,060 | |
| 12180-71010 |
Cap Sub-assy, Oil Filler
1982-11 → 1985-06
ended
|
1YJ,2YU,3YEU YR2# | ¥1,010 | |
| 12180-71011 |
Cap Sub-assy, Oil Filler
1985-06 → 1987-05
ended
|
2YU EU YR20 YR21,26,28,3# +9 | ¥1,020 | |
| 12108A — Gasket(FOR OIL FILLER CAP) | ||||
| 12195-71010 |
Gasket(FOR OIL FILLER CAP)
1982-11 → 1985-06
ended
|
1YJ,2YU,3YEU YR2# | ¥920 | |
| 12195-71020 |
Gasket(FOR OIL FILLER CAP)
1985-06 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥910 | |
| 90430-37140 |
Gasket(FOR OIL FILLER CAP)
1982-11 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥210 | |
| 90430-37140 |
Gasket(FOR OIL FILLER CAP)
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥210 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
