Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

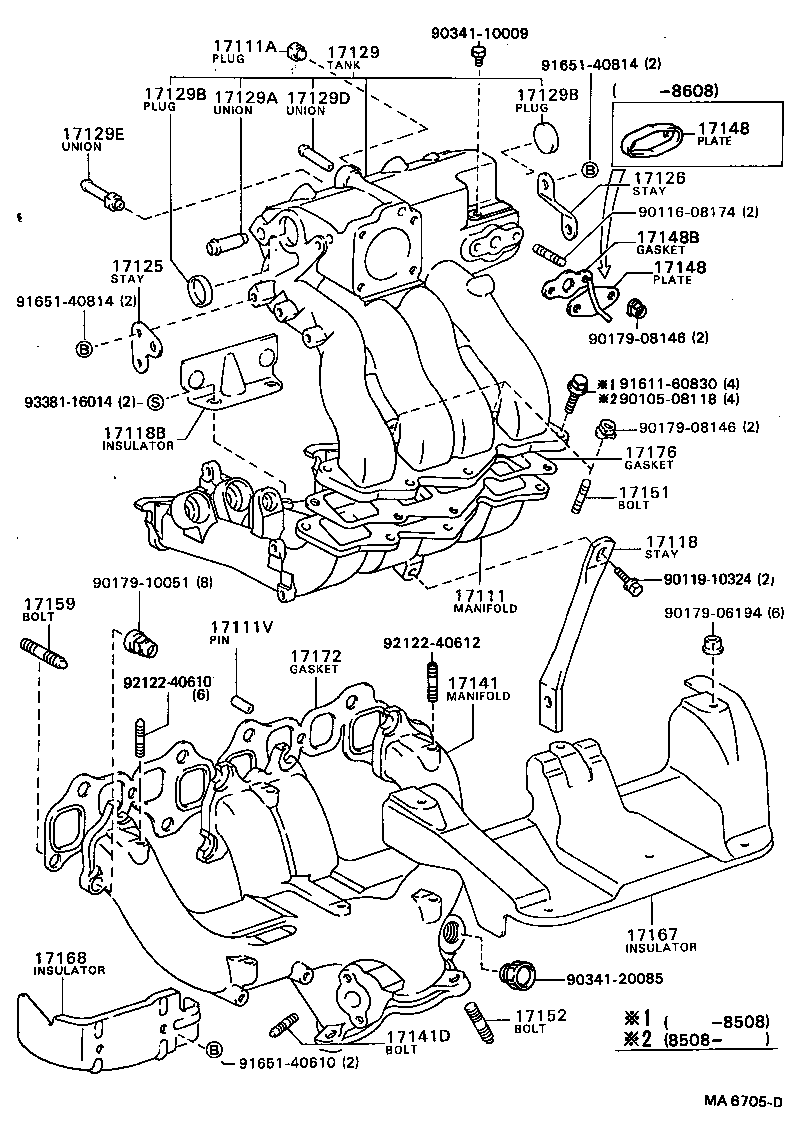

Exploded illustration MA6705D 9034110009 — not listed in this catalogue 17111A — PLUG, NO.1 (2 parts) 17129 — TANK, INTAKE AIR SURGE (3 parts) 9165140814 — not listed in this catalogue 17129B — PLUG (1 parts) 17129A — UNION, NO.1 (1 parts) 17129B — PLUG (1 parts) 17129D — UNION, NO.2 (1 parts) 17148 — PLATE, EXHAUST MANIFOLD(FOR EGR INLET) (2 parts) 17129E — UNION, NO.3 (1 parts) 17126 — STAY, SURGE TANK, NO.2 (1 parts) 9011608174 — not listed in this catalogue 17148B — GASKET, EGR INLET (1 parts) 17125 — STAY, SURGE TANK, NO.1 (1 parts) 17148 — PLATE, EXHAUST MANIFOLD(FOR EGR INLET) (2 parts) 9165140814 — not listed in this catalogue 9017908146 — not listed in this catalogue 9161160830 — not listed in this catalogue 9010508118 — not listed in this catalogue 9338116014 — not listed in this catalogue 9017908146 — not listed in this catalogue 17118B — INSULATOR, INTAKE MANIFOLD (3 parts) 17176 — GASKET, AIR SURGE TANK TO INTAKE MANIFOLD (2 parts) 17151 — BOLT, STUD(FOR MANIFOLD TO CARBURETOR) (3 parts) 17118 — STAY, MANIFOLD (2 parts) 9011910324 — not listed in this catalogue 9017910051 — not listed in this catalogue 17111 — MANIFOLD, INTAKE (8 parts) 17159 — BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) (5 parts) 9017906194 — not listed in this catalogue 17111V — PIN, STRAIGHT(FOR INTAKE MANIFOLD SETTING) (1 parts) 9212240612 — not listed in this catalogue 17172 — GASKET, MANIFOLD TO CYLINDER HEAD (6 parts) 9212240610 — not listed in this catalogue 17141 — MANIFOLD, EXHAUST (6 parts) 17167 — INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 (5 parts) 17168 — INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 (2 parts) 9034120085 — not listed in this catalogue 17152 — BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) (5 parts) 17141D — BOLT, STUD(FOR OXYGEN SENSOR) (1 parts) 9165140610 — not listed in this catalogue
MA6705D · 25 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
63 parts on this figure
Part number Description Fitment Price
17111 — Manifold, Intake
17101-64010 Manifold, Intake
1982-11 → 1985-08 ended
1C,2C CR21,26 5F ¥19,700
17101-64050 Manifold, Intake
1984-08 → 1985-08 ended
2C CR21,27 4FC —
17101-64070 Manifold, Intake
1985-08 → 1987-08 ended
2CT CR21,30 ¥18,700
17101-64080 Manifold, Intake
1985-08 → 1988-08 ended
1C,2C CR2#,36 ¥18,000
17101-64090 Manifold, Intake
1987-08 → 1988-08 ended
2CT CR21,28,30,37 ¥18,800
17111-71010 Manifold, Intake
1982-11 → 1988-08 ended
1YJ,2YU YR20,26,28 ¥42,600
17111-73010 Manifold, Intake
1983-05 → 1985-08 ended
3YEU YR21 ¥29,500
17111-73011 Manifold, Intake
1985-08 → 1988-08 ended
3YEU YR21,3# ¥29,400
17111A — Plug, NO.1
90345-51025 Plug, NO.1
1982-11 → 1988-08 ended
4KJ KR26 ¥210
90345-51025 Plug, NO.1
1982-11 → 1988-08 ended
3YEU YR21,3# ¥210
17111V — Pin, Straight(FOR INTAKE MANIFOLD SETTING)
90250-08120 Pin, Straight(FOR INTAKE MANIFOLD SETTING)
1982-11 → 1988-08 ended
1YJ,2YU,3YEU YR2#,3# ¥140
17118 — Stay, Manifold
17118-64030 Stay, Manifold
1985-08 → 1988-08 ended
2CT CR21,28,30,37 ¥1,980
17118-73010 Stay, Manifold
1983-05 → 1988-08 ended
3YEU YR21,3# ¥1,550
17118B — Insulator, Intake Manifold
17853-73010 Insulator, Intake Manifold
1983-05 → 1985-08 ended
3YEU YR21 —
17853-73011 Insulator, Intake Manifold
1985-08 → 1987-10 ended
3YEU YR21,3# ¥1,690
17853-73012 Insulator, Intake Manifold
1987-10 → 1988-08 ended
3YEU YR21,3# ¥1,670
17125 — Stay, Surge Tank, NO.1
17125-73010 Stay, Surge Tank, NO.1
1983-05 → 1988-08 ended
3YEU YR21,3# ¥450
17126 — Stay, Surge Tank, NO.2
17126-73010 Stay, Surge Tank, NO.2
1983-05 → 1988-08 ended
3YEU YR21,3# ¥670
17129 — Tank, Intake Air Surge
17109-73010 Tank, Intake Air Surge
1983-05 → 1985-08 ended
3YEU YR21 —
17109-73011 Tank, Intake Air Surge
1985-08 → 1987-08 ended
3YEU YR21,3# ¥55,000
17109-73020 Tank, Intake Air Surge
1987-08 → 1988-08 ended
3YEU YR21,3# ¥55,000
17129A — Union, NO.1
90405-14003 Union, NO.1
1983-05 → 1988-08 ended
3YEU YR21,3# ¥260
17129B — Plug
96411-43500 Plug
1983-05 → 1988-08 ended
3YEU YR21,3# ¥260
17129D — Union, NO.2
90405-10010 Union, NO.2
1983-05 → 1988-08 ended
3YEU YR21,3# ¥180
17129E — Union, NO.3
90404-51237 Union, NO.3
1983-05 → 1988-08 ended
3YEU YR21,3# ¥540
17141 — Manifold, Exhaust
17141-64010 Manifold, Exhaust
1982-11 → 1983-07 ended
1C,2C CR2# —
17141-64011 Manifold, Exhaust
1983-07 → 1988-08 ended
1C,2C CR2#,36 ¥21,000
17141-64080 Manifold, Exhaust
1985-08 → 1988-08 ended
2CT CR21,28,30,37 ¥21,600
17141-71010 Manifold, Exhaust
1982-11 → 1988-08 ended
2YU YR20,28 ¥23,600
17141-71020 Manifold, Exhaust
1982-11 → 1988-08 ended
1YJ YR26 ¥24,900
17141-72010 Manifold, Exhaust
1983-05 → 1988-08 ended
3YEU YR21,3# ¥25,900
17141D — Bolt, Stud(FOR OXYGEN SENSOR)
90116-08128 Bolt, Stud(FOR OXYGEN SENSOR)
1982-11 → 1988-08 ended
2YU,3YEU YR20,21,28,3# ¥260
17148 — Plate, Exhaust Manifold(FOR EGR INLET)
25617-73010 Plate, Exhaust Manifold(FOR EGR INLET)
1983-05 → 1986-06 ended
3YEU YR21,30 ¥640
25617-73030 Plate, Exhaust Manifold(FOR EGR INLET)
1986-06 → 1988-08 ended
3YEU YR21,3# ¥780
17148B — Gasket, Egr Inlet
25627-31020 Gasket, Egr Inlet
1983-05 → 1988-08 ended
3YEU YR21,3# ¥210
17151 — Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
90116-08010 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
1982-11 → 1988-08 ended
4KJ KR26 ¥220
92122-40835 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
1982-11 → 1988-08 ended
1YJ,2YU YR20,26,28 ¥170
92132-40825 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
1983-05 → 1988-08 ended
3YEU YR21,3# ¥180
17152 — Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
90116-10017 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1982-11 → 1985-08 ended
4KJ KR26 ¥230
90116-10056 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1985-08 → 1987-05 ended
4KJ KR26 ¥370
90116-10058 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1982-11 → 1988-08 ended
1C,2C# CR2#,3# ¥390
90116-10058 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1982-11 → 1988-08 ended
1YJ,2YU,3YEU YR2#,3# ¥390
90116-10087 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1987-05 → 1988-08 ended
4KJ KR26 ¥350
17159 — Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
90116-10063 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1982-11 → 1988-08 ended
1YJ,2YU,3YEU YR2#,3# ¥230
90116-10095 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1983-07 → 1988-08 ended
1C,2C# CR2#,3# ¥160
92122-41028 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1982-11 → 1988-08 ended
4KJ KR26 ¥240
92122-60820 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1982-11 → 1988-08 ended
1C,2C# CR2#,3# ¥190
92122-61032 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1982-11 → 1983-07 ended
1C,2C CR2# ¥220
17167 — Insulator, Exhaust Manifold Heat, NO.1
17167-64020 Insulator, Exhaust Manifold Heat, NO.1
1982-11 → 1988-08 ended
1C,2C CR2#,36 ¥3,960
17167-64040 Insulator, Exhaust Manifold Heat, NO.1
1985-08 → 1988-08 ended
2CT CR21,28,30,37 ¥4,940
17167-71020 Insulator, Exhaust Manifold Heat, NO.1
1982-11 → 1988-08 ended
1YJ,2YU YR20,26,28 ¥7,100
17167-73010 Insulator, Exhaust Manifold Heat, NO.1
1983-05 → 1987-10 ended
3YEU YR21,3# ¥11,400
17167-73011 Insulator, Exhaust Manifold Heat, NO.1
1987-10 → 1988-08 ended
3YEU YR21,3# ¥8,500
17168 — Insulator, Exhaust Manifold Heat, NO.2
12521-72010 Insulator, Exhaust Manifold Heat, NO.2
1983-05 → 1988-08 ended
3YEU YR21,3# ¥4,050
17168-64040 Insulator, Exhaust Manifold Heat, NO.2
1985-08 → 1988-08 ended
2CT CR21,28,30,37 ¥2,220
17172 — Gasket, Manifold TO Cylinder Head
17172-13020 Gasket, Manifold TO Cylinder Head
1982-11 → 1983-08 ended
4KJ KR26 ¥470
17172-13021 Gasket, Manifold TO Cylinder Head
1983-08 → 1988-08 ended
4KJ KR26 ¥510
17172-71010 Gasket, Manifold TO Cylinder Head
1982-11 → 1985-06 ended
1YJ,2YU,3YEU YR2# ¥3,190
17172-71011 Gasket, Manifold TO Cylinder Head
1985-06 → 1985-08 ended
1YJ,3YEU 8S,09S) YR21,26;2YU YR20 +9 ¥3,220
17172-71011 Gasket, Manifold TO Cylinder Head
1985-08 → 1988-08 ended
2YU ,D,E,N,Q) YR20 HRF +8 ¥3,220
17172-73010 Gasket, Manifold TO Cylinder Head
1985-08 → 1988-08 ended
3YEU YR21,3# ¥3,030
17176 — Gasket, Air Surge Tank TO Intake Manifold
17176-73010 Gasket, Air Surge Tank TO Intake Manifold
1983-05 → 1985-08 ended
3YEU YR21 ¥680
17176-73011 Gasket, Air Surge Tank TO Intake Manifold
1985-08 → 1988-08 ended
3YEU YR21,3# ¥680
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
