Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

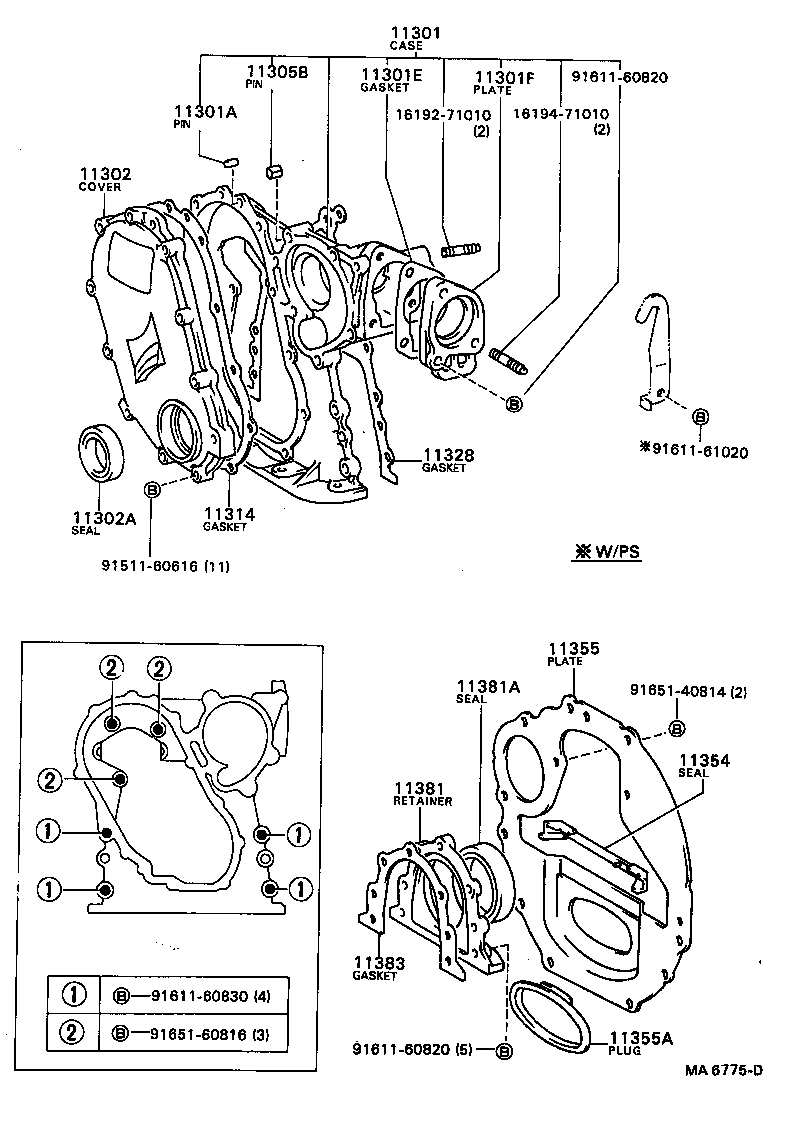

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11301 — Case Sub-assy, Timing Gear | ||||
| 11301-71010 |
Case Sub-assy, Timing Gear
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥23,700 | |
| 11301A — Pin, Straight(FOR TIMING GEAR CASE) | ||||
| 90250-06001 note |
Pin, Straight(FOR TIMING GEAR CASE)
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥100 | |
| 11301E — Gasket, Thermostat Guide | ||||
| 16119-71010 |
Gasket, Thermostat Guide
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥600 | |
| 11301F — Plate, Water Pump Thermostat Guide | ||||
| 16128-71010 |
Plate, Water Pump Thermostat Guide
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥1,170 | |
| 11302 — Cover Sub-assy, Timing Chain OR Belt | ||||
| 11321-13040 |
Cover Sub-assy, Timing Chain OR Belt
1982-11 → 1983-03
ended
|
4KJ KR26 | ¥7,300 | |
| 11321-13041 |
Cover Sub-assy, Timing Chain OR Belt
1983-03 → 1985-08
ended
|
4KJ KR26 | ¥7,100 | |
| 11321-13042 |
Cover Sub-assy, Timing Chain OR Belt
1985-08 → 1988-08
ended
|
4KJ KR26 | ¥6,100 | |
| 11321-71010 |
Cover Sub-assy, Timing Chain OR Belt
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥6,400 | |
| 11302A — Seal, Oil(FOR TIMING CHAIN OR BELT COVER) | ||||
| 90311-38022 |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥400 | |
| 90311-42007 |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
1982-11 → 1987-06
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥420 | |
| 90311-42019 |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
1987-06 → 1988-08
ended
|
2YU 21,26,28,3# YR20 HRF +9 | ¥360 | |
| 11305B — Pin, Ring(FOR OIL SEAL RETAINER, NO.2) | ||||
| 16159-71010 |
Pin, Ring(FOR OIL SEAL RETAINER, NO.2)
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥270 | |
| 11314 — Gasket, Timing Chain NO.2 Cover | ||||
| 11329-71010 |
Gasket, Timing Chain NO.2 Cover
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥580 | |
| 11328 — Gasket, Timing Gear OR Chain Cover | ||||
| 11328-13011 |
Gasket, Timing Gear OR Chain Cover
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥580 | |
| 11328-71010 |
Gasket, Timing Gear OR Chain Cover
1982-11 → 1987-12
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥540 | |
| 11328-71011 |
Gasket, Timing Gear OR Chain Cover
1987-12 → 1988-08
ended
|
2YU 21,26,28,3# YR20 HRF +9 | ¥480 | |
| 11354 — Seal, Flywheel Housing Dust | ||||
| 11354-64010 |
Seal, Flywheel Housing Dust
1982-11 → 1985-05
ended
|
1C,2C CR2# | ¥980 | |
| 11354-71010 |
Seal, Flywheel Housing Dust
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥900 | |
| 11355 — Plate, Rear End | ||||
| 11305-13010 |
Plate, Rear End
1982-11 → 1985-03
ended
|
4KJ KR26 | ¥4,750 | |
| 11355-24043 |
Plate, Rear End
1985-03 → 1988-08
ended
|
4KJ KR26 | ¥4,300 | |
| 11355-64010 |
Plate, Rear End
1982-11 → 1985-05
ended
|
1C,2C CR21,26 5F | ¥7,400 | |
| 11355-64011 |
Plate, Rear End
1985-05 → 1988-08
ended
|
1C,2C# CR21,26,28,3# 5F | ¥7,400 | |
| 11355-64020 |
Plate, Rear End
1984-08 → 1985-05
ended
|
2C CR21,27 4FC | ¥7,000 | |
| 11355-64021 |
Plate, Rear End
1985-05 → 1988-08
ended
|
2C# CR21,27,28,30 4FC | ¥7,000 | |
| 11355-71010 |
Plate, Rear End
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# MTM | ¥7,400 | |
| 11355-71020 |
Plate, Rear End
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# 4FC | ¥7,400 | |
| 11355A — Plug, Hole(FOR REAR END PLATE) | ||||
| 90950-01160 |
Plug, Hole(FOR REAR END PLATE)
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# 4FC | ¥260 | |
| 90950-01343 |
Plug, Hole(FOR REAR END PLATE)
1985-03 → 1988-08
ended
|
4KJ KR26 | ¥840 | |
| 90950-01358 |
Plug, Hole(FOR REAR END PLATE)
1984-08 → 1986-06
ended
|
2C# CR21,27,28,30 4FC | ¥780 | |
| 90950-01548 |
Plug, Hole(FOR REAR END PLATE)
1986-06 → 1988-08
ended
|
2C# CR21,27,28,30 4FC | ¥260 | |
| 11381 — Retainer, Engine Rear Oil Seal | ||||
| 11381-13010 |
Retainer, Engine Rear Oil Seal
1982-11 → 1983-03
ended
|
4KJ KR26 | ¥5,100 | |
| 11381-13011 |
Retainer, Engine Rear Oil Seal
1983-03 → 1988-08
ended
|
4KJ KR26 | ¥4,590 | |
| 11381-64010 |
Retainer, Engine Rear Oil Seal
1982-11 → 1983-10
ended
|
1C,2C CR2# | ¥5,100 | |
| 11381-64011 |
Retainer, Engine Rear Oil Seal
1983-10 → 1985-05
ended
|
1C,2C CR2# | ¥4,550 | |
| 11381-64012 |
Retainer, Engine Rear Oil Seal
1985-05 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥4,280 | |
| 11381-71010 |
Retainer, Engine Rear Oil Seal
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥4,790 | |
| 11381A — Seal, Engine Rear Oil | ||||
| 90311-70004 |
Seal, Engine Rear Oil
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥1,080 | |
| 90311-80003 |
Seal, Engine Rear Oil
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥1,160 | |
| 90311-90002 |
Seal, Engine Rear Oil
1982-11 → 1985-08
ended
|
1C,2C CR2# | ¥1,080 | |
| 90311-90003 |
Seal, Engine Rear Oil
1985-08 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥1,080 | |
| 11383 — Gasket, Engine Rear Oil Seal Retainer | ||||
| 11383-13010 |
Gasket, Engine Rear Oil Seal Retainer
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥360 | |
| 11383-25010 |
Gasket, Engine Rear Oil Seal Retainer
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥400 | |
| 11383-64010 |
Gasket, Engine Rear Oil Seal Retainer
1982-11 → 1983-10
ended
|
1C,2C CR2# | ¥590 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
