Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

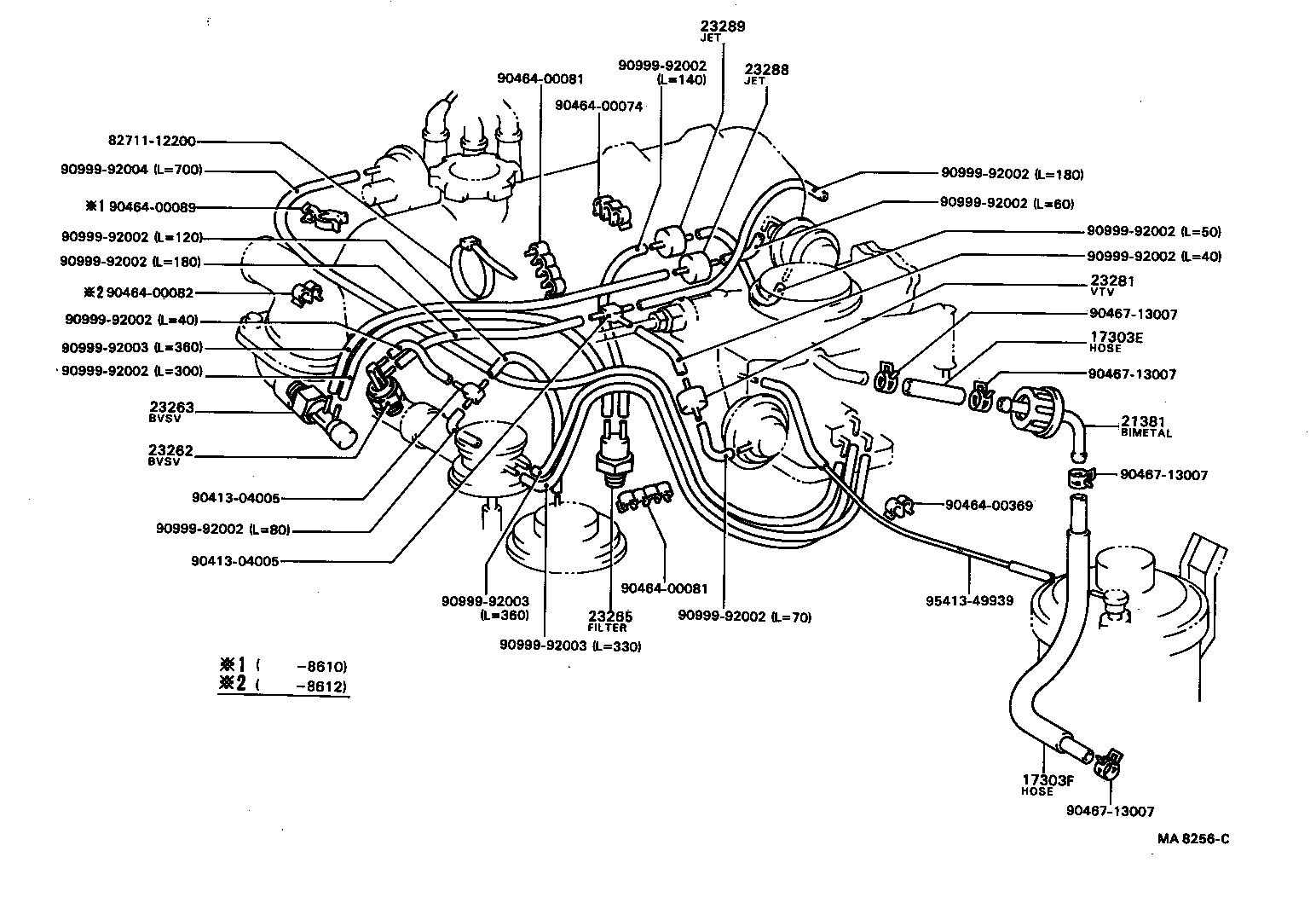

Exploded illustration MA8256C 23289 — JET, NO.2 (1 parts) 9099992002 — not listed in this catalogue 23288 — JET, NO.1 (5 parts) 9046400081 — not listed in this catalogue 9046400074 — not listed in this catalogue 8271112200 — not listed in this catalogue 9099992004 — not listed in this catalogue 9099992002 — not listed in this catalogue 9099992002 — not listed in this catalogue 9046400089 — not listed in this catalogue 9099992002 — not listed in this catalogue 9099992002 — not listed in this catalogue 9099992002 — not listed in this catalogue 9099992002 — not listed in this catalogue 23281 — VALVE, VACUUM TRANSMITTING, NO.1 (4 parts) 9046400082 — not listed in this catalogue 9046713007 — not listed in this catalogue 9099992002 — not listed in this catalogue 17303E — HOSE, NO.1(FOR AIR PIPE) (4 parts) 9099992003 — not listed in this catalogue 9099992002 — not listed in this catalogue 9046713007 — not listed in this catalogue 23263 — VALVE, BIMETAL VACUUM SWITCHING, NO.2 (2 parts) 21381 — BIMETAL, THERMOSTATIC (4 parts) 23262 — VALVE, BIMETAL VACUUM SWITCHING, NO.1 (2 parts) 9046713007 — not listed in this catalogue 9041304005 — not listed in this catalogue 9046400369 — not listed in this catalogue 9099992002 — not listed in this catalogue 9041304005 — not listed in this catalogue 9046400081 — not listed in this catalogue 9541349939 — not listed in this catalogue 9099992003 — not listed in this catalogue 9099992002 — not listed in this catalogue 23265 — FILTER, GAS, NO.1 (3 parts) 9099992003 — not listed in this catalogue 17303F — HOSE, NO.2(FOR AIR PIPE) (1 parts) 9046713007 — not listed in this catalogue
MA8256C · 9 callouts, 29 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
26 parts on this figure
Part number Description Fitment Price
17303E — Hose, NO.1(FOR AIR PIPE)
90445-14079 Hose, NO.1(FOR AIR PIPE)
1982-11 → 1985-08 ended
1YJ,2YU YR20,26 ¥250
90445-14079 Hose, NO.1(FOR AIR PIPE)
1985-08 → 1988-08 ended
4KJ KR26 ¥250
90445-14079 Hose, NO.1(FOR AIR PIPE)
1982-11 → 1985-08 ended
4KJ KR26 ¥250
90910-05181 Hose, NO.1(FOR AIR PIPE)
1985-08 → 1987-08 ended
2YU ,D,E,N,Q) YR20 HRF +8 ¥400
17303F — Hose, NO.2(FOR AIR PIPE)
90447-14001 Hose, NO.2(FOR AIR PIPE)
1982-11 → 1988-08 ended
4KJ KR26 ¥1,350
21381 — Bimetal, Thermostatic
21381-13010 Bimetal, Thermostatic
1982-11 → 1984-01 ended
1YJ,2YU YR20,26 ¥4,350
21381-13030 Bimetal, Thermostatic
1982-11 → 1988-08 ended
4KJ KR26 ¥4,840
21381-71030 Bimetal, Thermostatic
1984-01 → 1985-08 ended
1YJ,2YU YR20,26 ¥4,370
21381-71040 Bimetal, Thermostatic
1985-08 → 1987-08 ended
2YU ,D,E,N,Q) YR20 HRF +8 ¥4,650
23262 — Valve, Bimetal Vacuum Switching, NO.1
90925-05017 Valve, Bimetal Vacuum Switching, NO.1
1982-11 → 1988-08 ended
1YJ YR26 ¥2,760
90925-05051 Valve, Bimetal Vacuum Switching, NO.1
1982-11 → 1988-08 ended
4KJ KR26 ¥2,440
23263 — Valve, Bimetal Vacuum Switching, NO.2
25820-13010 Valve, Bimetal Vacuum Switching, NO.2
1982-11 → 1985-08 ended
4KJ KR26 ¥6,800
90925-05074 Valve, Bimetal Vacuum Switching, NO.2
1985-08 → 1988-08 ended
4KJ KR26 ¥2,680
23265 — Filter, Gas, NO.1
90917-11022 Filter, Gas, NO.1
1983-05 → 1988-08 ended
3YEU YR21,3# ¥1,020
90917-11023 Filter, Gas, NO.1
1982-11 → 1988-08 ended
4KJ KR26 ¥1,650
90917-11024 Filter, Gas, NO.1
1982-11 → 1988-08 ended
1YJ,2YU YR20,26,28 ¥1,730
23281 — Valve, Vacuum Transmitting, NO.1
90925-01027 Valve, Vacuum Transmitting, NO.1
1982-11 → 1988-08 ended
2YU YR20,28 ¥2,350
90925-01029 Valve, Vacuum Transmitting, NO.1
1983-05 → 1988-08 ended
3YEU YR21,3# ¥2,060
90925-01075 note Valve, Vacuum Transmitting, NO.1
1982-11 → 1988-08 ended
1YJ YR26 MTM ¥2,650
90925-01094 Valve, Vacuum Transmitting, NO.1
1982-11 → 1988-08 ended
4KJ KR26 ¥1,950
23288 — Jet, NO.1
90925-04004 note Jet, NO.1
1982-11 → 1985-08 ended
1YJ YR26 N ¥1,020
90925-04004 note Jet, NO.1
1985-08 → 1988-08 ended
1YJ YR26 ¥1,020
90925-04004 Jet, NO.1
1985-11 → 1988-08 ended
2YU YR20 HRF 5F +7 ¥1,020
90925-04006 Jet, NO.1
1985-08 → 1985-11 ended
2YU YR20 HRF 5F +7 ¥1,030
90925-04006 note Jet, NO.1
1982-11 → 1988-08 ended
4KJ KR26 ¥1,030
23289 — Jet, NO.2
90925-04005 note Jet, NO.2
1982-11 → 1988-08 ended
4KJ KR26 ¥850
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
