Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

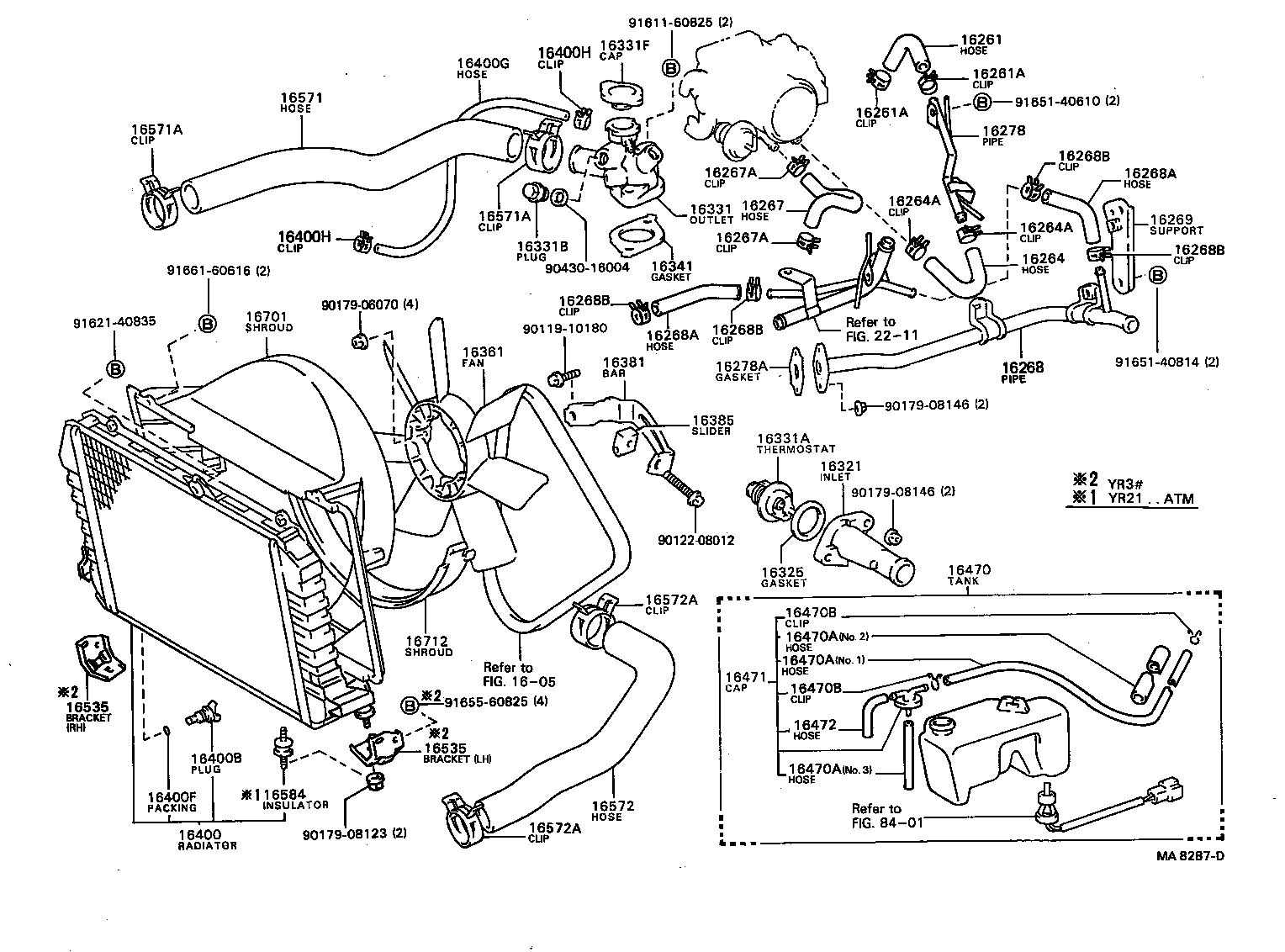

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16261 — Hose, Water By-pass | ||||
| 16261-64020 |
Hose, Water By-pass
1982-11 → 1985-08
ended
|
1C CR26 | ¥940 | |
| 16261-64020 |
Hose, Water By-pass
1985-08 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥940 | |
| 16261-64050 |
Hose, Water By-pass
1983-04 → 1985-08
ended
|
2C CR21,27 | ¥950 | |
| 16261-73070 |
Hose, Water By-pass
1985-08 → 1988-08
ended
|
3YEU YR21,3# | ¥620 | |
| 99552-10110 |
Hose, Water By-pass
1983-05 → 1983-08
ended
|
3YEU YR21 | ¥160 | |
| 99556-10110 note |
Hose, Water By-pass
1983-08 → 1985-08
ended
|
3YEU YR21 | ¥130 | |
| 16261A — Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) | ||||
| 90467-13001 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
1983-05 → 1988-08
ended
|
3YEU YR21,3# | ¥230 | |
| 90467-15004 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
1982-11 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥240 | |
| 16264 — Hose, Water By-pass, NO.2 | ||||
| 16264-64010 |
Hose, Water By-pass, NO.2
1985-08 → 1988-08
ended
|
1C,2C# CR21,26,28,3# 5F | ¥1,760 | |
| 16264-64010 |
Hose, Water By-pass, NO.2
1982-11 → 1985-08
ended
|
1C CR26 | ¥1,760 | |
| 16264-64020 |
Hose, Water By-pass, NO.2
1985-08 → 1988-08
ended
|
2C# CR21,27,28,30 4FC | ¥950 | |
| 16264-64040 |
Hose, Water By-pass, NO.2
1983-04 → 1985-08
ended
|
2C CR21,27 | ¥1,590 | |
| 16264-73020 |
Hose, Water By-pass, NO.2
1983-05 → 1985-08
ended
|
3YEU YR21 | ¥950 | |
| 16264-73021 |
Hose, Water By-pass, NO.2
1985-08 → 1988-08
ended
|
3YEU YR21,3# | ¥720 | |
| 16264A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13001 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
1983-05 → 1988-08
ended
|
3YEU YR21,3# | ¥230 | |
| 90467-15004 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
1982-11 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥240 | |
| 16267 — Hose, Water By-pass, NO.3 | ||||
| 16267-73010 |
Hose, Water By-pass, NO.3
1983-05 → 1988-08
ended
|
3YEU YR21,3# | ¥890 | |
| 16267A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13001 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
1983-05 → 1988-08
ended
|
3YEU YR21,3# | ¥230 | |
| 16268 — Pipe, Water By-pass, NO.1 | ||||
| 16268-64010 |
Pipe, Water By-pass, NO.1
1982-11 → 1985-08
ended
|
1C,2C CR2# | — | |
| 16268-64050 |
Pipe, Water By-pass, NO.1
1985-08 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥2,150 | |
| 16268-73010 |
Pipe, Water By-pass, NO.1
1983-05 → 1985-02
ended
|
3YEU YR21 | ¥7,800 | |
| 16268-73011 |
Pipe, Water By-pass, NO.1
1985-08 → 1988-08
ended
|
3YEU YR21,3# | ¥7,800 | |
| 16268-73070 |
Pipe, Water By-pass, NO.1
1985-02 → 1985-08
ended
|
3YEU YR21 | ¥7,800 | |
| 16268A — Hose(FOR WATER BY-PASS PIPE) | ||||
| 99552-10110 |
Hose(FOR WATER BY-PASS PIPE)
1983-05 → 1983-08
ended
|
3YEU YR21 | ¥160 | |
| 99556-10110 note |
Hose(FOR WATER BY-PASS PIPE)
1983-08 → 1988-08
ended
|
3YEU YR21,3# | ¥130 | |
| 16268B — Clamp OR Clip, Hose(FOR WATER BY-PASS PIPE) | ||||
| 90467-13001 |
Clamp OR Clip, Hose(FOR WATER BY-PASS PIPE)
1983-05 → 1988-08
ended
|
3YEU YR21,3# | ¥230 | |
| 16269 — Support, Water By-pass Pipe | ||||
| 16269-73010 |
Support, Water By-pass Pipe
1983-05 → 1985-08
ended
|
3YEU YR21 | ¥2,550 | |
| 16269-73011 |
Support, Water By-pass Pipe
1985-08 → 1988-08
ended
|
3YEU YR21,3# | ¥1,540 | |
| 16278 — Pipe, Water By-pass, NO.2 | ||||
| 16278-73010 |
Pipe, Water By-pass, NO.2
1983-05 → 1985-08
ended
|
3YEU YR21 | ¥4,580 | |
| 16278-73011 |
Pipe, Water By-pass, NO.2
1985-08 → 1988-08
ended
|
3YEU YR21,3# | ¥2,700 | |
| 16278A — Gasket, Water By-pass | ||||
| 16347-28010 |
Gasket, Water By-pass
1985-08 → 1988-08
ended
|
2CT CR21,28,30,37 | ¥510 | |
| 17175-72010 |
Gasket, Water By-pass
1983-05 → 1988-08
ended
|
3YEU YR21,3# | ¥500 | |
| 16321 — Inlet, Water | ||||
| 16321-64010 |
Inlet, Water
1982-11 → 1985-08
ended
|
1C,2C CR2# | ¥2,870 | |
| 16321-64030 note |
Inlet, Water
1983-01 → 1988-08
ended
|
1C CR26 02S | — | |
| 16321-64040 |
Inlet, Water
1985-08 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥2,380 | |
| 16321-71010 |
Inlet, Water
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥3,200 | |
| 16325 — Gasket, Water Inlet Housing, NO.1 | ||||
| 16325-63010 |
Gasket, Water Inlet Housing, NO.1
1982-11 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥640 | |
| 16325-63010 |
Gasket, Water Inlet Housing, NO.1
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥640 | |
| 16331 — Outlet, Water | ||||
| 16304-71010 |
Outlet, Water
1982-11 → 1988-08
ended
|
1YJ,2YU YR20,26,28 | ¥4,010 | |
| 16304-73010 |
Outlet, Water
1983-05 → 1988-08
ended
|
3YEU YR21,3# | ¥4,780 | |
| 16331-13050 |
Outlet, Water
1982-11 → 1985-08
ended
|
4KJ KR26 | ¥1,430 | |
| 16331-13060 |
Outlet, Water
1985-08 → 1988-08
ended
|
4KJ KR26 | ¥1,970 | |
| 16331-64020 |
Outlet, Water
1982-11 → 1985-08
ended
|
1C,2C CR2# | ¥6,700 | |
| 16331-64050 |
Outlet, Water
1985-08 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥6,600 | |
| 16331A — Thermostat | ||||
| 90916-03046 note |
Thermostat
1982-11 → 1985-02
ended
|
1C,2C CR2# | ¥1,740 | |
| 90916-03046 note |
Thermostat
1982-11 → 1985-02
ended
|
1YJ,2YU,3YEU YR2# | ¥1,740 | |
| 90916-03046 note |
Thermostat
1985-02 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥1,740 | |
| 90916-03054 note |
Thermostat
1982-11 → 1988-07
ended
|
4KJ KR26 | ¥950 | |
| 90916-03055 note |
Thermostat
1982-11 → 1988-07
ended
|
4KJ KR26 | ¥950 | |
| 90916-03069 note |
Thermostat
1985-02 → 1988-08
ended
|
2YU EU YR20 YR21,26,28,3# +9 | ¥2,030 | |
| 90916-03078 note |
Thermostat
1988-07 → 1988-08
ended
|
4KJ KR26 | ¥1,020 | |
| 90916-03083 note |
Thermostat
1988-07 → 1988-08
ended
|
4KJ KR26 | ¥1,020 | |
| 16331B — Plug(FOR WATER OUTLET) | ||||
| 90341-16008 |
Plug(FOR WATER OUTLET)
1983-11 → 1988-08
ended
|
3YEU YR21,3# | ¥520 | |
| 90341-16009 |
Plug(FOR WATER OUTLET)
1983-05 → 1983-11
ended
|
3YEU YR21 | ¥320 | |
| 90344-53011 |
Plug(FOR WATER OUTLET)
1985-08 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥240 | |
| 16331F — Cap Sub-assy(FOR WATER OUTLET) | ||||
| 16401-15210 note |
Cap Sub-assy(FOR WATER OUTLET)
1984-08 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥1,170 | |
| 16401-63010 note |
Cap Sub-assy(FOR WATER OUTLET)
1982-11 → 1986-07
ended
|
4KJ KR26 | ¥1,170 | |
| 16401-63010 note |
Cap Sub-assy(FOR WATER OUTLET)
1982-11 → 1986-07
ended
|
1C,2C# CR2#,3# | ¥1,170 | |
| 16401-63010 note |
Cap Sub-assy(FOR WATER OUTLET)
1982-11 → 1986-07
ended
|
1YJ,2YU,3YEU YR2#,30 | ¥1,170 | |
| 16401-63010 note |
Cap Sub-assy(FOR WATER OUTLET)
1986-07 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥1,170 | |
| 16401-63010 note |
Cap Sub-assy(FOR WATER OUTLET)
1986-07 → 1988-08
ended
|
2YU YR21,26,28,3# YR20 HRF +8 | ¥1,170 | |
| 16401-71010 note |
Cap Sub-assy(FOR WATER OUTLET)
1982-11 → 1984-08
ended
|
4KJ KR26 | ¥1,170 | |
| 16401-71010 note |
Cap Sub-assy(FOR WATER OUTLET)
1982-11 → 1984-08
ended
|
1YJ,2YU YR20,26 | ¥1,170 | |
| 16401-71010 |
Cap Sub-assy(FOR WATER OUTLET)
1984-08 → 1988-08
ended
|
4KJ KR26 | ¥1,170 | |
| 16341 — Gasket, Water Outlet | ||||
| 16341-13011 |
Gasket, Water Outlet
1982-11 → 1985-08
ended
|
4KJ KR26 | ¥370 | |
| 16341-13030 |
Gasket, Water Outlet
1985-08 → 1988-08
ended
|
4KJ KR26 | ¥380 | |
| 16341-64010 |
Gasket, Water Outlet
1982-11 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥330 | |
| 16341-71010 |
Gasket, Water Outlet
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥240 | |
| 16361 — Fan | ||||
| 16361-26040 |
Fan
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥5,800 | |
| 16361-38010 |
Fan
1982-11 → 1987-08
ended
|
1C,2C CR2#,36 | ¥6,400 | |
| 16361-38010 |
Fan
1982-11 → 1987-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥6,400 | |
| 16361-38010 |
Fan
1985-10 → 1987-08
ended
|
2CT CR30 | ¥6,400 | |
| 16361-38010 |
Fan
1987-08 → 1988-08
ended
|
1C,2C CR26,27,36 | ¥6,400 | |
| 16361-56070 |
Fan
1985-08 → 1988-08
ended
|
2CT CR21,28 | ¥5,700 | |
| 16361-73030 |
Fan
1987-08 → 1988-08
ended
|
2CT CR30 | ¥7,000 | |
| 16361-73030 |
Fan
1987-08 → 1988-08
ended
|
2YU 21,26,28,3# YR20 HRF +9 | ¥7,000 | |
| 16361-73030 |
Fan
1987-08 → 1988-08
ended
|
2CT CR37 | ¥7,000 | |
| 16381 — Bar, Fan Belt Adjusting | ||||
| 16381-24011 |
Bar, Fan Belt Adjusting
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥920 | |
| 16381-64011 |
Bar, Fan Belt Adjusting
1982-11 → 1985-08
ended
|
1C,2C CR2# | ¥2,090 | |
| 16381-64030 |
Bar, Fan Belt Adjusting
1985-08 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥1,800 | |
| 16381-71010 |
Bar, Fan Belt Adjusting
1982-11 → 1985-08
ended
|
1YJ,2YU YR20,26 | ¥980 | |
| 16381-73010 |
Bar, Fan Belt Adjusting
1983-05 → 1985-08
ended
|
3YEU YR21 | ¥2,090 | |
| 16381-73011 |
Bar, Fan Belt Adjusting
1985-08 → 1988-08
ended
|
2YU YR21,26,28,3# YR20 HRF +8 | ¥2,130 | |
| 16385 — Slider, Fan Belt Adjusting | ||||
| 16385-64011 |
Slider, Fan Belt Adjusting
1982-11 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥910 | |
| 16385-71010 note |
Slider, Fan Belt Adjusting
1982-11 → 1985-08
ended
|
1YJ,2YU YR20,26 | ¥870 | |
| 16385-71010 |
Slider, Fan Belt Adjusting
1983-05 → 1985-08
ended
|
3YEU YR21 | ¥870 | |
| 16385-71010 |
Slider, Fan Belt Adjusting
1985-08 → 1988-08
ended
|
2YU YR21,26,28,3# YR20 HRF +8 | ¥870 | |
| 16400 — Radiator Assy | ||||
| 16400-13260 |
Radiator Assy
1982-11 → 1985-08
ended
|
4KJ KR26 | — | |
| 16400-13370 |
Radiator Assy
1985-08 → 1988-08
ended
|
4KJ KR26 | ¥51,500 | |
| 16400-64030 |
Radiator Assy
1982-11 → 1983-07
ended
|
1C CR26 | — | |
| 16400-64030 note |
Radiator Assy
1983-04 → 1985-08
ended
|
2C CR21 5F | — | |
| 16400-64100 |
Radiator Assy
1983-07 → 1983-11
ended
|
1C,2C CR2# | ¥62,700 | |
| 16400-64100 |
Radiator Assy
1983-04 → 1983-07
ended
|
2C CR21 | ¥62,700 | |
| 16400-64100 |
Radiator Assy
1983-11 → 1985-08
ended
|
2C CR21 5F | ¥62,700 | |
| 16400-64180 |
Radiator Assy
1983-11 → 1985-08
ended
|
1C CR26 | ¥62,700 | |
| 16400-64200 |
Radiator Assy
1984-09 → 1985-08
ended
|
2C CR27 | — | |
| 16400-64210 |
Radiator Assy
1984-08 → 1985-08
ended
|
2C CR21 4FC | ¥78,400 | |
| 16400-64230 |
Radiator Assy
1985-08 → 1988-08
ended
|
2CT CR21,28 5F | ¥43,900 | |
| 16400-64240 |
Radiator Assy
1985-08 → 1987-01
ended
|
2CT CR21 4FC | ¥43,900 | |
| 16400-64241 |
Radiator Assy
1987-01 → 1988-08
ended
|
2CT CR21,28 4FC | ¥43,900 | |
| 16400-64250 |
Radiator Assy
1985-10 → 1988-08
ended
|
2CT CR30,37 5F | ¥63,100 | |
| 16400-64260 |
Radiator Assy
1985-10 → 1987-08
ended
|
2CT CR30 4FC | ¥35,800 | |
| 16400-64261 |
Radiator Assy
1987-08 → 1988-08
ended
|
2CT CR30 4FC | ¥36,000 | |
| 16400-64270 |
Radiator Assy
1985-08 → 1988-08
ended
|
1C,2C CR21,26,28 5F | ¥34,700 | |
| 16400-64280 |
Radiator Assy
1985-08 → 1987-08
ended
|
2C CR21,28 4FC | ¥68,600 | |
| 16400-64290 |
Radiator Assy
1985-08 → 1988-08
ended
|
2C CR27 | ¥68,600 | |
| 16400-64300 |
Radiator Assy
1985-10 → 1988-08
ended
|
2C CR36 | ¥63,100 | |
| 16400-71010 |
Radiator Assy
1982-11 → 1985-08
ended
|
1YJ YR26 MTM | ¥67,600 | |
| 16400-71011 |
Radiator Assy
1985-08 → 1988-08
ended
|
1YJ YR26 MTM | ¥27,100 | |
| 16400-71060 |
Radiator Assy
1982-11 → 1985-08
ended
|
1YJ YR26 4FC | ¥34,700 | |
| 16400-71061 |
Radiator Assy
1985-08 → 1988-08
ended
|
1YJ YR26 4FC | ¥37,400 | |
| 16400-72070 |
Radiator Assy
1982-11 → 1985-08
ended
|
2YU YR20 MTM | ¥67,600 | |
| 16400-72071 |
Radiator Assy
1985-08 → 1988-08
ended
|
2YU YR20,28 MTM (B,D,E,G,Q) | ¥27,100 | |
| 16400-72080 |
Radiator Assy
1982-11 → 1984-08
ended
|
2YU YR20 4FC | ¥34,700 | |
| 16400-73040 |
Radiator Assy
1983-05 → 1984-08
ended
|
3YEU YR21 5F | ¥62,700 | |
| 16400-73050 |
Radiator Assy
1984-08 → 1985-08
ended
|
2YU YR20 4FC | ¥75,300 | |
| 16400-73050 |
Radiator Assy
1983-05 → 1985-08
ended
|
3YEU YR21 4FC | ¥75,300 | |
| 16400-73051 |
Radiator Assy
1985-08 → 1988-08
ended
|
2YU YR20 MRF 4FC;2YU,3YEU +4 | ¥38,600 | |
| 16400-73110 |
Radiator Assy
1984-08 → 1985-08
ended
|
3YEU YR21 5F | ¥67,600 | |
| 16400-73111 |
Radiator Assy
1985-08 → 1988-08
ended
|
3YEU YR21 5F | ¥35,900 | |
| 16400-73170 |
Radiator Assy
1985-10 → 1988-08
ended
|
3YEU YR3# 5F | ¥40,400 | |
| 16400-73180 |
Radiator Assy
1985-10 → 1988-08
ended
|
3YEU YR3# 4FC | ¥40,400 | |
| 16400B — Plug, Radiator Drain Cock | ||||
| 16417-24200 |
Plug, Radiator Drain Cock
1982-11 → 1984-08
ended
|
1YJ,2YU YR20,26 | ¥390 | |
| 16417-24200 |
Plug, Radiator Drain Cock
1982-11 → 1984-08
ended
|
4KJ KR26 | ¥390 | |
| 16417-24200 |
Plug, Radiator Drain Cock
1985-10 → 1988-08
ended
|
2C CR36 | ¥390 | |
| 16417-24200 |
Plug, Radiator Drain Cock
1984-08 → 1988-08
ended
|
4KJ KR26 | ¥390 | |
| 16417-24200 |
Plug, Radiator Drain Cock
1984-08 → 1988-08
ended
|
2C CR21,27,28 4FC | ¥390 | |
| 16417-24200 |
Plug, Radiator Drain Cock
1984-08 → 1988-08
ended
|
1YJ,3YEU YR26,3# | ¥390 | |
| 16417-24200 |
Plug, Radiator Drain Cock
1984-08 → 1988-08
ended
|
2YU,3YEU YR20,21,28 MTM | ¥390 | |
| 16417-24200 |
Plug, Radiator Drain Cock
1985-08 → 1988-08
ended
|
2CT CR21,28,30,37 | ¥390 | |
| 90910-09054 |
Plug, Radiator Drain Cock
1984-08 → 1988-08
ended
|
1C,2C CR21,26,28 5F | ¥500 | |
| 90910-09054 |
Plug, Radiator Drain Cock
1984-08 → 1988-08
ended
|
2YU,3YEU YR20,21,28 4FC | ¥500 | |
| 90910-09054 |
Plug, Radiator Drain Cock
1982-11 → 1984-08
ended
|
1C,2C CR2# | ¥500 | |
| 90910-09054 |
Plug, Radiator Drain Cock
1982-11 → 1984-08
ended
|
3YEU YR21 | ¥500 | |
| 16400F — Packing(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
Packing(FOR RADIATOR DRAIN COCK)
1982-11 → 1984-08
ended
|
4KJ KR26 | ¥320 | |
| 16418-24200 |
Packing(FOR RADIATOR DRAIN COCK)
1985-10 → 1988-08
ended
|
2C CR36 | ¥320 | |
| 16418-24200 |
Packing(FOR RADIATOR DRAIN COCK)
1985-08 → 1988-08
ended
|
2CT CR21,28,30,37 | ¥320 | |
| 16418-24200 |
Packing(FOR RADIATOR DRAIN COCK)
1984-08 → 1988-08
ended
|
2YU,3YEU YR20,21,28 MTM | ¥320 | |
| 16418-24200 |
Packing(FOR RADIATOR DRAIN COCK)
1984-08 → 1988-08
ended
|
1YJ,3YEU YR26,3# | ¥320 | |
| 16418-24200 |
Packing(FOR RADIATOR DRAIN COCK)
1984-08 → 1988-08
ended
|
2C CR21,27,28 4FC | ¥320 | |
| 16418-24200 |
Packing(FOR RADIATOR DRAIN COCK)
1984-08 → 1988-08
ended
|
4KJ KR26 | ¥320 | |
| 16418-24200 |
Packing(FOR RADIATOR DRAIN COCK)
1982-11 → 1984-08
ended
|
1YJ,2YU YR20,26 | ¥320 | |
| 96711-19007 |
Packing(FOR RADIATOR DRAIN COCK)
1982-11 → 1984-08
ended
|
1C,2C CR2# | ¥180 | |
| 96711-19007 |
Packing(FOR RADIATOR DRAIN COCK)
1984-08 → 1988-08
ended
|
1C,2C CR21,26,28 5F | ¥180 | |
| 96711-19007 |
Packing(FOR RADIATOR DRAIN COCK)
1984-08 → 1988-08
ended
|
2YU,3YEU YR20,21,28 4FC | ¥180 | |
| 96711-19007 |
Packing(FOR RADIATOR DRAIN COCK)
1982-11 → 1984-08
ended
|
3YEU YR21 | ¥180 | |
| 16400G — Hose(FOR RADIATOR BREATHER) | ||||
| 99552-10400 |
Hose(FOR RADIATOR BREATHER)
1982-11 → 1983-08
ended
|
1YJ,2YU,3YEU YR2# | ¥440 | |
| 99555-10400 note |
Hose(FOR RADIATOR BREATHER)
1985-08 → 1988-08
ended
|
2YU D,E,N,Q) YR20 HRF +8 | ¥940 | |
| 99555-10500 note |
Hose(FOR RADIATOR BREATHER)
1985-10 → 1988-08
ended
|
3YEU YR3# | ¥1,150 | |
| 99556-10400 note |
Hose(FOR RADIATOR BREATHER)
1983-08 → 1985-08
ended
|
1YJ,2YU,3YEU YR2# | ¥510 | |
| 16400H — Clamp OR Clip(FOR RADIATOR BREATHER HOSE) | ||||
| 90460-14001 |
Clamp OR Clip(FOR RADIATOR BREATHER HOSE)
1982-11 → 1983-05
ended
|
1YJ,2YU YR2# | ¥340 | |
| 90460-14001 note |
Clamp OR Clip(FOR RADIATOR BREATHER HOSE)
1983-05 → 1984-08
ended
|
1YJ,2YU,3YEU YR2# | ¥340 | |
| 90467-13001 note |
Clamp OR Clip(FOR RADIATOR BREATHER HOSE)
1983-05 → 1984-08
ended
|
1YJ,2YU,3YEU YR2# | ¥230 | |
| 90467-13001 |
Clamp OR Clip(FOR RADIATOR BREATHER HOSE)
1984-08 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥230 | |
| 16470 — Tank Assy, Radiator Reserve | ||||
| 16470-13010 |
Tank Assy, Radiator Reserve
1982-11 → 1985-08
ended
|
4KJ KR26 | ¥3,190 | |
| 16470-13030 |
Tank Assy, Radiator Reserve
1985-08 → 1988-08
ended
|
4KJ KR26 | ¥2,910 | |
| 16470-64010 |
Tank Assy, Radiator Reserve
1982-11 → 1985-08
ended
|
1C,2C CR2# D,G,N | ¥2,930 | |
| 16470-64020 |
Tank Assy, Radiator Reserve
1983-04 → 1985-08
ended
|
2C CR21 E | ¥3,890 | |
| 16470-64030 |
Tank Assy, Radiator Reserve
1985-08 → 1988-08
ended
|
2CT CR21,28,30,37 | ¥7,600 | |
| 16470-64040 |
Tank Assy, Radiator Reserve
1985-08 → 1988-08
ended
|
1C,2C CR2#,36 | ¥4,430 | |
| 16470-71010 |
Tank Assy, Radiator Reserve
1982-11 → 1985-08
ended
|
1YJ,2YU YR20,26 D,G,N | ¥3,190 | |
| 16470-71020 note |
Tank Assy, Radiator Reserve
1984-08 → 1985-08
ended
|
2YU,3YEU YR20,21 E,Q,X | ¥6,000 | |
| 16470-71020 note |
Tank Assy, Radiator Reserve
1982-11 → 1985-08
ended
|
2YU,3YEU YR20,21 MRF 5F +1 | ¥6,000 | |
| 16470-71020 note |
Tank Assy, Radiator Reserve
1982-11 → 1984-08
ended
|
1YJ,2YU,3YEU YR2# E,N,Q,X | ¥6,000 | |
| 16470-73010 |
Tank Assy, Radiator Reserve
1985-08 → 1988-08
ended
|
3YEU YR21,3# | ¥6,700 | |
| 16470-73010 |
Tank Assy, Radiator Reserve
1985-08 → 1988-08
ended
|
2YU YR20 E | ¥6,700 | |
| 16470-73020 |
Tank Assy, Radiator Reserve
1985-08 → 1988-08
ended
|
1YJ,2YU YR26,28;2YU YR20 MRF +5 | ¥3,400 | |
| 16470A — Hose OR Pipe(FOR RADIATOR RESERVE TANK) | ||||
| 85338-15030 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1986-04 → 1988-08
ended
|
4KJ KR26 | — | |
| 85338-73010 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1985-08 → 1988-08
ended
|
2YU YR21,26,28,3# YR20 HRF +8 | — | |
| 85338-73030 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1985-08 → 1988-08
ended
|
2YU YR21,26,28,3# YR20 HRF +8 | — | |
| 90099-33534 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1982-11 → 1985-08
ended
|
1YJ,2YU,3YEU YR2# | — | |
| 90445-12077 |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1983-04 → 1985-08
ended
|
2C CR21 E | — | |
| 90445-12078 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1985-08 → 1988-08
ended
|
2YU YR21,26,28,3# YR20 HRF +8 | ¥580 | |
| 90445-12078 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1985-08 → 1988-08
ended
|
4KJ KR26 | ¥580 | |
| 90445-12078 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1985-08 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥580 | |
| 90445-12796 |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1982-11 → 1985-08
ended
|
1C,2C CR2# D,G,N | ¥470 | |
| 16470B — Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
1982-11 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥100 | |
| 90467-11085 |
Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥100 | |
| 90467-11085 |
Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥100 | |
| 16471 — Cap Sub-assy, Reserve Tank | ||||
| 16405-13030 |
Cap Sub-assy, Reserve Tank
1982-11 → 1985-08
ended
|
4KJ KR26 | ¥1,130 | |
| 16405-13040 |
Cap Sub-assy, Reserve Tank
1985-08 → 1988-08
ended
|
4KJ KR26 | — | |
| 16471-64010 |
Cap Sub-assy, Reserve Tank
1982-11 → 1985-08
ended
|
1C,2C CR2# | — | |
| 16471-64020 |
Cap Sub-assy, Reserve Tank
1985-08 → 1988-08
ended
|
1C,2C# CR2#,3# | — | |
| 16471-71010 |
Cap Sub-assy, Reserve Tank
1982-11 → 1985-08
ended
|
1YJ,2YU,3YEU YR2# | — | |
| 16471-73010 |
Cap Sub-assy, Reserve Tank
1985-08 → 1988-08
ended
|
2YU YR21,26,28,3# YR20 HRF +8 | — | |
| 16472 — Hose, Breather | ||||
| 85338-30010 |
Hose, Breather
1985-08 → 1988-08
ended
|
2YU YR21,26,28,3# YR20 HRF +8 | — | |
| 85338-72010 |
Hose, Breather
1985-02 → 1985-08
ended
|
1YJ,3YEU 8S,09S) YR21,26;2YU YR20 +9 | — | |
| 85338-72010 |
Hose, Breather
1986-04 → 1986-09
ended
|
4KJ KR26 | — | |
| 85338-74040 |
Hose, Breather
1986-09 → 1988-08
ended
|
4KJ KR26 | — | |
| 90099-33393 |
Hose, Breather
1982-11 → 1985-02
ended
|
1YJ,2YU,3YEU YR2# | — | |
| 90099-33393 |
Hose, Breather
1985-02 → 1985-08
ended
|
4KJ KR26 | — | |
| 90099-33393 |
Hose, Breather
1985-02 → 1985-08
ended
|
1C,2C CR2# | — | |
| 90099-33393 |
Hose, Breather
1982-11 → 1985-02
ended
|
1C,2C CR2# | — | |
| 90099-33393 |
Hose, Breather
1982-11 → 1985-02
ended
|
4KJ KR26 | — | |
| 90445-12078 note |
Hose, Breather
1985-08 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥580 | |
| 16535 — Support, Radiator, Lower | ||||
| 16533-64060 note |
Support, Radiator, Lower
1985-10 → 1988-08
ended
|
2C# CR3# | ¥2,090 | |
| 16533-64060 note |
Support, Radiator, Lower
1985-10 → 1988-08
ended
|
3YEU YR3# | ¥2,090 | |
| 16534-64010 note |
Support, Radiator, Lower
1985-10 → 1988-08
ended
|
3YEU YR3# | ¥2,090 | |
| 16534-64010 note |
Support, Radiator, Lower
1985-10 → 1988-08
ended
|
2C# CR3# | ¥2,090 | |
| 16571 — Hose, Radiator, Inlet | ||||
| 16571-13110 |
Hose, Radiator, Inlet
1982-11 → 1985-08
ended
|
4KJ KR26 | ¥2,380 | |
| 16571-13160 |
Hose, Radiator, Inlet
1985-08 → 1988-08
ended
|
4KJ KR26 | ¥2,030 | |
| 16571-64030 |
Hose, Radiator, Inlet
1982-11 → 1988-08
ended
|
1C,2C# CR2# | ¥1,960 | |
| 16571-64090 |
Hose, Radiator, Inlet
1985-10 → 1988-08
ended
|
2C# CR3# | ¥1,960 | |
| 16571-71010 |
Hose, Radiator, Inlet
1982-11 → 1984-08
ended
|
1YJ,2YU YR20,26 | ¥2,830 | |
| 16571-71040 |
Hose, Radiator, Inlet
1984-08 → 1988-08
ended
|
1YJ,2YU,3YEU YR2# | ¥2,140 | |
| 16571-73020 |
Hose, Radiator, Inlet
1983-05 → 1984-08
ended
|
3YEU YR21 | ¥3,160 | |
| 16571-73050 |
Hose, Radiator, Inlet
1985-10 → 1988-08
ended
|
3YEU YR3# | ¥2,380 | |
| 16571A — Clamp OR Clip, Hose(FOR RADIATOR INLET) | ||||
| 90467-31001 |
Clamp OR Clip, Hose(FOR RADIATOR INLET)
1985-08 → 1988-08
ended
|
4KJ KR26 | ¥370 | |
| 90467-37001 |
Clamp OR Clip, Hose(FOR RADIATOR INLET)
1985-08 → 1988-08
ended
|
2YU YR21,26,28,3# YR20 HRF +8 | ¥330 | |
| 90467-37001 |
Clamp OR Clip, Hose(FOR RADIATOR INLET)
1982-11 → 1985-08
ended
|
1C,2C CR2# | ¥330 | |
| 90467-37001 |
Clamp OR Clip, Hose(FOR RADIATOR INLET)
1985-08 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥330 | |
| 90467-37001 |
Clamp OR Clip, Hose(FOR RADIATOR INLET)
1982-11 → 1985-08
ended
|
4KJ KR26 | ¥330 | |
| 90467-37001 |
Clamp OR Clip, Hose(FOR RADIATOR INLET)
1982-11 → 1985-08
ended
|
1YJ,2YU,3YEU YR2# | ¥330 | |
| 16572 — Hose, Radiator, Outlet | ||||
| 16572-13100 |
Hose, Radiator, Outlet
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥3,350 | |
| 16572-64030 |
Hose, Radiator, Outlet
1982-11 → 1985-08
ended
|
1C,2C CR2# | ¥3,870 | |
| 16572-64070 note |
Hose, Radiator, Outlet
1983-01 → 1988-08
ended
|
1C CR26 02S | ¥3,310 | |
| 16572-64100 |
Hose, Radiator, Outlet
1985-08 → 1988-08
ended
|
1C,2C# CR2# | ¥1,940 | |
| 16572-64110 |
Hose, Radiator, Outlet
1985-10 → 1988-08
ended
|
2C# CR3# | ¥2,150 | |
| 16572-71010 |
Hose, Radiator, Outlet
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2# | ¥3,990 | |
| 16572-73040 |
Hose, Radiator, Outlet
1985-10 → 1988-08
ended
|
3YEU YR3# | ¥2,380 | |
| 16572A — Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-47036 |
Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥220 | |
| 90467-37001 |
Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1982-11 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥330 | |
| 90467-37001 |
Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1983-04 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥330 | |
| 96111-10440 |
Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1982-11 → 1983-04
ended
|
1YJ,2YU YR2# | ¥230 | |
| 16584 — Insulator, Radiator Mounting | ||||
| 17853-38010 |
Insulator, Radiator Mounting
1985-08 → 1988-08
ended
|
2YU YR20 MRF 4FC;2YU,3YEU +4 | ¥940 | |
| 17853-38010 |
Insulator, Radiator Mounting
1985-08 → 1988-08
ended
|
1C,2C CR21,26,28 5F | ¥940 | |
| 17853-38010 |
Insulator, Radiator Mounting
1982-11 → 1985-08
ended
|
1C,2C CR2# | ¥940 | |
| 17853-38010 |
Insulator, Radiator Mounting
1982-11 → 1985-08
ended
|
1YJ,2YU,3YEU YR2# | ¥940 | |
| 16701 — Shroud Sub-assy, Fan | ||||
| 16711-13190 |
Shroud Sub-assy, Fan
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥8,000 | |
| 16711-64030 |
Shroud Sub-assy, Fan
1982-11 → 1988-08
ended
|
1C,2C CR2# | ¥8,000 | |
| 16711-64110 |
Shroud Sub-assy, Fan
1985-08 → 1988-08
ended
|
2CT CR21,28 | ¥7,200 | |
| 16711-64120 |
Shroud Sub-assy, Fan
1985-10 → 1988-08
ended
|
2C# CR3# | ¥7,200 | |
| 16711-71010 |
Shroud Sub-assy, Fan
1984-08 → 1988-08
ended
|
1YJ YR26;2YU YR20,28 MTM | ¥8,000 | |
| 16711-71010 |
Shroud Sub-assy, Fan
1982-11 → 1984-08
ended
|
1YJ,2YU YR20,26 | ¥8,000 | |
| 16711-73020 |
Shroud Sub-assy, Fan
1983-05 → 1988-08
ended
|
3YEU YR21 | ¥5,900 | |
| 16711-73020 |
Shroud Sub-assy, Fan
1984-08 → 1988-08
ended
|
2YU YR20,28 4FC | ¥5,900 | |
| 16711-73040 |
Shroud Sub-assy, Fan
1985-10 → 1988-08
ended
|
3YEU YR3# | ¥7,200 | |
| 16712 — Shroud, Fan, NO.2 | ||||
| 16712-13050 note |
Shroud, Fan, NO.2
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥2,910 | |
| 16712-64020 |
Shroud, Fan, NO.2
1982-11 → 1988-08
ended
|
1C,2C CR2# | ¥4,940 | |
| 16712-64050 |
Shroud, Fan, NO.2
1985-08 → 1988-08
ended
|
2CT CR21,28 | ¥2,120 | |
| 16712-64060 |
Shroud, Fan, NO.2
1985-10 → 1988-08
ended
|
2C# CR3# | ¥2,120 | |
| 16712-71010 |
Shroud, Fan, NO.2
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2# | ¥2,910 | |
| 16712-73020 |
Shroud, Fan, NO.2
1985-10 → 1988-08
ended
|
3YEU YR3# | ¥2,380 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
