Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration MA8291F 9099992002 — not listed in this catalogue 9099992002 — not listed in this catalogue 9165140814 — not listed in this catalogue 17303E — HOSE, NO.1(FOR AIR PIPE) (4 parts) 9099992002 — not listed in this catalogue 9613230800 — not listed in this catalogue 9338116014 — not listed in this catalogue 9099992002 — not listed in this catalogue 9099992002 — not listed in this catalogue 9613230800 — not listed in this catalogue 9099992002 — not listed in this catalogue 23265 — FILTER, GAS, NO.1 (3 parts) 9099992002 — not listed in this catalogue 9046400081 — not listed in this catalogue 9099992002 — not listed in this catalogue 9099992002 — not listed in this catalogue 9041304004 — not listed in this catalogue 9099992002 — not listed in this catalogue 9099992002 — not listed in this catalogue 21381 — BIMETAL, THERMOSTATIC (4 parts) 9099992002 — not listed in this catalogue 9099992002 — not listed in this catalogue 9099992002 — not listed in this catalogue 9099992002 — not listed in this catalogue 9099992002 — not listed in this catalogue 9041304005 — not listed in this catalogue 23288 — JET, NO.1 (5 parts) 9099992002 — not listed in this catalogue 9099992002 — not listed in this catalogue 9099992002 — not listed in this catalogue 25810 — VALVE ASSY, BIMETAL (3 parts) 25810 — VALVE ASSY, BIMETAL (3 parts) 9165140814 — not listed in this catalogue 9099992002 — not listed in this catalogue 17303B — PIPE SUB-ASSY, AIR, NO.1 (3 parts) 23285A — VALVE, CHECK, NO.1 (2 parts) 9099992002 — not listed in this catalogue 25730 — VALVE ASSY, ELECTRIC BLEED AIR CONTROL (2 parts) 9099992003 — not listed in this catalogue 9099992002 — not listed in this catalogue 9041304005 — not listed in this catalogue 9541340165 — not listed in this catalogue 9041304005 — not listed in this catalogue 9099992002 — not listed in this catalogue 9613231000 — not listed in this catalogue 9099992002 — not listed in this catalogue 17341B — HOSE, NO.1(FOR AIR INJECTION SYSTEM) (1 parts) 9099992002 — not listed in this catalogue 17630 — VALVE ASSY, AIR CONTROL (3 parts) 9099992002 — not listed in this catalogue 17810A — FILTER ASSY, AIR (2 parts) 9613231000 — not listed in this catalogue 23281 — VALVE, VACUUM TRANSMITTING, NO.1 (4 parts) 9099992003 — not listed in this catalogue 9046400082 — not listed in this catalogue 9046400394 — not listed in this catalogue 9046400074 — not listed in this catalogue 9099992003 — not listed in this catalogue 9099992002 — not listed in this catalogue 9046400369 — not listed in this catalogue 9099992003 — not listed in this catalogue 9099992002 — not listed in this catalogue 9099992002 — not listed in this catalogue 9541340275 — not listed in this catalogue 9046400082 — not listed in this catalogue 9046400082 — not listed in this catalogue 23283 — VALVE, VACUUM TRANSMITTING, NO.3 (2 parts)

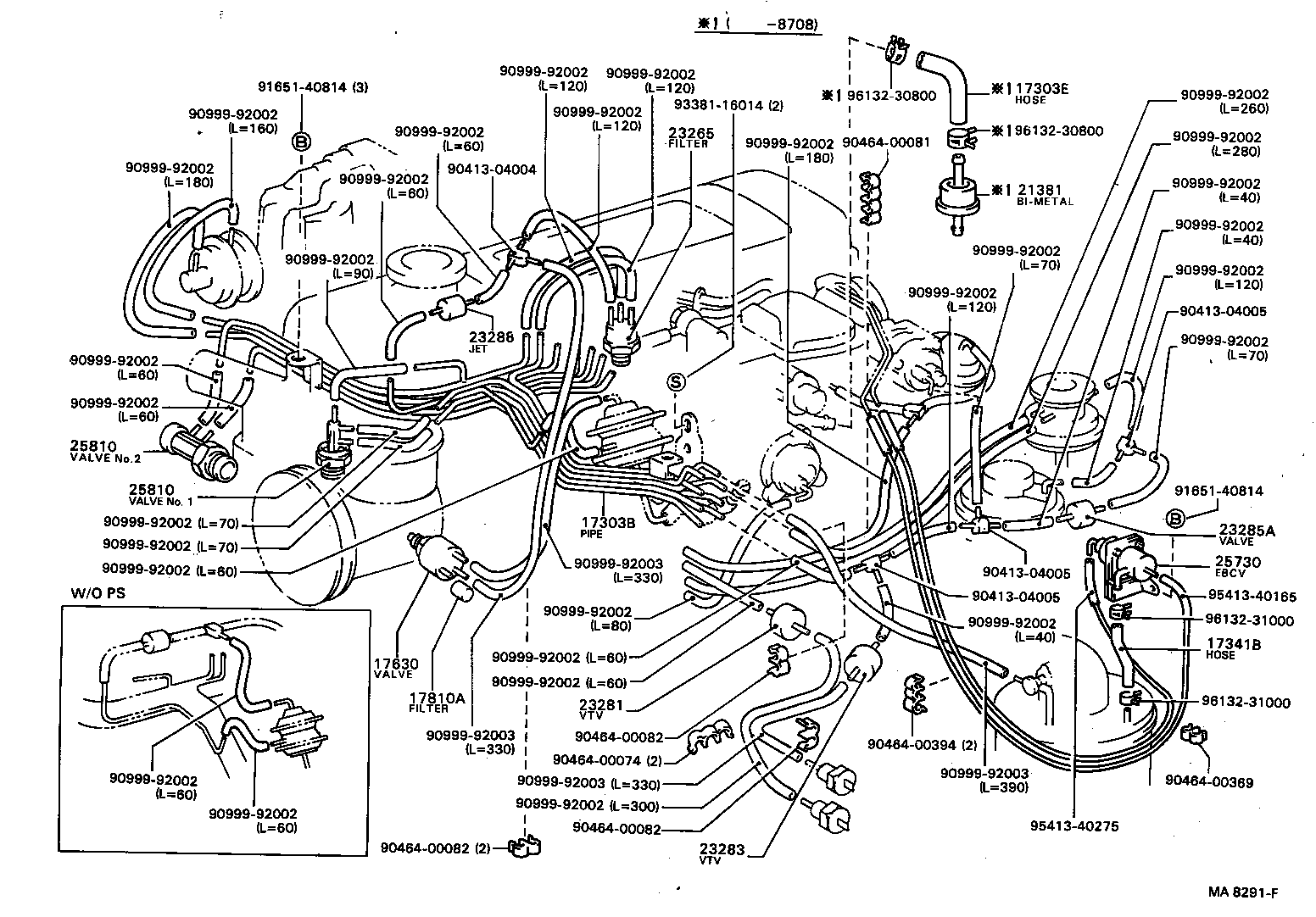

MA8291F · 14 callouts, 53 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
38 parts on this figure
Part number Description Fitment Price
17303B — Pipe Sub-assy, Air, NO.1
17303-71010 Pipe Sub-assy, Air, NO.1
1982-11 → 1985-08 ended
2YU YR20 —
17303-71011 Pipe Sub-assy, Air, NO.1
1985-08 → 1988-08 ended
2YU YR20 HRF 5F +7 ¥9,800
17303-71020 Pipe Sub-assy, Air, NO.1
1982-11 → 1988-08 ended
1YJ YR26 ¥4,900
17303E — Hose, NO.1(FOR AIR PIPE)
90445-14079 Hose, NO.1(FOR AIR PIPE)
1982-11 → 1985-08 ended
4KJ KR26 ¥250
90445-14079 Hose, NO.1(FOR AIR PIPE)
1982-11 → 1985-08 ended
1YJ,2YU YR20,26 ¥250
90445-14079 Hose, NO.1(FOR AIR PIPE)
1985-08 → 1988-08 ended
4KJ KR26 ¥250
90910-05181 Hose, NO.1(FOR AIR PIPE)
1985-08 → 1987-08 ended
2YU ,D,E,N,Q) YR20 HRF +8 ¥400
17341B — Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341-72030 Hose, NO.1(FOR AIR INJECTION SYSTEM)
1985-08 → 1988-08 ended
2YU YR20 HRF 5F +7 ¥760
17630 — Valve Assy, Air Control
17630-28010 note Valve Assy, Air Control
1983-05 → 1988-08 ended
3YEU YR21,3# ¥15,100
17630-28020 note Valve Assy, Air Control
1982-11 → 1985-08 ended
1YJ,2YU YR20,26 4FC,5F ¥15,300
17630-28020 note Valve Assy, Air Control
1985-08 → 1988-08 ended
2YU ,D,E,N,Q) YR20 HRF +8 ¥15,300
17810A — Filter Assy, Air
90925-06007 note Filter Assy, Air
1982-11 → 1985-08 ended
1YJ,2YU YR20,26 4FC,5F ¥360
90925-06007 note Filter Assy, Air
1985-08 → 1988-08 ended
2YU ,D,E,N,Q) YR20 HRF +8 ¥360
21381 — Bimetal, Thermostatic
21381-13010 Bimetal, Thermostatic
1982-11 → 1984-01 ended
1YJ,2YU YR20,26 ¥4,350
21381-13030 Bimetal, Thermostatic
1982-11 → 1988-08 ended
4KJ KR26 ¥4,840
21381-71030 Bimetal, Thermostatic
1984-01 → 1985-08 ended
1YJ,2YU YR20,26 ¥4,370
21381-71040 Bimetal, Thermostatic
1985-08 → 1987-08 ended
2YU ,D,E,N,Q) YR20 HRF +8 ¥4,650
23265 — Filter, Gas, NO.1
90917-11022 Filter, Gas, NO.1
1983-05 → 1988-08 ended
3YEU YR21,3# ¥1,020
90917-11023 Filter, Gas, NO.1
1982-11 → 1988-08 ended
4KJ KR26 ¥1,650
90917-11024 Filter, Gas, NO.1
1982-11 → 1988-08 ended
1YJ,2YU YR20,26,28 ¥1,730
23281 — Valve, Vacuum Transmitting, NO.1
90925-01027 Valve, Vacuum Transmitting, NO.1
1982-11 → 1988-08 ended
2YU YR20,28 ¥2,350
90925-01029 Valve, Vacuum Transmitting, NO.1
1983-05 → 1988-08 ended
3YEU YR21,3# ¥2,060
90925-01075 note Valve, Vacuum Transmitting, NO.1
1982-11 → 1988-08 ended
1YJ YR26 MTM ¥2,650
90925-01094 Valve, Vacuum Transmitting, NO.1
1982-11 → 1988-08 ended
4KJ KR26 ¥1,950
23283 — Valve, Vacuum Transmitting, NO.3
90925-01027 Valve, Vacuum Transmitting, NO.3
1982-11 → 1988-08 ended
2YU YR20,28 ¥2,350
90925-01075 Valve, Vacuum Transmitting, NO.3
1982-11 → 1988-08 ended
1YJ YR26 MTM ¥2,650
23285A — Valve, Check, NO.1
90917-10049 note Valve, Check, NO.1
1982-11 → 1985-08 ended
4KJ KR26 ¥810
90917-10049 Valve, Check, NO.1
1982-11 → 1988-08 ended
2YU YR20,28 ¥810
23288 — Jet, NO.1
90925-04004 note Jet, NO.1
1982-11 → 1985-08 ended
1YJ YR26 N ¥1,020
90925-04004 Jet, NO.1
1985-11 → 1988-08 ended
2YU YR20 HRF 5F +7 ¥1,020
90925-04004 note Jet, NO.1
1985-08 → 1988-08 ended
1YJ YR26 ¥1,020
90925-04006 note Jet, NO.1
1982-11 → 1988-08 ended
4KJ KR26 ¥1,030
90925-04006 Jet, NO.1
1985-08 → 1985-11 ended
2YU YR20 HRF 5F +7 ¥1,030
25730 — Valve Assy, Electric Bleed Air Control
25730-71010 Valve Assy, Electric Bleed Air Control
1982-11 → 1985-08 ended
2YU YR20 ¥20,700
25730-72010 Valve Assy, Electric Bleed Air Control
1985-08 → 1988-08 ended
2YU YR20 HRF 5F +7 ¥20,600
25810 — Valve Assy, Bimetal
25810-27010 Valve Assy, Bimetal
1982-11 → 1988-08 ended
1YJ YR26 ¥5,800
25810-27010 note Valve Assy, Bimetal
1982-11 → 1988-08 ended
2YU YR20,28 ¥5,800
25820-37010 note Valve Assy, Bimetal
1982-11 → 1988-08 ended
2YU YR20,28 ¥5,500
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
