Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

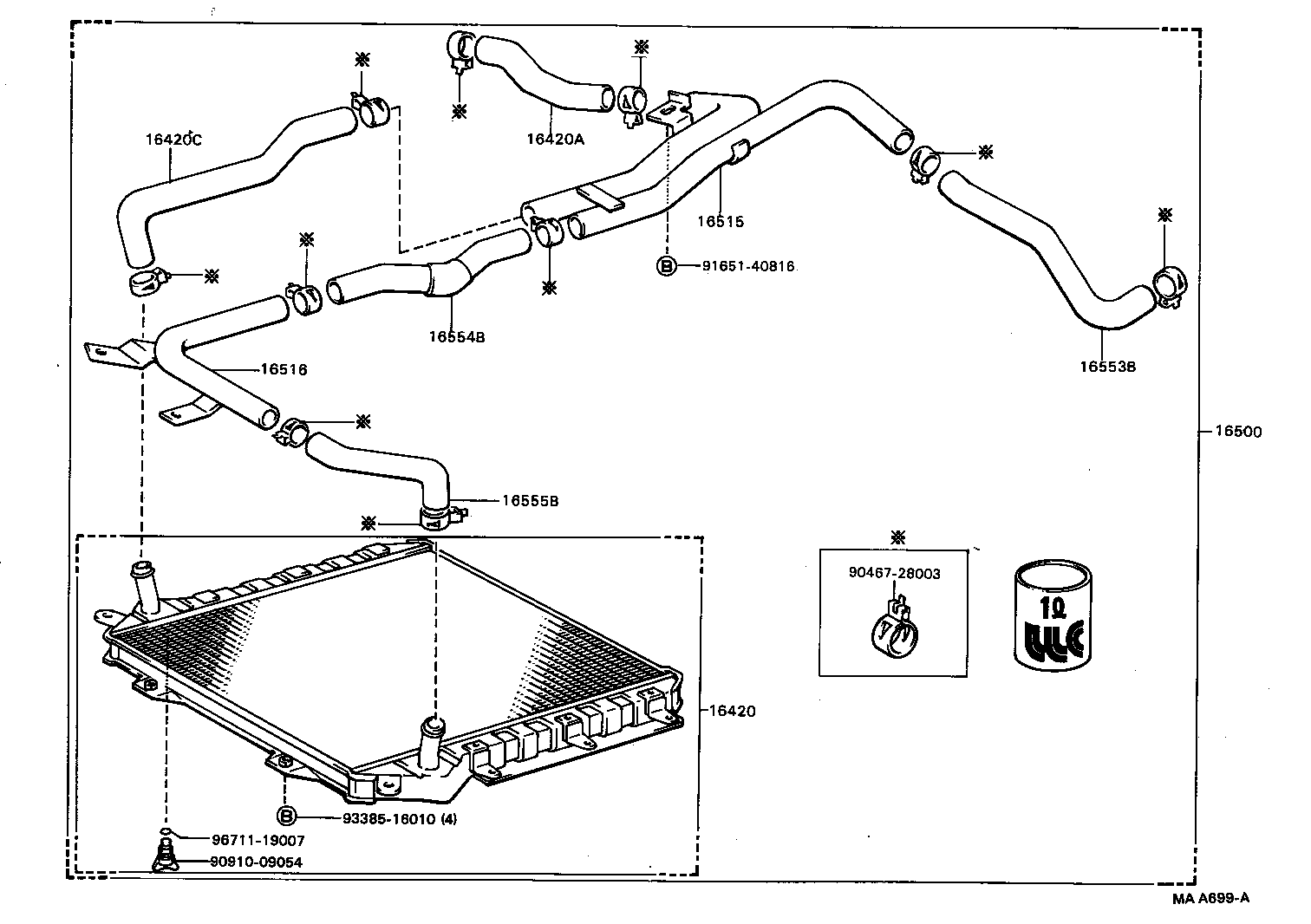

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16420 — Radiator Assy, Sub | ||||
| 16510-64010 note |
Radiator Assy, Sub
1987-08 → 1988-08
ended
|
2CT CR30 4FC | ¥59,100 | |
| 16420A — Hose, Sub Radiator, Inlet | ||||
| 16551-64010 note |
Hose, Sub Radiator, Inlet
1987-08 → 1988-08
ended
|
2CT CR30 4FC | ¥1,600 | |
| 16420C — Hose, Sub Radiator, NO.1 | ||||
| 16552-64010 note |
Hose, Sub Radiator, NO.1
1987-08 → 1988-08
ended
|
2CT CR30 4FC | ¥1,980 | |
| 16500 — Radiator Assy, Sub W/Fan | ||||
| 16500-64010 note |
Radiator Assy, Sub W/Fan
1987-08 → 1988-08
ended
|
2CT CR30 4FC | ¥18,000 | |
| 16515 — Pipe, Sub Radiator, NO.1 | ||||
| 16515-64010 note |
Pipe, Sub Radiator, NO.1
1987-08 → 1988-04
ended
|
2CT CR30 4FC | ¥7,900 | |
| 16515-64011 |
Pipe, Sub Radiator, NO.1
1988-04 → 1988-08
ended
|
2CT CR30 4FC | ¥7,800 | |
| 16516 — Pipe, Sub Radiator, NO.2 | ||||
| 16516-64010 note |
Pipe, Sub Radiator, NO.2
1987-08 → 1988-08
ended
|
2CT CR30 4FC | ¥5,400 | |
| 16553B — Hose, Sub Radiator, NO.3 | ||||
| 16553-64010 note |
Hose, Sub Radiator, NO.3
1987-08 → 1988-08
ended
|
2CT CR30 4FC | ¥1,760 | |
| 16554B — Hose, Sub Radiator, NO.4 | ||||
| 16554-64010 note |
Hose, Sub Radiator, NO.4
1987-08 → 1988-08
ended
|
2CT CR30 4FC | ¥1,740 | |
| 16555B — Hose, Sub Radiator, NO.5 | ||||
| 16555-64010 note |
Hose, Sub Radiator, NO.5
1987-08 → 1988-08
ended
|
2CT CR30 4FC | ¥1,600 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
