Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

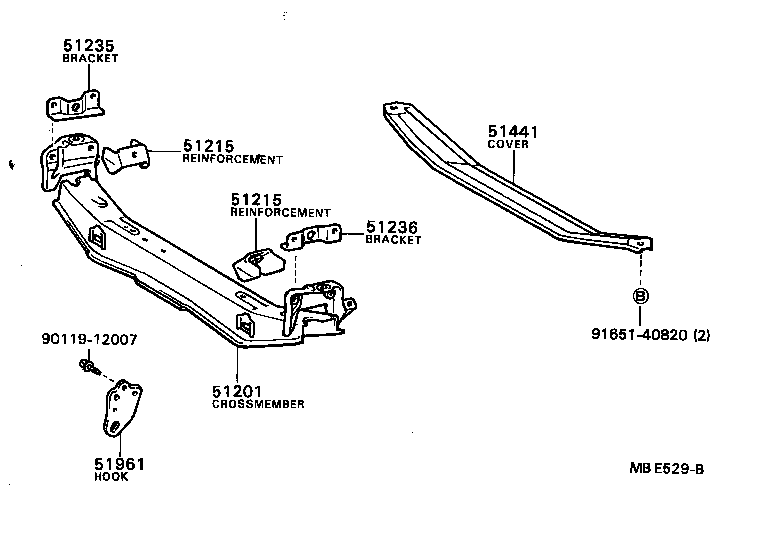

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 51201 — Crossmember Sub-assy, Front Suspension | ||||
| 51201-95D00 note |
Crossmember Sub-assy, Front Suspension
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥23,400 | |
| 51203-87001 |
Crossmember Sub-assy, Front Suspension
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥18,700 | |
| 51203-87002 note |
Crossmember Sub-assy, Front Suspension
1985-08 → 1988-08
ended
|
CR2#,YR21,26,28;YR20 HRF (E,Q);YR20 HRF +4 | ¥23,400 | |
| 51203-87004 |
Crossmember Sub-assy, Front Suspension
1985-08 → 1988-08
ended
|
06S,08S YR20 HRF E;YR20 +6 | ¥23,400 | |
| 51203-95D00 note |
Crossmember Sub-assy, Front Suspension
1985-10 → 1987-08
ended
|
CR3#,YR3# | ¥12,100 | |
| 51203-95D01 note |
Crossmember Sub-assy, Front Suspension
1987-08 → 1988-08
ended
|
CR3#,YR3# | ¥12,000 | |
| 51215 — Reinforcement, Front Suspension Crossmember | ||||
| 51215-87001 note |
Reinforcement, Front Suspension Crossmember
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥1,400 | |
| 51215-87004 note |
Reinforcement, Front Suspension Crossmember
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥1,400 | |
| 51215-87007 note |
Reinforcement, Front Suspension Crossmember
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥1,430 | |
| 51218-87002 note |
Reinforcement, Front Suspension Crossmember
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥1,430 | |
| 51235 — Bracket, Front Suspension Crossmember, RH | ||||
| 51225-87001 |
Bracket, Front Suspension Crossmember, RH
1982-11 → 1988-08
ended
|
CR2#,KR26,YR2# | ¥1,970 | |
| 51236 — Bracket, Front Suspension Crossmember, LH | ||||
| 51226-87001 |
Bracket, Front Suspension Crossmember, LH
1982-11 → 1988-08
ended
|
CR2#,KR26,YR2# | ¥1,970 | |
| 51441 — Cover, Engine Under, NO.1 | ||||
| 51441-87001 note |
Cover, Engine Under, NO.1
1982-11 → 1984-06
ended
|
CR2#,KR26,YR2# | ¥7,000 | |
| 51441-87002 note |
Cover, Engine Under, NO.1
1984-06 → 1988-08
ended
|
CR2#,KR26,YR2# | ¥7,000 | |
| 51441-95D00 |
Cover, Engine Under, NO.1
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥5,300 | |
| 51961 — Hook, NO.1 | ||||
| 51970-87001 note |
Hook, NO.1
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥1,490 | |
| 51970-95D00 note |
Hook, NO.1
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥2,170 | |
| 51980-87001 note |
Hook, NO.1
1985-08 → 1988-08
ended
|
YR20 HRF 5F G;YR20 +4 | ¥1,490 | |
| 51980-87002 note |
Hook, NO.1
1985-08 → 1988-08
ended
|
CR2# | ¥1,490 | |
| 51980-95D00 note |
Hook, NO.1
1985-10 → 1986-08
ended
|
YR30 | ¥2,170 | |
| 51980-95D01 note |
Hook, NO.1
1985-10 → 1986-08
ended
|
CR3# | ¥2,170 | |
| 51980-95D01 note |
Hook, NO.1
1986-08 → 1988-08
ended
|
CR3#,YR3# | ¥2,170 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
