Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

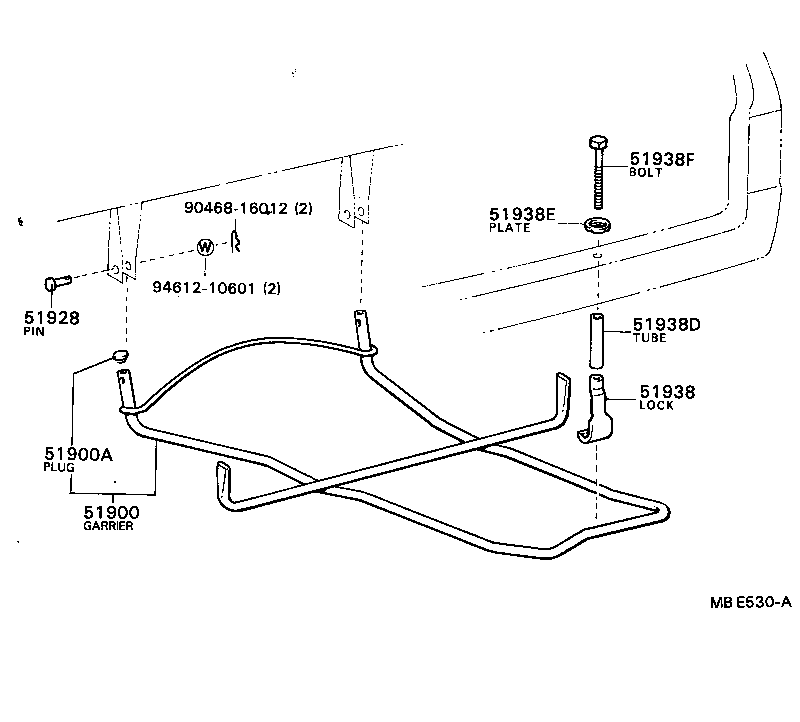

Exploded illustration MBE530A 51938F — BOLT(FOR SPARE WHEEL CARRIER LOCK) (19 parts) 9046816012 — not listed in this catalogue 51938E — PLATE, SPARE WHEEL CARRIER LOCK (1 parts) 9461210601 — not listed in this catalogue 51928 — PIN, SPARE WHEEL CARRIER (1 parts) 51938D — TUBE(FOR SPARE WHEEL CARRIER BOLT) (19 parts) 51938 — LOCK, SPARE WHEEL CARRIER (4 parts) 51900A — PLUG, HOLE(FOR SPARE WHEEL CARRIER) (2 parts) 51900 — CARRIER ASSY, SPARE WHEEL (3 parts)
MBE530A · 7 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
49 parts on this figure
Part number Description Fitment Price
51900 — Carrier Assy, Spare Wheel
51900-28020 Carrier Assy, Spare Wheel
1982-11 → 1988-08 ended
CR21,YR20,21 ¥3,520
51900-28030 Carrier Assy, Spare Wheel
1982-11 → 1988-08 ended
CR26,27,28,36,37,KR26,YR26,28,36 ¥3,180
51900-28050 Carrier Assy, Spare Wheel
1985-10 → 1988-08 ended
CR30,YR30 ¥4,130
51900A — Plug, Hole(FOR SPARE WHEEL CARRIER)
90950-01591 Plug, Hole(FOR SPARE WHEEL CARRIER)
1987-02 → 1988-08 ended
CR21,YR21;YR20 HRF E;YR20 HRF +4 ¥250
90950-01592 Plug, Hole(FOR SPARE WHEEL CARRIER)
1987-02 → 1988-08 ended
CR26,27,28,3#,KR26,YR26,28,3# ¥260
51928 — Pin, Spare Wheel Carrier
90240-06002 Pin, Spare Wheel Carrier
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥190
51938 — Lock, Spare Wheel Carrier
51938-22020 Lock, Spare Wheel Carrier
1985-10 → 1985-11 ended
CR30,YR30 ¥1,160
51938-28020 Lock, Spare Wheel Carrier
1985-10 → 1985-11 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥1,220
51938-28020 Lock, Spare Wheel Carrier
1982-11 → 1985-10 ended
CR2#,KR26,YR2# ¥1,220
51938-28030 Lock, Spare Wheel Carrier
1985-11 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥1,150
51938D — Tube(FOR SPARE WHEEL CARRIER BOLT)
90440-17028 note Tube(FOR SPARE WHEEL CARRIER BOLT)
1982-11 → 1984-08 ended
CR21,YR20 E,G,X ¥610
90440-17028 note Tube(FOR SPARE WHEEL CARRIER BOLT)
1984-08 → 1988-08 ended
CR21,YR20 E ¥610
90440-17032 note Tube(FOR SPARE WHEEL CARRIER BOLT)
1985-10 → 1988-08 ended
CR30,YR30 ¥830
90440-17032 note Tube(FOR SPARE WHEEL CARRIER BOLT)
1982-11 → 1985-08 ended
CR26,27,KR26,YR26 ¥830
90440-17032 note Tube(FOR SPARE WHEEL CARRIER BOLT)
1985-08 → 1988-08 ended
KR26 03S ¥830
90440-17033 note Tube(FOR SPARE WHEEL CARRIER BOLT)
1987-08 → 1988-08 ended
CR28 ¥1,090
90440-17033 note Tube(FOR SPARE WHEEL CARRIER BOLT)
1985-08 → 1988-08 ended
CR21,YR20,21 HRF E ¥1,090
90440-17033 note Tube(FOR SPARE WHEEL CARRIER BOLT)
1984-08 → 1985-08 ended
YR21;CR21,YR20 E,Q,X ¥1,090
90440-17033 note Tube(FOR SPARE WHEEL CARRIER BOLT)
1983-05 → 1984-08 ended
CR21,YR21 ¥1,090
90440-17033 note Tube(FOR SPARE WHEEL CARRIER BOLT)
1982-11 → 1984-08 ended
YR20 Q ¥1,090
90440-17034 note Tube(FOR SPARE WHEEL CARRIER BOLT)
1987-08 → 1988-08 ended
CR21,26,27,KR26,YR26,28 B,D,G,N ¥580
90440-17034 note Tube(FOR SPARE WHEEL CARRIER BOLT)
1985-08 → 1987-08 ended
CR2#,KR26,YR26,28 CBR,DSL ¥580
90440-17034 note Tube(FOR SPARE WHEEL CARRIER BOLT)
1984-08 → 1985-08 ended
CR2#,KR26,YR20,26 D,E,G,N,R ¥580
90440-17034 note Tube(FOR SPARE WHEEL CARRIER BOLT)
1985-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥580
90440-17034 note Tube(FOR SPARE WHEEL CARRIER BOLT)
1982-11 → 1984-08 ended
CR2#,KR26,YR20,26 D,E,G,N,R,X ¥580
90440-17036 note Tube(FOR SPARE WHEEL CARRIER BOLT)
1985-10 → 1988-08 ended
CR30,YR30 ¥670
90440-17037 note Tube(FOR SPARE WHEEL CARRIER BOLT)
1985-10 → 1988-08 ended
CR36,37,YR36 ¥1,140
90440-17037 note Tube(FOR SPARE WHEEL CARRIER BOLT)
1985-08 → 1986-08 ended
CR21,YR20,21 HRF (E,Q) ¥1,140
90440-17038 note Tube(FOR SPARE WHEEL CARRIER BOLT)
1986-08 → 1988-08 ended
CR21,YR20,21 HRF (E,Q) ¥990
51938E — Plate, Spare Wheel Carrier Lock
51937-26010 Plate, Spare Wheel Carrier Lock
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥440
51938F — Bolt(FOR SPARE WHEEL CARRIER LOCK)
90101-12007 note Bolt(FOR SPARE WHEEL CARRIER LOCK)
1986-08 → 1988-08 ended
CR21,YR20,21 HRF (E,Q) ¥500
90101-12048 note Bolt(FOR SPARE WHEEL CARRIER LOCK)
1982-11 → 1984-08 ended
CR21,YR20 E,G,X ¥610
90101-12048 note Bolt(FOR SPARE WHEEL CARRIER LOCK)
1984-08 → 1988-08 ended
CR21,YR20 E ¥610
90101-12094 note Bolt(FOR SPARE WHEEL CARRIER LOCK)
1982-11 → 1985-08 ended
CR26,27,KR26,YR26 ¥370
90101-12094 note Bolt(FOR SPARE WHEEL CARRIER LOCK)
1985-10 → 1988-08 ended
CR30,YR30 ¥370
90101-12094 note Bolt(FOR SPARE WHEEL CARRIER LOCK)
1985-08 → 1988-08 ended
KR26 03S ¥370
90101-12097 note Bolt(FOR SPARE WHEEL CARRIER LOCK)
1982-11 → 1984-08 ended
CR2#,KR26,YR20,26 D,E,G,N,R,X ¥440
90101-12097 note Bolt(FOR SPARE WHEEL CARRIER LOCK)
1987-08 → 1988-08 ended
CR21,26,27,KR26,YR26,28 B,D,G,N ¥440
90101-12097 note Bolt(FOR SPARE WHEEL CARRIER LOCK)
1984-08 → 1985-08 ended
CR2#,KR26,YR20,26 D,E,G,N,R ¥440
90101-12097 note Bolt(FOR SPARE WHEEL CARRIER LOCK)
1985-08 → 1987-08 ended
CR2#,KR26,YR26,28 CBR,DSL ¥440
90101-12097 note Bolt(FOR SPARE WHEEL CARRIER LOCK)
1985-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥440
90101-12101 note Bolt(FOR SPARE WHEEL CARRIER LOCK)
1987-08 → 1988-08 ended
CR28 ¥400
90101-12101 note Bolt(FOR SPARE WHEEL CARRIER LOCK)
1985-08 → 1988-08 ended
CR21,YR20,21 HRF E ¥400
90101-12101 note Bolt(FOR SPARE WHEEL CARRIER LOCK)
1984-08 → 1985-08 ended
YR21;CR21,YR20 E,Q,X ¥400
90101-12101 note Bolt(FOR SPARE WHEEL CARRIER LOCK)
1983-05 → 1984-08 ended
CR21,YR21 ¥400
90101-12101 note Bolt(FOR SPARE WHEEL CARRIER LOCK)
1982-11 → 1984-08 ended
YR20 Q ¥400
90101-12124 note Bolt(FOR SPARE WHEEL CARRIER LOCK)
1985-08 → 1986-08 ended
CR21,YR20,21 HRF (E,Q) ¥680
90101-12124 note Bolt(FOR SPARE WHEEL CARRIER LOCK)
1985-10 → 1988-08 ended
CR36,37,YR36 ¥680
90101-12125 note Bolt(FOR SPARE WHEEL CARRIER LOCK)
1985-10 → 1988-08 ended
CR30,YR30 ¥610
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
