Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

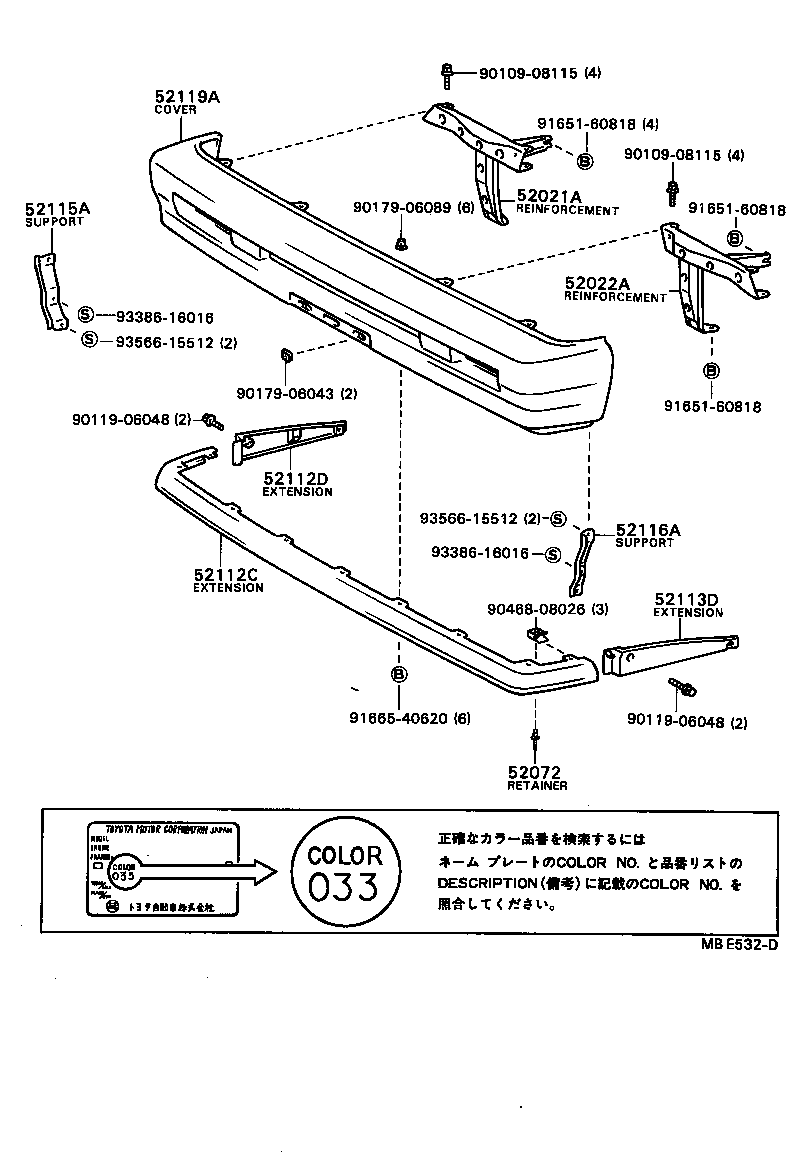

Exploded illustration MBE532D 9010908115 — not listed in this catalogue 52119A — COVER, FRONT BUMPER (55 parts) 9165160818 — not listed in this catalogue 9010908115 — not listed in this catalogue 52021A — REINFORCEMENT SUB-ASSY, FRONT BUMPER, RH (2 parts) 52115A — SUPPORT, FRONT BUMPER SIDE, RH (3 parts) 9017906089 — not listed in this catalogue 9165160818 — not listed in this catalogue 52022A — REINFORCEMENT SUB-ASSY, FRONT BUMPER, LH (2 parts) 9338616016 — not listed in this catalogue 9356615512 — not listed in this catalogue 9017906043 — not listed in this catalogue 9165160818 — not listed in this catalogue 9011906048 — not listed in this catalogue 52112D — EXTENSION, FRONT BUMPER, RH (22 parts) 9356615512 — not listed in this catalogue 52116A — SUPPORT, FRONT BUMPER SIDE, LH (3 parts) 9338616016 — not listed in this catalogue 52112C — EXTENSION, FRONT BUMPER (2 parts) 52113D — EXTENSION, FRONT BUMPER, LH (22 parts) 9046808026 — not listed in this catalogue 9166540620 — not listed in this catalogue 9011906048 — not listed in this catalogue 52072 — RETAINER SUB-ASSY, FRONT BUMPER, LOWER (2 parts)
MBE532D · 9 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
113 parts on this figure
Part number Description Fitment Price
52021A — Reinforcement Sub-assy, Front Bumper, RH
52021-87001 Reinforcement Sub-assy, Front Bumper, RH
1982-11 → 1985-08 ended
CR21,YR20,21 ¥11,200
52021-87002 Reinforcement Sub-assy, Front Bumper, RH
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥10,500
52022A — Reinforcement Sub-assy, Front Bumper, LH
52022-87001 Reinforcement Sub-assy, Front Bumper, LH
1982-11 → 1985-08 ended
CR21,YR20,21 ¥11,200
52022-87002 Reinforcement Sub-assy, Front Bumper, LH
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥10,500
52072 — Retainer Sub-assy, Front Bumper, Lower
52072-28010 note Retainer Sub-assy, Front Bumper, Lower
1983-09 → 1983-11 ended
YR20 MRF 5F G ¥530
52072-28010 Retainer Sub-assy, Front Bumper, Lower
1983-05 → 1985-08 ended
YR21 G ¥530
52112C — Extension, Front Bumper
52112-28010 Extension, Front Bumper
1983-05 → 1985-08 ended
YR21 G ¥7,700
52112-87002 note Extension, Front Bumper
1983-09 → 1983-11 ended
YR20 MRF 5F G ¥15,200
52112D — Extension, Front Bumper, RH
52102-29125 Extension, Front Bumper, RH
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 ¥9,300
52102-87002-01 note Extension, Front Bumper, RH
1985-08 → 1988-08 ended
YR20 6S,08S HRF E;YR20 +6 ¥2,530
52102-87003-03 note Extension, Front Bumper, RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52102-87003-04 note Extension, Front Bumper, RH
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52102-87003-05 note Extension, Front Bumper, RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52102-87003-06 note Extension, Front Bumper, RH
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52102-87003-08 note Extension, Front Bumper, RH
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52102-87003-13 note Extension, Front Bumper, RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52102-87003-14 note Extension, Front Bumper, RH
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52102-87003-16 note Extension, Front Bumper, RH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52102-87003-18 note Extension, Front Bumper, RH
1986-04 → 1986-08 ended
CR21,YR20,21 HRF E ¥3,760
52102-87003-28 note Extension, Front Bumper, RH
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52102-87003-44 note Extension, Front Bumper, RH
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52102-87003-54 note Extension, Front Bumper, RH
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52102-87004 note Extension, Front Bumper, RH
1986-10 → 1986-11 ended
CR21,YR20,21 HRF E —
52102-87005 note Extension, Front Bumper, RH
1987-04 → 1988-08 ended
CR21,30,YR20,21,30 HRF E ¥2,510
52102-87006 note Extension, Front Bumper, RH
1987-09 → 1988-01 ended
CR21,30,YR21,30 E ¥2,510
52102-87007-05 note Extension, Front Bumper, RH
1988-01 → 1988-08 ended
CR21,30,YR21,30 E ¥2,510
52102-95D01 note Extension, Front Bumper, RH
1986-10 → 1986-11 ended
CR30,YR30 E —
52102-95D02 note Extension, Front Bumper, RH
1986-10 → 1986-11 ended
CR21,30,YR20,21,30 HRF E ¥2,480
52112-28020 Extension, Front Bumper, RH
1983-05 → 1985-08 ended
YR21 G ¥2,980
52112-87003 note Extension, Front Bumper, RH
1983-09 → 1983-11 ended
YR20 MRF 5F G ¥5,900
52113D — Extension, Front Bumper, LH
52103-29185 Extension, Front Bumper, LH
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 ¥9,300
52103-87002-01 note Extension, Front Bumper, LH
1985-08 → 1988-08 ended
YR20 6S,08S HRF E;YR20 +6 ¥2,530
52103-87003-03 note Extension, Front Bumper, LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52103-87003-04 note Extension, Front Bumper, LH
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52103-87003-05 note Extension, Front Bumper, LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52103-87003-06 note Extension, Front Bumper, LH
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52103-87003-08 note Extension, Front Bumper, LH
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52103-87003-13 note Extension, Front Bumper, LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52103-87003-14 note Extension, Front Bumper, LH
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52103-87003-16 note Extension, Front Bumper, LH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52103-87003-18 note Extension, Front Bumper, LH
1986-04 → 1986-08 ended
CR21,YR20,21 HRF E ¥3,760
52103-87003-28 note Extension, Front Bumper, LH
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52103-87003-44 note Extension, Front Bumper, LH
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52103-87003-54 note Extension, Front Bumper, LH
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52103-87004 note Extension, Front Bumper, LH
1986-10 → 1986-11 ended
CR21,YR20,21 HRF E ¥3,760
52103-87005 note Extension, Front Bumper, LH
1987-04 → 1988-08 ended
CR21,30,YR20,21,30 HRF E ¥2,510
52103-87006 note Extension, Front Bumper, LH
1987-09 → 1988-01 ended
CR21,30,YR21,30 E ¥2,510
52103-87007-05 note Extension, Front Bumper, LH
1988-01 → 1988-08 ended
CR21,30,YR21,30 E ¥2,510
52103-95D00 note Extension, Front Bumper, LH
1986-10 → 1986-11 ended
CR30,YR30 E —
52103-95D01 note Extension, Front Bumper, LH
1986-10 → 1986-11 ended
CR21,30,YR20,21,30 HRF E ¥2,480
52113-28010 Extension, Front Bumper, LH
1983-05 → 1985-08 ended
YR21 G ¥2,980
52113-87002 note Extension, Front Bumper, LH
1983-10 → 1983-11 ended
YR20 MRF 5F G ¥5,900
52115A — Support, Front Bumper Side, RH
52115-87001 Support, Front Bumper Side, RH
1982-11 → 1988-08 ended
CR21,28,30,YR20,21,28,3# ¥780
52675-28010 note Support, Front Bumper Side, RH
1982-11 → 1985-08 ended
CR21,YR20,21 ¥890
52675-28020 note Support, Front Bumper Side, RH
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥1,080
52116A — Support, Front Bumper Side, LH
52116-87001 Support, Front Bumper Side, LH
1982-11 → 1988-08 ended
CR21,28,30,YR20,21,28,3# ¥780
52675-28010 note Support, Front Bumper Side, LH
1982-11 → 1985-08 ended
CR21,YR20,21 ¥890
52675-28020 note Support, Front Bumper Side, LH
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥1,080
52119A — Cover, Front Bumper
52119-28010 note Cover, Front Bumper
1982-11 → 1985-08 ended
CR21,YR20,21 D,E,G,X ¥38,000
52119-28020-03 note Cover, Front Bumper
1982-11 → 1985-08 ended
YR20,21 Q ¥68,400
52119-28020-04 note Cover, Front Bumper
1984-08 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥68,400
52119-28020-04 note Cover, Front Bumper
1983-05 → 1985-08 ended
YR20,21 Q ¥68,400
52119-28020-05 note Cover, Front Bumper
1982-11 → 1985-08 ended
YR20,21 Q ¥68,400
52119-28020-07 note Cover, Front Bumper
1982-11 → 1984-08 ended
YR20,21 Q —
52119-28020-08 note Cover, Front Bumper
1982-11 → 1985-08 ended
YR20,21 Q ¥68,400
52119-28020-12 note Cover, Front Bumper
1984-08 → 1985-08 ended
YR20,21 Q ¥68,400
52119-28020-22 note Cover, Front Bumper
1985-04 → 1985-08 ended
CR21,YR20 HRF E —
52119-28030-03 note Cover, Front Bumper
1984-04 → 1984-05 ended
YR20 HRF E ¥74,800
52119-28030-06 note Cover, Front Bumper
1982-11 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥67,900
52119-28030-16 note Cover, Front Bumper
1985-01 → 1985-02 ended
CR21,YR20 HRF E ¥74,800
52119-28030-16 note Cover, Front Bumper
1985-01 → 1985-02 ended
CR21,YR20 HRF E ¥74,800
52119-28060 note Cover, Front Bumper
1985-08 → 1988-08 ended
YR20 6S,08S HRF E;YR20 +6 ¥47,600
52119-28070-02 note Cover, Front Bumper
1986-10 → 1986-11 ended
CR21,YR20,21 HRF E —
52119-28070-03 note Cover, Front Bumper
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥85,700
52119-28070-04 note Cover, Front Bumper
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥85,700
52119-28070-05 note Cover, Front Bumper
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥85,700
52119-28070-05 note Cover, Front Bumper
1987-04 → 1987-09 ended
CR21,30,YR21,30 E ¥85,700
52119-28070-06 note Cover, Front Bumper
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E,Q ¥85,700
52119-28070-08 note Cover, Front Bumper
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥85,700
52119-28070-14 note Cover, Front Bumper
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥85,700
52119-28070-15 note Cover, Front Bumper
1987-09 → 1988-01 ended
CR21,30,YR21,30 E ¥85,700
52119-28070-16 note Cover, Front Bumper
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥85,700
52119-28070-18 note Cover, Front Bumper
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥85,700
52119-28070-23 note Cover, Front Bumper
1986-04 → 1986-08 ended
CR21,YR20,21 HRF E —
52119-28070-24 note Cover, Front Bumper
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥85,700
52119-28070-25 note Cover, Front Bumper
1988-01 → 1988-08 ended
CR21,30,YR21,30 E ¥85,700
52119-28070-34 note Cover, Front Bumper
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥85,700
52119-87001 note Cover, Front Bumper
1982-11 → 1985-08 ended
CR21,YR20,21 D,E,G,X ¥27,100
52119-87002-03 note Cover, Front Bumper
1982-11 → 1985-08 ended
YR20,21 Q ¥47,400
52119-87002-04 note Cover, Front Bumper
1983-05 → 1985-08 ended
YR20,21 Q ¥47,400
52119-87002-05 note Cover, Front Bumper
1982-11 → 1984-08 ended
YR20,21 Q ¥47,400
52119-87002-07 note Cover, Front Bumper
1982-11 → 1984-08 ended
YR20,21 Q ¥47,400
52119-87002-18 note Cover, Front Bumper
1985-04 → 1985-08 ended
CR21,YR20 HRF E —
52119-87002-22 note Cover, Front Bumper
1984-08 → 1985-08 ended
YR20,21 Q ¥47,400
52119-87004-04 note Cover, Front Bumper
1983-05 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥52,100
52119-87004-12 note Cover, Front Bumper
1982-11 → 1984-08 ended
CR21,YR20,21 E,Q,X ¥47,200
52119-87004-22 note Cover, Front Bumper
1984-08 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥52,100
52119-87008 note Cover, Front Bumper
1983-10 → 1983-11 ended
YR20 MRF 5F G ¥47,400
52119-87008 note Cover, Front Bumper
1984-04 → 1984-05 ended
YR20 HRF E ¥47,400
52119-87011 note Cover, Front Bumper
1985-08 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# B,D,E,G ¥30,700
52119-87012-03 note Cover, Front Bumper
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥49,500
52119-87012-04 note Cover, Front Bumper
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥49,500
52119-87012-06 note Cover, Front Bumper
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E,Q ¥49,500
52119-87012-08 note Cover, Front Bumper
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥49,500
52119-87012-13 note Cover, Front Bumper
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥49,500
52119-87012-16 note Cover, Front Bumper
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥49,500
52119-87012-18 note Cover, Front Bumper
1987-04 → 1988-08 ended
CR21,30,YR20,21,30 HRF E ¥49,500
52119-87012-18 note Cover, Front Bumper
1986-04 → 1986-08 ended
CR21,YR20,21 HRF E ¥49,500
52119-87012-28 note Cover, Front Bumper
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥49,500
52119-87012-34 note Cover, Front Bumper
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥49,500
52119-87012-44 note Cover, Front Bumper
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥49,500
52119-95D00 note Cover, Front Bumper
1986-10 → 1986-11 ended
CR21,30,YR20,21,30 HRF E ¥49,500
52119-95D01 note Cover, Front Bumper
1986-10 → 1986-11 ended
CR30,YR30 E ¥85,300
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
