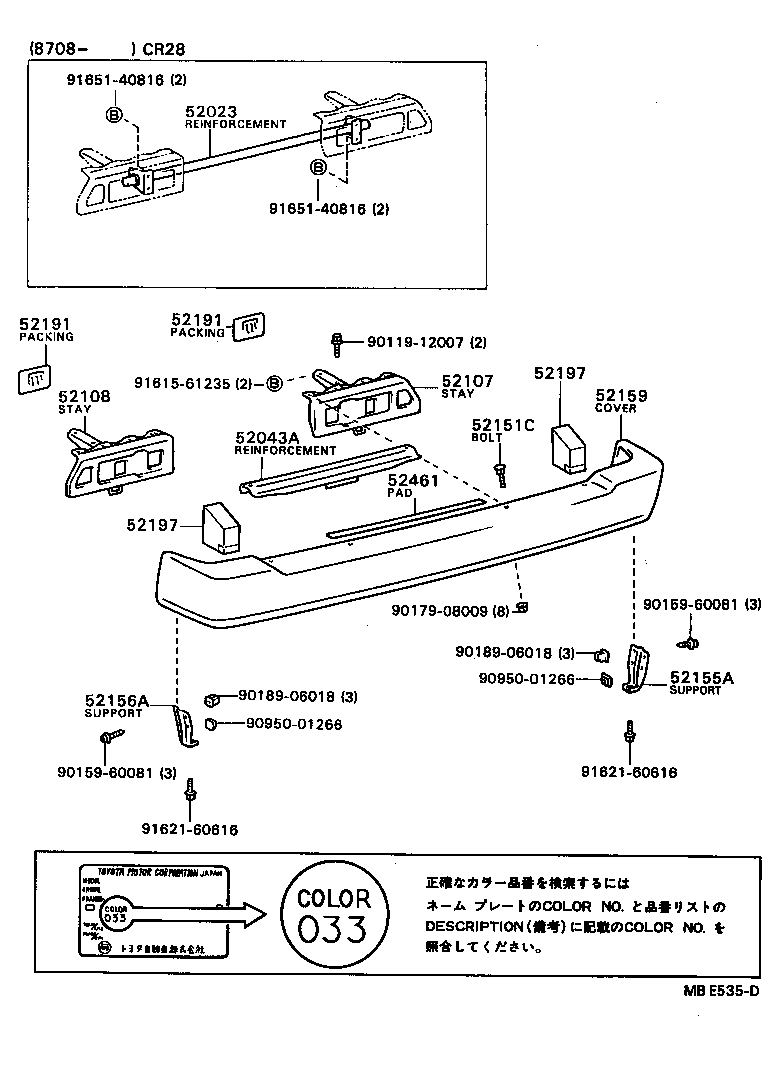

Exploded illustration MBE535D 9165140816 — not listed in this catalogue 52023 — REINFORCEMENT SUB-ASSY, REAR BUMPER (2 parts) 9165140816 — not listed in this catalogue 52191 — PACKING, REAR BUMPER STAY (3 parts) 52191 — PACKING, REAR BUMPER STAY (3 parts) 9011912007 — not listed in this catalogue 52197 — SEAL, REAR BUMPER LOWER TO UPPER (2 parts) 52107 — STAY SUB-ASSY, REAR BUMPER, RH (3 parts) 9161561235 — not listed in this catalogue 52159 — COVER, REAR BUMPER (53 parts) 52108 — STAY SUB-ASSY, REAR BUMPER, LH (3 parts) 52151C — BOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER) (7 parts) 52043A — REINFORCEMENT SUB-ASSY, REAR BUMPER BAR NO.2 (1 parts) 52461 — PAD, REAR BUMPER, CENTER (1 parts) 52197 — SEAL, REAR BUMPER LOWER TO UPPER (2 parts) 9015960081 — not listed in this catalogue 9017908009 — not listed in this catalogue 9018906018 — not listed in this catalogue 52155A — SUPPORT, REAR BUMPER SIDE, RH (2 parts) 9095001266 — not listed in this catalogue 9018906018 — not listed in this catalogue 52156A — SUPPORT, REAR BUMPER SIDE, LH (2 parts) 9095001266 — not listed in this catalogue 9162160616 — not listed in this catalogue 9015960081 — not listed in this catalogue 9162160616 — not listed in this catalogue
MBE535D · 13 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
79 parts on this figure
Part number Description Fitment Price
52023 — Reinforcement Sub-assy, Rear Bumper
52023-28010 note Reinforcement Sub-assy, Rear Bumper
1982-11 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# ¥34,800
52023-87001 Reinforcement Sub-assy, Rear Bumper
1987-08 → 1988-08 ended
CR28 ¥26,900
52043A — Reinforcement Sub-assy, Rear Bumper Bar NO.2
52043-87001 Reinforcement Sub-assy, Rear Bumper Bar NO.2
1982-11 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# ¥2,250
52107 — Stay Sub-assy, Rear Bumper, RH
52015-87002 Stay Sub-assy, Rear Bumper, RH
1982-11 → 1987-08 ended
CR21,28,30,YR20,21,28,3# ¥8,400
52015-87002 Stay Sub-assy, Rear Bumper, RH
1987-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥8,400
52015-87003 Stay Sub-assy, Rear Bumper, RH
1987-08 → 1988-08 ended
CR28 ¥8,400
52108 — Stay Sub-assy, Rear Bumper, LH
52016-87002 Stay Sub-assy, Rear Bumper, LH
1982-11 → 1987-08 ended
CR21,28,30,YR20,21,28,3# ¥6,900
52016-87002 Stay Sub-assy, Rear Bumper, LH
1987-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥6,900
52016-87005 Stay Sub-assy, Rear Bumper, LH
1987-08 → 1988-08 ended
CR28 ¥6,900
52151C — Bolt, Round Head Square Neck(FOR REAR BUMPER)
90112-08033 note Bolt, Round Head Square Neck(FOR REAR BUMPER)
1982-11 → 1983-08 ended
CR21,YR20,21 D,E,G,X ¥540
90112-08033 note Bolt, Round Head Square Neck(FOR REAR BUMPER)
1983-08 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# B,D,E,G,X ¥540
90112-08056 note Bolt, Round Head Square Neck(FOR REAR BUMPER)
1982-11 → 1983-08 ended
YR20,21 07S ¥540
90112-08056 note Bolt, Round Head Square Neck(FOR REAR BUMPER)
1984-04 → 1984-05 ended
YR20 HRF E ¥540
90112-08056 note Bolt, Round Head Square Neck(FOR REAR BUMPER)
1983-08 → 1985-08 ended
YR20,21 07S ¥540
90112-08056 note Bolt, Round Head Square Neck(FOR REAR BUMPER)
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥540
90112-08061 note Bolt, Round Head Square Neck(FOR REAR BUMPER)
1983-08 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# ¥180
52155A — Support, Rear Bumper Side, RH
52155-28020 note Support, Rear Bumper Side, RH
1982-11 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# ¥1,160
52155-87001 Support, Rear Bumper Side, RH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥600
52156A — Support, Rear Bumper Side, LH
52155-87001 Support, Rear Bumper Side, LH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥600
52156-28010 note Support, Rear Bumper Side, LH
1982-11 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# ¥1,160
52159 — Cover, Rear Bumper
52159-28010 note Cover, Rear Bumper
1982-11 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# B,D,E,G,X ¥32,700
52159-28020-03 note Cover, Rear Bumper
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥59,200
52159-28020-03 note Cover, Rear Bumper
1984-04 → 1984-05 ended
YR20 HRF E ¥59,200
52159-28020-03 note Cover, Rear Bumper
1982-11 → 1985-08 ended
YR20,21 Q ¥59,200
52159-28020-04 note Cover, Rear Bumper
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥59,200
52159-28020-04 note Cover, Rear Bumper
1984-08 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥59,200
52159-28020-04 note Cover, Rear Bumper
1983-05 → 1985-08 ended
YR20,21 Q ¥59,200
52159-28020-05 note Cover, Rear Bumper
1982-11 → 1985-08 ended
YR20,21 Q ¥59,200
52159-28020-06 note Cover, Rear Bumper
1982-11 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥59,200
52159-28020-07 note Cover, Rear Bumper
1982-11 → 1984-08 ended
YR20,21 Q ¥65,000
52159-28020-08 note Cover, Rear Bumper
1982-11 → 1985-08 ended
YR20,21 Q ¥59,200
52159-28020-08 note Cover, Rear Bumper
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥59,200
52159-28020-15 note Cover, Rear Bumper
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥59,200
52159-28020-15 note Cover, Rear Bumper
1987-04 → 1987-09 ended
CR21,30,YR21,30 E ¥59,200
52159-28020-16 note Cover, Rear Bumper
1985-01 → 1985-02 ended
CR21,YR20 HRF E ¥65,000
52159-28020-16 note Cover, Rear Bumper
1985-01 → 1985-02 ended
CR21,YR20 HRF E ¥65,000
52159-28020-18 note Cover, Rear Bumper
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥59,200
52159-28020-22 note Cover, Rear Bumper
1984-08 → 1985-08 ended
YR20,21 Q ¥59,200
52159-28020-23 note Cover, Rear Bumper
1986-04 → 1986-08 ended
CR21,YR20,21 HRF E ¥59,200
52159-28020-24 note Cover, Rear Bumper
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥59,200
52159-28020-25 note Cover, Rear Bumper
1987-09 → 1988-01 ended
CR21,30,YR21,30 E ¥59,200
52159-28020-26 note Cover, Rear Bumper
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E,Q ¥59,200
52159-28020-32 note Cover, Rear Bumper
1985-04 → 1985-08 ended
CR21,YR20 HRF E ¥59,200
52159-28020-32 note Cover, Rear Bumper
1986-10 → 1986-11 ended
CR21,YR20,21 HRF E ¥59,200
52159-28020-34 note Cover, Rear Bumper
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥59,200
52159-28020-35 note Cover, Rear Bumper
1988-01 → 1988-08 ended
CR21,30,YR21,30 E ¥59,200
52159-28020-36 note Cover, Rear Bumper
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥59,200
52159-28020-44 note Cover, Rear Bumper
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥59,200
52159-87001 note Cover, Rear Bumper
1982-11 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# B,D,E,G,X ¥21,200
52159-87002-03 note Cover, Rear Bumper
1982-11 → 1985-08 ended
YR20,21 Q ¥37,900
52159-87002-03 note Cover, Rear Bumper
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥37,900
52159-87002-04 note Cover, Rear Bumper
1983-05 → 1985-08 ended
YR20,21 Q ¥37,900
52159-87002-04 note Cover, Rear Bumper
1983-05 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥37,900
52159-87002-05 note Cover, Rear Bumper
1982-11 → 1984-08 ended
YR20,21 Q ¥37,900
52159-87002-07 note Cover, Rear Bumper
1982-11 → 1984-08 ended
YR20,21 Q ¥37,900
52159-87002-08 note Cover, Rear Bumper
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥37,900
52159-87002-12 note Cover, Rear Bumper
1982-11 → 1984-08 ended
CR21,YR20,21 E,Q,X ¥37,900
52159-87002-13 note Cover, Rear Bumper
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥37,900
52159-87002-16 note Cover, Rear Bumper
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E,Q ¥37,900
52159-87002-18 note Cover, Rear Bumper
1985-04 → 1985-08 ended
CR21,YR20 HRF E ¥37,900
52159-87002-22 note Cover, Rear Bumper
1984-08 → 1985-08 ended
YR20,21 Q ¥37,900
52159-87002-22 note Cover, Rear Bumper
1984-08 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥37,900
52159-87002-26 note Cover, Rear Bumper
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥37,900
52159-87002-28 note Cover, Rear Bumper
1986-04 → 1986-08 ended
CR21,YR20,21 HRF E ¥37,900
52159-87002-34 note Cover, Rear Bumper
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥37,900
52159-87002-38 note Cover, Rear Bumper
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥38,000
52159-87002-44 note Cover, Rear Bumper
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥37,900
52159-87002-54 note Cover, Rear Bumper
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥37,900
52159-87003 note Cover, Rear Bumper
1984-04 → 1985-08 ended
YR20 HRF E —
52159-87003 note Cover, Rear Bumper
1983-10 → 1983-11 ended
YR20 MRF 5F G —
52159-87004 note Cover, Rear Bumper
1987-04 → 1988-08 ended
CR21,30,YR20,21,30 HRF E ¥38,200
52159-95D00 note Cover, Rear Bumper
1986-10 → 1986-11 ended
CR21,30,YR20,21,30 HRF E ¥38,100
52159-95D01 note Cover, Rear Bumper
1986-10 → 1986-11 ended
CR30,YR30 E ¥58,700
52191 — Packing, Rear Bumper Stay
52191-28010 note Packing, Rear Bumper Stay
1982-11 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# ¥1,610
52191-87002 Packing, Rear Bumper Stay
1982-11 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# ¥1,780
52191-87003 Packing, Rear Bumper Stay
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 ¥1,780
52197 — Seal, Rear Bumper Lower TO Upper
52192-87001 Seal, Rear Bumper Lower TO Upper
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 ¥400
52192-87002 Seal, Rear Bumper Lower TO Upper
1985-12 → 1988-08 ended
CR28,37,YR28,36 ¥400
52461 — Pad, Rear Bumper, Center
52461-87002 Pad, Rear Bumper, Center
1982-11 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# ¥300
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
