Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

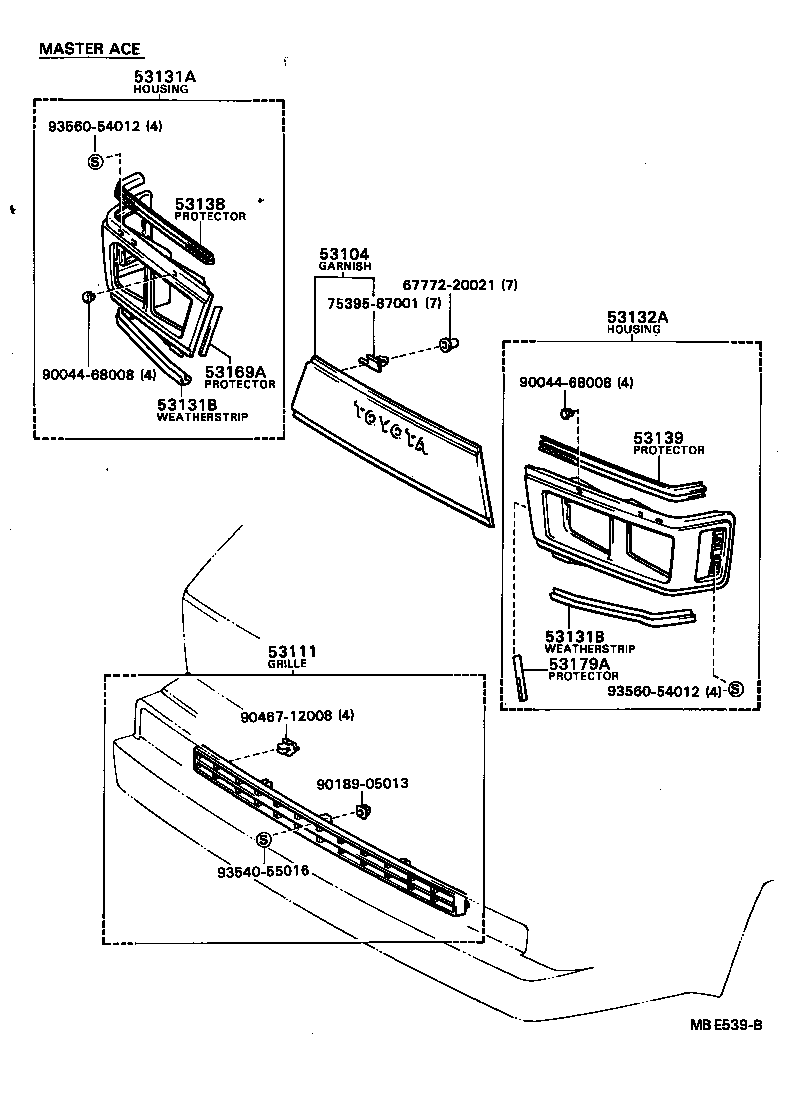

56 parts on this figure

Part number	Description	Fitment	Price
53104 — Garnish Sub-assy, Front Panel, Center
53101-87007 note	Garnish Sub-assy, Front Panel, Center 1982-11 → 1985-08 ended	CR21,YR20,21	¥23,800
53101-87008 note	Garnish Sub-assy, Front Panel, Center 1985-08 → 1988-08 ended	CR21,28,37,YR20,28,36 B,D	¥27,800
53101-87009 note	Garnish Sub-assy, Front Panel, Center 1985-08 → 1988-08 ended	YR20 MRF G;CR21,30,YR30 G;YR20 +3	¥27,800
53101-87010 note	Garnish Sub-assy, Front Panel, Center 1985-08 → 1988-08 ended	CR21,30,YR20,21,30 E,Q	¥25,700
53101-87011 note	Garnish Sub-assy, Front Panel, Center 1985-08 → 1988-08 ended	CR21,28,37,YR20,28,36 B,D	¥20,100
53101-87012 note	Garnish Sub-assy, Front Panel, Center 1985-08 → 1988-08 ended	YR20 MRF 08S;YR20 HRF +5	¥22,100
53111 — Grille, Radiator
53111-28020-03 note	Grille, Radiator 1985-08 → 1988-08 ended	CR21,30,YR20,21,30 E,Q	¥7,100
53111-28030 note	Grille, Radiator 1985-08 → 1988-08 ended	YR20 6S,08S HRF E;YR20 +6	¥7,100
53111-29195 note	Grille, Radiator 1982-11 → 1985-08 ended	CR21,YR20,21	¥5,700
53131A — Door, Headlamp, RH
53031-29155 note	Door, Headlamp, RH 1982-11 → 1985-08 ended	CR21,YR20 D	¥15,800
53031-29165 note	Door, Headlamp, RH 1982-11 → 1985-08 ended	CR21,YR20,21 E,G,Q,X	¥16,800
53031-29175	Door, Headlamp, RH 1982-11 → 1988-08 ended	CR26,36,KR26,YR26 D,R	¥17,800
53031-29185	Door, Headlamp, RH 1982-11 → 1988-08 ended	CR26,27,36,YR26 N	¥18,700
53031-29195 note	Door, Headlamp, RH 1982-11 → 1985-08 ended	CR21,YR20,21	¥13,800
53031-87021 note	Door, Headlamp, RH 1983-10 → 1983-11 ended	YR20 MRF 5F G	¥16,800
53031-87024 note	Door, Headlamp, RH 1985-08 → 1988-08 ended	CR21,28,37,YR20,28,36 B,D	¥15,900
53031-87025 note	Door, Headlamp, RH 1985-08 → 1988-08 ended	YR20 MRF G;CR21,30,YR30 G;YR20 +3	¥18,700
53031-87026 note	Door, Headlamp, RH 1985-08 → 1988-08 ended	CR21,30,YR20,21,30 E,Q	¥18,700
53031-87027 note	Door, Headlamp, RH 1985-08 → 1988-08 ended	CR21,28,37,YR20,28,36 B,D	¥22,000
53031-87028 note	Door, Headlamp, RH 1985-08 → 1988-08 ended	YR20 MRF 08S;YR20 HRF +5	¥22,000
53131B — Weatherstrip, Headlamp Ornament
53147-87001 note	Weatherstrip, Headlamp Ornament 1982-11 → 1985-08 ended	CR2#,KR26,YR2#	¥650
53147-87001	Weatherstrip, Headlamp Ornament 1985-08 → 1988-08 ended	CR26,27,36,KR26,YR26	¥650
53147-87003 note	Weatherstrip, Headlamp Ornament 1982-11 → 1985-08 ended	CR21,YR20,21	—
53147-87004	Weatherstrip, Headlamp Ornament 1985-08 → 1988-08 ended	YR20 HRF (E,Q);YR20 HRF +4	¥650
53132A — Door, Headlamp, LH
53032-29155 note	Door, Headlamp, LH 1982-11 → 1985-08 ended	CR21,YR20 D	¥15,800
53032-29165 note	Door, Headlamp, LH 1982-11 → 1985-08 ended	CR21,YR20,21 E,G,Q,X	¥16,800
53032-29175	Door, Headlamp, LH 1982-11 → 1988-08 ended	CR26,36,KR26,YR26 D,R	¥17,800
53032-29185	Door, Headlamp, LH 1982-11 → 1988-08 ended	CR26,27,36,YR26 N	¥18,700
53032-29195 note	Door, Headlamp, LH 1982-11 → 1985-08 ended	CR21,YR20,21	¥13,800
53032-87021 note	Door, Headlamp, LH 1983-10 → 1983-11 ended	YR20 MRF 5F G	—
53032-87023 note	Door, Headlamp, LH 1985-08 → 1988-08 ended	CR21,28,37,YR20,28,36 B,D	¥15,900
53032-87024 note	Door, Headlamp, LH 1985-08 → 1988-08 ended	YR20 MRF G;CR21,30,YR30 G;YR20 +3	¥18,700
53032-87025 note	Door, Headlamp, LH 1985-08 → 1988-08 ended	CR21,30,YR20,21,30 E,Q	¥18,700
53032-87026 note	Door, Headlamp, LH 1985-08 → 1988-08 ended	CR21,28,37,YR20,28,36 B,D	¥22,000
53032-87027 note	Door, Headlamp, LH 1985-08 → 1988-08 ended	YR20 MRF 08S;YR20 HRF +5	¥22,000
53138 — Protector, Headlamp Door, RH
53139-87004	Protector, Headlamp Door, RH 1982-11 → 1983-08 ended	CR2#,KR26,YR2#	¥650
53139-87004 note	Protector, Headlamp Door, RH 1983-08 → 1985-08 ended	CR21,YR20,21	¥650
53139-87005 note	Protector, Headlamp Door, RH 1983-08 → 1985-08 ended	CR2#,KR26,YR2#	¥650
53139-87005	Protector, Headlamp Door, RH 1985-08 → 1988-08 ended	CR26,27,36,KR26,YR26	¥650
53145-87002 note	Protector, Headlamp Door, RH 1985-08 → 1988-08 ended	YR20 HRF (E,Q);YR20 HRF +4	¥660
53145-87003 note	Protector, Headlamp Door, RH 1985-08 → 1988-08 ended	YR20 HRF (E,Q);YR20 HRF +4	¥650
53139 — Protector, Headlamp Door, LH
53139-87004	Protector, Headlamp Door, LH 1982-11 → 1983-08 ended	CR2#,KR26,YR2#	¥650
53139-87004 note	Protector, Headlamp Door, LH 1983-08 → 1985-08 ended	CR21,YR20,21	¥650
53139-87005 note	Protector, Headlamp Door, LH 1983-08 → 1985-08 ended	CR2#,KR26,YR2#	¥650
53139-87005	Protector, Headlamp Door, LH 1985-08 → 1988-08 ended	CR26,27,36,KR26,YR26	¥650
53145-87002 note	Protector, Headlamp Door, LH 1985-08 → 1985-11 ended	YR20 HRF (E,Q);YR20 HRF +4	¥660
53146-87005 note	Protector, Headlamp Door, LH 1985-08 → 1988-08 ended	YR20 HRF (E,Q);YR20 HRF +4	¥650
53146-87006 note	Protector, Headlamp Door, LH 1985-11 → 1988-08 ended	YR20 HRF (E,Q);YR20 HRF +4	¥660
53169A — Protector, Headlamp Door, NO.2 RH
53138-87001	Protector, Headlamp Door, NO.2 RH 1982-11 → 1988-08 ended	CR26,27,36,KR26,YR26	¥350
53169-87002 note	Protector, Headlamp Door, NO.2 RH 1982-11 → 1985-08 ended	CR21,YR20,21	¥650
53169-87003 note	Protector, Headlamp Door, NO.2 RH 1985-08 → 1988-08 ended	YR20 HRF (E,Q);YR20 HRF +4	¥660
53179-28010 note	Protector, Headlamp Door, NO.2 RH 1984-06 → 1985-08 ended	CR21,YR20,21	¥190
53179A — Protector, Headlamp Door, NO.2 LH
53138-87001	Protector, Headlamp Door, NO.2 LH 1982-11 → 1988-08 ended	CR26,27,36,KR26,YR26	¥350
53169-87002 note	Protector, Headlamp Door, NO.2 LH 1982-11 → 1985-08 ended	CR21,YR20,21	¥650
53169-87003 note	Protector, Headlamp Door, NO.2 LH 1985-08 → 1988-08 ended	YR20 HRF (E,Q);YR20 HRF +4	¥660
53179-28010 note	Protector, Headlamp Door, NO.2 LH 1984-06 → 1985-08 ended	CR21,YR20,21	¥190

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
