Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

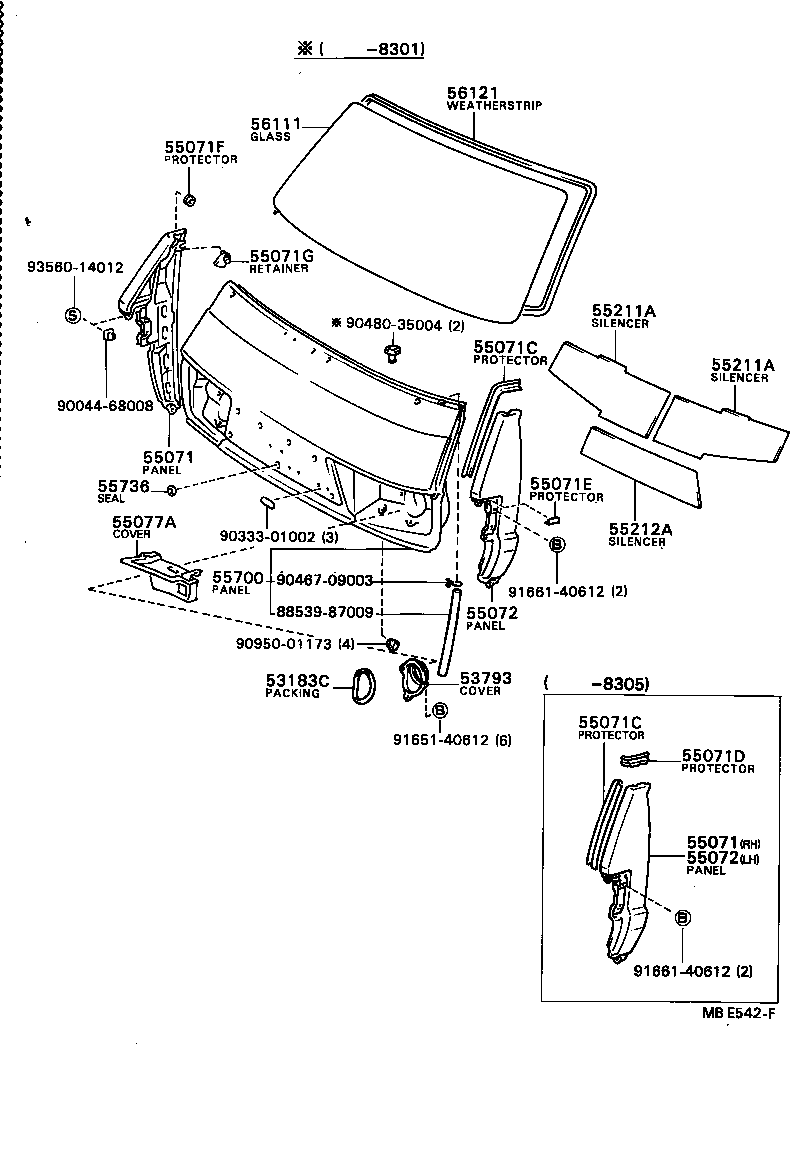

Exploded illustration MBE542F 56121 — WEATHERSTRIP, WINDSHIELD (7 parts) 56111 — GLASS, WINDSHIELD (8 parts) 55071F — PROTECTOR, FRONT SIDE PANEL, NO.4 (1 parts) 55071G — RETAINER, FRONT SIDE PANEL SET (1 parts) 9356014012 — not listed in this catalogue 55211A — SILENCER, FRONT PANEL, UPPER (1 parts) 9048035004 — not listed in this catalogue 55071C — PROTECTOR, FRONT SIDE PANEL, NO.1 (8 parts) 55211A — SILENCER, FRONT PANEL, UPPER (1 parts) 9004468008 — not listed in this catalogue 55071 — PANEL SUB-ASSY, FRONT SIDE, RH (4 parts) 55071E — PROTECTOR, FRONT SIDE PANEL, NO.3 (1 parts) 55736 — SEAL, WATER GUARD PLATE (5 parts) 55077A — COVER SUB-ASSY, HEATER AIR DUCT HOLE (3 parts) 55212A — SILENCER, FRONT PANEL, LOWER (2 parts) 9033301002 — not listed in this catalogue 55700 — PANEL ASSY, FRONT (9 parts) 9046709003 — not listed in this catalogue 9166140612 — not listed in this catalogue 8853987009 — not listed in this catalogue 55072 — PANEL SUB-ASSY, FRONT SIDE, LH (4 parts) 9095001173 — not listed in this catalogue 53793 — COVER, HEADLAMP WIRE HARNESS HOLE, NO.1 (2 parts) 53183C — PACKING, HEADLAMP SERVICE HOLE COVER (1 parts) 55071C — PROTECTOR, FRONT SIDE PANEL, NO.1 (8 parts) 9165140612 — not listed in this catalogue 55071D — PROTECTOR, FRONT SIDE PANEL, NO.2 (1 parts) 55071 — PANEL SUB-ASSY, FRONT SIDE, RH (4 parts) 55072 — PANEL SUB-ASSY, FRONT SIDE, LH (4 parts) 9166140612 — not listed in this catalogue
MBE542F · 20 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
58 parts on this figure
Part number Description Fitment Price
53183C — Packing, Headlamp Service Hole Cover
53183-87001 note Packing, Headlamp Service Hole Cover
1982-11 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# ¥460
53793 — Cover, Headlamp Wire Harness Hole, NO.1
53793-87001 note Cover, Headlamp Wire Harness Hole, NO.1
1982-11 → 1985-08 ended
CR21,YR20,21 ¥1,180
53793-87002 note Cover, Headlamp Wire Harness Hole, NO.1
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥1,490
55071 — Panel Sub-assy, Front Side, RH
53801-87002 note Panel Sub-assy, Front Side, RH
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥8,900
53801-87002 Panel Sub-assy, Front Side, RH
1985-08 → 1988-08 ended
CR26,27,36,KR26,YR26 ¥8,900
53801-87003 note Panel Sub-assy, Front Side, RH
1982-11 → 1985-08 ended
CR21,YR20,21 ¥8,500
53801-87005 Panel Sub-assy, Front Side, RH
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥8,900
55071C — Protector, Front Side Panel, NO.1
53821-87001 note Protector, Front Side Panel, NO.1
1982-11 → 1983-05 ended
CR2#,KR26,YR2# ¥810
53821-87002 note Protector, Front Side Panel, NO.1
1983-05 → 1985-08 ended
CR2#,KR26,YR2# ¥810
53821-87002 note Protector, Front Side Panel, NO.1
1985-08 → 1988-08 ended
CR26,27,36,KR26,YR26 ¥810
53821-87003 note Protector, Front Side Panel, NO.1
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥810
53828-87001 note Protector, Front Side Panel, NO.1
1982-11 → 1983-05 ended
CR2#,KR26,YR2# ¥820
53828-87002 note Protector, Front Side Panel, NO.1
1983-05 → 1985-08 ended
CR2#,KR26,YR2# ¥810
53828-87002 note Protector, Front Side Panel, NO.1
1985-08 → 1988-08 ended
CR26,27,36,KR26,YR26 ¥810
53828-87004 note Protector, Front Side Panel, NO.1
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥810
55071D — Protector, Front Side Panel, NO.2
53823-87001 Protector, Front Side Panel, NO.2
1982-11 → 1983-05 ended
CR2#,KR26,YR2# ¥440
55071E — Protector, Front Side Panel, NO.3
53822-28010 note Protector, Front Side Panel, NO.3
1984-01 → 1988-08 ended
CR21,30,YR20,21,30 ¥280
55071F — Protector, Front Side Panel, NO.4
53827-87001 Protector, Front Side Panel, NO.4
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥300
55071G — Retainer, Front Side Panel Set
53827-95700 Retainer, Front Side Panel Set
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥540
55072 — Panel Sub-assy, Front Side, LH
53802-87002 note Panel Sub-assy, Front Side, LH
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥8,900
53802-87002 Panel Sub-assy, Front Side, LH
1985-08 → 1988-08 ended
CR26,27,36,KR26,YR26 ¥8,900
53802-87003 note Panel Sub-assy, Front Side, LH
1982-11 → 1985-08 ended
CR21,YR20,21 ¥8,500
53802-87005 Panel Sub-assy, Front Side, LH
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥8,900
55077A — Cover Sub-assy, Heater Air Duct Hole
55077-87003 note Cover Sub-assy, Heater Air Duct Hole
1987-10 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# ¥6,700
55077-87004 note Cover Sub-assy, Heater Air Duct Hole
1987-10 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# ¥6,100
55077-87005 Cover Sub-assy, Heater Air Duct Hole
1987-10 → 1988-08 ended
CR26,27,36,KR26,YR26 ¥6,100
55211A — Silencer, Front Panel, Upper
55211-87002 Silencer, Front Panel, Upper
1982-11 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# ¥1,830
55212A — Silencer, Front Panel, Lower
55212-87002 Silencer, Front Panel, Lower
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥270
55212-87002 Silencer, Front Panel, Lower
1985-08 → 1988-08 ended
CR26,27,36,KR26,YR26 ¥270
55700 — Panel Assy, Front
55701-87012 note Panel Assy, Front
1982-11 → 1984-08 ended
CR21,YR20,21 ¥47,600
55701-87013 Panel Assy, Front
1982-11 → 1984-08 ended
CR26,KR26,YR26 ¥47,600
55701-87014 note Panel Assy, Front
1982-11 → 1984-08 ended
CR21,YR20,21 ¥47,600
55701-87023 note Panel Assy, Front
1984-08 → 1985-08 ended
CR21,YR20,21 ¥47,500
55701-87024 Panel Assy, Front
1984-08 → 1985-08 ended
CR26,27,KR26,YR26 ¥47,600
55701-87025 note Panel Assy, Front
1984-08 → 1985-08 ended
CR21,YR20,21 ¥47,500
55701-87030 note Panel Assy, Front
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥47,600
55701-87032 note Panel Assy, Front
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥48,100
55701-87033 Panel Assy, Front
1985-08 → 1988-08 ended
CR26,27,36,KR26,YR26 ¥47,600
55736 — Seal, Water Guard Plate
55736-28010 note Seal, Water Guard Plate
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥190
55736-28010 note Seal, Water Guard Plate
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥190
55736-87001 note Seal, Water Guard Plate
1982-11 → 1985-08 ended
CR21,YR20,21 ¥210
55736-87001 note Seal, Water Guard Plate
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥210
55736-87001 note Seal, Water Guard Plate
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥210
56111 — Glass, Windshield
56111-87006 note Glass, Windshield
1982-11 → 1985-08 ended
CR26,27,YR26 N ¥52,500
56111-87006 note Glass, Windshield
1982-11 → 1985-08 ended
CR21,YR20,21 ¥52,500
56111-87007 note Glass, Windshield
1982-11 → 1985-08 ended
CR26,KR26,YR26 D,R ¥46,500
56111-87010 note Glass, Windshield
1985-08 → 1988-08 ended
CR26,27,36,YR26 N ¥99,900
56111-87010 note Glass, Windshield
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥99,900
56111-87011 note Glass, Windshield
1985-08 → 1988-08 ended
CR26,28,36,37,KR26,YR26,28,36 B,D,R —
56111-87012 note Glass, Windshield
1982-11 → 1985-08 ended
CR21,YR20,21 E,G,Q,X ¥70,700
56111-87013 note Glass, Windshield
1985-08 → 1988-08 ended
YR20 MRF 08S;YR20 HRF +5 ¥115,000
56121 — Weatherstrip, Windshield
56121-87004 Weatherstrip, Windshield
1987-05 → 1988-08 ended
YR20 ,E,G,N HRF E;YR20 +6 ¥14,200
56121-87005 Weatherstrip, Windshield
1982-11 → 1987-05 ended
CR2#,3#,KR26,YR2#,3# B,D,E,G,N,R ¥14,200
56121-87006 note Weatherstrip, Windshield
1983-10 → 1983-11 ended
YR20 MRF 5F G ¥15,500
56121-87006 note Weatherstrip, Windshield
1982-11 → 1985-08 ended
CR21 E;YR20 HRF;YR20 MRF +1 ¥15,500
56121-87006 Weatherstrip, Windshield
1983-05 → 1985-08 ended
YR21 ¥15,500
56121-87006 note Weatherstrip, Windshield
1985-08 → 1987-05 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥15,500
56121-87009 note Weatherstrip, Windshield
1987-05 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥15,600
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
