Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

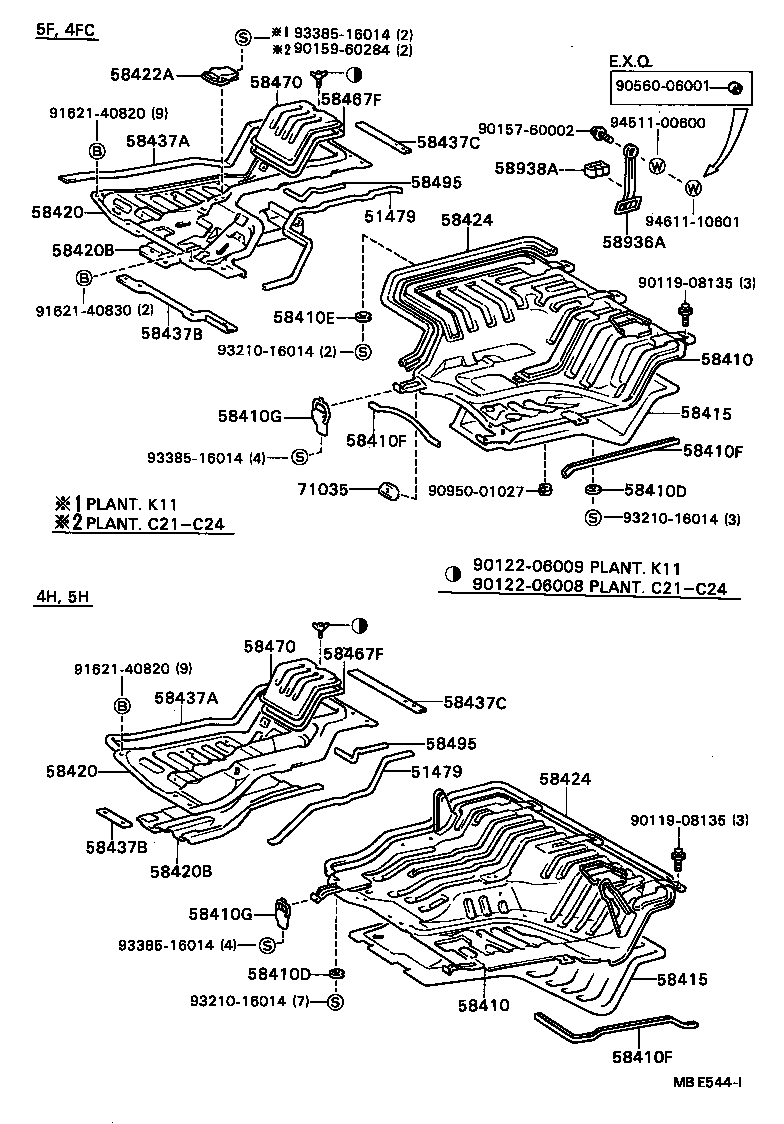

Exploded illustration MBE544I 9338516014 — not listed in this catalogue 9015960284 — not listed in this catalogue 58422A — CATCH SUB-ASSY, ENGINE UPPER COVER (1 parts) 58470 — COVER ASSY, INSPECTION HOLE (1 parts) 9056006001 — not listed in this catalogue 58467F — PACKING, INSPECTION HOLE (1 parts) 9162140820 — not listed in this catalogue 9451100600 — not listed in this catalogue 9015760002 — not listed in this catalogue 58437A — PACKING, ENGINE SERVICE HOLE COVER SUB, NO.1 (1 parts) 58437C — PACKING, ENGINE SERVICE HOLE COVER SUB, NO.3 (1 parts) 58938A — CUSHION, ENGINE SERVICE HOLE COVER BAND (1 parts) 58495 — TRIM, INSPECTION HOLE COVER (1 parts) 58420 — COVER ASSY, ENGINE SERVICE HOLE, NO.2 (17 parts) 51479 — TRIM, ENGINE COVER, NO.2 (2 parts) 58424 — PACKING, ENGINE SERVICE HOLE COVER, NO.1 (2 parts) 9461110601 — not listed in this catalogue 58936A — BAND, ENGINE SERVICE HOLE COVER SUPPORT (4 parts) 58420B — SILENCER, ENGINE SERVICE HOLE COVER, NO.2 (3 parts) 9011908135 — not listed in this catalogue 9162140830 — not listed in this catalogue 58410E — CUSHION, NO.3 (1 parts) 58437B — PACKING, ENGINE SERVICE HOLE COVER SUB, NO.2 (2 parts) 9321016014 — not listed in this catalogue 58410 — COVER, ENGINE SERVICE HOLE (19 parts) 58415 — SILENCER, ENGINE COVER, FRONT NO.1 (4 parts) 58410G — CATCH, ENGINE SERVICE HOLE COVER (4 parts) 58410F — TRIM, ENGINE SERVICE HOLE COVER (2 parts) 58410F — TRIM, ENGINE SERVICE HOLE COVER (2 parts) 9338516014 — not listed in this catalogue 71035 — CUSHION SUB-ASSY, SEAT STOPPER (1 parts) 58410D — CUSHION, NO.1 (2 parts) 9095001027 — not listed in this catalogue 9321016014 — not listed in this catalogue 9012206009 — not listed in this catalogue 9012206008 — not listed in this catalogue 58470 — COVER ASSY, INSPECTION HOLE (1 parts) 58467F — PACKING, INSPECTION HOLE (1 parts) 9162140820 — not listed in this catalogue 58437A — PACKING, ENGINE SERVICE HOLE COVER SUB, NO.1 (1 parts) 58437C — PACKING, ENGINE SERVICE HOLE COVER SUB, NO.3 (1 parts) 58495 — TRIM, INSPECTION HOLE COVER (1 parts) 58420 — COVER ASSY, ENGINE SERVICE HOLE, NO.2 (17 parts) 51479 — TRIM, ENGINE COVER, NO.2 (2 parts) 58424 — PACKING, ENGINE SERVICE HOLE COVER, NO.1 (2 parts) 9011908135 — not listed in this catalogue 58437B — PACKING, ENGINE SERVICE HOLE COVER SUB, NO.2 (2 parts) 58420B — SILENCER, ENGINE SERVICE HOLE COVER, NO.2 (3 parts) 58410G — CATCH, ENGINE SERVICE HOLE COVER (4 parts) 9338516014 — not listed in this catalogue 58410D — CUSHION, NO.1 (2 parts) 58415 — SILENCER, ENGINE COVER, FRONT NO.1 (4 parts) 9321016014 — not listed in this catalogue 58410 — COVER, ENGINE SERVICE HOLE (19 parts) 58410F — TRIM, ENGINE SERVICE HOLE COVER (2 parts)
MBE544I · 36 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
70 parts on this figure
Part number Description Fitment Price
51479 — Trim, Engine Cover, NO.2
51479-87001 Trim, Engine Cover, NO.2
1982-11 → 1988-08 ended
CR2#,3#,YR2#,3# 4FC,5F ¥1,200
51489-87001 Trim, Engine Cover, NO.2
1982-11 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥640
58410 — Cover, Engine Service Hole
58401-87001 Cover, Engine Service Hole
1982-11 → 1985-08 ended
CR21,YR20,21 07S,08S —
58401-87002 Cover, Engine Service Hole
1982-11 → 1986-08 ended
KR26 —
58401-87003 Cover, Engine Service Hole
1982-11 → 1986-08 ended
YR20 D —
58401-87004 Cover, Engine Service Hole
1982-11 → 1985-08 ended
CR26,27,YR26 02S,05S —
58401-87005 Cover, Engine Service Hole
1982-11 → 1986-08 ended
YR26 D —
58401-87007 Cover, Engine Service Hole
1985-08 → 1988-08 ended
CR21 D ¥56,000
58401-87008 Cover, Engine Service Hole
1986-11 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥56,200
58401-87008 Cover, Engine Service Hole
1985-08 → 1986-11 ended
YR20 MRF 08S;YR20 HRF +5 ¥56,200
58401-87009 Cover, Engine Service Hole
1985-08 → 1988-08 ended
CR26,28,36,YR28,36 (02S,05S) (B,D) ¥56,200
58401-87010 Cover, Engine Service Hole
1985-08 → 1986-08 ended
CR26,27,36,YR26 N ¥56,000
58401-87012 Cover, Engine Service Hole
1985-08 → 1986-08 ended
YR28 06S —
58401-87013 Cover, Engine Service Hole
1986-08 → 1988-08 ended
CR26,27,36,YR26 N ¥56,000
58401-87016 Cover, Engine Service Hole
1986-08 → 1988-08 ended
KR26 ¥60,300
58401-87017 Cover, Engine Service Hole
1986-08 → 1988-08 ended
YR20 D ¥60,400
58401-87018 Cover, Engine Service Hole
1986-08 → 1988-08 ended
YR28 06S ¥60,400
58401-87019 Cover, Engine Service Hole
1986-08 → 1988-08 ended
YR26 D ¥60,400
58401-87021 Cover, Engine Service Hole
1986-11 → 1988-08 ended
CR21,30,YR21,30 Q ¥56,200
58401-87021 note Cover, Engine Service Hole
1987-04 → 1988-08 ended
CR30,YR30 E ¥56,200
58401-87021 note Cover, Engine Service Hole
1986-11 → 1988-08 ended
CR21,30,YR20,21,30 HRF E ¥56,200
58410D — Cushion, NO.1
90540-06011 Cushion, NO.1
1982-11 → 1988-08 ended
CR2#,30,36,YR2#,3# 4FC,5F ¥520
90540-06011 Cushion, NO.1
1982-11 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥520
58410E — Cushion, NO.3
90540-06014 Cushion, NO.3
1982-11 → 1988-08 ended
CR2#,30,36,YR2#,3# 4FC,5F ¥230
58410F — Trim, Engine Service Hole Cover
51469-87001 Trim, Engine Service Hole Cover
1982-11 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥450
51469-87001 Trim, Engine Service Hole Cover
1982-11 → 1988-08 ended
CR2#,30,36,YR2#,3# 4FC,5F ¥450
58410G — Catch, Engine Service Hole Cover
71370-87001 Catch, Engine Service Hole Cover
1986-08 → 1986-09 ended
YR20 HRF E;YR20 HRF +4 ¥1,410
71370-87001 Catch, Engine Service Hole Cover
1986-09 → 1988-08 ended
KR26,YR20,26,28 MTM (B,D) ¥1,410
71370-87501 Catch, Engine Service Hole Cover
1982-11 → 1986-08 ended
CR2#,3#,KR26,YR2#,30 ¥1,400
71370-87501 Catch, Engine Service Hole Cover
1986-09 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥1,400
58415 — Silencer, Engine Cover, Front NO.1
58471-87001 Silencer, Engine Cover, Front NO.1
1982-11 → 1985-08 ended
CR2#,YR2# 4FC,5F ¥9,900
58471-87002 Silencer, Engine Cover, Front NO.1
1982-11 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥12,200
58471-87003 Silencer, Engine Cover, Front NO.1
1985-08 → 1988-08 ended
YR20 MRF 08S;YR20 HRF +5 ¥11,500
58471-95D01 Silencer, Engine Cover, Front NO.1
1985-10 → 1988-08 ended
CR30,36,YR3# ¥11,300
58420 — Cover Assy, Engine Service Hole, NO.2
58407-87001 Cover Assy, Engine Service Hole, NO.2
1982-11 → 1984-08 ended
CR26,YR20,26 5F —
58407-87002 Cover Assy, Engine Service Hole, NO.2
1982-11 → 1985-08 ended
CR21,27,YR2# 4FC ¥49,000
58407-87003 Cover Assy, Engine Service Hole, NO.2
1982-11 → 1986-08 ended
KR26,YR20,26,28 4H,5H ¥33,000
58407-87004 Cover Assy, Engine Service Hole, NO.2
1982-04 → 1984-08 ended
CR21,YR21 5F —
58407-87004 Cover Assy, Engine Service Hole, NO.2
1984-08 → 1985-08 ended
CR21,26,YR2# 5F —
58407-87005 Cover Assy, Engine Service Hole, NO.2
1985-08 → 1988-08 ended
CR21 HRF ¥49,100
58407-87005 Cover Assy, Engine Service Hole, NO.2
1987-08 → 1988-08 ended
CR21,28 ¥49,100
58407-87006 Cover Assy, Engine Service Hole, NO.2
1985-08 → 1987-08 ended
CR21 4FC DSL ¥49,100
58407-87006 Cover Assy, Engine Service Hole, NO.2
1985-08 → 1987-08 ended
YR20 MRF 4FC;CR27,28,YR2# (HRF,SRF) +2 ¥49,100
58407-87006 Cover Assy, Engine Service Hole, NO.2
1987-08 → 1988-08 ended
YR20 MRF 4FC;CR27,YR2# (HRF,SRF) +2 ¥49,100
58407-87007 Cover Assy, Engine Service Hole, NO.2
1985-08 → 1987-08 ended
CR21 5F DSL ¥49,400
58407-87007 Cover Assy, Engine Service Hole, NO.2
1985-08 → 1987-08 ended
CR26,28,YR20,21,26 5F (B,D,E,G,N,Q) ¥49,400
58407-87007 Cover Assy, Engine Service Hole, NO.2
1987-08 → 1988-08 ended
CR26,YR20,21,26 5F (D,E,G,N,Q) ¥49,400
58407-87008 Cover Assy, Engine Service Hole, NO.2
1986-08 → 1988-08 ended
KR26,YR20,26,28 MTM (B,D) ¥44,600
58407-95D00 Cover Assy, Engine Service Hole, NO.2
1985-10 → 1988-08 ended
CR36,YR3# 5F ¥21,700
58407-95D01 Cover Assy, Engine Service Hole, NO.2
1985-10 → 1988-08 ended
YR3# 4FC ¥21,700
58407-95D02 Cover Assy, Engine Service Hole, NO.2
1985-10 → 1988-08 ended
CR30,37 ¥21,700
58420B — Silencer, Engine Service Hole Cover, NO.2
58472-87001 Silencer, Engine Service Hole Cover, NO.2
1982-11 → 1988-08 ended
CR2#,3#,YR2#,3# 4FC,5F ¥4,350
58472-87002 Silencer, Engine Service Hole Cover, NO.2
1982-11 → 1986-08 ended
KR26,YR20,26,28 4H,5H ¥5,300
58472-87003 Silencer, Engine Service Hole Cover, NO.2
1986-08 → 1988-08 ended
KR26,YR20,26,28 MTM (B,D) ¥5,300
58422A — Catch Sub-assy, Engine Upper Cover
72504-87001 Catch Sub-assy, Engine Upper Cover
1982-11 → 1988-08 ended
CR2#,36,YR2#,3# 4FC,5F —
58424 — Packing, Engine Service Hole Cover, NO.1
58435-87001 Packing, Engine Service Hole Cover, NO.1
1982-11 → 1988-08 ended
CR2#,30,36,YR2#,3# 4FC,5F ¥6,000
58435-87002 Packing, Engine Service Hole Cover, NO.1
1982-11 → 1988-08 ended
KR26,YR20,26 D,R ¥6,000
58437A — Packing, Engine Service Hole Cover Sub, NO.1
58436-87001 Packing, Engine Service Hole Cover Sub, NO.1
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥640
58437B — Packing, Engine Service Hole Cover Sub, NO.2
58478-87001 Packing, Engine Service Hole Cover Sub, NO.2
1982-11 → 1988-08 ended
CR2#,3#,YR2#,3# 4FC,5F ¥1,260
58478-87002 Packing, Engine Service Hole Cover Sub, NO.2
1982-11 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥640
58437C — Packing, Engine Service Hole Cover Sub, NO.3
58479-87001 Packing, Engine Service Hole Cover Sub, NO.3
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥650
58467F — Packing, Inspection Hole
58475-87001 Packing, Inspection Hole
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥650
58470 — Cover Assy, Inspection Hole
58408-87001 Cover Assy, Inspection Hole
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥1,900
58495 — Trim, Inspection Hole Cover
58495-87001 Trim, Inspection Hole Cover
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥640
58936A — Band, Engine Service Hole Cover Support
58936-28010-03 note Band, Engine Service Hole Cover Support
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 E,Q,X ¥2,960
58936-28010-05 note Band, Engine Service Hole Cover Support
1982-11 → 1988-08 ended
CR21,30,36,YR20,21,30 ¥2,960
58936-87002-02 note Band, Engine Service Hole Cover Support
1982-11 → 1985-08 ended
CR26,27,YR26 02S,05S ¥3,010
58936-87002-06 note Band, Engine Service Hole Cover Support
1985-08 → 1988-08 ended
CR26,27,28,36,37,YR26,28,36 02S,05S ¥3,010
58938A — Cushion, Engine Service Hole Cover Band
58938-87001 Cushion, Engine Service Hole Cover Band
1982-11 → 1988-08 ended
CR2#,3#,YR2#,3# (4FC,5F,5H) (B,D,E,G,N,X) ¥260
71035 — Cushion Sub-assy, Seat Stopper
71035-87001 Cushion Sub-assy, Seat Stopper
1982-11 → 1988-08 ended
CR2#,30,36,YR2#,3# 4FC,5F ¥890
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
