Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration MBE545C 53273 — BRACKET, FRONT BUMPER ARM MOUNTING, RH (2 parts) 55143 — BRACKET, COWL SIDE TRIM MOUNTING, NO.1 (1 parts) 78118A — STOPPER, ACCELERATOR PEDAL (1 parts) 58236C — BRACKET, CLUTCH TUBE (1 parts) 4715987001 — not listed in this catalogue 53274 — BRACKET, FRONT BUMPER ARM MOUNTING, LH (1 parts) 58476 — RETAINER, ENGINE SERVICE HOLE COVER CATCH (6 parts) 53204C — SUPPORT SUB-ASSY, RADIATOR RESERVER TANK (4 parts) 61794A — BRACKET, COOLER CONDENSER, NO.2 (4 parts) 8867487001 — not listed in this catalogue 55152 — BRACKET, 3 WAY ATTACHING (1 parts) 58476 — RETAINER, ENGINE SERVICE HOLE COVER CATCH (6 parts) 58491 — RETAINER, ENGINE COVER, NO.1 (1 parts) 4491987001 — not listed in this catalogue 3377687001 — not listed in this catalogue 53253A — BRACKET, RADIATOR MOUNTING, UPPER (1 parts) 58476 — RETAINER, ENGINE SERVICE HOLE COVER CATCH (6 parts) 58287 — RETAINER, SHIFT LEVER BOOT (3 parts) 58492 — RETAINER, ENGINE COVER, NO.2 (2 parts) 3134187002 — not listed in this catalogue 58187A — BRACKET, VACUUM TUBE CLAMP (1 parts) 53757A — BRACKET, HEATER HOSE MOUNTING (1 parts) 61793A — BRACKET, COOLER CONDENSER, NO.1 (2 parts) 58416A — PLATE, ENGINE SUB COVER (5 parts) 58183A — RETAINER, SEAT RAIL, REAR RH (1 parts) 58205B — HINGE SUB-ASSY, BATTERY SERVICE COVER MALE (1 parts) 5837587501 — not listed in this catalogue 9046310065 — not listed in this catalogue 58181A — RETAINER, SEAT RAIL, FRONT (1 parts) 55763 — BRACKET, COOLER MOUNTING (1 parts) 57505 — BRACKET SUB-ASSY, PARKING BRAKE, NO.1 (1 parts) 58186A — BRACKET, BRAKE TUBE SET (1 parts) 9046308129 — not listed in this catalogue 4738187001 — not listed in this catalogue

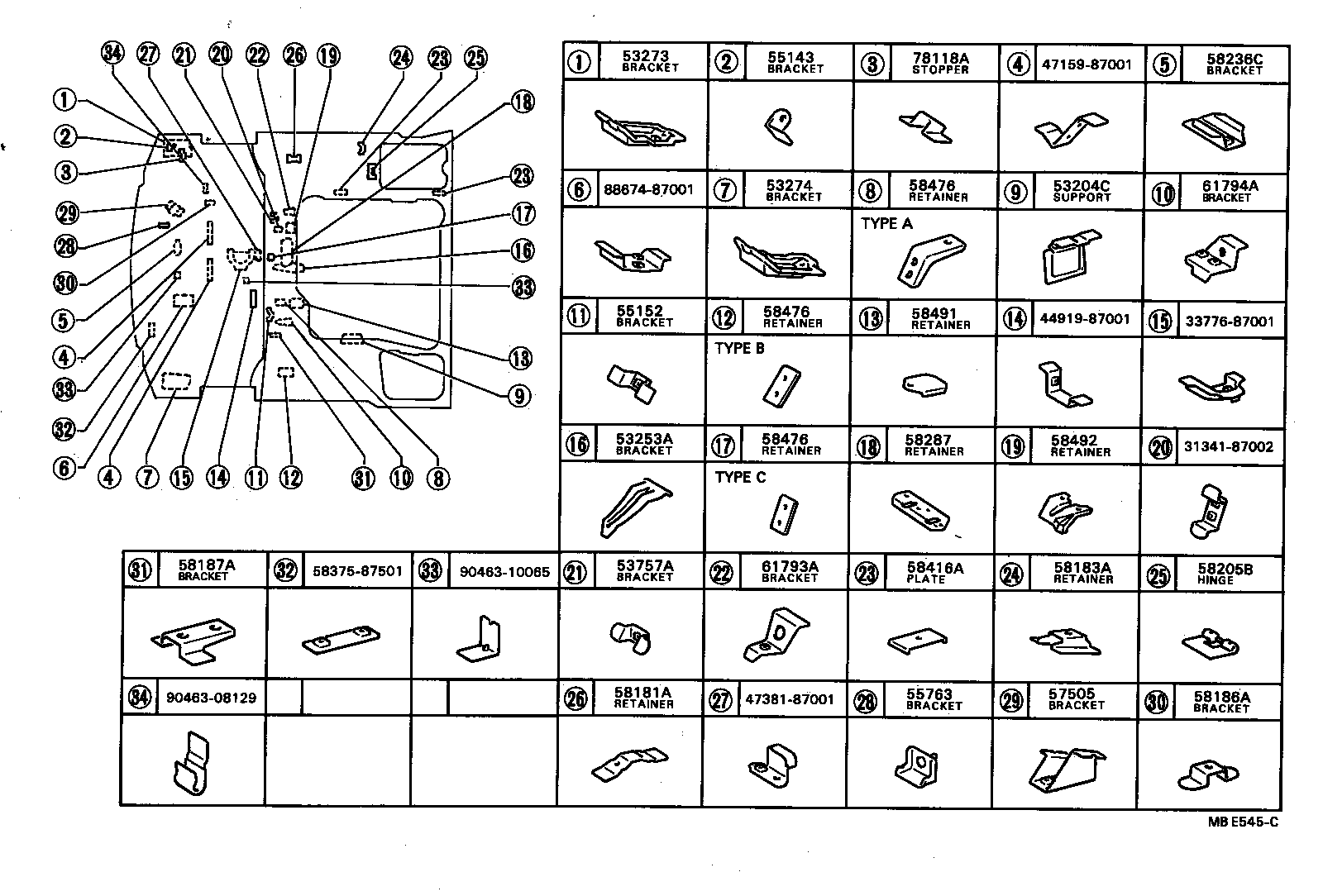

MBE545C · 25 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
43 parts on this figure
Part number Description Fitment Price
53204C — Support Sub-assy, Radiator Reserver Tank
53204-87001 Support Sub-assy, Radiator Reserver Tank
1985-08 → 1987-03 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥2,020
53204-87001 Support Sub-assy, Radiator Reserver Tank
1982-11 → 1987-03 ended
CR21,26,27,KR26,YR20,21,26 ¥2,020
53204-87002 Support Sub-assy, Radiator Reserver Tank
1987-03 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥2,010
53261-87004 Support Sub-assy, Radiator Reserver Tank
1985-08 → 1988-08 ended
CR2#,30,36 ¥1,630
53253A — Bracket, Radiator Mounting, Upper
53253-87001 Bracket, Radiator Mounting, Upper
1982-11 → 1988-08 ended
CR2#,30,36,KR26,YR2#,3# ¥930
53273 — Bracket, Front Bumper Arm Mounting, RH
53273-87001 note Bracket, Front Bumper Arm Mounting, RH
1982-11 → 1985-06 ended
CR21,YR20,21 —
53273-87004 note Bracket, Front Bumper Arm Mounting, RH
1985-06 → 1988-08 ended
YR20 HRF 5F G;YR20 +4 ¥1,180
53274 — Bracket, Front Bumper Arm Mounting, LH
53274-87001 note Bracket, Front Bumper Arm Mounting, LH
1982-11 → 1988-08 ended
CR21,28,30,YR20,21,28,3# ¥1,180
53757A — Bracket, Heater Hose Mounting
53757-87003 Bracket, Heater Hose Mounting
1982-11 → 1988-08 ended
CR2#,30,36,KR26,YR2#,3# ¥320
55143 — Bracket, Cowl Side Trim Mounting, NO.1
55143-87001 Bracket, Cowl Side Trim Mounting, NO.1
1982-11 → 1988-08 ended
CR2#,30,36,KR26,YR2#,3# ¥390
55152 — Bracket, 3 Way Attaching
55152-87701 Bracket, 3 Way Attaching
1982-11 → 1988-08 ended
CR21,26,27,30,36,KR26,YR20,21,26,3# ¥640
55763 — Bracket, Cooler Mounting
55763-87002 Bracket, Cooler Mounting
1982-11 → 1988-08 ended
CR2#,30,36,KR26,YR2#,3# ¥640
57505 — Bracket Sub-assy, Parking Brake, NO.1
57505-87002 Bracket Sub-assy, Parking Brake, NO.1
1985-08 → 1988-08 ended
YR20 3# HRF (E,Q);YR20 +5 ¥2,620
58181A — Retainer, Seat Rail, Front
58181-87005 Retainer, Seat Rail, Front
1982-11 → 1988-08 ended
CR2#,30,36,KR26,YR2#,3# ¥640
58183A — Retainer, Seat Rail, Rear RH
58183-87001 Retainer, Seat Rail, Rear RH
1982-11 → 1988-08 ended
CR2#,30,36,KR26,YR2#,3# ¥750
58186A — Bracket, Brake Tube Set
58186-87001 Bracket, Brake Tube Set
1985-08 → 1988-08 ended
YR20 3# HRF (E,Q);YR20 +5 ¥320
58187A — Bracket, Vacuum Tube Clamp
58187-87002 Bracket, Vacuum Tube Clamp
1985-08 → 1988-08 ended
YR20 3# HRF (E,Q);YR20 +5 ¥510
58205B — Hinge Sub-assy, Battery Service Cover Male
58205-87001 Hinge Sub-assy, Battery Service Cover Male
1982-11 → 1988-08 ended
CR2#,30,36,KR26,YR2#,3# ¥760
58236C — Bracket, Clutch Tube
58236-87003 Bracket, Clutch Tube
1982-11 → 1988-08 ended
CR2#,30,36,KR26,YR2#,3# ¥640
58287 — Retainer, Shift Lever Boot
58287-87002 Retainer, Shift Lever Boot
1982-11 → 1988-08 ended
CR26,YR20,26 5F —
58287-87003 Retainer, Shift Lever Boot
1982-11 → 1988-08 ended
KR26,YR20,26 4FC,4H,5H —
58287-87003 Retainer, Shift Lever Boot
1982-04 → 1988-08 ended
CR21,YR21 —
58416A — Plate, Engine Sub Cover
58416-87001 note Plate, Engine Sub Cover
1982-11 → 1987-02 ended
CR2#,3#,KR26,YR2#,3# ¥450
58416-87002 note Plate, Engine Sub Cover
1982-11 → 1986-08 ended
CR2#,3#,KR26,YR2#,30 ¥450
58416-87002 note Plate, Engine Sub Cover
1986-08 → 1987-02 ended
YR20 HRF E;YR20 MRF +5 ¥450
58416-87003 note Plate, Engine Sub Cover
1987-02 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥450
58416-87004 note Plate, Engine Sub Cover
1987-02 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥450
58476 — Retainer, Engine Service Hole Cover Catch
58476-28020 note Retainer, Engine Service Hole Cover Catch
1982-11 → 1988-08 ended
CR2#,30,36,KR26,YR2#,3# ¥440
58476-87001 note Retainer, Engine Service Hole Cover Catch
1982-11 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥440
58476-87005 note Retainer, Engine Service Hole Cover Catch
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥750
58476-87005 note Retainer, Engine Service Hole Cover Catch
1985-08 → 1988-08 ended
YR20 02S,03S,05S,06S,08S HRF E;YR20 +5 ¥750
58476-87007 note Retainer, Engine Service Hole Cover Catch
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 Q ¥910
58476-87007 note Retainer, Engine Service Hole Cover Catch
1984-08 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥910
58491 — Retainer, Engine Cover, NO.1
58491-87002 Retainer, Engine Cover, NO.1
1982-11 → 1988-08 ended
CR2#,30,36,YR2#,3# 4FC,5F ¥440
58492 — Retainer, Engine Cover, NO.2
58492-87001 Retainer, Engine Cover, NO.2
1982-11 → 1986-01 ended
CR2#,3#,KR26,YR2#,30 ¥990
58492-87002 Retainer, Engine Cover, NO.2
1986-01 → 1988-08 ended
YR20 3# HRF (E,Q);YR20 +5 ¥1,000
61793A — Bracket, Cooler Condenser, NO.1
61793-87001 Bracket, Cooler Condenser, NO.1
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥680
61793-87003 Bracket, Cooler Condenser, NO.1
1985-08 → 1988-08 ended
YR20 3# HRF (E,Q);YR20 +5 ¥670
61794A — Bracket, Cooler Condenser, NO.2
59404-87001 note Bracket, Cooler Condenser, NO.2
1984-08 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥1,060
59404-87001 note Bracket, Cooler Condenser, NO.2
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 Q ¥1,060
61794-87002 Bracket, Cooler Condenser, NO.2
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥640
61794-87002 Bracket, Cooler Condenser, NO.2
1985-08 → 1988-08 ended
YR20 02S,03S,05S,06S,08S HRF E;YR20 +5 ¥640
78118A — Stopper, Accelerator Pedal
78118-87002 Stopper, Accelerator Pedal
1982-11 → 1988-08 ended
CR2#,30,36,KR26,YR2#,3# ¥740
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
