Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

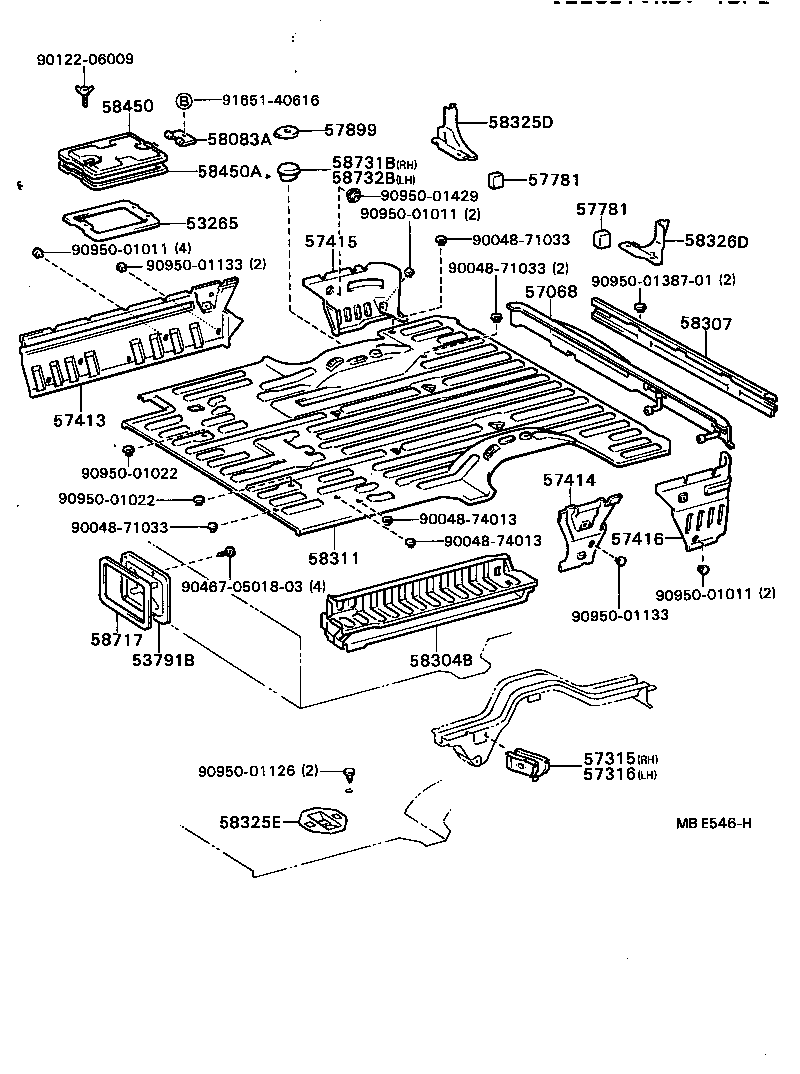

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53265 — Plate, Battery Carrier Mounting, NO.2 | ||||
| 53205-95D00 note |
Plate, Battery Carrier Mounting, NO.2
1985-08 → 1988-08
ended
|
CR28,37,YR28 | ¥2,930 | |
| 53205-95D00 |
Plate, Battery Carrier Mounting, NO.2
1985-08 → 1988-08
ended
|
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 | ¥2,930 | |
| 53205-95D00 note |
Plate, Battery Carrier Mounting, NO.2
1985-08 → 1988-08
ended
|
CR26,27,36,YR26 V4D 05S | ¥2,930 | |
| 53265-87003 note |
Plate, Battery Carrier Mounting, NO.2
1982-11 → 1985-08
ended
|
CR26,27,YR26 V4D 05S | — | |
| 53265-87003 |
Plate, Battery Carrier Mounting, NO.2
1982-11 → 1985-08
ended
|
CR21,YR20,21 | — | |
| 53265-87006 |
Plate, Battery Carrier Mounting, NO.2
1986-08 → 1988-08
ended
|
CR37,YR36 | ¥2,170 | |
| 53265-87006 |
Plate, Battery Carrier Mounting, NO.2
1982-11 → 1988-08
ended
|
CR26,27,36,KR26,YR26 V4D | ¥2,170 | |
| 53791B — Cover, Cool Air Intake Hole | ||||
| 53791-87003 note |
Cover, Cool Air Intake Hole
1985-10 → 1988-08
ended
|
CR36 V4D | ¥1,120 | |
| 53791-87003 note |
Cover, Cool Air Intake Hole
1987-08 → 1988-08
ended
|
CR37 | ¥1,120 | |
| 57068 — Member Sub-assy, Rear Floor Rear Cross, Inner | ||||
| 57068-28030 |
Member Sub-assy, Rear Floor Rear Cross, Inner
1986-08 → 1987-07
ended
|
YR36 | ¥13,300 | |
| 57068-87001 |
Member Sub-assy, Rear Floor Rear Cross, Inner
1982-11 → 1985-01
ended
|
CR21,YR20,21 | ¥13,200 | |
| 57068-87002 |
Member Sub-assy, Rear Floor Rear Cross, Inner
1982-11 → 1985-01
ended
|
CR26,27,KR26,YR26 | ¥13,200 | |
| 57068-87005 |
Member Sub-assy, Rear Floor Rear Cross, Inner
1985-01 → 1988-08
ended
|
CR21,YR21;YR20 HRF 5F G;YR20 +4 | ¥13,300 | |
| 57068-87006 |
Member Sub-assy, Rear Floor Rear Cross, Inner
1985-01 → 1985-08
ended
|
CR26,27,KR26,YR26 | ¥13,400 | |
| 57068-87006 |
Member Sub-assy, Rear Floor Rear Cross, Inner
1985-08 → 1988-08
ended
|
KR26,YR26 | ¥13,400 | |
| 57068-87008 |
Member Sub-assy, Rear Floor Rear Cross, Inner
1985-08 → 1988-08
ended
|
CR28,YR28 | ¥13,300 | |
| 57068-87010 |
Member Sub-assy, Rear Floor Rear Cross, Inner
1985-08 → 1988-08
ended
|
CR26,27 | ¥13,400 | |
| 57068-95D00 |
Member Sub-assy, Rear Floor Rear Cross, Inner
1985-10 → 1988-08
ended
|
CR30,YR30 | ¥15,100 | |
| 57068-95D01 |
Member Sub-assy, Rear Floor Rear Cross, Inner
1985-10 → 1988-08
ended
|
CR36 | ¥14,800 | |
| 57068-95D04 |
Member Sub-assy, Rear Floor Rear Cross, Inner
1987-07 → 1988-08
ended
|
CR37,YR36 | ¥15,100 | |
| 57315 — Outrigger, NO.3 RH | ||||
| 57315-28040 |
Outrigger, NO.3 RH
1985-10 → 1988-08
ended
|
CR36 V5D | ¥1,150 | |
| 57315-87004 |
Outrigger, NO.3 RH
1985-01 → 1985-08
ended
|
CR21,27,YR21;YR20 8S,09S) HRF 5F +6 | ¥1,150 | |
| 57315-87004 |
Outrigger, NO.3 RH
1985-10 → 1988-08
ended
|
CR30,YR3#;CR36 V4D | ¥1,150 | |
| 57315-87005 |
Outrigger, NO.3 RH
1985-01 → 1988-08
ended
|
CR26,27,KR26,YR26 V5D | ¥1,130 | |
| 57315-87006 |
Outrigger, NO.3 RH
1985-08 → 1988-08
ended
|
CR21,28,YR21,28;YR20 6,YR26 HRF V4D +6 | ¥1,130 | |
| 57316 — Outrigger, NO.3 LH | ||||
| 57316-87002 |
Outrigger, NO.3 LH
1985-01 → 1985-08
ended
|
YR20 5F (E,Q);CR21,YR21 E,Q,X;YR20 +5 | ¥1,150 | |
| 57316-87002 |
Outrigger, NO.3 LH
1985-10 → 1988-08
ended
|
CR30,YR30 E,Q | ¥1,150 | |
| 57316-87003 |
Outrigger, NO.3 LH
1985-10 → 1988-08
ended
|
CR30,36,YR3# B,D,G,N | ¥1,150 | |
| 57316-87003 |
Outrigger, NO.3 LH
1985-01 → 1985-08
ended
|
YR20 MRF (D,G);YR20 HRF +3 | ¥1,150 | |
| 57316-87004 |
Outrigger, NO.3 LH
1985-08 → 1988-08
ended
|
CR21,YR20,21 E,Q | ¥1,160 | |
| 57316-87005 |
Outrigger, NO.3 LH
1985-08 → 1988-08
ended
|
YR20 MRF (D,G);YR20 HRF +3 | ¥1,160 | |
| 57413 — Rail, Floor Side, Center RH | ||||
| 57405-87001 |
Rail, Floor Side, Center RH
1982-11 → 1985-08
ended
|
CR21 D | ¥8,900 | |
| 57405-87001 |
Rail, Floor Side, Center RH
1982-11 → 1985-08
ended
|
YR20 D,G | ¥8,900 | |
| 57405-87003 |
Rail, Floor Side, Center RH
1982-11 → 1985-08
ended
|
CR26,27,KR26,YR26 V4D | ¥8,900 | |
| 57405-87003 note |
Rail, Floor Side, Center RH
1982-11 → 1985-08
ended
|
CR21,YR20,21 E,G,Q,X | ¥8,900 | |
| 57405-87005 |
Rail, Floor Side, Center RH
1986-08 → 1988-08
ended
|
CR26,27,36,KR26,YR26 V4D | ¥9,200 | |
| 57405-87005 |
Rail, Floor Side, Center RH
1985-08 → 1988-08
ended
|
CR21,28,37,YR20,28,36 B,D | ¥9,200 | |
| 57405-87006 |
Rail, Floor Side, Center RH
1985-08 → 1986-08
ended
|
CR26,27,36,KR26,YR26 V4D | ¥9,300 | |
| 57405-87006 |
Rail, Floor Side, Center RH
1985-08 → 1988-08
ended
|
YR20 MRF 08S;YR20 HRF +5 | ¥9,300 | |
| 57405-87009 note |
Rail, Floor Side, Center RH
1986-08 → 1988-08
ended
|
CR21,YR20,21 E | ¥9,300 | |
| 57405-87010 |
Rail, Floor Side, Center RH
1986-08 → 1988-08
ended
|
CR26,27,36,KR26,YR26 V5D | ¥9,300 | |
| 57413-87005 |
Rail, Floor Side, Center RH
1985-08 → 1986-08
ended
|
CR26,36,KR26,YR26 V5D | ¥4,630 | |
| 57413-87005 |
Rail, Floor Side, Center RH
1982-11 → 1985-08
ended
|
CR26,KR26,YR26 V5D | ¥4,630 | |
| 57414 — Rail, Floor Side, Center LH | ||||
| 57406-87002 |
Rail, Floor Side, Center LH
1985-08 → 1986-08
ended
|
CR28,YR28 | ¥2,500 | |
| 57406-87002 |
Rail, Floor Side, Center LH
1986-08 → 1988-08
ended
|
CR26,27,28,36,37,KR26,YR26,28,36 | ¥2,500 | |
| 57406-87002 |
Rail, Floor Side, Center LH
1986-08 → 1988-08
ended
|
YR20 HRF E;YR20 MRF +5 | ¥2,500 | |
| 57414-87001 |
Rail, Floor Side, Center LH
1982-11 → 1986-08
ended
|
CR21,26,27,3#,KR26,YR20,21,26,30 | ¥2,250 | |
| 57414-87001 |
Rail, Floor Side, Center LH
1986-08 → 1988-08
ended
|
CR21,30,YR20,21,30 D,Q | ¥2,250 | |
| 57415 — Rail, Floor Side, Rear RH | ||||
| 57047-87001 |
Rail, Floor Side, Rear RH
1982-11 → 1985-08
ended
|
CR21,YR20,21 | ¥6,500 | |
| 57047-87002 |
Rail, Floor Side, Rear RH
1982-11 → 1985-08
ended
|
CR26,27,KR26,YR26 | ¥6,500 | |
| 57047-87006 |
Rail, Floor Side, Rear RH
1985-08 → 1985-12
ended
|
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 | ¥6,500 | |
| 57047-87007 |
Rail, Floor Side, Rear RH
1985-12 → 1988-08
ended
|
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 | ¥6,300 | |
| 57047-87008 |
Rail, Floor Side, Rear RH
1985-08 → 1988-08
ended
|
CR26,27,28,36,37,KR26,YR26,28,36 | ¥6,300 | |
| 57416 — Rail, Floor Side, Rear LH | ||||
| 57048-87001 |
Rail, Floor Side, Rear LH
1982-11 → 1985-08
ended
|
CR21,YR20,21 | ¥6,500 | |
| 57048-87003 |
Rail, Floor Side, Rear LH
1982-11 → 1985-08
ended
|
CR26,27,KR26,YR26 | ¥6,500 | |
| 57048-87009 note |
Rail, Floor Side, Rear LH
1985-08 → 1988-08
ended
|
CR26,27,36 V4D 05S | ¥6,300 | |
| 57048-87009 |
Rail, Floor Side, Rear LH
1985-08 → 1988-08
ended
|
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 | ¥6,300 | |
| 57048-87010 |
Rail, Floor Side, Rear LH
1985-08 → 1988-08
ended
|
CR26,27,28,36,37,KR26,YR26,28,36 | ¥6,300 | |
| 57781 — Pad, Dust Proof Rear Floor, NO.1 | ||||
| 57575-87002 |
Pad, Dust Proof Rear Floor, NO.1
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥1,950 | |
| 57899 — Seal, Rear Floor, Rear | ||||
| 57899-87001 note |
Seal, Rear Floor, Rear
1985-08 → 1988-08
ended
|
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 | ¥510 | |
| 58083A — Hinge Sub-assy, Battery Service Cover, Male | ||||
| 58083-87002 |
Hinge Sub-assy, Battery Service Cover, Male
1982-11 → 1988-08
ended
|
CR21,30,YR20,21,30 | ¥750 | |
| 58083-87002 note |
Hinge Sub-assy, Battery Service Cover, Male
1982-11 → 1988-08
ended
|
CR26,27,36,YR26 V4D 05S | ¥750 | |
| 58083-87002 note |
Hinge Sub-assy, Battery Service Cover, Male
1985-08 → 1988-08
ended
|
CR28,37,YR28,36 | ¥750 | |
| 58304B — Step Sub-assy, Rear Floor, LH | ||||
| 58304-87002 |
Step Sub-assy, Rear Floor, LH
1982-11 → 1984-08
ended
|
CR2#,KR26,YR2# | ¥37,900 | |
| 58304-87004 |
Step Sub-assy, Rear Floor, LH
1984-08 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥38,100 | |
| 58307 — Panel Sub-assy, Body Lower Back | ||||
| 58307-87003 |
Panel Sub-assy, Body Lower Back
1982-11 → 1984-08
ended
|
CR2#,KR26,YR2# | ¥12,000 | |
| 58307-87003 |
Panel Sub-assy, Body Lower Back
1984-08 → 1985-01
ended
|
CR2#,KR26,YR2# | ¥12,000 | |
| 58307-87004 |
Panel Sub-assy, Body Lower Back
1985-01 → 1988-08
ended
|
YR20 # HRF 5F +5 | ¥11,800 | |
| 58311 — Pan, Rear Floor | ||||
| 58311-87012 |
Pan, Rear Floor
1982-11 → 1984-08
ended
|
YR20 D,G | ¥62,700 | |
| 58311-87012 |
Pan, Rear Floor
1984-08 → 1985-08
ended
|
CR21,YR20 D | ¥62,700 | |
| 58311-87013 |
Pan, Rear Floor
1982-11 → 1986-08
ended
|
KR26 V4D 06S | ¥62,600 | |
| 58311-87014 |
Pan, Rear Floor
1982-11 → 1986-08
ended
|
KR26 V5D 06S | ¥62,600 | |
| 58311-87015 note |
Pan, Rear Floor
1982-11 → 1985-08
ended
|
CR21,YR20,21 E,G | ¥62,700 | |
| 58311-87016 |
Pan, Rear Floor
1982-11 → 1985-08
ended
|
YR20,21 07S | ¥62,700 | |
| 58311-87018 |
Pan, Rear Floor
1982-11 → 1986-08
ended
|
CR26,36,YR26 V4D (05S,06S) D | ¥62,600 | |
| 58311-87019 |
Pan, Rear Floor
1982-11 → 1986-08
ended
|
CR26,36,YR26 V5D D | ¥62,600 | |
| 58311-87020 |
Pan, Rear Floor
1986-08 → 1988-08
ended
|
CR21,YR20 D | ¥63,400 | |
| 58311-87021 |
Pan, Rear Floor
1986-08 → 1988-08
ended
|
KR26 V4D 06S | ¥63,200 | |
| 58311-87023 |
Pan, Rear Floor
1982-11 → 1986-08
ended
|
CR26,36,KR26,YR26 V4D (02S,03S) | ¥63,300 | |
| 58311-87024 |
Pan, Rear Floor
1982-11 → 1986-08
ended
|
CR26,27,36,YR26 V4D N | ¥63,300 | |
| 58311-87025 |
Pan, Rear Floor
1986-08 → 1988-08
ended
|
KR26 V5D 06S | ¥63,200 | |
| 58311-87026 |
Pan, Rear Floor
1982-11 → 1986-08
ended
|
KR26 V5D 03S | ¥63,300 | |
| 58311-87027 |
Pan, Rear Floor
1982-11 → 1986-08
ended
|
YR26 V5D N | ¥62,600 | |
| 58311-87030 |
Pan, Rear Floor
1985-08 → 1986-08
ended
|
CR21,YR20 D | — | |
| 58311-87031 |
Pan, Rear Floor
1985-08 → 1988-08
ended
|
YR20 HRF E;YR20 MRF +5 | ¥63,400 | |
| 58311-87032 |
Pan, Rear Floor
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 Q | ¥63,400 | |
| 58311-87035 note |
Pan, Rear Floor
1986-08 → 1988-08
ended
|
CR21,YR20,21 E | ¥63,400 | |
| 58311-87036 |
Pan, Rear Floor
1985-08 → 1986-08
ended
|
CR28,YR28 | ¥63,300 | |
| 58311-87037 |
Pan, Rear Floor
1986-08 → 1988-08
ended
|
CR26,36,YR26 V4D (05S,06S) D | ¥63,200 | |
| 58311-87038 |
Pan, Rear Floor
1986-08 → 1988-08
ended
|
CR26,36,YR26 V5D D | ¥63,200 | |
| 58311-87039 |
Pan, Rear Floor
1986-08 → 1988-08
ended
|
CR26,36,KR26,YR26 V4D (02S,03S) | ¥63,200 | |
| 58311-87040 |
Pan, Rear Floor
1986-08 → 1988-08
ended
|
CR26,27,36,YR26 V4D N | ¥63,400 | |
| 58311-87041 |
Pan, Rear Floor
1986-08 → 1988-08
ended
|
KR26 V5D 03S | ¥63,200 | |
| 58311-87042 |
Pan, Rear Floor
1986-08 → 1988-08
ended
|
CR26,27,YR26 V5D N | ¥63,400 | |
| 58311-87043 |
Pan, Rear Floor
1986-08 → 1988-08
ended
|
CR28,37,YR28,36 | ¥63,200 | |
| 58325D — Brace, Rear Floor Panel, RH | ||||
| 58325-87001 |
Brace, Rear Floor Panel, RH
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥1,440 | |
| 58325E — Cover, Rear Floor Service Hole | ||||
| 58325-87002-04 note |
Cover, Rear Floor Service Hole
1986-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E | — | |
| 58325-87002-06 note |
Cover, Rear Floor Service Hole
1986-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E | — | |
| 58326D — Brace, Rear Floor Panel, LH | ||||
| 58326-87001 |
Brace, Rear Floor Panel, LH
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥1,440 | |
| 58450 — Cover Assy, Battery Service Hole | ||||
| 58209-87001 |
Cover Assy, Battery Service Hole
1982-11 → 1988-08
ended
|
CR21,30,YR20,21,30 | ¥3,310 | |
| 58209-87001 note |
Cover Assy, Battery Service Hole
1982-11 → 1988-08
ended
|
CR26,27,36,YR26 V4D 05S | ¥3,310 | |
| 58209-87001 note |
Cover Assy, Battery Service Hole
1985-08 → 1988-08
ended
|
CR28,37,YR28,36 | ¥3,310 | |
| 58450A — Packing, Battery Service Hole Cover | ||||
| 58449-87002 |
Packing, Battery Service Hole Cover
1982-11 → 1988-08
ended
|
CR21,30,YR20,21,30 | ¥650 | |
| 58449-87002 note |
Packing, Battery Service Hole Cover
1982-11 → 1988-08
ended
|
CR26,27,36,YR26 V4D 05S | ¥650 | |
| 58449-87002 note |
Packing, Battery Service Hole Cover
1985-08 → 1988-08
ended
|
CR28,37,YR28,36 | ¥650 | |
| 58717 — Packing, Cooler Air Inlet Cover | ||||
| 58717-87004 |
Packing, Cooler Air Inlet Cover
1985-10 → 1988-08
ended
|
CR36 V4D | ¥1,000 | |
| 58717-87004 note |
Packing, Cooler Air Inlet Cover
1987-08 → 1988-08
ended
|
CR37 | ¥1,000 | |
| 58731B — Cap, Rear Absorber, RH | ||||
| 58731-87001 |
Cap, Rear Absorber, RH
1982-11 → 1988-08
ended
|
CR21,30,YR20,21,30 | ¥2,000 | |
| 58732B — Cap, Rear Absorber, LH | ||||
| 58732-87001 |
Cap, Rear Absorber, LH
1982-11 → 1988-08
ended
|
CR21,30,YR20,21,30 | ¥2,000 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
