Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration MBE547D 58325D — BRACE, REAR FLOOR PANEL, RH (1 parts) 9095001429 — not listed in this catalogue 57781 — PAD, DUST PROOF REAR FLOOR, NO.1 (1 parts) 57781 — PAD, DUST PROOF REAR FLOOR, NO.1 (1 parts) 57415 — RAIL, FLOOR SIDE, REAR RH (5 parts) 58326D — BRACE, REAR FLOOR PANEL, LH (1 parts) 9095001133 — not listed in this catalogue 57413 — RAIL, FLOOR SIDE, CENTER RH (12 parts) 9095001011 — not listed in this catalogue 909500138701 — not listed in this catalogue 9004871033 — not listed in this catalogue 58303B — STEP SUB-ASSY, REAR FLOOR, RH (1 parts) 58307 — PANEL SUB-ASSY, BODY LOWER BACK (3 parts) 9095001022 — not listed in this catalogue 57068 — MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER (11 parts) 58311 — PAN, REAR FLOOR (27 parts) 9095001028 — not listed in this catalogue 9095001022 — not listed in this catalogue 57416 — RAIL, FLOOR SIDE, REAR LH (5 parts) 9095001126 — not listed in this catalogue 9004871033 — not listed in this catalogue 9095001011 — not listed in this catalogue 57414 — RAIL, FLOOR SIDE, CENTER LH (5 parts) 58304B — STEP SUB-ASSY, REAR FLOOR, LH (2 parts) 57315 — OUTRIGGER, NO.3 RH (5 parts) 57316 — OUTRIGGER, NO.3 LH (6 parts)

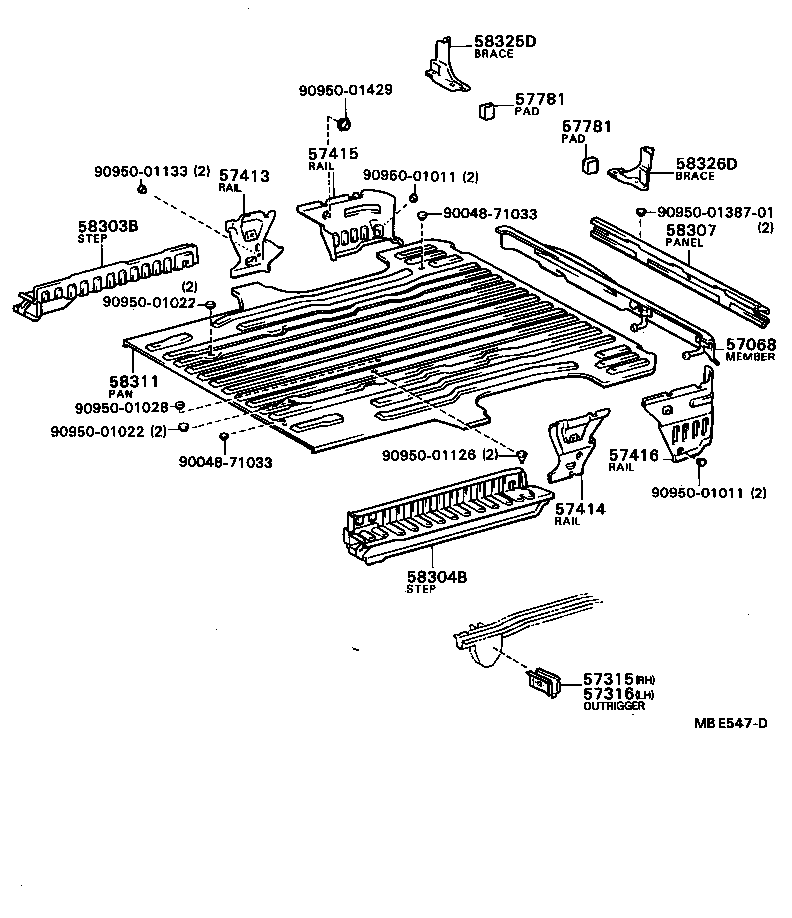

MBE547D · 15 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
85 parts on this figure
Part number Description Fitment Price
57068 — Member Sub-assy, Rear Floor Rear Cross, Inner
57068-28030 Member Sub-assy, Rear Floor Rear Cross, Inner
1986-08 → 1987-07 ended
YR36 ¥13,300
57068-87001 Member Sub-assy, Rear Floor Rear Cross, Inner
1982-11 → 1985-01 ended
CR21,YR20,21 ¥13,200
57068-87002 Member Sub-assy, Rear Floor Rear Cross, Inner
1982-11 → 1985-01 ended
CR26,27,KR26,YR26 ¥13,200
57068-87005 Member Sub-assy, Rear Floor Rear Cross, Inner
1985-01 → 1988-08 ended
CR21,YR21;YR20 HRF 5F G;YR20 +4 ¥13,300
57068-87006 Member Sub-assy, Rear Floor Rear Cross, Inner
1985-08 → 1988-08 ended
KR26,YR26 ¥13,400
57068-87006 Member Sub-assy, Rear Floor Rear Cross, Inner
1985-01 → 1985-08 ended
CR26,27,KR26,YR26 ¥13,400
57068-87008 Member Sub-assy, Rear Floor Rear Cross, Inner
1985-08 → 1988-08 ended
CR28,YR28 ¥13,300
57068-87010 Member Sub-assy, Rear Floor Rear Cross, Inner
1985-08 → 1988-08 ended
CR26,27 ¥13,400
57068-95D00 Member Sub-assy, Rear Floor Rear Cross, Inner
1985-10 → 1988-08 ended
CR30,YR30 ¥15,100
57068-95D01 Member Sub-assy, Rear Floor Rear Cross, Inner
1985-10 → 1988-08 ended
CR36 ¥14,800
57068-95D04 Member Sub-assy, Rear Floor Rear Cross, Inner
1987-07 → 1988-08 ended
CR37,YR36 ¥15,100
57315 — Outrigger, NO.3 RH
57315-28040 Outrigger, NO.3 RH
1985-10 → 1988-08 ended
CR36 V5D ¥1,150
57315-87004 Outrigger, NO.3 RH
1985-01 → 1985-08 ended
CR21,27,YR21;YR20 8S,09S) HRF 5F +6 ¥1,150
57315-87004 Outrigger, NO.3 RH
1985-10 → 1988-08 ended
CR30,YR3#;CR36 V4D ¥1,150
57315-87005 Outrigger, NO.3 RH
1985-01 → 1988-08 ended
CR26,27,KR26,YR26 V5D ¥1,130
57315-87006 Outrigger, NO.3 RH
1985-08 → 1988-08 ended
CR21,28,YR21,28;YR20 6,YR26 HRF V4D +6 ¥1,130
57316 — Outrigger, NO.3 LH
57316-87002 Outrigger, NO.3 LH
1985-01 → 1985-08 ended
YR20 5F (E,Q);CR21,YR21 E,Q,X;YR20 +5 ¥1,150
57316-87002 Outrigger, NO.3 LH
1985-10 → 1988-08 ended
CR30,YR30 E,Q ¥1,150
57316-87003 Outrigger, NO.3 LH
1985-01 → 1985-08 ended
YR20 MRF (D,G);YR20 HRF +3 ¥1,150
57316-87003 Outrigger, NO.3 LH
1985-10 → 1988-08 ended
CR30,36,YR3# B,D,G,N ¥1,150
57316-87004 Outrigger, NO.3 LH
1985-08 → 1988-08 ended
CR21,YR20,21 E,Q ¥1,160
57316-87005 Outrigger, NO.3 LH
1985-08 → 1988-08 ended
YR20 MRF (D,G);YR20 HRF +3 ¥1,160
57413 — Rail, Floor Side, Center RH
57405-87001 Rail, Floor Side, Center RH
1982-11 → 1985-08 ended
CR21 D ¥8,900
57405-87001 Rail, Floor Side, Center RH
1982-11 → 1985-08 ended
YR20 D,G ¥8,900
57405-87003 Rail, Floor Side, Center RH
1982-11 → 1985-08 ended
CR26,27,KR26,YR26 V4D ¥8,900
57405-87003 note Rail, Floor Side, Center RH
1982-11 → 1985-08 ended
CR21,YR20,21 E,G,Q,X ¥8,900
57405-87005 Rail, Floor Side, Center RH
1985-08 → 1988-08 ended
CR21,28,37,YR20,28,36 B,D ¥9,200
57405-87005 Rail, Floor Side, Center RH
1986-08 → 1988-08 ended
CR26,27,36,KR26,YR26 V4D ¥9,200
57405-87006 Rail, Floor Side, Center RH
1985-08 → 1986-08 ended
CR26,27,36,KR26,YR26 V4D ¥9,300
57405-87006 Rail, Floor Side, Center RH
1985-08 → 1988-08 ended
YR20 MRF 08S;YR20 HRF +5 ¥9,300
57405-87009 note Rail, Floor Side, Center RH
1986-08 → 1988-08 ended
CR21,YR20,21 E ¥9,300
57405-87010 Rail, Floor Side, Center RH
1986-08 → 1988-08 ended
CR26,27,36,KR26,YR26 V5D ¥9,300
57413-87005 Rail, Floor Side, Center RH
1985-08 → 1986-08 ended
CR26,36,KR26,YR26 V5D ¥4,630
57413-87005 Rail, Floor Side, Center RH
1982-11 → 1985-08 ended
CR26,KR26,YR26 V5D ¥4,630
57414 — Rail, Floor Side, Center LH
57406-87002 Rail, Floor Side, Center LH
1985-08 → 1986-08 ended
CR28,YR28 ¥2,500
57406-87002 Rail, Floor Side, Center LH
1986-08 → 1988-08 ended
CR26,27,28,36,37,KR26,YR26,28,36 ¥2,500
57406-87002 Rail, Floor Side, Center LH
1986-08 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥2,500
57414-87001 Rail, Floor Side, Center LH
1982-11 → 1986-08 ended
CR21,26,27,3#,KR26,YR20,21,26,30 ¥2,250
57414-87001 Rail, Floor Side, Center LH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 D,Q ¥2,250
57415 — Rail, Floor Side, Rear RH
57047-87001 Rail, Floor Side, Rear RH
1982-11 → 1985-08 ended
CR21,YR20,21 ¥6,500
57047-87002 Rail, Floor Side, Rear RH
1982-11 → 1985-08 ended
CR26,27,KR26,YR26 ¥6,500
57047-87006 Rail, Floor Side, Rear RH
1985-08 → 1985-12 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 ¥6,500
57047-87007 Rail, Floor Side, Rear RH
1985-12 → 1988-08 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 ¥6,300
57047-87008 Rail, Floor Side, Rear RH
1985-08 → 1988-08 ended
CR26,27,28,36,37,KR26,YR26,28,36 ¥6,300
57416 — Rail, Floor Side, Rear LH
57048-87001 Rail, Floor Side, Rear LH
1982-11 → 1985-08 ended
CR21,YR20,21 ¥6,500
57048-87003 Rail, Floor Side, Rear LH
1982-11 → 1985-08 ended
CR26,27,KR26,YR26 ¥6,500
57048-87009 Rail, Floor Side, Rear LH
1985-08 → 1988-08 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 ¥6,300
57048-87009 note Rail, Floor Side, Rear LH
1985-08 → 1988-08 ended
CR26,27,36 V4D 05S ¥6,300
57048-87010 Rail, Floor Side, Rear LH
1985-08 → 1988-08 ended
CR26,27,28,36,37,KR26,YR26,28,36 ¥6,300
57781 — Pad, Dust Proof Rear Floor, NO.1
57575-87002 Pad, Dust Proof Rear Floor, NO.1
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥1,950
58303B — Step Sub-assy, Rear Floor, RH
58303-87001 Step Sub-assy, Rear Floor, RH
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 V5D ¥41,600
58304B — Step Sub-assy, Rear Floor, LH
58304-87002 Step Sub-assy, Rear Floor, LH
1982-11 → 1984-08 ended
CR2#,KR26,YR2# ¥37,900
58304-87004 Step Sub-assy, Rear Floor, LH
1984-08 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥38,100
58307 — Panel Sub-assy, Body Lower Back
58307-87003 Panel Sub-assy, Body Lower Back
1982-11 → 1984-08 ended
CR2#,KR26,YR2# ¥12,000
58307-87003 Panel Sub-assy, Body Lower Back
1984-08 → 1985-01 ended
CR2#,KR26,YR2# ¥12,000
58307-87004 Panel Sub-assy, Body Lower Back
1985-01 → 1988-08 ended
YR20 # HRF 5F +5 ¥11,800
58311 — Pan, Rear Floor
58311-87012 Pan, Rear Floor
1982-11 → 1984-08 ended
YR20 D,G ¥62,700
58311-87012 Pan, Rear Floor
1984-08 → 1985-08 ended
CR21,YR20 D ¥62,700
58311-87013 Pan, Rear Floor
1982-11 → 1986-08 ended
KR26 V4D 06S ¥62,600
58311-87014 Pan, Rear Floor
1982-11 → 1986-08 ended
KR26 V5D 06S ¥62,600
58311-87015 note Pan, Rear Floor
1982-11 → 1985-08 ended
CR21,YR20,21 E,G ¥62,700
58311-87016 Pan, Rear Floor
1982-11 → 1985-08 ended
YR20,21 07S ¥62,700
58311-87018 Pan, Rear Floor
1982-11 → 1986-08 ended
CR26,36,YR26 V4D (05S,06S) D ¥62,600
58311-87019 Pan, Rear Floor
1982-11 → 1986-08 ended
CR26,36,YR26 V5D D ¥62,600
58311-87020 Pan, Rear Floor
1986-08 → 1988-08 ended
CR21,YR20 D ¥63,400
58311-87021 Pan, Rear Floor
1986-08 → 1988-08 ended
KR26 V4D 06S ¥63,200
58311-87023 Pan, Rear Floor
1982-11 → 1986-08 ended
CR26,36,KR26,YR26 V4D (02S,03S) ¥63,300
58311-87024 Pan, Rear Floor
1982-11 → 1986-08 ended
CR26,27,36,YR26 V4D N ¥63,300
58311-87025 Pan, Rear Floor
1986-08 → 1988-08 ended
KR26 V5D 06S ¥63,200
58311-87026 Pan, Rear Floor
1982-11 → 1986-08 ended
KR26 V5D 03S ¥63,300
58311-87027 Pan, Rear Floor
1982-11 → 1986-08 ended
YR26 V5D N ¥62,600
58311-87030 Pan, Rear Floor
1985-08 → 1986-08 ended
CR21,YR20 D —
58311-87031 Pan, Rear Floor
1985-08 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥63,400
58311-87032 Pan, Rear Floor
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 Q ¥63,400
58311-87035 note Pan, Rear Floor
1986-08 → 1988-08 ended
CR21,YR20,21 E ¥63,400
58311-87036 Pan, Rear Floor
1985-08 → 1986-08 ended
CR28,YR28 ¥63,300
58311-87037 Pan, Rear Floor
1986-08 → 1988-08 ended
CR26,36,YR26 V4D (05S,06S) D ¥63,200
58311-87038 Pan, Rear Floor
1986-08 → 1988-08 ended
CR26,36,YR26 V5D D ¥63,200
58311-87039 Pan, Rear Floor
1986-08 → 1988-08 ended
CR26,36,KR26,YR26 V4D (02S,03S) ¥63,200
58311-87040 Pan, Rear Floor
1986-08 → 1988-08 ended
CR26,27,36,YR26 V4D N ¥63,400
58311-87041 Pan, Rear Floor
1986-08 → 1988-08 ended
KR26 V5D 03S ¥63,200
58311-87042 Pan, Rear Floor
1986-08 → 1988-08 ended
CR26,27,YR26 V5D N ¥63,400
58311-87043 Pan, Rear Floor
1986-08 → 1988-08 ended
CR28,37,YR28,36 ¥63,200
58325D — Brace, Rear Floor Panel, RH
58325-87001 Brace, Rear Floor Panel, RH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥1,440
58326D — Brace, Rear Floor Panel, LH
58326-87001 Brace, Rear Floor Panel, LH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥1,440
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
