Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

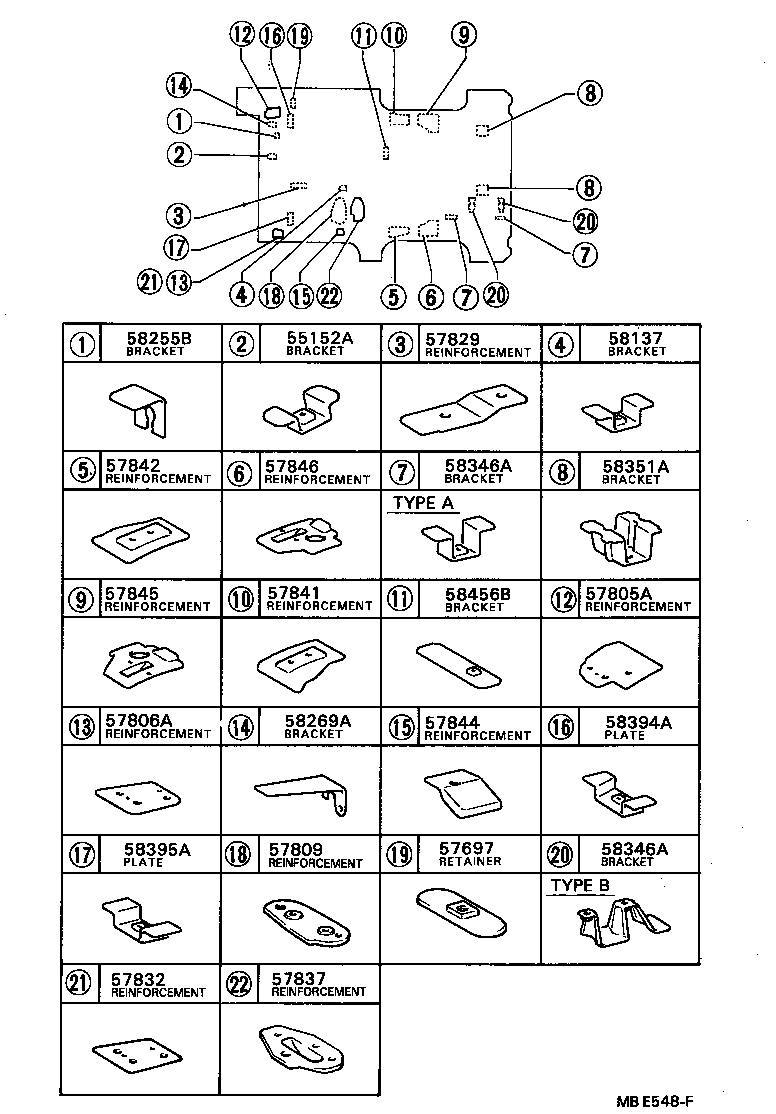

Exploded illustration MBE548F 55152A — BRACKET, 3 WAY ATTACHING (1 parts) 58255B — BRACKET, PARKING BRAKE CABLE GUIDE, NO.1 (1 parts) 58137 — BRACKET, CENTER FLOOR HEAT INSULATOR, NO.4 (2 parts) 57829 — REINFORCEMENT, SEAT LEG (2 parts) 57842 — REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT LH (1 parts) 58346A — BRACKET, REAR FLOOR HEAT INSULATOR, NO.2 (4 parts) 57846 — REINFORCEMENT, REAR NO.2 SEAT LEG, REAR LH (1 parts) 58351A — BRACKET, SPARE WHEEL CARRIER (1 parts) 57841 — REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT RH (1 parts) 57845 — REINFORCEMENT, REAR NO.2 SEAT LEG, REAR RH (1 parts) 57805A — REINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.1 (5 parts) 58456B — BRACKET, BRAKE TUBE CLAMP (1 parts) 57806A — REINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.2 (1 parts) 58269A — BRACKET, PARKING BRAKE CABLE GUIDE, NO.3 (2 parts) 57844 — REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.6 (2 parts) 58394A — PLATE, REAR NO.2 PASSENGER SEAT SET, RH (1 parts) 57697 — RETAINER, REAR SEAT CUSHION (3 parts) 58346A — BRACKET, REAR FLOOR HEAT INSULATOR, NO.2 (4 parts) 58395A — PLATE, REAR NO.2 PASSENGER SEAT SET, LH (1 parts) 57809 — REINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.5 (3 parts) 57837 — REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.3 (1 parts) 57832 — REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2 (1 parts)
MBE548F · 22 callouts Full size ↗
36 parts on this figure
Part number Description Fitment Price
55152A — Bracket, 3 Way Attaching
55152-87701 Bracket, 3 Way Attaching
1982-11 → 1988-08 ended
CR21,26,27,3#,KR26,YR20,21,26,30 ¥640
57697 — Retainer, Rear Seat Cushion
57697-87701 Retainer, Rear Seat Cushion
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 ¥440
57697-87701 Retainer, Rear Seat Cushion
1985-08 → 1988-08 ended
CR28,37,YR28,36 ¥440
57697-87701 note Retainer, Rear Seat Cushion
1982-11 → 1988-08 ended
CR26,27,36,YR26 V4D 05S ¥440
57805A — Reinforce Sub-assy, NO.1 Seat Leg, Rear NO.1
57805-87001 note Reinforce Sub-assy, NO.1 Seat Leg, Rear NO.1
1982-11 → 1984-08 ended
CR21,YR20,21 07S,08S ¥1,610
57805-87001 Reinforce Sub-assy, NO.1 Seat Leg, Rear NO.1
1984-08 → 1988-08 ended
CR21,30,YR20,21,30 E,G,Q,X ¥1,610
57805-87002 Reinforce Sub-assy, NO.1 Seat Leg, Rear NO.1
1982-11 → 1984-08 ended
YR20,21 D,G ¥1,570
57805-87002 Reinforce Sub-assy, NO.1 Seat Leg, Rear NO.1
1984-08 → 1988-08 ended
CR21,YR20 D ¥1,570
57805-87002 Reinforce Sub-assy, NO.1 Seat Leg, Rear NO.1
1986-08 → 1988-08 ended
YR30 E ¥1,570
57806A — Reinforce Sub-assy, NO.1 Seat Leg, Rear NO.2
57806-87001 Reinforce Sub-assy, NO.1 Seat Leg, Rear NO.2
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 07S ¥1,060
57809 — Reinforce Sub-assy, NO.1 Seat Leg, Rear NO.5
57809-87001 Reinforce Sub-assy, NO.1 Seat Leg, Rear NO.5
1984-11 → 1988-08 ended
YR20 HRF 5F 07S;CR21,30,YR21,30 +3 ¥1,810
57809-87002 Reinforce Sub-assy, NO.1 Seat Leg, Rear NO.5
1984-11 → 1986-08 ended
YR20 HRF E;YR20 MRF +5 —
57809-87004 Reinforce Sub-assy, NO.1 Seat Leg, Rear NO.5
1986-08 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥2,910
57829 — Reinforcement, Seat Leg
57829-87001 Reinforcement, Seat Leg
1982-11 → 1984-08 ended
YR20 D,G ¥1,090
57829-87001 Reinforcement, Seat Leg
1984-08 → 1988-08 ended
CR21,YR20 D ¥1,090
57832 — Reinforcement, Rear NO.1 Seat Leg, Front NO.2
57832-87001 Reinforcement, Rear NO.1 Seat Leg, Front NO.2
1986-08 → 1988-08 ended
CR30,YR30 E —
57837 — Reinforcement, Rear NO.1 Seat Leg, Rear NO.3
57837-87002 Reinforcement, Rear NO.1 Seat Leg, Rear NO.3
1986-08 → 1988-08 ended
CR30,YR30 E ¥2,120
57841 — Reinforcement, Rear NO.2 Seat Leg, Front RH
57841-87001 Reinforcement, Rear NO.2 Seat Leg, Front RH
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 —
57842 — Reinforcement, Rear NO.2 Seat Leg, Front LH
57842-87001 Reinforcement, Rear NO.2 Seat Leg, Front LH
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 —
57844 — Reinforcement, Rear NO.1 Seat Leg, Rear NO.6
57844-87001 Reinforcement, Rear NO.1 Seat Leg, Rear NO.6
1984-10 → 1988-08 ended
CR21,30,YR20,21 HRF 07S ¥880
57844-87001 Reinforcement, Rear NO.1 Seat Leg, Rear NO.6
1982-11 → 1984-10 ended
CR21,YR20,21 ¥880
57845 — Reinforcement, Rear NO.2 Seat Leg, Rear RH
57845-87001 Reinforcement, Rear NO.2 Seat Leg, Rear RH
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 ¥2,170
57846 — Reinforcement, Rear NO.2 Seat Leg, Rear LH
57846-87001 Reinforcement, Rear NO.2 Seat Leg, Rear LH
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 ¥2,170
58137 — Bracket, Center Floor Heat Insulator, NO.4
58236-14010 Bracket, Center Floor Heat Insulator, NO.4
1982-11 → 1986-08 ended
CR2#,3#,KR26,YR2#,30 ¥680
58236-14010 Bracket, Center Floor Heat Insulator, NO.4
1986-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥680
58255B — Bracket, Parking Brake Cable Guide, NO.1
58267-87001 Bracket, Parking Brake Cable Guide, NO.1
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥630
58269A — Bracket, Parking Brake Cable Guide, NO.3
58269-87001 Bracket, Parking Brake Cable Guide, NO.3
1982-11 → 1988-08 ended
CR21,26,27,KR26,YR2# ¥1,010
58269-87002 Bracket, Parking Brake Cable Guide, NO.3
1985-10 → 1988-08 ended
CR3#,YR3# ¥1,020
58346A — Bracket, Rear Floor Heat Insulator, NO.2
44797-87002 Bracket, Rear Floor Heat Insulator, NO.2
1982-11 → 1985-08 ended
CR21,YR20,21 ¥590
44797-87003 Bracket, Rear Floor Heat Insulator, NO.2
1985-08 → 1988-08 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 ¥680
44797-87003 note Bracket, Rear Floor Heat Insulator, NO.2
1986-08 → 1988-08 ended
CR37,YR36 ¥680
44797-87004 note Bracket, Rear Floor Heat Insulator, NO.2
1986-08 → 1988-08 ended
CR37,YR36 ¥1,070
58351A — Bracket, Spare Wheel Carrier
51938-87003 Bracket, Spare Wheel Carrier
1982-11 → 1988-08 ended
CR21,30,37,YR20,21,30 ¥890
58394A — Plate, Rear NO.2 Passenger Seat Set, RH
58345-87001 Plate, Rear NO.2 Passenger Seat Set, RH
1982-11 → 1988-08 ended
KR26 06S ¥640
58395A — Plate, Rear NO.2 Passenger Seat Set, LH
58346-87001 Plate, Rear NO.2 Passenger Seat Set, LH
1982-11 → 1988-08 ended
KR26 06S ¥640
58456B — Bracket, Brake Tube Clamp
58456-87001 Bracket, Brake Tube Clamp
1982-11 → 1983-05 ended
CR21,YR20 ¥440
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
