Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

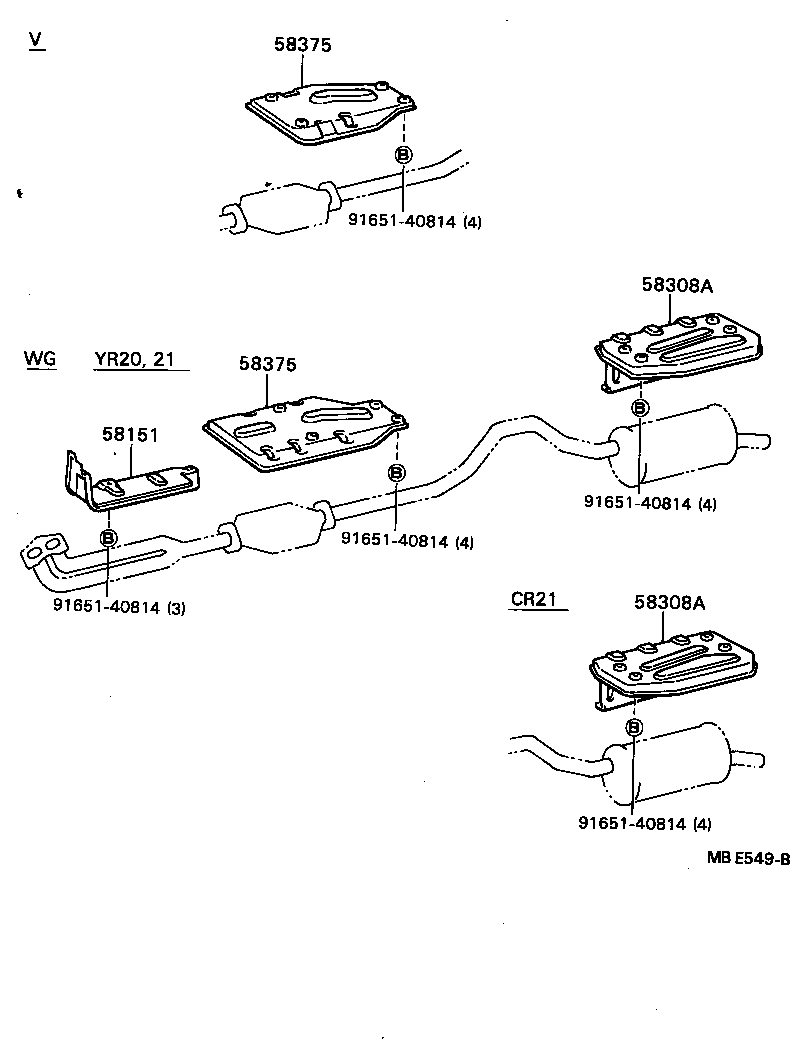

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58151 — Insulator, Front Floor Heat, NO.1 | ||||
| 58151-28010 |
Insulator, Front Floor Heat, NO.1
1984-08 → 1988-08
ended
|
YR20,28 B,D,E,G | ¥2,090 | |
| 58151-95D00 |
Insulator, Front Floor Heat, NO.1
1985-10 → 1988-08
ended
|
YR3# 05S,08S | ¥2,260 | |
| 58308A — Panel Sub-assy, Heat Proof | ||||
| 58308-87002 |
Panel Sub-assy, Heat Proof
1982-11 → 1985-08
ended
|
CR21,YR20,21 | ¥2,170 | |
| 58308-87002 |
Panel Sub-assy, Heat Proof
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥2,170 | |
| 58375 — Insulator, Rear Floor Heat, NO.1 | ||||
| 58321-87004 |
Insulator, Rear Floor Heat, NO.1
1982-11 → 1988-08
ended
|
YR20,21,28 | ¥22,100 | |
| 58321-87005 |
Insulator, Rear Floor Heat, NO.1
1982-11 → 1985-06
ended
|
CR26,27,KR26,YR26 | ¥3,830 | |
| 58321-87006 |
Insulator, Rear Floor Heat, NO.1
1985-06 → 1988-08
ended
|
CR26,27,28,KR26,YR26 | ¥3,810 | |
| 58321-95D00 |
Insulator, Rear Floor Heat, NO.1
1985-10 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥4,460 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
