Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

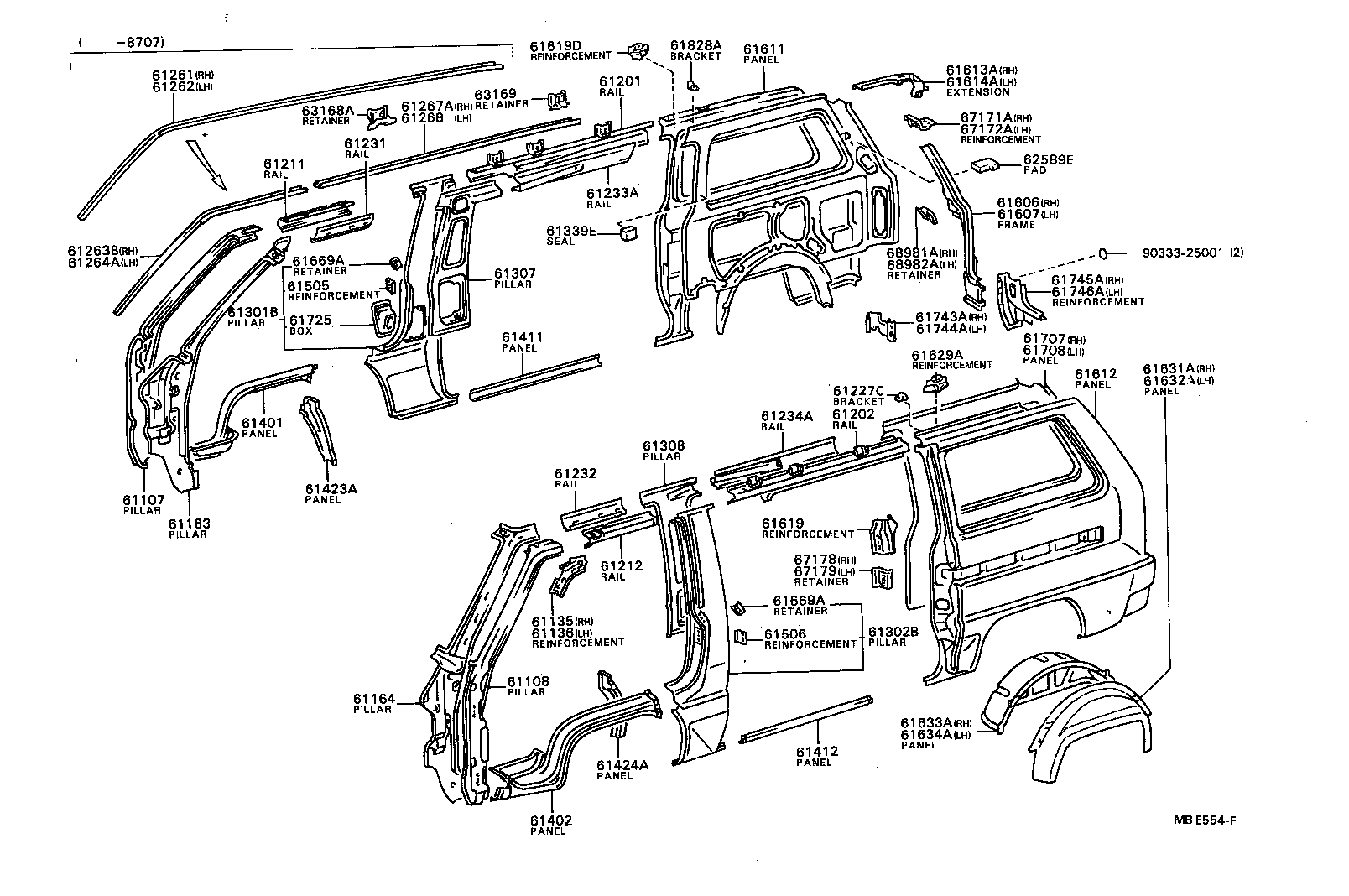

Exploded illustration MBE554F 61828A — BRACKET, REAR DOOR RAIL, CENTER RH (1 parts) 61619D — REINFORCEMENT, QUARTER PANEL, RH (2 parts) 61611 — PANEL, QUARTER, RH (6 parts) 61613A — EXTENSION, QUARTER PANEL REAR, RH (10 parts) 61261 — CHANNEL, ROOF DRIP, RH (2 parts) 61201 — RAIL SUB-ASSY, ROOF SIDE, RH (2 parts) 61614A — EXTENSION, QUARTER PANEL, REAR LH (3 parts) 61262 — CHANNEL, ROOF DRIP, LH (2 parts) 63169 — RETAINER, ROOF REINFORCEMENT, NO.2 (2 parts) 61267A — CHANNEL, ROOF DRIP SIDE, REAR RH (2 parts) 63168A — RETAINER, ROOF REINFORCEMENT, NO.1 (1 parts) 61268 — CHANNEL, ROOF DRIP SIDE, REAR LH (2 parts) 67171A — REINFORCEMENT, DOOR HINGE, RH (1 parts) 67172A — REINFORCEMENT, DOOR HINGE, LH (1 parts) 61231 — RAIL, ROOF SIDE, INNER RH (2 parts) 62589E — PAD, QUARTER PILLAR (1 parts) 61211 — RAIL, ROOF SIDE, OUTER RH (5 parts) 61233A — RAIL, ROOF SIDE, INNER NO.2 RH (1 parts) 61606 — FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH (9 parts) 61607 — FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH (1 parts) 61339E — SEAL, CENTER BODY PILLAR, INNER NO.2 (1 parts) 61263B — CHANNEL, ROOF DRIP SIDE, FRONT RH (4 parts) 68981A — RETAINER, BACK DOOR STAY, RH (1 parts) 9033325001 — not listed in this catalogue 61669A — RETAINER, FRONT DOOR OPEN SWITCH SET (1 parts) 61264A — CHANNEL, ROOF DRIP SIDE, FRONT LH (4 parts) 68982A — RETAINER, BACK DOOR STAY, LH (1 parts) 61307 — PILLAR SUB-ASSY, CENTER BODY, INNER RH (8 parts) 61745A — REINFORCEMENT, BACK DOOR OPENING, LOWER RH (1 parts) 61505 — REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, RH (1 parts) 61746A — REINFORCEMENT, BACK DOOR OPENING, LOWER LH (1 parts) 61301B — PILLAR, CENTER BODY, OUTER RH (4 parts) 61743A — REINFORCEMENT, BACK DOOR OPENING SIDE, RH (1 parts) 61725 — BOX, FUEL INLET (7 parts) 61744A — REINFORCEMENT, BACK DOOR OPENING SIDE, LH (1 parts) 61411 — PANEL, ROCKER, OUTER RH (1 parts) 61707 — PANEL SUB-ASSY, QUARTER, INNER RH (99 parts) 61708 — PANEL SUB-ASSY, QUARTER, INNER LH (24 parts) 61629A — REINFORCEMENT, QUARTER PANEL, LH (1 parts) 61631A — PANEL, QUARTER WHEEL HOUSE, OUTER RH (1 parts) 61612 — PANEL, QUARTER, LH (5 parts) 61632A — PANEL, QUARTER WHEEL HOUSE, OUTER LH (1 parts) 61227C — BRACKET, REAR DOOR RAIL (1 parts) 61202 — RAIL SUB-ASSY, ROOF SIDE, LH (10 parts) 61234A — RAIL, ROOF SIDE, INNER NO.2 LH (8 parts) 61401 — PANEL SUB-ASSY, FENDER, RH (2 parts) 61308 — PILLAR SUB-ASSY, CENTER BODY, INNER LH (15 parts) 61232 — RAIL, ROOF SIDE, INNER LH (2 parts) 61423A — PANEL, FENDER, INNER LOWER RH (1 parts) 61107 — PILLAR SUB-ASSY, FRONT BODY OUTER, RH (4 parts) 61163 — PILLAR, FRONT BODY, INNER RH (6 parts) 61619 — REINFORCEMENT, SLIDE DOOR LOCK STRIKER (2 parts) 67178 — RETAINER, REAR DOOR SWITCH, RH (1 parts) 61212 — RAIL, ROOF SIDE, OUTER LH (5 parts) 67179 — RETAINER, REAR DOOR SWITCH, LH (1 parts) 61669A — RETAINER, FRONT DOOR OPEN SWITCH SET (1 parts) 61135 — REINFORCEMENT, FRONT BODY PILLAR, UPPER RH (1 parts) 61302B — PILLAR, CENTER BODY, OUTER LH (5 parts) 61136 — REINFORCEMENT, FRONT BODY PILLAR, UPPER LH (1 parts) 61506 — REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, LH (1 parts) 61108 — PILLAR SUB-ASSY, FRONT BODY OUTER, LH (12 parts) 61164 — PILLAR, FRONT BODY, INNER LH (12 parts) 61633A — PANEL, QUARTER WHEEL HOUSE, INNER RH (3 parts) 61634A — PANEL, QUARTER WHEEL HOUSE, INNER LH (4 parts) 61412 — PANEL, ROCKER, OUTER LH (1 parts) 61424A — PANEL, FENDER, INNER LOWER LH (1 parts) 61402 — PANEL SUB-ASSY, FENDER, LH (2 parts)
MBE554F · 66 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
325 parts on this figure
Part number Description Fitment Price
61107 — Pillar Sub-assy, Front Body Outer, RH
61027-87005 Pillar Sub-assy, Front Body Outer, RH
1982-11 → 1986-08 ended
KR26 R ¥26,100
61027-87006 Pillar Sub-assy, Front Body Outer, RH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# B,D,E,G,N,Q,X ¥26,100
61027-87007 note Pillar Sub-assy, Front Body Outer, RH
1982-11 → 1985-08 ended
CR21,YR20,21 ¥25,500
61027-87009 note Pillar Sub-assy, Front Body Outer, RH
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥26,100
61108 — Pillar Sub-assy, Front Body Outer, LH
61028-87006 note Pillar Sub-assy, Front Body Outer, LH
1983-06 → 1985-08 ended
CR21,YR20,21 E,G,Q,X ¥26,100
61028-87007 Pillar Sub-assy, Front Body Outer, LH
1982-11 → 1983-06 ended
CR2#,KR26,YR2# D,E,G,N,R ¥25,500
61028-87007 Pillar Sub-assy, Front Body Outer, LH
1983-06 → 1988-08 ended
CR2#,36,37,KR26,YR20,26,28,36 B,D,N,R ¥25,500
61028-87008 note Pillar Sub-assy, Front Body Outer, LH
1982-11 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# B,E,G,Q,X ¥25,500
61028-87009 note Pillar Sub-assy, Front Body Outer, LH
1983-06 → 1984-12 ended
CR21,YR20,21 E,G,Q,X ¥25,500
61028-87009 note Pillar Sub-assy, Front Body Outer, LH
1984-12 → 1985-08 ended
YR21;YR20 MRF 08S;YR20 HRF +4 ¥25,500
61028-87009 note Pillar Sub-assy, Front Body Outer, LH
1984-12 → 1988-08 ended
CR21 E ¥25,500
61028-87010 note Pillar Sub-assy, Front Body Outer, LH
1982-11 → 1985-08 ended
CR21,YR20,21 E,G,Q,X ¥25,500
61028-87011 note Pillar Sub-assy, Front Body Outer, LH
1983-06 → 1985-08 ended
CR21,YR20 D —
61028-87011 note Pillar Sub-assy, Front Body Outer, LH
1982-11 → 1983-06 ended
CR21,YR20,21 08S,09S —
61028-87013 note Pillar Sub-assy, Front Body Outer, LH
1985-08 → 1988-08 ended
YR20 MRF 08S;YR20 HRF +5 ¥25,500
61028-87014 note Pillar Sub-assy, Front Body Outer, LH
1985-08 → 1988-08 ended
CR21,28,37,YR20,28,36 B,D ¥25,500
61135 — Reinforcement, Front Body Pillar, Upper RH
61135-87001 Reinforcement, Front Body Pillar, Upper RH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥1,670
61136 — Reinforcement, Front Body Pillar, Upper LH
61136-87001 Reinforcement, Front Body Pillar, Upper LH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥1,670
61163 — Pillar, Front Body, Inner RH
61023-87014 note Pillar, Front Body, Inner RH
1982-11 → 1985-08 ended
CR21,YR20,21 MRF (E,X) ¥23,800
61023-87014 note Pillar, Front Body, Inner RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥23,800
61023-87014 note Pillar, Front Body, Inner RH
1983-05 → 1985-08 ended
YR21 G ¥23,800
61023-87014 note Pillar, Front Body, Inner RH
1982-11 → 1985-08 ended
CR21,YR20,21 HRF ¥23,800
61023-87015 note Pillar, Front Body, Inner RH
1982-11 → 1985-08 ended
CR2#,KR26,YR20,26 D,E,G,N,R ¥23,400
61023-87015 note Pillar, Front Body, Inner RH
1985-08 → 1988-08 ended
YR20 ,03S,05S,06S,08S HRF E;YR20 +6 ¥23,400
61164 — Pillar, Front Body, Inner LH
61024-87010 note Pillar, Front Body, Inner LH
1982-11 → 1985-08 ended
CR21,YR20,21 HRF ¥23,800
61024-87010 note Pillar, Front Body, Inner LH
1982-11 → 1985-08 ended
CR21,YR20,21 MRF (E,X) ¥23,800
61024-87010 note Pillar, Front Body, Inner LH
1983-05 → 1985-08 ended
YR21 G ¥23,800
61024-87010 note Pillar, Front Body, Inner LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥23,800
61024-87011 note Pillar, Front Body, Inner LH
1982-11 → 1984-08 ended
CR2#,KR26,YR20,26 D,E,G,N ¥23,400
61024-87011 note Pillar, Front Body, Inner LH
1984-08 → 1985-08 ended
CR21,26,KR26,YR20,26 D,E,G,N ¥23,400
61024-87011 note Pillar, Front Body, Inner LH
1985-08 → 1988-08 ended
YR20 ,E,G,N HRF E;YR20 +6 ¥23,400
61024-87012 Pillar, Front Body, Inner LH
1982-11 → 1984-08 ended
KR26 R —
61024-87014 note Pillar, Front Body, Inner LH
1984-08 → 1985-08 ended
YR20 HRF G —
61024-87015 note Pillar, Front Body, Inner LH
1984-08 → 1986-08 ended
CR21,26,28,3#,KR26,YR20,26,28,30 B,D,G ¥23,400
61024-87015 note Pillar, Front Body, Inner LH
1986-08 → 1988-08 ended
CR21,26,28,36,KR26,YR20,26,28,36 B,D ¥23,400
61024-87016 Pillar, Front Body, Inner LH
1984-08 → 1986-08 ended
KR26 R —
61201 — Rail Sub-assy, Roof Side, RH
61201-87004 Rail Sub-assy, Roof Side, RH
1982-11 → 1988-08 ended
CR26,KR26,YR26 V5D SRF ¥10,700
61201-87005 Rail Sub-assy, Roof Side, RH
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 V5D HRF ¥10,700
61202 — Rail Sub-assy, Roof Side, LH
61202-87009 Rail Sub-assy, Roof Side, LH
1982-11 → 1982-12 ended
YR20 08S,09S ¥10,700
61202-87009 Rail Sub-assy, Roof Side, LH
1982-11 → 1982-12 ended
CR26,YR26 HRF ¥10,700
61202-87009 Rail Sub-assy, Roof Side, LH
1982-12 → 1988-08 ended
CR21,YR20 MRF (08S,09S) ¥10,700
61202-87010 note Rail Sub-assy, Roof Side, LH
1985-08 → 1988-08 ended
CR21,YR20,21 HRF (E,Q) ¥10,700
61202-87010 Rail Sub-assy, Roof Side, LH
1982-11 → 1988-08 ended
CR26,27,28,KR26,YR26,28 SRF ¥10,700
61202-87010 note Rail Sub-assy, Roof Side, LH
1982-11 → 1985-08 ended
YR20 HRF;CR21,YR21 E,Q,X;YR20 MRF +1 ¥10,700
61202-87011 Rail Sub-assy, Roof Side, LH
1983-05 → 1985-08 ended
YR21 G ¥10,700
61202-87011 note Rail Sub-assy, Roof Side, LH
1983-10 → 1983-11 ended
YR20 MRF 5F G ¥10,700
61202-87013 Rail Sub-assy, Roof Side, LH
1982-12 → 1988-08 ended
CR2#,3#,KR26,YR20,26,28,3# HRF (B,D,E,G,N) ¥10,700
61202-87014 note Rail Sub-assy, Roof Side, LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥10,700
61211 — Rail, Roof Side, Outer RH
61203-87001 Rail, Roof Side, Outer RH
1985-08 → 1988-08 ended
CR21,30,YR20,21 Q ¥3,080
61203-87001 note Rail, Roof Side, Outer RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF E ¥3,080
61211-87005 Rail, Roof Side, Outer RH
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥2,940
61211-87005 Rail, Roof Side, Outer RH
1985-08 → 1988-08 ended
YR20 ,03S,05S,06S,08S HRF E;YR20 +6 ¥2,940
61211-87005 note Rail, Roof Side, Outer RH
1985-08 → 1988-08 ended
CR21,YR20,21 Q ¥2,940
61212 — Rail, Roof Side, Outer LH
61204-87001 note Rail, Roof Side, Outer LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF E ¥3,080
61204-87001 Rail, Roof Side, Outer LH
1985-08 → 1988-08 ended
CR21,30,YR20,21 Q ¥3,080
61212-87007 Rail, Roof Side, Outer LH
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥2,940
61212-87007 Rail, Roof Side, Outer LH
1985-08 → 1988-08 ended
YR20 ,03S,05S,06S,08S HRF E;YR20 +6 ¥2,940
61212-87007 note Rail, Roof Side, Outer LH
1985-08 → 1988-08 ended
CR21,YR20,21 Q ¥2,940
61227C — Bracket, Rear Door Rail
61227-87001 Bracket, Rear Door Rail
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥440
61231 — Rail, Roof Side, Inner RH
61231-87002 Rail, Roof Side, Inner RH
1982-11 → 1988-08 ended
CR2#,36,37,KR26,YR20,26,28,36 B,D,N,R ¥4,470
61231-87003 Rail, Roof Side, Inner RH
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 E,G,Q,X ¥6,200
61232 — Rail, Roof Side, Inner LH
61232-87002 Rail, Roof Side, Inner LH
1982-11 → 1988-08 ended
CR2#,36,37,KR26,YR20,26,28,36 B,D,N,R ¥6,200
61232-87003 Rail, Roof Side, Inner LH
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 E,G,Q,X ¥6,200
61233A — Rail, Roof Side, Inner NO.2 RH
61233-87002 Rail, Roof Side, Inner NO.2 RH
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 V5D ¥7,000
61234A — Rail, Roof Side, Inner NO.2 LH
61208-87002 note Rail, Roof Side, Inner NO.2 LH
1982-11 → 1985-08 ended
YR20 HRF;CR21,YR21 E,Q,X;YR20 MRF +1 ¥13,000
61208-87002 note Rail, Roof Side, Inner NO.2 LH
1985-08 → 1988-08 ended
CR21,YR20,21 HRF (E,Q) ¥13,000
61208-87003 Rail, Roof Side, Inner NO.2 LH
1983-05 → 1985-08 ended
YR21 G ¥7,000
61208-87003 note Rail, Roof Side, Inner NO.2 LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥7,000
61208-87003 note Rail, Roof Side, Inner NO.2 LH
1983-10 → 1983-11 ended
YR20 MRF 5F G ¥7,000
61234-87002 Rail, Roof Side, Inner NO.2 LH
1982-11 → 1988-08 ended
CR2#,36,37,KR26,YR20,26,28,36 B,D,N,R ¥7,000
61234-87003 Rail, Roof Side, Inner NO.2 LH
1982-11 → 1985-08 ended
CR21,YR20 E,G ¥6,900
61234-87003 Rail, Roof Side, Inner NO.2 LH
1985-08 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥6,900
61261 — Channel, Roof Drip, RH
61261-28010 Channel, Roof Drip, RH
1985-10 → 1987-07 ended
CR3#,YR3# —
61261-87002 Channel, Roof Drip, RH
1982-11 → 1987-07 ended
CR2#,KR26,YR2# ¥6,700
61262 — Channel, Roof Drip, LH
61262-28010 Channel, Roof Drip, LH
1985-10 → 1987-07 ended
CR3#,YR3# —
61262-87002 Channel, Roof Drip, LH
1982-11 → 1987-07 ended
CR2#,KR26,YR2# ¥6,700
61263B — Channel, Roof Drip Side, Front RH
61263-28010 Channel, Roof Drip Side, Front RH
1987-07 → 1987-09 ended
CR3#,YR3# ¥3,810
61263-87002 Channel, Roof Drip Side, Front RH
1987-07 → 1987-09 ended
YR20 HRF E;YR20 HRF +4 ¥3,810
61263-87003 Channel, Roof Drip Side, Front RH
1987-09 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥3,820
61263-87004 Channel, Roof Drip Side, Front RH
1987-09 → 1988-08 ended
CR3#,YR3# ¥3,820
61264A — Channel, Roof Drip Side, Front LH
61264-28010 Channel, Roof Drip Side, Front LH
1987-07 → 1987-09 ended
CR3#,YR3# ¥3,810
61264-87002 Channel, Roof Drip Side, Front LH
1987-07 → 1987-09 ended
YR20 HRF E;YR20 HRF +4 ¥3,810
61264-87003 Channel, Roof Drip Side, Front LH
1987-09 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥3,820
61264-87004 Channel, Roof Drip Side, Front LH
1987-09 → 1988-08 ended
CR3#,YR3# ¥3,400
61267A — Channel, Roof Drip Side, Rear RH
61267-28010 Channel, Roof Drip Side, Rear RH
1987-07 → 1987-09 ended
YR20 HRF E;YR20 HRF +4 ¥5,600
61267-87003 Channel, Roof Drip Side, Rear RH
1987-09 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥5,600
61268 — Channel, Roof Drip Side, Rear LH
61268-28010 Channel, Roof Drip Side, Rear LH
1987-07 → 1987-09 ended
YR20 HRF E;YR20 HRF +4 ¥5,600
61268-87003 Channel, Roof Drip Side, Rear LH
1987-09 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥5,600
61301B — Pillar, Center Body, Outer RH
61301-87002 Pillar, Center Body, Outer RH
1982-11 → 1986-08 ended
CR26,KR26,YR26 V5D ¥35,000
61301-87004 Pillar, Center Body, Outer RH
1986-08 → 1988-08 ended
CR26,27,KR26,YR26 V5D ¥34,800
61301-95D00 Pillar, Center Body, Outer RH
1985-10 → 1986-08 ended
CR36 V5D —
61301-95D01 Pillar, Center Body, Outer RH
1986-08 → 1988-08 ended
CR36 V5D ¥34,800
61302B — Pillar, Center Body, Outer LH
61302-87003 Pillar, Center Body, Outer LH
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥34,800
61302-87003 Pillar, Center Body, Outer LH
1985-08 → 1988-08 ended
YR20 5S,06S,08S HRF E;YR20 +6 ¥34,800
61302-87006 note Pillar, Center Body, Outer LH
1985-08 → 1988-08 ended
CR21,YR20,21 E,Q ¥35,100
61302-95D00 Pillar, Center Body, Outer LH
1985-10 → 1988-08 ended
CR3#,YR3# 02S,05S,08S ¥34,800
61302-95D01 note Pillar, Center Body, Outer LH
1985-10 → 1988-08 ended
CR30,YR30 E,Q ¥34,800
61307 — Pillar Sub-assy, Center Body, Inner RH
61307-87013 Pillar Sub-assy, Center Body, Inner RH
1982-11 → 1985-08 ended
KR26,YR26 V5D D ¥26,900
61307-87014 Pillar Sub-assy, Center Body, Inner RH
1982-11 → 1983-04 ended
CR26,YR26 V5D 05S ¥26,900
61307-87014 Pillar Sub-assy, Center Body, Inner RH
1983-04 → 1985-08 ended
CR26 V5D ¥26,900
61307-87016 note Pillar Sub-assy, Center Body, Inner RH
1983-04 → 1988-08 ended
KR26,YR26 V5D D ¥27,200
61307-87017 note Pillar Sub-assy, Center Body, Inner RH
1983-04 → 1988-08 ended
CR26,36,YR26 V5D 5F ¥27,200
61307-87020 note Pillar Sub-assy, Center Body, Inner RH
1985-08 → 1988-08 ended
KR26,YR26 V5D D ¥27,200
61307-87021 note Pillar Sub-assy, Center Body, Inner RH
1986-08 → 1988-08 ended
CR26,27,36,YR26 V5D 05S ¥27,200
61307-87021 note Pillar Sub-assy, Center Body, Inner RH
1985-08 → 1986-08 ended
YR26 V5D N ¥27,200
61308 — Pillar Sub-assy, Center Body, Inner LH
61308-87020 note Pillar Sub-assy, Center Body, Inner LH
1985-08 → 1988-08 ended
CR28,YR28,36 ¥27,200
61308-87020 Pillar Sub-assy, Center Body, Inner LH
1982-11 → 1988-08 ended
CR21,37,YR20 B,D ¥27,200
61308-87023 Pillar Sub-assy, Center Body, Inner LH
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 G —
61308-87024 note Pillar Sub-assy, Center Body, Inner LH
1983-10 → 1983-11 ended
YR20 MRF 5F G ¥27,500
61308-87024 Pillar Sub-assy, Center Body, Inner LH
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 E,Q,X ¥27,500
61308-87025 Pillar Sub-assy, Center Body, Inner LH
1982-11 → 1983-04 ended
KR26,YR26 ¥26,900
61308-87025 Pillar Sub-assy, Center Body, Inner LH
1983-04 → 1985-08 ended
KR26,YR26 4H ¥26,900
61308-87026 Pillar Sub-assy, Center Body, Inner LH
1982-11 → 1985-08 ended
CR26 D —
61308-87030 note Pillar Sub-assy, Center Body, Inner LH
1983-04 → 1988-08 ended
KR26,YR26 4H ¥27,200
61308-87031 note Pillar Sub-assy, Center Body, Inner LH
1983-04 → 1988-08 ended
CR26,27,36,YR26 02S,05S ¥27,200
61308-87033 note Pillar Sub-assy, Center Body, Inner LH
1984-08 → 1988-08 ended
CR21,YR20 MRF E —
61308-87040 note Pillar Sub-assy, Center Body, Inner LH
1985-08 → 1988-08 ended
KR26,YR26 4H ¥27,200
61308-87041 note Pillar Sub-assy, Center Body, Inner LH
1985-08 → 1986-08 ended
CR26 V4D 05S;CR27,36,YR26 N ¥27,200
61308-87041 note Pillar Sub-assy, Center Body, Inner LH
1986-08 → 1988-08 ended
CR26,27,36,YR26 02S,05S ¥27,200
61308-87043 note Pillar Sub-assy, Center Body, Inner LH
1986-08 → 1988-08 ended
CR21,30,YR21,30 Q —
61339E — Seal, Center Body Pillar, Inner NO.2
61339-87001 Seal, Center Body Pillar, Inner NO.2
1988-01 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥350
61401 — Panel Sub-assy, Fender, RH
61403-87006 Panel Sub-assy, Fender, RH
1982-11 → 1985-01 ended
CR2#,KR26,YR2# ¥24,400
61403-87008 Panel Sub-assy, Fender, RH
1985-01 → 1988-08 ended
YR20 # HRF 5F +5 ¥24,300
61402 — Panel Sub-assy, Fender, LH
61404-87005 Panel Sub-assy, Fender, LH
1982-11 → 1985-01 ended
CR2#,KR26,YR2# ¥24,400
61404-87007 Panel Sub-assy, Fender, LH
1985-01 → 1988-08 ended
YR20 # HRF 5F +5 ¥24,300
61411 — Panel, Rocker, Outer RH
61431-87001 Panel, Rocker, Outer RH
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 V5D ¥2,430
61412 — Panel, Rocker, Outer LH
61431-87001 Panel, Rocker, Outer LH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥2,430
61423A — Panel, Fender, Inner Lower RH
61423-87001 Panel, Fender, Inner Lower RH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥3,440
61424A — Panel, Fender, Inner Lower LH
61424-87001 Panel, Fender, Inner Lower LH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥3,420
61505 — Reinforce Sub-assy, Front Door Lock Striker, RH
61505-87001 Reinforce Sub-assy, Front Door Lock Striker, RH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥860
61506 — Reinforce Sub-assy, Front Door Lock Striker, LH
61505-87001 Reinforce Sub-assy, Front Door Lock Striker, LH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥860
61606 — Frame Sub-assy, Back Door Opening Side, RH
61771-87001 Frame Sub-assy, Back Door Opening Side, RH
1986-08 → 1988-08 ended
CR21,26,28,36,37,KR26,YR20,26,28,36 B,D ¥11,300
61771-87001 Frame Sub-assy, Back Door Opening Side, RH
1982-11 → 1986-08 ended
CR21,26,28,36,KR26,YR2# B,D,G,R ¥11,300
61771-87002 note Frame Sub-assy, Back Door Opening Side, RH
1982-11 → 1984-08 ended
CR26,KR26,YR26 D,N ¥11,500
61771-87002 note Frame Sub-assy, Back Door Opening Side, RH
1982-11 → 1984-08 ended
CR21,YR20 07S,08S ¥11,500
61771-87002 note Frame Sub-assy, Back Door Opening Side, RH
1983-05 → 1984-08 ended
YR21 07S ¥11,500
61771-87003 note Frame Sub-assy, Back Door Opening Side, RH
1984-08 → 1985-08 ended
CR26,27,KR26,YR26 D,N ¥11,300
61771-87003 note Frame Sub-assy, Back Door Opening Side, RH
1985-08 → 1988-08 ended
YR20 .B,D,E,G,N,Q HRF (E,Q);YR20 +5 ¥11,300
61771-87003 note Frame Sub-assy, Back Door Opening Side, RH
1984-08 → 1985-08 ended
CR21,YR20 E,G,Q,X ¥11,300
61771-87003 note Frame Sub-assy, Back Door Opening Side, RH
1984-08 → 1985-08 ended
YR21 07S ¥11,300
61607 — Frame Sub-assy, Back Door Opening Side, LH
61772-87001 Frame Sub-assy, Back Door Opening Side, LH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥11,300
61611 — Panel, Quarter, RH
61611-87008 Panel, Quarter, RH
1982-11 → 1985-01 ended
CR21,27,YR20,21;CR26,KR26,YR26 V4D ¥72,200
61611-87009 Panel, Quarter, RH
1982-11 → 1985-01 ended
CR26,KR26,YR26 V5D ¥53,600
61611-87011 Panel, Quarter, RH
1985-01 → 1985-08 ended
CR21,27,YR21;YR20 8S,09S) HRF 5F +6 ¥72,500
61611-87011 Panel, Quarter, RH
1985-08 → 1988-08 ended
YR20 28,30,37,YR21,28,3# HRF 05S,06S,08S +7 ¥72,500
61611-87012 Panel, Quarter, RH
1985-01 → 1988-08 ended
CR26,27,36,KR26,YR26 V5D ¥54,000
61611-87014 note Panel, Quarter, RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥72,900
61612 — Panel, Quarter, LH
61612-87004 Panel, Quarter, LH
1982-11 → 1985-01 ended
CR2#,KR26,YR2# ¥53,600
61612-87006 Panel, Quarter, LH
1985-01 → 1985-08 ended
YR20 HRF 5F G;CR2#,KR26,YR21,26;YR20 +4 ¥54,200
61612-87006 Panel, Quarter, LH
1985-01 → 1988-08 ended
CR26,27,36,KR26,YR26 V5D ¥54,200
61612-87006 Panel, Quarter, LH
1985-08 → 1988-08 ended
YR20 28,30,37,YR21,28,3# HRF 05S,06S,08S +7 ¥54,200
61612-87008 note Panel, Quarter, LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥54,200
61613A — Extension, Quarter Panel Rear, RH
61625-87002 note Extension, Quarter Panel Rear, RH
1983-05 → 1984-08 ended
YR21 MRF X ¥4,410
61625-87002 note Extension, Quarter Panel Rear, RH
1982-11 → 1985-08 ended
CR26,27,KR26,YR26 SRF (D,N) ¥4,410
61625-87002 note Extension, Quarter Panel Rear, RH
1982-11 → 1985-08 ended
CR21,YR20 MRF (E,G,X) ¥4,410
61625-87002 note Extension, Quarter Panel Rear, RH
1985-08 → 1988-08 ended
CR2#,36,KR26,YR20,26,28 (MRF,SRF) (B,D,E,G,N) ¥4,410
61625-87003 Extension, Quarter Panel Rear, RH
1982-11 → 1986-08 ended
CR21,26,28,KR26,YR2# (MRF,SRF) (B,D,G,R) ¥4,410
61625-87003 Extension, Quarter Panel Rear, RH
1986-08 → 1988-08 ended
CR21,26,28,36,KR26,YR20,26,28 (MRF,SRF) (B,D) ¥4,410
61625-87005 Extension, Quarter Panel Rear, RH
1982-11 → 1987-03 ended
CR26,28,36,KR26,YR26,28,36 HRF (B,D) ¥16,700
61625-87006 note Extension, Quarter Panel Rear, RH
1982-11 → 1987-03 ended
CR2#,3#,KR26,YR2#,3# HRF ¥16,800
61625-87007 Extension, Quarter Panel Rear, RH
1987-03 → 1988-08 ended
CR26,28,36,37,KR26,YR26,28,36 HRF (B,D) ¥11,900
61625-87008 note Extension, Quarter Panel Rear, RH
1987-03 → 1988-08 ended
YR20 HRF E;YR20 HRF +3 ¥11,900
61614A — Extension, Quarter Panel, Rear LH
61626-87002 Extension, Quarter Panel, Rear LH
1982-11 → 1988-08 ended
CR2#,36,KR26,YR2# MRF,SRF ¥4,410
61626-87003 Extension, Quarter Panel, Rear LH
1982-11 → 1987-03 ended
CR2#,3#,KR26,YR2#,3# HRF —
61626-87004 Extension, Quarter Panel, Rear LH
1987-03 → 1988-08 ended
YR20 HRF E;YR20 HRF +3 ¥11,900
61619 — Reinforcement, Slide Door Lock Striker
61503-87001 note Reinforcement, Slide Door Lock Striker
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 V5D ¥1,950
61504-87001 note Reinforcement, Slide Door Lock Striker
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥3,060
61619D — Reinforcement, Quarter Panel, RH
61619-95D00 Reinforcement, Quarter Panel, RH
1985-10 → 1988-08 ended
CR36 V5D ¥1,290
61619-95D01 Reinforcement, Quarter Panel, RH
1985-10 → 1988-08 ended
CR36 V4D;CR30,37,YR3# ¥1,290
61629A — Reinforcement, Quarter Panel, LH
61629-95D00 Reinforcement, Quarter Panel, LH
1985-10 → 1988-08 ended
CR3#,YR3# ¥1,290
61631A — Panel, Quarter Wheel House, Outer RH
61631-87004 Panel, Quarter Wheel House, Outer RH
1985-01 → 1988-08 ended
YR20 # HRF 5F +5 ¥14,500
61632A — Panel, Quarter Wheel House, Outer LH
61632-87004 Panel, Quarter Wheel House, Outer LH
1985-01 → 1988-08 ended
YR20 # HRF 5F +5 ¥14,500
61633A — Panel, Quarter Wheel House, Inner RH
61607-87031 Panel, Quarter Wheel House, Inner RH
1985-08 → 1988-08 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 ¥14,500
61633-87002 Panel, Quarter Wheel House, Inner RH
1982-11 → 1985-08 ended
CR21,YR20,21 ¥11,700
61633-87003 Panel, Quarter Wheel House, Inner RH
1982-11 → 1988-08 ended
CR26,27,28,36,37,KR26,YR26,28,36 ¥12,000
61634A — Panel, Quarter Wheel House, Inner LH
61608-87002 Panel, Quarter Wheel House, Inner LH
1985-08 → 1988-08 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 ¥14,500
61608-87002 note Panel, Quarter Wheel House, Inner LH
1985-08 → 1988-08 ended
CR26,27,36 V4D 05S ¥14,500
61634-87002 Panel, Quarter Wheel House, Inner LH
1982-11 → 1985-08 ended
CR21,YR20,21 ¥11,700
61634-87003 Panel, Quarter Wheel House, Inner LH
1982-11 → 1988-08 ended
CR26,27,28,36,37,KR26,YR26,28,36 ¥12,000
61669A — Retainer, Front Door Open Switch Set
61669-87001 Retainer, Front Door Open Switch Set
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥310
61707 — Panel Sub-assy, Quarter, Inner RH
61073-87009 Panel Sub-assy, Quarter, Inner RH
1986-08 → 1988-08 ended
CR30,YR20,30 HRF 5F G ¥70,100
61703-87021 Panel Sub-assy, Quarter, Inner RH
1982-11 → 1985-08 ended
CR21,YR20 D ¥72,100
61703-87022 Panel Sub-assy, Quarter, Inner RH
1982-11 → 1985-08 ended
YR20,21 MRF G ¥72,100
61703-87022 Panel Sub-assy, Quarter, Inner RH
1984-08 → 1985-08 ended
CR21,YR20 MRF G ¥72,100
61703-87023 note Panel Sub-assy, Quarter, Inner RH
1983-10 → 1983-11 ended
YR20 MRF 5F G ¥48,500
61703-87023 Panel Sub-assy, Quarter, Inner RH
1982-11 → 1984-08 ended
CR21,YR20,21 MRF (E,X) ¥48,500
61703-87025 Panel Sub-assy, Quarter, Inner RH
1982-11 → 1985-08 ended
YR20 HRF G ¥72,100
61703-87026 Panel Sub-assy, Quarter, Inner RH
1982-11 → 1984-08 ended
CR21,YR20,21 HRF (E,Q,X) —
61703-87027 note Panel Sub-assy, Quarter, Inner RH
1982-11 → 1984-08 ended
YR20,21 Q —
61703-87028 note Panel Sub-assy, Quarter, Inner RH
1982-11 → 1984-08 ended
YR20 HRF G —
61703-87029 Panel Sub-assy, Quarter, Inner RH
1982-11 → 1985-08 ended
KR26,YR26 V4D SRF 06S ¥72,500
61703-87030 Panel Sub-assy, Quarter, Inner RH
1983-04 → 1985-08 ended
CR26 V4D SRF 05S +1 ¥72,500
61703-87030 Panel Sub-assy, Quarter, Inner RH
1982-11 → 1983-04 ended
CR26,YR26 V4D SRF 05S ¥72,500
61703-87031 Panel Sub-assy, Quarter, Inner RH
1982-11 → 1985-08 ended
KR26,YR26 V4D HRF D ¥72,500
61703-87032 Panel Sub-assy, Quarter, Inner RH
1983-04 → 1985-08 ended
CR26 V4D HRF D ¥72,500
61703-87032 Panel Sub-assy, Quarter, Inner RH
1982-11 → 1983-04 ended
CR26,YR26 V4D HRF 05S ¥72,500
61703-87034 Panel Sub-assy, Quarter, Inner RH
1982-11 → 1985-08 ended
KR26,YR26 V4D 03S ¥72,500
61703-87035 Panel Sub-assy, Quarter, Inner RH
1982-11 → 1985-08 ended
CR26 02S ¥48,300
61703-87037 Panel Sub-assy, Quarter, Inner RH
1984-08 → 1988-08 ended
CR26,KR26,YR26 V5D SRF D ¥35,300
61703-87037 Panel Sub-assy, Quarter, Inner RH
1982-11 → 1984-08 ended
CR26,KR26,YR26 V5D SRF ¥35,300
61703-87038 Panel Sub-assy, Quarter, Inner RH
1984-08 → 1988-08 ended
CR26,36,KR26,YR26 V5D HRF D ¥35,300
61703-87038 Panel Sub-assy, Quarter, Inner RH
1982-11 → 1984-08 ended
CR26,YR26 V5D HRF ¥35,300
61703-87043 note Panel Sub-assy, Quarter, Inner RH
1983-06 → 1988-08 ended
KR26,YR26 V4D SRF 06S ¥72,300
61703-87044 note Panel Sub-assy, Quarter, Inner RH
1984-08 → 1988-08 ended
CR26,36 V4D SRF 05S +1 ¥72,300
61703-87044 note Panel Sub-assy, Quarter, Inner RH
1983-04 → 1984-08 ended
CR26,YR26 V4D SRF 05S ¥72,300
61703-87045 note Panel Sub-assy, Quarter, Inner RH
1983-04 → 1988-08 ended
KR26,YR26 V4D HRF 06S ¥72,300
61703-87046 note Panel Sub-assy, Quarter, Inner RH
1983-04 → 1984-08 ended
CR26,YR26 V4D HRF 05S ¥72,300
61703-87046 note Panel Sub-assy, Quarter, Inner RH
1984-08 → 1988-08 ended
CR26,36 V4D HRF 05S +1 ¥72,300
61703-87047 note Panel Sub-assy, Quarter, Inner RH
1983-06 → 1988-08 ended
KR26,YR26 V4D SRF 03S ¥72,300
61703-87048 note Panel Sub-assy, Quarter, Inner RH
1983-04 → 1984-08 ended
CR26 02S ¥72,300
61703-87048 note Panel Sub-assy, Quarter, Inner RH
1984-08 → 1988-08 ended
CR26 SRF 02S ¥72,300
61703-87051 Panel Sub-assy, Quarter, Inner RH
1984-08 → 1985-08 ended
CR21,YR20 MRF E ¥72,100
61703-87052 Panel Sub-assy, Quarter, Inner RH
1984-08 → 1985-08 ended
CR21,YR20 HRF E ¥72,100
61703-87053 note Panel Sub-assy, Quarter, Inner RH
1984-08 → 1985-08 ended
YR20,21 Q ¥72,100
61703-87054 note Panel Sub-assy, Quarter, Inner RH
1984-08 → 1984-12 ended
CR21,YR20 HRF E ¥72,100
61703-87057 note Panel Sub-assy, Quarter, Inner RH
1984-08 → 1985-08 ended
CR21,YR20,21 MRF G ¥72,100
61703-87058 note Panel Sub-assy, Quarter, Inner RH
1984-08 → 1985-08 ended
YR20 HRF G ¥72,100
61703-87059 note Panel Sub-assy, Quarter, Inner RH
1984-08 → 1985-08 ended
KR26,YR26 V4D SRF 06S ¥72,300
61703-87060 note Panel Sub-assy, Quarter, Inner RH
1984-08 → 1985-08 ended
CR26 V4D SRF 05S +1 ¥72,300
61703-87061 note Panel Sub-assy, Quarter, Inner RH
1984-08 → 1985-08 ended
KR26,YR26 V4D HRF D ¥72,300
61703-87062 note Panel Sub-assy, Quarter, Inner RH
1984-08 → 1985-08 ended
CR26 V4D HRF D ¥72,300
61703-87063 note Panel Sub-assy, Quarter, Inner RH
1984-08 → 1985-08 ended
KR26,YR26 V4D 03S D ¥72,300
61703-87064 note Panel Sub-assy, Quarter, Inner RH
1984-08 → 1985-08 ended
CR26 02S ¥72,300
61703-87065 Panel Sub-assy, Quarter, Inner RH
1984-08 → 1988-08 ended
YR26 V5D SRF N ¥35,300
61703-87065 note Panel Sub-assy, Quarter, Inner RH
1984-08 → 1988-08 ended
CR26,KR26,YR26 V5D SRF D ¥35,300
61703-87066 Panel Sub-assy, Quarter, Inner RH
1984-08 → 1988-08 ended
CR26,27,YR26 V5D HRF N ¥35,300
61703-87066 note Panel Sub-assy, Quarter, Inner RH
1984-08 → 1988-08 ended
CR26,KR26,YR26 V5D HRF D ¥35,300
61703-87068 note Panel Sub-assy, Quarter, Inner RH
1984-08 → 1988-08 ended
KR26,YR26 V4D SRF 06S ¥72,300
61703-87069 Panel Sub-assy, Quarter, Inner RH
1984-08 → 1988-08 ended
CR26,27,YR26 V4D SRF N ¥72,300
61703-87069 note Panel Sub-assy, Quarter, Inner RH
1984-08 → 1988-08 ended
CR26,36 V4D SRF 05S +1 ¥72,300
61703-87070 note Panel Sub-assy, Quarter, Inner RH
1984-08 → 1988-08 ended
KR26,YR26 V4D HRF 06S ¥72,300
61703-87071 note Panel Sub-assy, Quarter, Inner RH
1984-08 → 1988-08 ended
CR26,36 V4D HRF 05S +1 ¥72,300
61703-87071 Panel Sub-assy, Quarter, Inner RH
1984-08 → 1988-08 ended
CR26,27,36,YR26 V4D HRF N ¥72,300
61703-87072 note Panel Sub-assy, Quarter, Inner RH
1984-08 → 1988-08 ended
KR26,YR26 V4D SRF 03S +1 ¥72,300
61703-87073 note Panel Sub-assy, Quarter, Inner RH
1984-08 → 1988-08 ended
CR26 SRF 02S ¥72,300
61703-87076 note Panel Sub-assy, Quarter, Inner RH
1984-08 → 1985-08 ended
YR20 HRF G ¥72,100
61703-87077 note Panel Sub-assy, Quarter, Inner RH
1984-08 → 1985-08 ended
CR21,YR20 MRF E —
61703-87078 note Panel Sub-assy, Quarter, Inner RH
1984-08 → 1985-08 ended
CR21,YR20,21 HRF (E,Q,X) ¥72,100
61703-87079 note Panel Sub-assy, Quarter, Inner RH
1984-08 → 1985-08 ended
YR20 HRF G ¥72,100
61703-87G09 note Panel Sub-assy, Quarter, Inner RH
1985-08 → 1988-08 ended
CR28,YR28 SRF ¥72,300
61703-87G10 note Panel Sub-assy, Quarter, Inner RH
1985-08 → 1988-08 ended
CR28,37,YR28,36 HRF ¥72,300
61703-87G11 note Panel Sub-assy, Quarter, Inner RH
1985-08 → 1988-08 ended
CR28,YR28 SRF ¥72,300
61703-87G12 note Panel Sub-assy, Quarter, Inner RH
1985-08 → 1988-08 ended
CR28,37,YR28,36 HRF ¥72,300
61703-87G15 note Panel Sub-assy, Quarter, Inner RH
1985-08 → 1988-08 ended
YR26 HRF 03S ¥72,300
61703-87G16 note Panel Sub-assy, Quarter, Inner RH
1985-08 → 1988-08 ended
YR26 HRF 03S ¥72,300
61703-87G19 note Panel Sub-assy, Quarter, Inner RH
1985-08 → 1988-08 ended
CR26,36 HRF 02S ¥72,300
61703-87G20 note Panel Sub-assy, Quarter, Inner RH
1985-08 → 1988-08 ended
CR26,36 HRF 02S ¥72,300
61703-87G21 Panel Sub-assy, Quarter, Inner RH
1985-08 → 1988-08 ended
CR21,YR20 D ¥72,300
61703-87G22 Panel Sub-assy, Quarter, Inner RH
1985-08 → 1986-08 ended
CR21,YR20 MRF G —
61703-87G23 note Panel Sub-assy, Quarter, Inner RH
1985-08 → 1986-08 ended
CR21,YR20 MRF G —
61703-87G23 Panel Sub-assy, Quarter, Inner RH
1986-08 → 1988-08 ended
CR21,YR20 MRF G —
61703-87G24 Panel Sub-assy, Quarter, Inner RH
1985-08 → 1986-08 ended
YR20 HRF 5F G ¥72,100
61703-87G25 note Panel Sub-assy, Quarter, Inner RH
1985-08 → 1986-08 ended
CR30,YR20,30 HRF 5F G —
61703-87G28 Panel Sub-assy, Quarter, Inner RH
1985-08 → 1986-08 ended
YR20 MRF E ¥72,300
61703-87G29 Panel Sub-assy, Quarter, Inner RH
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥72,100
61703-87G30 note Panel Sub-assy, Quarter, Inner RH
1984-12 → 1985-08 ended
CR21,YR20 HRF E —
61703-87G31 note Panel Sub-assy, Quarter, Inner RH
1985-08 → 1986-08 ended
CR21,YR20,21 HRF (E,Q) ¥72,100
61703-87G32 note Panel Sub-assy, Quarter, Inner RH
1985-08 → 1986-08 ended
CR21,30,YR20,21 Q ¥72,100
61703-87G39 note Panel Sub-assy, Quarter, Inner RH
1985-08 → 1988-08 ended
KR26,YR26 V4D SRF 03S ¥72,300
61703-87G42 note Panel Sub-assy, Quarter, Inner RH
1985-08 → 1988-08 ended
KR26,YR26 V4D SRF 06S ¥72,300
61703-87G44 note Panel Sub-assy, Quarter, Inner RH
1985-08 → 1988-08 ended
KR26,YR26 V4D SRF 06S ¥72,300
61703-87G49 note Panel Sub-assy, Quarter, Inner RH
1985-08 → 1988-08 ended
KR26,YR26 V4D HRF 06S ¥72,300
61703-87G51 note Panel Sub-assy, Quarter, Inner RH
1985-08 → 1988-08 ended
KR26,YR26 V4D HRF 06S ¥72,300
61703-87G52 note Panel Sub-assy, Quarter, Inner RH
1985-08 → 1988-08 ended
CR26,27,YR26 V4D SRF N ¥72,300
61703-87G52 note Panel Sub-assy, Quarter, Inner RH
1985-08 → 1988-08 ended
CR26,36 V4D SRF D ¥72,300
61703-87G53 note Panel Sub-assy, Quarter, Inner RH
1985-08 → 1988-08 ended
CR26,36 V4D HRF 05S +1 ¥72,300
61703-87G53 note Panel Sub-assy, Quarter, Inner RH
1985-08 → 1988-08 ended
CR26,27,36,YR26 V4D HRF N ¥72,300
61703-87G55 note Panel Sub-assy, Quarter, Inner RH
1985-08 → 1988-08 ended
CR26,36 V4D SRF D ¥72,300
61703-87G58 note Panel Sub-assy, Quarter, Inner RH
1985-08 → 1988-08 ended
CR26,36 V4D HRF 05S +1 ¥72,300
61703-87G69 note Panel Sub-assy, Quarter, Inner RH
1985-08 → 1988-08 ended
YR26 HRF 03S ¥72,300
61703-87G70 note Panel Sub-assy, Quarter, Inner RH
1985-08 → 1988-08 ended
CR21,YR20 D ¥72,300
61703-87G71 note Panel Sub-assy, Quarter, Inner RH
1985-08 → 1988-08 ended
CR26 SRF 02S ¥48,700
61703-87G72 note Panel Sub-assy, Quarter, Inner RH
1985-08 → 1988-08 ended
CR26 SRF 02S ¥48,700
61703-87G73 note Panel Sub-assy, Quarter, Inner RH
1985-08 → 1988-08 ended
CR26,36 HRF 02S ¥48,700
61703-87G74 note Panel Sub-assy, Quarter, Inner RH
1985-08 → 1988-08 ended
CR26,36 HRF 02S ¥48,700
61703-87G75 Panel Sub-assy, Quarter, Inner RH
1986-08 → 1988-08 ended
YR20 MRF E ¥72,300
61703-87G76 Panel Sub-assy, Quarter, Inner RH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥72,300
61703-87G77 note Panel Sub-assy, Quarter, Inner RH
1986-08 → 1988-08 ended
CR21,YR20,21 HRF (E,Q) ¥72,300
61703-87G78 note Panel Sub-assy, Quarter, Inner RH
1986-08 → 1988-08 ended
CR21,30,YR21,30 Q ¥72,300
61708 — Panel Sub-assy, Quarter, Inner LH
61704-87023 Panel Sub-assy, Quarter, Inner LH
1985-08 → 1988-08 ended
CR28,YR28 SRF ¥35,300
61704-87023 Panel Sub-assy, Quarter, Inner LH
1982-11 → 1985-08 ended
CR21,YR20 D ¥35,300
61704-87024 Panel Sub-assy, Quarter, Inner LH
1982-11 → 1985-08 ended
CR21,YR20,21 MRF G ¥34,800
61704-87025 note Panel Sub-assy, Quarter, Inner LH
1983-10 → 1983-11 ended
YR20 MRF 5F G ¥34,800
61704-87025 Panel Sub-assy, Quarter, Inner LH
1982-11 → 1985-08 ended
CR21,YR20,21 MRF (E,X) ¥34,800
61704-87027 Panel Sub-assy, Quarter, Inner LH
1982-11 → 1985-08 ended
YR20 HRF G ¥34,800
61704-87028 Panel Sub-assy, Quarter, Inner LH
1982-11 → 1985-08 ended
CR21,YR20,21 HRF (E,Q,X) ¥34,800
61704-87029 note Panel Sub-assy, Quarter, Inner LH
1982-11 → 1985-08 ended
YR20,21 Q ¥34,800
61704-87030 note Panel Sub-assy, Quarter, Inner LH
1982-11 → 1984-08 ended
YR20 HRF G —
61704-87030 note Panel Sub-assy, Quarter, Inner LH
1984-08 → 1984-12 ended
CR21,YR20 HRF E —
61704-87031 Panel Sub-assy, Quarter, Inner LH
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 SRF ¥35,300
61704-87032 Panel Sub-assy, Quarter, Inner LH
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 HRF ¥35,300
61704-87039 note Panel Sub-assy, Quarter, Inner LH
1984-08 → 1985-08 ended
CR21,YR20 MRF E —
61704-87041 Panel Sub-assy, Quarter, Inner LH
1985-08 → 1988-08 ended
CR28,37,YR28,36 HRF ¥35,300
61704-87042 Panel Sub-assy, Quarter, Inner LH
1986-08 → 1988-08 ended
CR30,YR20,30 HRF 5F G ¥35,300
61704-87044 Panel Sub-assy, Quarter, Inner LH
1985-08 → 1988-08 ended
CR21,YR20 D ¥35,300
61704-87045 Panel Sub-assy, Quarter, Inner LH
1985-08 → 1988-08 ended
CR21,YR20 MRF G ¥35,300
61704-87046 Panel Sub-assy, Quarter, Inner LH
1985-08 → 1988-08 ended
YR20 MRF E ¥35,300
61704-87047 Panel Sub-assy, Quarter, Inner LH
1985-08 → 1986-08 ended
CR30,YR20,30 HRF 5F G —
61704-87048 Panel Sub-assy, Quarter, Inner LH
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥35,100
61704-87049 note Panel Sub-assy, Quarter, Inner LH
1985-08 → 1986-08 ended
CR21,30,YR20,21 Q —
61704-87050 note Panel Sub-assy, Quarter, Inner LH
1984-12 → 1985-08 ended
CR21,YR20 HRF E ¥34,800
61704-87058 note Panel Sub-assy, Quarter, Inner LH
1986-08 → 1988-08 ended
CR21,30,YR21,30 Q ¥35,300
61704-87064 Panel Sub-assy, Quarter, Inner LH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥35,300
61725 — Box, Fuel Inlet
61709-87003 Box, Fuel Inlet
1982-11 → 1984-08 ended
CR2#,KR26,YR2# D,E,G,N,R ¥3,540
61709-87003 Box, Fuel Inlet
1984-08 → 1986-02 ended
CR2#,3#,KR26,YR2#,30 B,D,G,N,R ¥3,540
61709-87004 note Box, Fuel Inlet
1982-11 → 1986-02 ended
CR21,30,YR20,21,30 E,Q,X ¥3,240
61709-87005 Box, Fuel Inlet
1986-02 → 1986-08 ended
YR20 MRF (D,G);YR20 HRF +3 ¥3,540
61709-87006 note Box, Fuel Inlet
1986-02 → 1986-08 ended
CR21,30,YR20,21,30 E,Q ¥3,280
61709-87006 note Box, Fuel Inlet
1986-08 → 1988-08 ended
YR20 7,36,KR26,YR26 HRF V4D +6 ¥3,280
61709-87007 Box, Fuel Inlet
1986-08 → 1988-08 ended
CR26,27,36,KR26,YR26 V5D ¥4,130
61743A — Reinforcement, Back Door Opening Side, RH
61743-87001 Reinforcement, Back Door Opening Side, RH
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥2,170
61744A — Reinforcement, Back Door Opening Side, LH
61744-87001 Reinforcement, Back Door Opening Side, LH
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥2,170
61745A — Reinforcement, Back Door Opening, Lower RH
61745-87001 Reinforcement, Back Door Opening, Lower RH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥6,300
61746A — Reinforcement, Back Door Opening, Lower LH
61746-87001 Reinforcement, Back Door Opening, Lower LH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥6,300
61828A — Bracket, Rear Door Rail, Center RH
61828-87001 Bracket, Rear Door Rail, Center RH
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 V5D ¥650
62589E — Pad, Quarter Pillar
62589-87001 Pad, Quarter Pillar
1988-01 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥1,290
63168A — Retainer, Roof Reinforcement, NO.1
63168-87001 Retainer, Roof Reinforcement, NO.1
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# (HRF,MRF) (B,D,E,G,N) ¥860
63169 — Retainer, Roof Reinforcement, NO.2
63169-87001 Retainer, Roof Reinforcement, NO.2
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 V5D HRF ¥860
63169-87001 Retainer, Roof Reinforcement, NO.2
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# (HRF,MRF) (B,D,E,G,N) ¥860
67171A — Reinforcement, Door Hinge, RH
67171-87002 Reinforcement, Door Hinge, RH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# HRF ¥470
67172A — Reinforcement, Door Hinge, LH
67172-87002 Reinforcement, Door Hinge, LH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# HRF ¥470
67178 — Retainer, Rear Door Switch, RH
67178-87003 Retainer, Rear Door Switch, RH
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 V5D ¥1,950
67179 — Retainer, Rear Door Switch, LH
67179-87001 Retainer, Rear Door Switch, LH
1982-11 → 1988-08 ended
CR2#,30,36,KR26,YR2#,3# ¥1,950
68981A — Retainer, Back Door Stay, RH
68981-87002 Retainer, Back Door Stay, RH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥640
68982A — Retainer, Back Door Stay, LH
68982-87001 Retainer, Back Door Stay, LH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥640
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
