Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

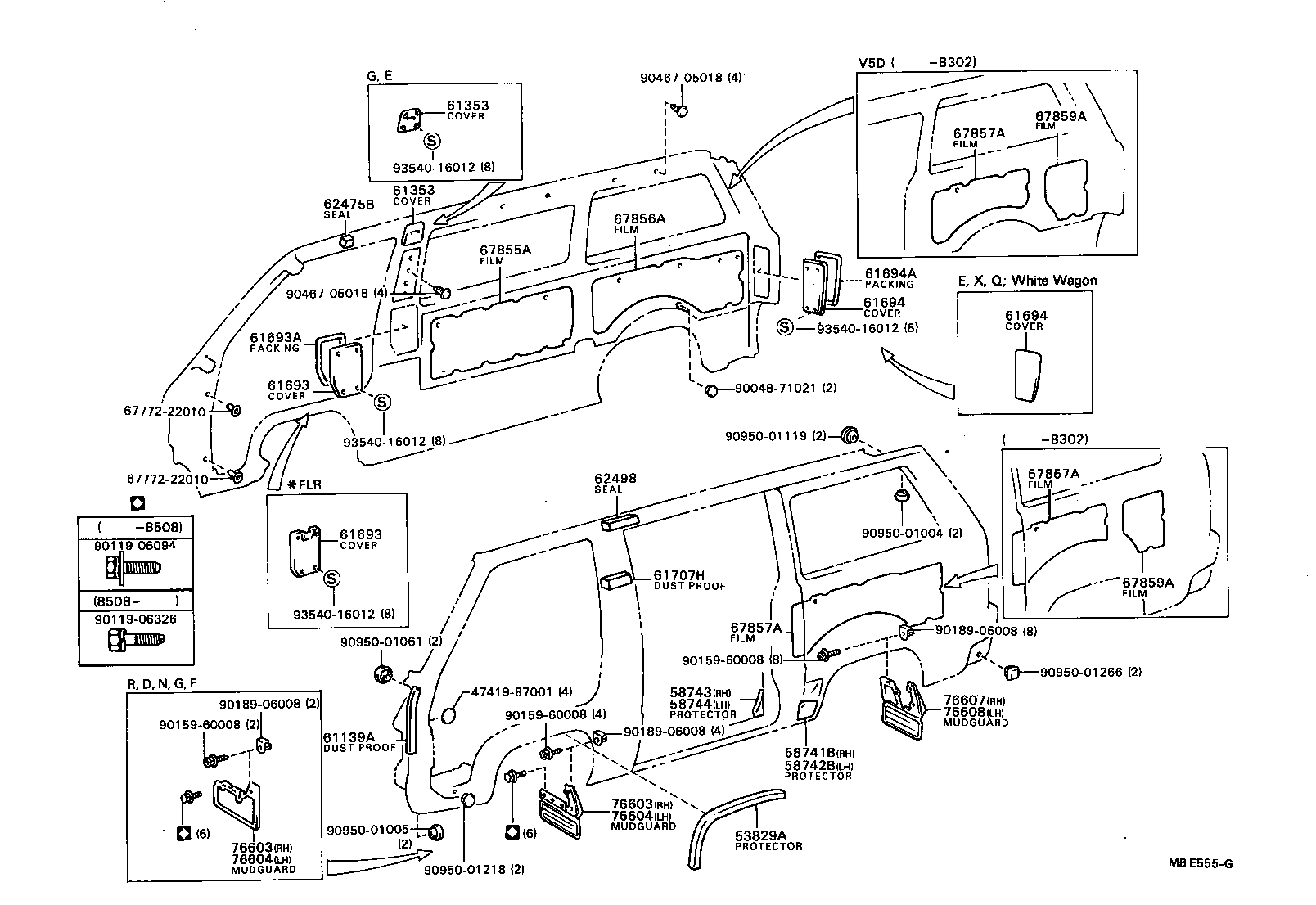

Exploded illustration MBE555G 9046705018 — not listed in this catalogue 61353 — COVER, CENTER PILLAR UPPER (2 parts) 67859A — FILM, QUARTER SERVICE HOLE, NO.5 (2 parts) 67857A — FILM, QUARTER SERVICE HOLE, NO.3 (2 parts) 9354016012 — not listed in this catalogue 61353 — COVER, CENTER PILLAR UPPER (2 parts) 62475B — SEAL, ROOF SIDE, INNER (1 parts) 67856A — FILM, QUARTER SERVICE HOLE, NO.2 (2 parts) 67855A — FILM, QUARTER SERVICE HOLE, NO.1 (2 parts) 61694A — PACKING, QUARTER SERVICE HOLE COVER, NO.1 (1 parts) 9046705018 — not listed in this catalogue 61694 — COVER, QUARTER INNER, NO.1 (6 parts) 61694 — COVER, QUARTER INNER, NO.1 (6 parts) 9354016012 — not listed in this catalogue 61693A — PACKING, CENTER PILLAR SERVICE HOLE COVER (1 parts) 61693 — COVER, CENTER BODY PILLAR INNER (4 parts) 9004871021 — not listed in this catalogue 6777222010 — not listed in this catalogue 9095001119 — not listed in this catalogue 9354016012 — not listed in this catalogue 67857A — FILM, QUARTER SERVICE HOLE, NO.3 (2 parts) 62498 — SEAL, ROOF SIDE, INNER REAR (1 parts) 6777222010 — not listed in this catalogue 9095001004 — not listed in this catalogue 61693 — COVER, CENTER BODY PILLAR INNER (4 parts) 9011906094 — not listed in this catalogue 61707H — DUST PROOF, CENTER PILLAR (2 parts) 67859A — FILM, QUARTER SERVICE HOLE, NO.5 (2 parts) 9354016012 — not listed in this catalogue 9011906326 — not listed in this catalogue 67857A — FILM, QUARTER SERVICE HOLE, NO.3 (2 parts) 9018906008 — not listed in this catalogue 9095001061 — not listed in this catalogue 9015960008 — not listed in this catalogue 9095001266 — not listed in this catalogue 4741987001 — not listed in this catalogue 58743 — PROTECTER, SLIDE DOOR PANEL, RH (1 parts) 76607 — MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH (41 parts) 9018906008 — not listed in this catalogue 58744 — PROTECTER, SLIDE DOOR PANEL, LH (1 parts) 76608 — MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH (41 parts) 9015960008 — not listed in this catalogue 9015960008 — not listed in this catalogue 9018906008 — not listed in this catalogue 61139A — DUST PROOF, FRONT PILLAR, NO.1 (3 parts) 58741B — PROTECTOR, QUARTER PANEL, RH (2 parts) 58742B — PROTECTOR, QUARTER PANEL, LH (1 parts) 76603 — MUDGUARD SUB-ASSY, FRONT FENDER, RH (34 parts) 76604 — MUDGUARD SUB-ASSY, FRONT FENDER, LH (34 parts) 9095001005 — not listed in this catalogue 53829A — PROTECTOR, FRONT FENDER, LOWER (4 parts) 76603 — MUDGUARD SUB-ASSY, FRONT FENDER, RH (34 parts) 76604 — MUDGUARD SUB-ASSY, FRONT FENDER, LH (34 parts) 9095001218 — not listed in this catalogue
MBE555G · 30 callouts, 24 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
188 parts on this figure
Part number Description Fitment Price
53829A — Protector, Front Fender, Lower
53829-87001 note Protector, Front Fender, Lower
1984-08 → 1986-08 ended
CR21,27,28,30,KR26,YR2# ¥1,040
53829-87001 note Protector, Front Fender, Lower
1984-08 → 1986-08 ended
CR26,36 V4D ¥1,040
53829-87001 note Protector, Front Fender, Lower
1986-08 → 1986-11 ended
YR20 HRF E;YR20 HRF +4 ¥1,040
53829-87002 note Protector, Front Fender, Lower
1986-11 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥1,050
58741B — Protector, Quarter Panel, RH
58741-87001 note Protector, Quarter Panel, RH
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 V5D ¥970
58741-87002 note Protector, Quarter Panel, RH
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 V4D;CR21,28,30,37,YR20,21,28,3# ¥1,160
58742B — Protector, Quarter Panel, LH
58742-87001 note Protector, Quarter Panel, LH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥970
58743 — Protecter, Slide Door Panel, RH
58743-87001 note Protecter, Slide Door Panel, RH
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 V5D ¥840
58744 — Protecter, Slide Door Panel, LH
58744-87001 note Protecter, Slide Door Panel, LH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥840
61139A — Dust Proof, Front Pillar, NO.1
53159-87001 Dust Proof, Front Pillar, NO.1
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥500
53159-87001 note Dust Proof, Front Pillar, NO.1
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥500
53159-87003 note Dust Proof, Front Pillar, NO.1
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥500
61353 — Cover, Center Pillar Upper
62429-87003 Cover, Center Pillar Upper
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 E,G ¥810
67804-87003 Cover, Center Pillar Upper
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 V4D;CR21,28,37,YR20,28,36 B,D ¥1,550
61693 — Cover, Center Body Pillar Inner
67843-87002 note Cover, Center Body Pillar Inner
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# B,D,G,N,R ¥1,950
67843-87003 note Cover, Center Body Pillar Inner
1982-11 → 1985-08 ended
CR26,KR26,YR26 D,R ¥2,640
67844-87002 note Cover, Center Body Pillar Inner
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# B,D,G,N,R ¥2,640
67844-87003 note Cover, Center Body Pillar Inner
1982-11 → 1985-08 ended
CR26,KR26,YR26 D,R —
61693A — Packing, Center Pillar Service Hole Cover
62492-87002 note Packing, Center Pillar Service Hole Cover
1982-11 → 1985-08 ended
CR26,KR26,YR26 D,R —
61694 — Cover, Quarter Inner, NO.1
67841-87003 note Cover, Quarter Inner, NO.1
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# B,D,G,N,R ¥2,210
67841-87004 note Cover, Quarter Inner, NO.1
1983-10 → 1983-11 ended
YR20 MRF 5F G ¥750
67841-87004 note Cover, Quarter Inner, NO.1
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 E,Q,X ¥750
67842-87001 note Cover, Quarter Inner, NO.1
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# B,D,G,N,R ¥2,210
67842-87002 note Cover, Quarter Inner, NO.1
1983-10 → 1983-11 ended
YR20 MRF 5F G ¥750
67842-87002 note Cover, Quarter Inner, NO.1
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 E,Q,X ¥750
61694A — Packing, Quarter Service Hole Cover, NO.1
62493-87002 Packing, Quarter Service Hole Cover, NO.1
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# B,D,G,N,R ¥190
61707H — Dust Proof, Center Pillar
61396-87002 Dust Proof, Center Pillar
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 V4D;CR21,28,30,37,YR20,21,28,3# ¥1,350
61396-87002 Dust Proof, Center Pillar
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 V5D ¥1,350
62475B — Seal, Roof Side, Inner
62475-87001 Seal, Roof Side, Inner
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 V4D;CR21,28,30,37,YR20,21,28,3# ¥990
62498 — Seal, Roof Side, Inner Rear
62498-87001 Seal, Roof Side, Inner Rear
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 V4D;CR21,28,30,37,YR20,21,28,3# ¥1,070
67855A — Film, Quarter Service Hole, NO.1
67855-87001 note Film, Quarter Service Hole, NO.1
1982-11 → 1985-08 ended
CR26,KR26,YR26 V4D;CR21,27,YR20,21 D,G,N ¥640
67855-87001 note Film, Quarter Service Hole, NO.1
1985-08 → 1988-08 ended
CR26,27,36,KR26,YR26 V4D;CR21,28,37,YR20,28,36 B,D ¥640
67856A — Film, Quarter Service Hole, NO.2
67856-87001 note Film, Quarter Service Hole, NO.2
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 V4D;CR21,28,30,37,YR20,21,28,3# B,D,G ¥640
67857-87004 note Film, Quarter Service Hole, NO.2
1983-02 → 1988-08 ended
CR26,27,36,KR26,YR26 V5D ¥320
67857A — Film, Quarter Service Hole, NO.3
67857-87004 note Film, Quarter Service Hole, NO.3
1982-11 → 1983-02 ended
CR26,KR26,YR2# D,G,N,R ¥320
67857-87004 note Film, Quarter Service Hole, NO.3
1983-02 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# B,D,G,N,R ¥320
67859A — Film, Quarter Service Hole, NO.5
67859-87001 note Film, Quarter Service Hole, NO.5
1982-11 → 1983-02 ended
CR26,KR26,YR26 V4D ¥270
67859-87001 note Film, Quarter Service Hole, NO.5
1982-11 → 1983-02 ended
CR26,KR26,YR26 V5D ¥270
76603 — Mudguard Sub-assy, Front Fender, RH
53881-87001 Mudguard Sub-assy, Front Fender, RH
1982-11 → 1984-08 ended
CR2#,KR26,YR2# D,E,G,N,R ¥2,730
53881-87001 Mudguard Sub-assy, Front Fender, RH
1984-08 → 1986-08 ended
CR2#,3#,KR26,YR2#,30 B,D,G,N,R ¥2,730
53881-87002 Mudguard Sub-assy, Front Fender, RH
1986-08 → 1988-08 ended
YR20 MRF (D,G);YR20 HRF +3 ¥2,710
76603-87004 Mudguard Sub-assy, Front Fender, RH
1982-11 → 1984-08 ended
YR20,21 07S ¥5,300
76603-87004 Mudguard Sub-assy, Front Fender, RH
1984-08 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥5,300
76603-87004 note Mudguard Sub-assy, Front Fender, RH
1984-04 → 1984-05 ended
YR20 HRF E ¥5,300
76603-87005-03 note Mudguard Sub-assy, Front Fender, RH
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E,Q ¥8,200
76603-87005-04 note Mudguard Sub-assy, Front Fender, RH
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E,Q —
76603-87005-05 note Mudguard Sub-assy, Front Fender, RH
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E,Q —
76603-87005-06 note Mudguard Sub-assy, Front Fender, RH
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E,Q ¥8,200
76603-87005-08 note Mudguard Sub-assy, Front Fender, RH
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E,Q —
76603-87005-13 note Mudguard Sub-assy, Front Fender, RH
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E,Q ¥8,200
76603-87005-14 note Mudguard Sub-assy, Front Fender, RH
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E,Q ¥8,200
76603-87005-18 note Mudguard Sub-assy, Front Fender, RH
1986-04 → 1986-08 ended
CR21,YR20,21 HRF E —
76603-87005-23 note Mudguard Sub-assy, Front Fender, RH
1986-04 → 1986-08 ended
CR21,YR20,21 HRF E —
76603-87006 note Mudguard Sub-assy, Front Fender, RH
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E ¥5,300
76603-87007-03 note Mudguard Sub-assy, Front Fender, RH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥8,100
76603-87007-04 note Mudguard Sub-assy, Front Fender, RH
1986-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥8,100
76603-87007-05 note Mudguard Sub-assy, Front Fender, RH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥8,100
76603-87007-06 note Mudguard Sub-assy, Front Fender, RH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥8,100
76603-87007-08 note Mudguard Sub-assy, Front Fender, RH
1986-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q —
76603-87007-13 note Mudguard Sub-assy, Front Fender, RH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥8,100
76603-87007-14 note Mudguard Sub-assy, Front Fender, RH
1986-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥8,100
76603-87007-18 note Mudguard Sub-assy, Front Fender, RH
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥8,100
76603-87007-24 note Mudguard Sub-assy, Front Fender, RH
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q —
76603-87007-34 note Mudguard Sub-assy, Front Fender, RH
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥8,100
76603-87008 note Mudguard Sub-assy, Front Fender, RH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E ¥5,300
76603-87009 note Mudguard Sub-assy, Front Fender, RH
1986-10 → 1986-11 ended
CR21,YR20,21 HRF E —
76603-87010 note Mudguard Sub-assy, Front Fender, RH
1987-04 → 1988-08 ended
CR21,30,YR20,21,30 HRF E ¥5,300
76603-87011 note Mudguard Sub-assy, Front Fender, RH
1987-09 → 1988-01 ended
CR21,30,YR21,30 E ¥6,100
76603-87013 note Mudguard Sub-assy, Front Fender, RH
1988-01 → 1988-04 ended
CR21,30,YR21,30 E —
76603-87015 note Mudguard Sub-assy, Front Fender, RH
1988-04 → 1988-08 ended
CR21,30,YR21,30 E —
76603-95D00 note Mudguard Sub-assy, Front Fender, RH
1986-10 → 1986-11 ended
CR30,YR30 E —
76603-95D01 note Mudguard Sub-assy, Front Fender, RH
1986-10 → 1986-11 ended
CR21,30,YR20,21,30 HRF E —
76604 — Mudguard Sub-assy, Front Fender, LH
53881-87001 Mudguard Sub-assy, Front Fender, LH
1982-11 → 1984-08 ended
CR2#,KR26,YR2# D,E,G,N,R ¥2,730
53881-87001 Mudguard Sub-assy, Front Fender, LH
1984-08 → 1986-08 ended
CR2#,3#,KR26,YR2#,30 B,D,G,N,R ¥2,730
53881-87002 Mudguard Sub-assy, Front Fender, LH
1986-08 → 1988-08 ended
YR20 MRF (D,G);YR20 HRF +3 ¥2,710
76604-87004 note Mudguard Sub-assy, Front Fender, LH
1984-04 → 1984-05 ended
YR20 HRF E ¥5,300
76604-87004 Mudguard Sub-assy, Front Fender, LH
1982-11 → 1984-08 ended
YR20,21 07S ¥5,300
76604-87004 Mudguard Sub-assy, Front Fender, LH
1984-08 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥5,300
76604-87005-03 note Mudguard Sub-assy, Front Fender, LH
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E,Q —
76604-87005-04 note Mudguard Sub-assy, Front Fender, LH
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E,Q —
76604-87005-05 note Mudguard Sub-assy, Front Fender, LH
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E,Q ¥8,200
76604-87005-06 note Mudguard Sub-assy, Front Fender, LH
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E,Q ¥8,200
76604-87005-08 note Mudguard Sub-assy, Front Fender, LH
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E,Q —
76604-87005-13 note Mudguard Sub-assy, Front Fender, LH
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E,Q ¥8,200
76604-87005-14 note Mudguard Sub-assy, Front Fender, LH
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E,Q ¥8,200
76604-87005-18 note Mudguard Sub-assy, Front Fender, LH
1986-04 → 1986-08 ended
CR21,YR20,21 HRF E —
76604-87005-23 note Mudguard Sub-assy, Front Fender, LH
1986-04 → 1986-08 ended
CR21,YR20,21 HRF E —
76604-87006 note Mudguard Sub-assy, Front Fender, LH
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E ¥5,300
76604-87007-03 note Mudguard Sub-assy, Front Fender, LH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥8,100
76604-87007-04 note Mudguard Sub-assy, Front Fender, LH
1986-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q —
76604-87007-05 note Mudguard Sub-assy, Front Fender, LH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥8,100
76604-87007-06 note Mudguard Sub-assy, Front Fender, LH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥8,100
76604-87007-08 note Mudguard Sub-assy, Front Fender, LH
1986-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q —
76604-87007-13 note Mudguard Sub-assy, Front Fender, LH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥8,100
76604-87007-14 note Mudguard Sub-assy, Front Fender, LH
1986-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥8,100
76604-87007-18 note Mudguard Sub-assy, Front Fender, LH
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥8,100
76604-87007-24 note Mudguard Sub-assy, Front Fender, LH
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥8,100
76604-87007-34 note Mudguard Sub-assy, Front Fender, LH
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥8,100
76604-87008 note Mudguard Sub-assy, Front Fender, LH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E ¥5,300
76604-87009 note Mudguard Sub-assy, Front Fender, LH
1986-10 → 1986-11 ended
CR21,YR20,21 HRF E ¥6,600
76604-87010 note Mudguard Sub-assy, Front Fender, LH
1987-04 → 1988-08 ended
CR21,30,YR20,21,30 HRF E ¥5,100
76604-87011 note Mudguard Sub-assy, Front Fender, LH
1987-09 → 1988-01 ended
CR21,30,YR21,30 E —
76604-87013 note Mudguard Sub-assy, Front Fender, LH
1988-01 → 1988-04 ended
CR21,30,YR21,30 E —
76604-87015 note Mudguard Sub-assy, Front Fender, LH
1988-04 → 1988-08 ended
CR21,30,YR21,30 E ¥6,900
76604-95D00 note Mudguard Sub-assy, Front Fender, LH
1986-10 → 1986-11 ended
CR30,YR30 E —
76604-95D01 note Mudguard Sub-assy, Front Fender, LH
1986-10 → 1986-11 ended
CR21,30,YR20,21,30 HRF E —
76607 — Mudguard Sub-assy, Quarter Panel, Rear RH
76607-87007 note Mudguard Sub-assy, Quarter Panel, Rear RH
1984-04 → 1984-05 ended
YR20 HRF E ¥4,620
76607-87007 Mudguard Sub-assy, Quarter Panel, Rear RH
1982-11 → 1984-08 ended
YR20,21 07S ¥4,620
76607-87007 Mudguard Sub-assy, Quarter Panel, Rear RH
1984-08 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥4,620
76607-87009-03 note Mudguard Sub-assy, Quarter Panel, Rear RH
1985-08 → 1988-08 ended
CR21,YR20,21 E,Q ¥7,100
76607-87009-04 note Mudguard Sub-assy, Quarter Panel, Rear RH
1985-08 → 1987-08 ended
CR21,YR20,21 E,Q —
76607-87009-05 note Mudguard Sub-assy, Quarter Panel, Rear RH
1985-08 → 1988-08 ended
CR21,YR20,21 E,Q ¥7,100
76607-87009-06 note Mudguard Sub-assy, Quarter Panel, Rear RH
1985-08 → 1986-08 ended
CR21,YR20,21 E,Q ¥7,100
76607-87009-08 note Mudguard Sub-assy, Quarter Panel, Rear RH
1985-08 → 1987-08 ended
CR21,YR20,21 E,Q ¥7,100
76607-87009-13 note Mudguard Sub-assy, Quarter Panel, Rear RH
1985-08 → 1988-08 ended
CR21,YR20,21 E,Q ¥7,100
76607-87009-14 note Mudguard Sub-assy, Quarter Panel, Rear RH
1985-08 → 1987-08 ended
CR21,YR20,21 E,Q ¥7,100
76607-87009-16 note Mudguard Sub-assy, Quarter Panel, Rear RH
1986-08 → 1988-08 ended
CR21,YR20,21 E,Q ¥7,100
76607-87009-18 note Mudguard Sub-assy, Quarter Panel, Rear RH
1986-04 → 1986-08 ended
CR21,YR20,21 HRF E ¥7,100
76607-87009-23 note Mudguard Sub-assy, Quarter Panel, Rear RH
1986-04 → 1986-08 ended
CR21,YR20,21 HRF E —
76607-87009-28 note Mudguard Sub-assy, Quarter Panel, Rear RH
1987-08 → 1988-08 ended
CR21,YR20,21 E,Q ¥7,100
76607-87009-34 note Mudguard Sub-assy, Quarter Panel, Rear RH
1987-08 → 1988-08 ended
CR21,YR20,21 E,Q ¥7,100
76607-87009-44 note Mudguard Sub-assy, Quarter Panel, Rear RH
1987-08 → 1988-08 ended
CR21,YR20,21 E,Q ¥7,100
76607-87010 note Mudguard Sub-assy, Quarter Panel, Rear RH
1985-08 → 1988-08 ended
CR21,YR20,21 E ¥4,830
76607-87013 note Mudguard Sub-assy, Quarter Panel, Rear RH
1986-10 → 1986-11 ended
CR21,YR20,21 HRF E —
76607-87014 note Mudguard Sub-assy, Quarter Panel, Rear RH
1986-10 → 1986-11 ended
CR21,YR20,21 HRF E —
76607-87015 note Mudguard Sub-assy, Quarter Panel, Rear RH
1987-04 → 1988-08 ended
CR21,YR20,21 HRF E ¥4,810
76607-87016 note Mudguard Sub-assy, Quarter Panel, Rear RH
1987-09 → 1988-01 ended
CR21,YR21 E ¥5,800
76607-87018 note Mudguard Sub-assy, Quarter Panel, Rear RH
1988-01 → 1988-04 ended
CR21,YR21 E ¥7,000
76607-87021 note Mudguard Sub-assy, Quarter Panel, Rear RH
1988-04 → 1988-08 ended
CR21,YR21 E —
76607-95D00 note Mudguard Sub-assy, Quarter Panel, Rear RH
1985-10 → 1988-08 ended
CR30,YR30 E ¥4,650
76607-95D01-03 note Mudguard Sub-assy, Quarter Panel, Rear RH
1985-10 → 1988-08 ended
CR30,YR30 E,Q ¥7,000
76607-95D01-04 note Mudguard Sub-assy, Quarter Panel, Rear RH
1985-10 → 1987-08 ended
CR30,YR30 E,Q ¥7,000
76607-95D01-05 note Mudguard Sub-assy, Quarter Panel, Rear RH
1985-10 → 1988-08 ended
CR30,YR30 E,Q ¥7,000
76607-95D01-06 note Mudguard Sub-assy, Quarter Panel, Rear RH
1985-10 → 1986-08 ended
CR30,YR30 E,Q ¥7,000
76607-95D01-08 note Mudguard Sub-assy, Quarter Panel, Rear RH
1985-10 → 1987-08 ended
CR30,YR30 E,Q —
76607-95D01-13 note Mudguard Sub-assy, Quarter Panel, Rear RH
1985-10 → 1988-08 ended
CR30,YR30 E,Q ¥7,000
76607-95D01-14 note Mudguard Sub-assy, Quarter Panel, Rear RH
1985-10 → 1987-08 ended
CR30,YR30 E,Q ¥7,000
76607-95D01-16 note Mudguard Sub-assy, Quarter Panel, Rear RH
1986-08 → 1988-08 ended
CR30,YR30 E,Q ¥7,000
76607-95D01-18 note Mudguard Sub-assy, Quarter Panel, Rear RH
1987-08 → 1988-08 ended
CR30,YR30 E,Q ¥7,000
76607-95D01-24 note Mudguard Sub-assy, Quarter Panel, Rear RH
1987-08 → 1988-08 ended
CR30,YR30 E,Q ¥7,000
76607-95D01-34 note Mudguard Sub-assy, Quarter Panel, Rear RH
1987-08 → 1988-08 ended
CR30,YR30 E,Q ¥7,000
76607-95D03 note Mudguard Sub-assy, Quarter Panel, Rear RH
1986-10 → 1986-11 ended
CR30,YR30 E —
76607-95D04 note Mudguard Sub-assy, Quarter Panel, Rear RH
1986-10 → 1986-11 ended
CR30,YR30 E —
76607-95D05 note Mudguard Sub-assy, Quarter Panel, Rear RH
1987-04 → 1988-08 ended
CR30,YR30 E ¥5,000
76607-95D06 note Mudguard Sub-assy, Quarter Panel, Rear RH
1987-09 → 1988-01 ended
CR30,YR30 E ¥5,900
76607-95D07 note Mudguard Sub-assy, Quarter Panel, Rear RH
1988-01 → 1988-04 ended
CR30,YR30 E ¥7,100
76607-95D08 note Mudguard Sub-assy, Quarter Panel, Rear RH
1988-04 → 1988-08 ended
CR30,YR30 E ¥6,900
76608 — Mudguard Sub-assy, Quarter Panel, Rear LH
76608-87007 note Mudguard Sub-assy, Quarter Panel, Rear LH
1984-04 → 1984-05 ended
YR20 HRF E ¥4,620
76608-87007 Mudguard Sub-assy, Quarter Panel, Rear LH
1982-11 → 1984-08 ended
YR20,21 07S ¥4,620
76608-87007 Mudguard Sub-assy, Quarter Panel, Rear LH
1984-08 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥4,620
76608-87009-03 note Mudguard Sub-assy, Quarter Panel, Rear LH
1985-08 → 1988-08 ended
CR21,YR20,21 E,Q ¥7,100
76608-87009-04 note Mudguard Sub-assy, Quarter Panel, Rear LH
1985-08 → 1987-08 ended
CR21,YR20,21 E,Q ¥7,100
76608-87009-05 note Mudguard Sub-assy, Quarter Panel, Rear LH
1985-08 → 1988-08 ended
CR21,YR20,21 E,Q ¥7,100
76608-87009-06 note Mudguard Sub-assy, Quarter Panel, Rear LH
1985-08 → 1986-08 ended
CR21,YR20,21 E,Q ¥7,100
76608-87009-08 note Mudguard Sub-assy, Quarter Panel, Rear LH
1985-08 → 1987-08 ended
CR21,YR20,21 E,Q —
76608-87009-13 note Mudguard Sub-assy, Quarter Panel, Rear LH
1985-08 → 1988-08 ended
CR21,YR20,21 E,Q ¥7,100
76608-87009-14 note Mudguard Sub-assy, Quarter Panel, Rear LH
1985-08 → 1987-08 ended
CR21,YR20,21 E,Q ¥7,100
76608-87009-16 note Mudguard Sub-assy, Quarter Panel, Rear LH
1986-08 → 1988-08 ended
CR21,YR20,21 E,Q ¥7,100
76608-87009-18 note Mudguard Sub-assy, Quarter Panel, Rear LH
1986-04 → 1986-08 ended
CR21,YR20,21 HRF E —
76608-87009-23 note Mudguard Sub-assy, Quarter Panel, Rear LH
1986-04 → 1986-08 ended
CR21,YR20,21 HRF E —
76608-87009-28 note Mudguard Sub-assy, Quarter Panel, Rear LH
1987-08 → 1988-08 ended
CR21,YR20,21 E,Q ¥7,100
76608-87009-34 note Mudguard Sub-assy, Quarter Panel, Rear LH
1987-08 → 1988-08 ended
CR21,YR20,21 E,Q ¥7,100
76608-87009-44 note Mudguard Sub-assy, Quarter Panel, Rear LH
1987-08 → 1988-08 ended
CR21,YR20,21 E,Q ¥7,100
76608-87010 note Mudguard Sub-assy, Quarter Panel, Rear LH
1985-08 → 1988-08 ended
CR21,YR20,21 E ¥4,830
76608-87013 note Mudguard Sub-assy, Quarter Panel, Rear LH
1986-10 → 1986-11 ended
CR21,YR20,21 HRF E —
76608-87014 note Mudguard Sub-assy, Quarter Panel, Rear LH
1986-10 → 1986-11 ended
CR21,YR20,21 HRF E —
76608-87015 note Mudguard Sub-assy, Quarter Panel, Rear LH
1987-04 → 1988-08 ended
CR21,YR20,21 HRF E ¥4,810
76608-87016 note Mudguard Sub-assy, Quarter Panel, Rear LH
1987-09 → 1988-01 ended
CR21,YR21 E —
76608-87018 note Mudguard Sub-assy, Quarter Panel, Rear LH
1988-01 → 1988-04 ended
CR21,YR21 E ¥7,000
76608-87021 note Mudguard Sub-assy, Quarter Panel, Rear LH
1988-04 → 1988-08 ended
CR21,YR21 E —
76608-95D00 note Mudguard Sub-assy, Quarter Panel, Rear LH
1985-10 → 1988-08 ended
CR30,YR30 E ¥4,650
76608-95D01-03 note Mudguard Sub-assy, Quarter Panel, Rear LH
1985-10 → 1988-08 ended
CR30,YR30 E,Q ¥7,000
76608-95D01-04 note Mudguard Sub-assy, Quarter Panel, Rear LH
1985-10 → 1987-08 ended
CR30,YR30 E,Q ¥7,000
76608-95D01-05 note Mudguard Sub-assy, Quarter Panel, Rear LH
1985-10 → 1988-08 ended
CR30,YR30 E,Q ¥7,000
76608-95D01-06 note Mudguard Sub-assy, Quarter Panel, Rear LH
1985-10 → 1986-08 ended
CR30,YR30 E,Q ¥7,000
76608-95D01-08 note Mudguard Sub-assy, Quarter Panel, Rear LH
1985-10 → 1987-08 ended
CR30,YR30 E,Q ¥7,000
76608-95D01-13 note Mudguard Sub-assy, Quarter Panel, Rear LH
1985-10 → 1988-08 ended
CR30,YR30 E,Q ¥7,000
76608-95D01-14 note Mudguard Sub-assy, Quarter Panel, Rear LH
1985-10 → 1987-08 ended
CR30,YR30 E,Q ¥7,000
76608-95D01-16 note Mudguard Sub-assy, Quarter Panel, Rear LH
1986-08 → 1988-08 ended
CR30,YR30 E,Q ¥7,000
76608-95D01-18 note Mudguard Sub-assy, Quarter Panel, Rear LH
1987-08 → 1988-08 ended
CR30,YR30 E,Q ¥7,000
76608-95D01-24 note Mudguard Sub-assy, Quarter Panel, Rear LH
1987-08 → 1988-08 ended
CR30,YR30 E,Q ¥7,000
76608-95D01-34 note Mudguard Sub-assy, Quarter Panel, Rear LH
1987-08 → 1988-08 ended
CR30,YR30 E,Q ¥7,000
76608-95D03 note Mudguard Sub-assy, Quarter Panel, Rear LH
1986-10 → 1986-11 ended
CR30,YR30 E —
76608-95D04 note Mudguard Sub-assy, Quarter Panel, Rear LH
1986-10 → 1986-11 ended
CR30,YR30 E —
76608-95D05 note Mudguard Sub-assy, Quarter Panel, Rear LH
1987-04 → 1988-08 ended
CR30,YR30 E ¥5,000
76608-95D06 note Mudguard Sub-assy, Quarter Panel, Rear LH
1987-09 → 1988-01 ended
CR30,YR30 E —
76608-95D07 note Mudguard Sub-assy, Quarter Panel, Rear LH
1988-01 → 1988-04 ended
CR30,YR30 E ¥7,100
76608-95D08 note Mudguard Sub-assy, Quarter Panel, Rear LH
1988-04 → 1988-08 ended
CR30,YR30 E —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
