Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

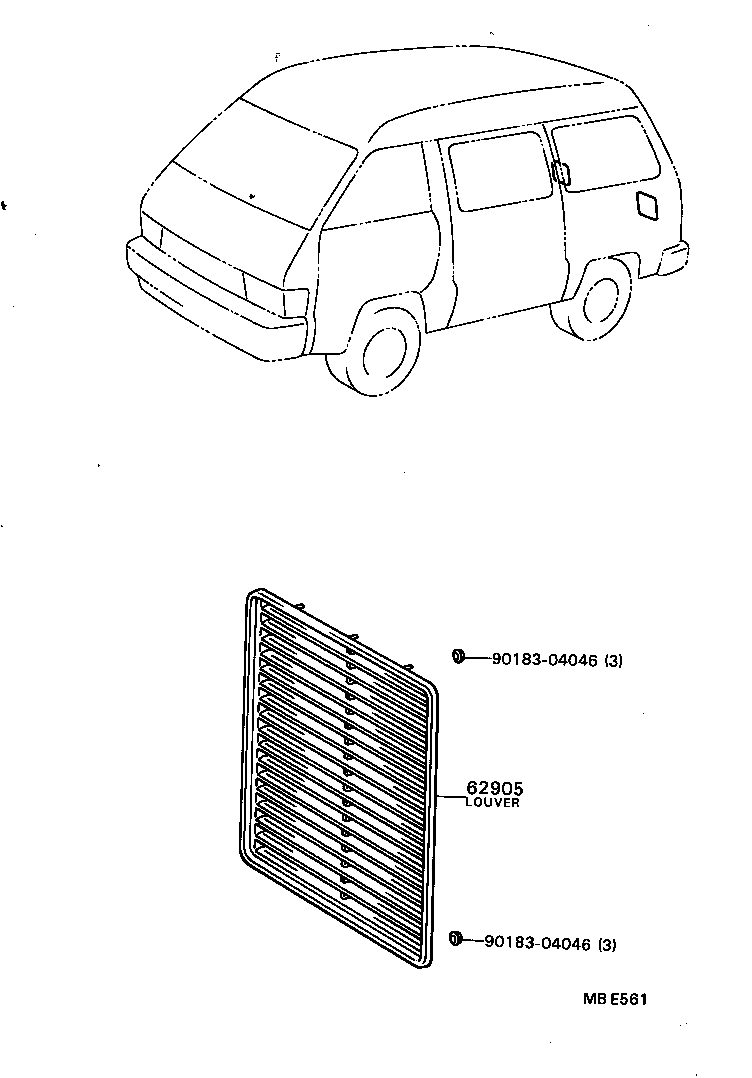

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 62905 — Louver, Quarter Ventilation | ||||
| 62905-87001-03 note |
Louver, Quarter Ventilation
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | ¥3,860 | |
| 62905-87001-03 note |
Louver, Quarter Ventilation
1982-11 → 1988-08
ended
|
CR21,30,YR20,21,30 E,Q,X | ¥3,860 | |
| 62905-87001-05 note |
Louver, Quarter Ventilation
1982-11 → 1984-08
ended
|
CR26,KR26,YR26 | ¥3,860 | |
| 62905-87001-05 note |
Louver, Quarter Ventilation
1982-11 → 1984-08
ended
|
CR21,YR20,21 | ¥3,860 | |
| 62905-87001-15 note |
Louver, Quarter Ventilation
1984-08 → 1985-08
ended
|
CR26,27,KR26,YR26 | ¥3,860 | |
| 62905-87001-15 note |
Louver, Quarter Ventilation
1984-08 → 1985-08
ended
|
CR21,YR20,21 | ¥3,860 | |
| 62905-87001-25 note |
Louver, Quarter Ventilation
1985-08 → 1988-08
ended
|
CR26,27,28,36,37,KR26,YR26,28,36 | ¥3,860 | |
| 62905-87001-25 note |
Louver, Quarter Ventilation
1985-08 → 1988-08
ended
|
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 | ¥3,860 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
