Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

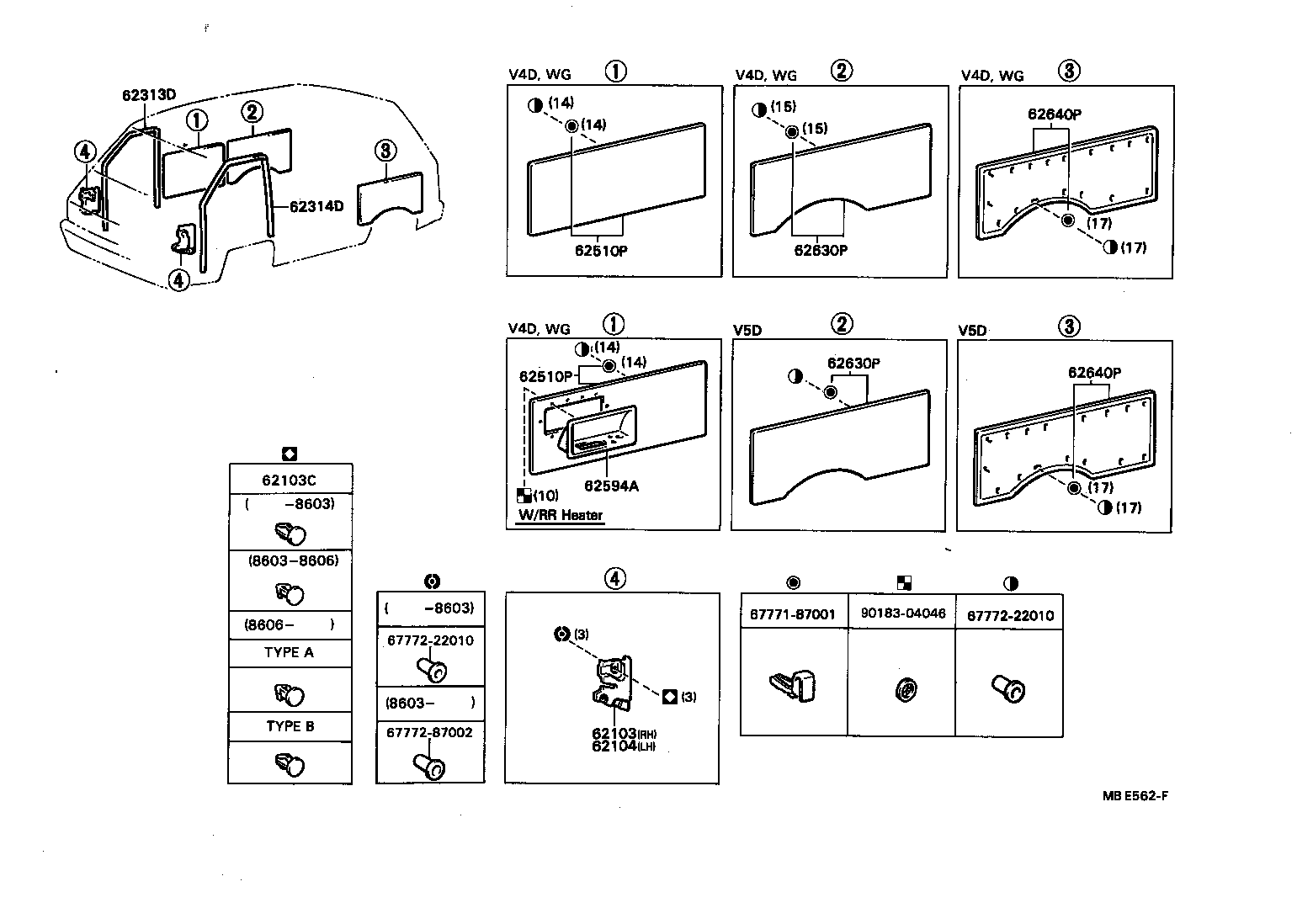

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 62103 — Board Sub-assy, Cowl Side Trim, RH | ||||
| 62111-87004-02 note |
Board Sub-assy, Cowl Side Trim, RH
1984-08 → 1985-08
ended
|
CR2# | — | |
| 62111-87004-03 note |
Board Sub-assy, Cowl Side Trim, RH
1983-04 → 1984-08
ended
|
CR21 | — | |
| 62111-87004-04 note |
Board Sub-assy, Cowl Side Trim, RH
1984-08 → 1985-08
ended
|
CR21 E | ¥2,860 | |
| 62111-87004-05 note |
Board Sub-assy, Cowl Side Trim, RH
1982-11 → 1984-08
ended
|
CR2# | — | |
| 62111-87004-06 note |
Board Sub-assy, Cowl Side Trim, RH
1985-08 → 1988-08
ended
|
CR2#,3# | ¥2,860 | |
| 62111-87004-14 note |
Board Sub-assy, Cowl Side Trim, RH
1985-08 → 1988-08
ended
|
CR21,30 E,Q | ¥2,860 | |
| 62111-87005-02 note |
Board Sub-assy, Cowl Side Trim, RH
1984-08 → 1985-08
ended
|
KR26,YR2# | ¥2,860 | |
| 62111-87005-03 note |
Board Sub-assy, Cowl Side Trim, RH
1982-11 → 1984-08
ended
|
YR20,21 E,Q,X | ¥2,860 | |
| 62111-87005-03 note |
Board Sub-assy, Cowl Side Trim, RH
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | ¥2,860 | |
| 62111-87005-04 note |
Board Sub-assy, Cowl Side Trim, RH
1984-08 → 1985-08
ended
|
YR20,21 E,Q,X | ¥2,860 | |
| 62111-87005-05 note |
Board Sub-assy, Cowl Side Trim, RH
1982-11 → 1984-08
ended
|
KR26,YR2# | ¥2,860 | |
| 62111-87005-06 note |
Board Sub-assy, Cowl Side Trim, RH
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥2,860 | |
| 62111-87005-14 note |
Board Sub-assy, Cowl Side Trim, RH
1985-08 → 1988-08
ended
|
YR20,21,30 E,Q | ¥2,860 | |
| 62103C — Clip, Cowl Side Trim Board Set | ||||
| 90467-08065-06 note |
Clip, Cowl Side Trim Board Set
1986-06 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥170 | |
| 90467-08065-06 note |
Clip, Cowl Side Trim Board Set
1986-03 → 1986-06
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥170 | |
| 90467-08065-14 note |
Clip, Cowl Side Trim Board Set
1986-06 → 1988-08
ended
|
CR21,30,YR20,21,30 E,Q | ¥170 | |
| 90467-08065-14 note |
Clip, Cowl Side Trim Board Set
1986-03 → 1986-06
ended
|
CR21,30,YR20,21,30 E,Q | ¥170 | |
| 90467-10017-03 note |
Clip, Cowl Side Trim Board Set
1982-11 → 1983-11
ended
|
CR21,YR20,21 E,Q,X | ¥180 | |
| 90467-10017-03 note |
Clip, Cowl Side Trim Board Set
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | ¥180 | |
| 90467-10017-05 note |
Clip, Cowl Side Trim Board Set
1982-11 → 1983-11
ended
|
CR2#,KR26,YR2# | ¥180 | |
| 90467-12078-03 note |
Clip, Cowl Side Trim Board Set
1983-11 → 1984-08
ended
|
CR21,YR20,21 E,Q,X | ¥310 | |
| 90467-12078-05 note |
Clip, Cowl Side Trim Board Set
1983-11 → 1984-08
ended
|
CR2#,KR26,YR2# | ¥310 | |
| 90467-12078-22 note |
Clip, Cowl Side Trim Board Set
1984-08 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥310 | |
| 90467-12078-24 note |
Clip, Cowl Side Trim Board Set
1984-08 → 1985-08
ended
|
CR21,YR20,21 E,Q,X | ¥310 | |
| 90467-12078-34 note |
Clip, Cowl Side Trim Board Set
1985-08 → 1986-03
ended
|
CR21,30,YR20,21,30 E,Q | ¥310 | |
| 90467-12078-34 note |
Clip, Cowl Side Trim Board Set
1986-06 → 1988-08
ended
|
CR21,30,YR20,21,30 E,Q | ¥310 | |
| 90467-12078-46 note |
Clip, Cowl Side Trim Board Set
1985-08 → 1986-03
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥310 | |
| 90467-12078-46 note |
Clip, Cowl Side Trim Board Set
1986-06 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥310 | |
| 62104 — Board Sub-assy, Cowl Side Trim, LH | ||||
| 62112-87003-02 note |
Board Sub-assy, Cowl Side Trim, LH
1984-08 → 1985-08
ended
|
CR2#,YR2# E,G,N,Q,X | ¥2,840 | |
| 62112-87003-03 note |
Board Sub-assy, Cowl Side Trim, LH
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | ¥2,840 | |
| 62112-87003-03 note |
Board Sub-assy, Cowl Side Trim, LH
1982-11 → 1984-08
ended
|
CR21,YR20,21 E,Q,X | ¥2,840 | |
| 62112-87003-04 note |
Board Sub-assy, Cowl Side Trim, LH
1984-08 → 1985-08
ended
|
CR21,YR20,21 E,Q,X | ¥2,840 | |
| 62112-87003-05 note |
Board Sub-assy, Cowl Side Trim, LH
1982-11 → 1984-08
ended
|
CR21,YR2# 4FC,5F | ¥2,840 | |
| 62112-87003-06 note |
Board Sub-assy, Cowl Side Trim, LH
1985-08 → 1986-08
ended
|
YR20 MRF 08S;YR20 HRF +5 | ¥2,840 | |
| 62112-87003-06 note |
Board Sub-assy, Cowl Side Trim, LH
1986-08 → 1988-08
ended
|
YR20 HRF E;YR20 HRF +4 | ¥2,840 | |
| 62112-87003-06 note |
Board Sub-assy, Cowl Side Trim, LH
1985-08 → 1986-08
ended
|
CR26,27,28,36,KR26,YR26,28 B,D,N | ¥2,840 | |
| 62112-87003-14 note |
Board Sub-assy, Cowl Side Trim, LH
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E,Q | ¥2,840 | |
| 62313D — Trim, Front Door Opening, RH | ||||
| 62313-87003-03 note |
Trim, Front Door Opening, RH
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | ¥2,860 | |
| 62313-87003-03 note |
Trim, Front Door Opening, RH
1982-11 → 1985-08
ended
|
CR21,YR20,21 E,Q,X | ¥2,860 | |
| 62313-87003-05 note |
Trim, Front Door Opening, RH
1982-11 → 1984-08
ended
|
CR2#,KR26,YR2# | ¥2,860 | |
| 62313-87003-13 note |
Trim, Front Door Opening, RH
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E,Q | ¥2,860 | |
| 62313-87003-15 note |
Trim, Front Door Opening, RH
1984-08 → 1985-08
ended
|
CR2#,KR26,YR2# | — | |
| 62313-87003-25 note |
Trim, Front Door Opening, RH
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥2,860 | |
| 62314D — Trim, Front Door Opening, LH | ||||
| 62313-87003-03 note |
Trim, Front Door Opening, LH
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | ¥2,860 | |
| 62313-87003-03 note |
Trim, Front Door Opening, LH
1982-11 → 1985-08
ended
|
CR21,YR20,21 E,Q,X | ¥2,860 | |
| 62313-87003-05 note |
Trim, Front Door Opening, LH
1982-11 → 1984-08
ended
|
CR2#,KR26,YR2# | ¥2,860 | |
| 62313-87003-13 note |
Trim, Front Door Opening, LH
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E,Q | ¥2,860 | |
| 62313-87003-15 note |
Trim, Front Door Opening, LH
1984-08 → 1985-08
ended
|
CR2#,KR26,YR2# | — | |
| 62313-87003-25 note |
Trim, Front Door Opening, LH
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥2,860 | |
| 62510P — Panel Assy, Quarter Trim, Front RH | ||||
| 62510-87017 note |
Panel Assy, Quarter Trim, Front RH
1982-11 → 1984-08
ended
|
YR20 D | ¥13,300 | |
| 62510-87017-15 note |
Panel Assy, Quarter Trim, Front RH
1984-08 → 1985-08
ended
|
CR21,YR20 D | ¥13,300 | |
| 62510-87017-25 note |
Panel Assy, Quarter Trim, Front RH
1985-08 → 1988-08
ended
|
CR21,YR20 D | ¥13,300 | |
| 62510-87018 note |
Panel Assy, Quarter Trim, Front RH
1982-11 → 1984-08
ended
|
YR20,21 D,G | ¥13,500 | |
| 62510-87018-15 note |
Panel Assy, Quarter Trim, Front RH
1984-08 → 1985-08
ended
|
CR21,YR20,21 D,G | ¥13,500 | |
| 62510-87018-25 note |
Panel Assy, Quarter Trim, Front RH
1985-08 → 1988-08
ended
|
YR20 MRF (D,G);YR20 HRF +3 | ¥13,500 | |
| 62510-87020-03 note |
Panel Assy, Quarter Trim, Front RH
1982-11 → 1983-08
ended
|
CR21,YR20,21 E,X | — | |
| 62510-87020-05 note |
Panel Assy, Quarter Trim, Front RH
1982-11 → 1983-08
ended
|
CR21,YR20,21 E,X | — | |
| 62510-87020-13 note |
Panel Assy, Quarter Trim, Front RH
1983-08 → 1984-08
ended
|
CR21,YR20,21 E,X | — | |
| 62510-87020-15 note |
Panel Assy, Quarter Trim, Front RH
1983-08 → 1984-08
ended
|
CR21,YR20,21 E,X | — | |
| 62510-87021-03 note |
Panel Assy, Quarter Trim, Front RH
1982-11 → 1984-08
ended
|
YR20,21 Q | — | |
| 62510-87021-05 note |
Panel Assy, Quarter Trim, Front RH
1982-11 → 1983-08
ended
|
YR20,21 Q | — | |
| 62510-87021-15 note |
Panel Assy, Quarter Trim, Front RH
1983-08 → 1984-08
ended
|
YR20,21 Q | — | |
| 62510-87024 |
Panel Assy, Quarter Trim, Front RH
1982-11 → 1984-08
ended
|
CR26,KR26,YR26 V4D | ¥12,100 | |
| 62510-87024-15 note |
Panel Assy, Quarter Trim, Front RH
1984-08 → 1985-08
ended
|
CR26,27,KR26,YR26 V4D | ¥12,100 | |
| 62510-87024-25 note |
Panel Assy, Quarter Trim, Front RH
1985-08 → 1988-08
ended
|
CR26,27,36,KR26,YR26 V4D | ¥12,100 | |
| 62510-87028 note |
Panel Assy, Quarter Trim, Front RH
1982-11 → 1984-08
ended
|
YR26 V4D N | ¥12,900 | |
| 62510-87028-15 note |
Panel Assy, Quarter Trim, Front RH
1984-08 → 1985-08
ended
|
CR26,27,YR26 V4D 05S | ¥12,900 | |
| 62510-87028-25 note |
Panel Assy, Quarter Trim, Front RH
1985-08 → 1988-08
ended
|
CR26,27,36,YR26 V4D 05S | ¥12,900 | |
| 62510-87037-03 note |
Panel Assy, Quarter Trim, Front RH
1984-04 → 1984-05
ended
|
YR20 HRF E | — | |
| 62510-87037-13 note |
Panel Assy, Quarter Trim, Front RH
1984-08 → 1985-08
ended
|
CR21,YR20,21 E,X | — | |
| 62510-87037-15 note |
Panel Assy, Quarter Trim, Front RH
1984-08 → 1985-08
ended
|
CR21,YR20,21 E,X | — | |
| 62510-87038 note |
Panel Assy, Quarter Trim, Front RH
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | — | |
| 62510-87041-03 note |
Panel Assy, Quarter Trim, Front RH
1984-08 → 1985-08
ended
|
YR20,21 Q | — | |
| 62510-87041-05 note |
Panel Assy, Quarter Trim, Front RH
1984-08 → 1985-08
ended
|
YR20,21 Q | — | |
| 62510-87042-05 note |
Panel Assy, Quarter Trim, Front RH
1985-08 → 1988-08
ended
|
CR28,37,YR28,36 | ¥12,900 | |
| 62510-87043-03 note |
Panel Assy, Quarter Trim, Front RH
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E | ¥27,900 | |
| 62510-87043-05 note |
Panel Assy, Quarter Trim, Front RH
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E | ¥27,900 | |
| 62510-87044-05 note |
Panel Assy, Quarter Trim, Front RH
1985-08 → 1988-08
ended
|
CR28,37,YR28,36 | ¥12,900 | |
| 62510-87045-03 note |
Panel Assy, Quarter Trim, Front RH
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 Q | ¥27,900 | |
| 62510-87045-05 note |
Panel Assy, Quarter Trim, Front RH
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 Q | ¥27,900 | |
| 62594A — Pocket, Quarter Trim, NO.1 | ||||
| 62594-87003 note |
Pocket, Quarter Trim, NO.1
1982-11 → 1984-08
ended
|
YR26 V4D N | ¥10,300 | |
| 62594-87003 note |
Pocket, Quarter Trim, NO.1
1982-11 → 1985-08
ended
|
CR21,YR20,21 D,G | ¥10,300 | |
| 62594-87003 note |
Pocket, Quarter Trim, NO.1
1984-08 → 1985-08
ended
|
CR26,27,YR26 V4D 05S | ¥10,300 | |
| 62594-87003-06 note |
Pocket, Quarter Trim, NO.1
1985-08 → 1988-08
ended
|
CR26,27,36,YR26 V4D 05S | ¥10,300 | |
| 62594-87003-06 note |
Pocket, Quarter Trim, NO.1
1985-08 → 1988-08
ended
|
YR20 MRF (D,G);YR20 HRF +3 | ¥10,300 | |
| 62594-87004-02 note |
Pocket, Quarter Trim, NO.1
1982-11 → 1985-08
ended
|
CR21,YR20,21 E,Q,X | ¥20,900 | |
| 62594-87004-04 note |
Pocket, Quarter Trim, NO.1
1982-11 → 1985-08
ended
|
CR21,YR20,21 E,Q,X | ¥20,900 | |
| 62594-87004-04 note |
Pocket, Quarter Trim, NO.1
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | ¥20,900 | |
| 62594-87004-06 note |
Pocket, Quarter Trim, NO.1
1985-08 → 1988-05
ended
|
CR21,30,YR20,21,30 E,Q | ¥20,900 | |
| 62594-87004-14 note |
Pocket, Quarter Trim, NO.1
1985-08 → 1988-05
ended
|
CR21,30,YR20,21,30 E,Q | ¥20,900 | |
| 62594-87007-14 note |
Pocket, Quarter Trim, NO.1
1988-05 → 1988-08
ended
|
CR21,30,YR20,21,30 E,Q | ¥23,300 | |
| 62594-87007-16 note |
Pocket, Quarter Trim, NO.1
1988-05 → 1988-08
ended
|
CR21,30,YR20,21,30 E,Q | ¥23,300 | |
| 62630P — Panel Assy, Quarter Trim, Rear RH | ||||
| 62630-87016 note |
Panel Assy, Quarter Trim, Rear RH
1982-11 → 1984-08
ended
|
YR20,21 D,G | ¥14,100 | |
| 62630-87016-15 note |
Panel Assy, Quarter Trim, Rear RH
1984-08 → 1985-08
ended
|
CR21,YR20,21 D,G | ¥14,100 | |
| 62630-87016-25 note |
Panel Assy, Quarter Trim, Rear RH
1985-08 → 1988-08
ended
|
YR20 MRF (D,G);YR20 HRF +3 | ¥14,100 | |
| 62630-87018-03 note |
Panel Assy, Quarter Trim, Rear RH
1982-11 → 1983-08
ended
|
CR21,YR20,21 E,X | — | |
| 62630-87018-05 note |
Panel Assy, Quarter Trim, Rear RH
1982-11 → 1983-08
ended
|
CR21,YR20,21 E,X | — | |
| 62630-87018-13 note |
Panel Assy, Quarter Trim, Rear RH
1983-08 → 1984-08
ended
|
CR21,YR20,21 E,X | — | |
| 62630-87018-15 note |
Panel Assy, Quarter Trim, Rear RH
1983-08 → 1984-08
ended
|
CR21,YR20,21 E,X | — | |
| 62630-87019-03 note |
Panel Assy, Quarter Trim, Rear RH
1982-11 → 1984-08
ended
|
YR20,21 Q | — | |
| 62630-87019-05 note |
Panel Assy, Quarter Trim, Rear RH
1982-11 → 1983-08
ended
|
YR20,21 Q | — | |
| 62630-87019-15 note |
Panel Assy, Quarter Trim, Rear RH
1983-08 → 1984-08
ended
|
YR20,21 Q | — | |
| 62630-87022 |
Panel Assy, Quarter Trim, Rear RH
1982-11 → 1984-08
ended
|
CR26,KR26,YR26 V4D | ¥12,900 | |
| 62630-87022-15 note |
Panel Assy, Quarter Trim, Rear RH
1984-08 → 1985-08
ended
|
CR26,27,KR26,YR26 V4D | ¥12,900 | |
| 62630-87022-25 note |
Panel Assy, Quarter Trim, Rear RH
1985-08 → 1988-08
ended
|
CR28,37,YR28,36;CR26,27,36,KR26,YR26 V4D | ¥12,900 | |
| 62630-87023 |
Panel Assy, Quarter Trim, Rear RH
1982-11 → 1984-08
ended
|
CR26,KR26,YR26 V5D | ¥14,100 | |
| 62630-87023-15 note |
Panel Assy, Quarter Trim, Rear RH
1984-08 → 1985-08
ended
|
CR26,KR26,YR26 V5D | ¥14,100 | |
| 62630-87023-25 note |
Panel Assy, Quarter Trim, Rear RH
1985-08 → 1988-08
ended
|
CR26,27,36,KR26,YR26 V5D | ¥14,100 | |
| 62630-87032-03 note |
Panel Assy, Quarter Trim, Rear RH
1984-04 → 1984-05
ended
|
YR20 HRF E | — | |
| 62630-87032-13 note |
Panel Assy, Quarter Trim, Rear RH
1984-08 → 1985-08
ended
|
CR21,YR20,21 E,X | ¥19,800 | |
| 62630-87032-15 note |
Panel Assy, Quarter Trim, Rear RH
1984-08 → 1985-08
ended
|
CR21,YR20,21 E,X | — | |
| 62630-87033 note |
Panel Assy, Quarter Trim, Rear RH
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | — | |
| 62630-87034-03 note |
Panel Assy, Quarter Trim, Rear RH
1984-08 → 1985-08
ended
|
YR20,21 Q | — | |
| 62630-87034-05 note |
Panel Assy, Quarter Trim, Rear RH
1984-08 → 1985-08
ended
|
YR20,21 Q | — | |
| 62630-87038-03 note |
Panel Assy, Quarter Trim, Rear RH
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E | ¥20,100 | |
| 62630-87038-05 note |
Panel Assy, Quarter Trim, Rear RH
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E | ¥20,100 | |
| 62630-87039-03 note |
Panel Assy, Quarter Trim, Rear RH
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 Q | ¥20,100 | |
| 62630-87039-05 note |
Panel Assy, Quarter Trim, Rear RH
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 Q | ¥20,100 | |
| 62630-87040-03 note |
Panel Assy, Quarter Trim, Rear RH
1986-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E | ¥20,100 | |
| 62630-87040-05 note |
Panel Assy, Quarter Trim, Rear RH
1986-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E | ¥20,100 | |
| 62640P — Panel Assy, Quarter Trim, Rear LH | ||||
| 62640-87024 note |
Panel Assy, Quarter Trim, Rear LH
1982-11 → 1984-08
ended
|
YR20,21 D,G | ¥14,100 | |
| 62640-87024-15 note |
Panel Assy, Quarter Trim, Rear LH
1984-08 → 1985-08
ended
|
CR21,YR20,21 D,G | ¥14,100 | |
| 62640-87024-25 note |
Panel Assy, Quarter Trim, Rear LH
1985-08 → 1988-08
ended
|
YR20 MRF (D,G);YR20 HRF +3 | ¥14,100 | |
| 62640-87026-03 note |
Panel Assy, Quarter Trim, Rear LH
1982-11 → 1983-08
ended
|
CR21,YR20,21 E,X | — | |
| 62640-87026-05 note |
Panel Assy, Quarter Trim, Rear LH
1982-11 → 1983-08
ended
|
CR21,YR20,21 E,X | — | |
| 62640-87026-13 note |
Panel Assy, Quarter Trim, Rear LH
1983-08 → 1984-08
ended
|
CR21,YR20,21 E,X | — | |
| 62640-87026-15 note |
Panel Assy, Quarter Trim, Rear LH
1983-08 → 1984-08
ended
|
CR21,YR20,21 E,X | — | |
| 62640-87027-03 note |
Panel Assy, Quarter Trim, Rear LH
1982-11 → 1984-08
ended
|
YR20,21 Q | — | |
| 62640-87027-05 note |
Panel Assy, Quarter Trim, Rear LH
1982-11 → 1983-08
ended
|
YR20,21 Q | — | |
| 62640-87027-15 note |
Panel Assy, Quarter Trim, Rear LH
1983-08 → 1984-08
ended
|
YR20,21 Q | — | |
| 62640-87030 |
Panel Assy, Quarter Trim, Rear LH
1982-11 → 1984-08
ended
|
CR26,KR26,YR26 | ¥14,200 | |
| 62640-87030-15 note |
Panel Assy, Quarter Trim, Rear LH
1984-08 → 1985-08
ended
|
CR26,27,KR26,YR26 | ¥14,200 | |
| 62640-87030-25 note |
Panel Assy, Quarter Trim, Rear LH
1985-08 → 1988-08
ended
|
CR26,27,28,36,37,KR26,YR26,28,36 | ¥14,200 | |
| 62640-87038-03 note |
Panel Assy, Quarter Trim, Rear LH
1984-04 → 1984-05
ended
|
YR20 HRF E | — | |
| 62640-87038-13 note |
Panel Assy, Quarter Trim, Rear LH
1984-08 → 1985-08
ended
|
CR21,YR20,21 E,X | ¥17,800 | |
| 62640-87038-15 note |
Panel Assy, Quarter Trim, Rear LH
1984-08 → 1985-08
ended
|
CR21,YR20,21 E,X | — | |
| 62640-87039 note |
Panel Assy, Quarter Trim, Rear LH
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | — | |
| 62640-87040-03 note |
Panel Assy, Quarter Trim, Rear LH
1984-08 → 1985-08
ended
|
YR20,21 Q | ¥24,100 | |
| 62640-87040-05 note |
Panel Assy, Quarter Trim, Rear LH
1984-08 → 1985-08
ended
|
YR20,21 Q | — | |
| 62640-87044-03 note |
Panel Assy, Quarter Trim, Rear LH
1985-08 → 1986-08
ended
|
CR21,30,YR20,21,30 E | ¥20,100 | |
| 62640-87044-05 note |
Panel Assy, Quarter Trim, Rear LH
1985-08 → 1986-08
ended
|
CR21,30,YR20,21,30 E | ¥20,100 | |
| 62640-87045-03 note |
Panel Assy, Quarter Trim, Rear LH
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 Q | ¥20,100 | |
| 62640-87045-05 note |
Panel Assy, Quarter Trim, Rear LH
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 Q | ¥20,100 | |
| 62640-87046-03 note |
Panel Assy, Quarter Trim, Rear LH
1986-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E | ¥20,100 | |
| 62640-87046-05 note |
Panel Assy, Quarter Trim, Rear LH
1986-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E | ¥20,100 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
