Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

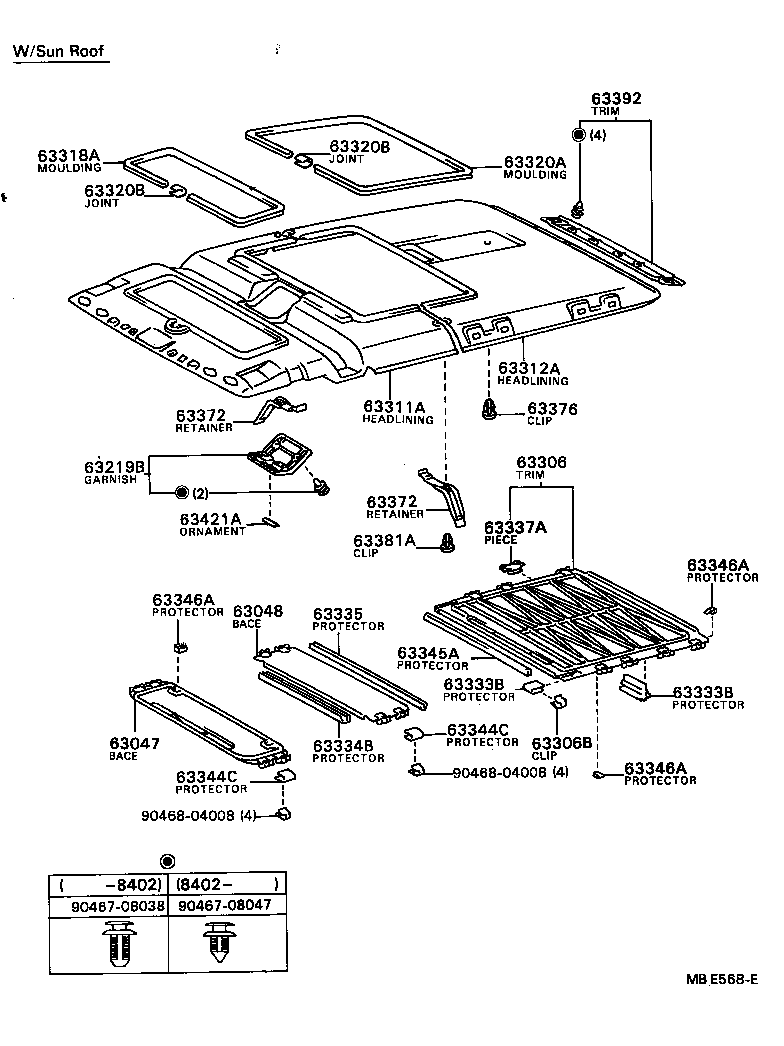

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 63047 — Base Sub-assy, Sunshade Trim, Front NO.1 | ||||
| 63047-95700-05 note |
Base Sub-assy, Sunshade Trim, Front NO.1
1982-11 → 1983-03
ended
|
YR20 HRF;YR20 MRF (E,X) | ¥16,200 | |
| 63047-95700-13 note |
Base Sub-assy, Sunshade Trim, Front NO.1
1982-11 → 1983-03
ended
|
YR20 E,Q,X | ¥14,800 | |
| 63047-95702-03 note |
Base Sub-assy, Sunshade Trim, Front NO.1
1984-08 → 1985-08
ended
|
CR21,YR20,21 E,Q,X | ¥14,000 | |
| 63047-95702-03 note |
Base Sub-assy, Sunshade Trim, Front NO.1
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥14,000 | |
| 63047-95702-05 note |
Base Sub-assy, Sunshade Trim, Front NO.1
1983-03 → 1984-08
ended
|
YR20 HRF;CR21,YR21 E,Q,X;YR20 MRF +1 | — | |
| 63047-95702-05 note |
Base Sub-assy, Sunshade Trim, Front NO.1
1983-05 → 1984-08
ended
|
YR21 G | — | |
| 63047-95702-13 note |
Base Sub-assy, Sunshade Trim, Front NO.1
1983-03 → 1984-08
ended
|
CR21,YR20,21 E,Q,X | ¥14,000 | |
| 63047-95702-13 note |
Base Sub-assy, Sunshade Trim, Front NO.1
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | ¥14,000 | |
| 63047-95702-15 note |
Base Sub-assy, Sunshade Trim, Front NO.1
1984-08 → 1985-08
ended
|
YR21 G | — | |
| 63047-95702-15 note |
Base Sub-assy, Sunshade Trim, Front NO.1
1984-08 → 1985-08
ended
|
YR20 HRF;YR20 MRF E;CR21,YR21 +1 | — | |
| 63047-95702-25 note |
Base Sub-assy, Sunshade Trim, Front NO.1
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥14,000 | |
| 63048 — Base Sub-assy, Sunshade Trim, Front NO.2 | ||||
| 63048-95700-05 note |
Base Sub-assy, Sunshade Trim, Front NO.2
1982-11 → 1983-03
ended
|
YR20 HRF;YR20 MRF (E,X) | ¥13,900 | |
| 63048-95700-13 note |
Base Sub-assy, Sunshade Trim, Front NO.2
1982-11 → 1983-03
ended
|
YR20 E,Q,X | ¥13,900 | |
| 63048-95702-03 note |
Base Sub-assy, Sunshade Trim, Front NO.2
1984-08 → 1985-08
ended
|
CR21,YR20,21 E,Q,X | ¥14,000 | |
| 63048-95702-03 note |
Base Sub-assy, Sunshade Trim, Front NO.2
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥14,000 | |
| 63048-95702-05 note |
Base Sub-assy, Sunshade Trim, Front NO.2
1983-05 → 1984-08
ended
|
YR21 G | ¥14,000 | |
| 63048-95702-05 note |
Base Sub-assy, Sunshade Trim, Front NO.2
1983-03 → 1984-08
ended
|
YR20 HRF;CR21,YR21 E,Q,X;YR20 MRF +1 | ¥14,000 | |
| 63048-95702-13 note |
Base Sub-assy, Sunshade Trim, Front NO.2
1983-03 → 1984-08
ended
|
CR21,YR20,21 E,Q,X | ¥14,000 | |
| 63048-95702-13 note |
Base Sub-assy, Sunshade Trim, Front NO.2
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | ¥14,000 | |
| 63048-95702-15 note |
Base Sub-assy, Sunshade Trim, Front NO.2
1984-08 → 1985-08
ended
|
YR21 G | — | |
| 63048-95702-15 note |
Base Sub-assy, Sunshade Trim, Front NO.2
1984-08 → 1985-08
ended
|
YR20 HRF;YR20 MRF E;CR21,YR21 +1 | — | |
| 63048-95702-25 note |
Base Sub-assy, Sunshade Trim, Front NO.2
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥14,000 | |
| 63219B — Garnish, Sun Roof Switch | ||||
| 63219-87003-03 note |
Garnish, Sun Roof Switch
1982-11 → 1985-08
ended
|
CR21,YR20,21 MRF (E,X) | ¥3,050 | |
| 63219-87003-05 note |
Garnish, Sun Roof Switch
1982-11 → 1984-08
ended
|
CR21,YR20,21 MRF (E,X) | ¥3,050 | |
| 63219-87003-15 note |
Garnish, Sun Roof Switch
1984-08 → 1985-08
ended
|
CR21,YR20 MRF E | ¥3,050 | |
| 63219-87004-03 note |
Garnish, Sun Roof Switch
1982-11 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q,X) | ¥3,300 | |
| 63219-87004-05 note |
Garnish, Sun Roof Switch
1982-11 → 1984-08
ended
|
CR21,YR20,21 HRF (E,Q,X) | ¥3,300 | |
| 63219-87004-15 note |
Garnish, Sun Roof Switch
1984-08 → 1985-08
ended
|
CR21,YR20,21 HRF (E,Q,X) | ¥3,300 | |
| 63219-87004-25 note |
Garnish, Sun Roof Switch
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥3,300 | |
| 63219-87005-03 note |
Garnish, Sun Roof Switch
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | ¥3,330 | |
| 63219-87005-05 note |
Garnish, Sun Roof Switch
1983-05 → 1984-08
ended
|
YR21 G | ¥3,020 | |
| 63219-87005-15 note |
Garnish, Sun Roof Switch
1984-08 → 1985-08
ended
|
YR21 G | ¥3,330 | |
| 63219-87006 note |
Garnish, Sun Roof Switch
1982-11 → 1984-08
ended
|
YR20 HRF G | ¥3,420 | |
| 63219-87006-03 note |
Garnish, Sun Roof Switch
1984-08 → 1985-08
ended
|
CR21,YR20 HRF E | ¥3,420 | |
| 63219-87006-15 note |
Garnish, Sun Roof Switch
1984-08 → 1985-08
ended
|
CR21,YR20 HRF E | ¥3,420 | |
| 63219-87006-15 note |
Garnish, Sun Roof Switch
1984-08 → 1985-08
ended
|
YR20 HRF G | ¥3,420 | |
| 63306 — Trim Sub-assy, Sunshade | ||||
| 63307-87002-03 note |
Trim Sub-assy, Sunshade
1982-11 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q,X) | ¥28,400 | |
| 63307-87002-05 note |
Trim Sub-assy, Sunshade
1982-11 → 1984-08
ended
|
CR21,YR20,21 HRF | ¥28,400 | |
| 63307-87002-15 note |
Trim Sub-assy, Sunshade
1984-08 → 1985-08
ended
|
CR21,YR20,21 HRF | — | |
| 63307-87002-25 note |
Trim Sub-assy, Sunshade
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥28,400 | |
| 63307-95700-03 note |
Trim Sub-assy, Sunshade
1984-08 → 1985-08
ended
|
CR21,YR20 MRF E | ¥33,400 | |
| 63307-95700-05 note |
Trim Sub-assy, Sunshade
1982-11 → 1984-08
ended
|
CR21,YR20,21 MRF (E,X) | — | |
| 63307-95700-13 note |
Trim Sub-assy, Sunshade
1982-11 → 1984-08
ended
|
CR21,YR20,21 MRF (E,X) | ¥33,400 | |
| 63307-95700-15 note |
Trim Sub-assy, Sunshade
1984-08 → 1985-08
ended
|
CR21,YR20 MRF E | — | |
| 63306B — Clip(FOR SUNSHADE TRIM) | ||||
| 90468-04083 |
Clip(FOR SUNSHADE TRIM)
1982-11 → 1985-08
ended
|
YR20 HRF;CR21,YR21 E,Q,X;YR20 MRF +1 | ¥120 | |
| 90468-04083 |
Clip(FOR SUNSHADE TRIM)
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥120 | |
| 63311A — Headlining, Roof NO.1 | ||||
| 63311-87006 |
Headlining, Roof NO.1
1982-11 → 1984-08
ended
|
CR26,KR26,YR26 SRF | ¥6,100 | |
| 63311-87006-15 note |
Headlining, Roof NO.1
1984-08 → 1985-08
ended
|
CR26,27,KR26,YR26 SRF | ¥6,700 | |
| 63311-87006-25 note |
Headlining, Roof NO.1
1985-08 → 1988-08
ended
|
CR26,27,28,36,KR26,YR26,28 SRF | ¥6,700 | |
| 63311-87007 note |
Headlining, Roof NO.1
1982-11 → 1984-08
ended
|
YR20 D | ¥7,500 | |
| 63311-87007-15 note |
Headlining, Roof NO.1
1984-08 → 1985-08
ended
|
CR21,YR20 D | ¥7,500 | |
| 63311-87007-25 note |
Headlining, Roof NO.1
1985-08 → 1988-08
ended
|
CR21,YR20 D | ¥7,500 | |
| 63311-87008 |
Headlining, Roof NO.1
1982-11 → 1984-08
ended
|
CR26,YR26 HRF | ¥9,300 | |
| 63311-87008-15 note |
Headlining, Roof NO.1
1984-08 → 1985-08
ended
|
CR26,27,KR26,YR26 HRF | ¥9,300 | |
| 63311-87008-25 note |
Headlining, Roof NO.1
1985-08 → 1988-08
ended
|
CR26,27,28,36,37,KR26,YR26,28,36 HRF | ¥9,300 | |
| 63311-87012-03 note |
Headlining, Roof NO.1
1982-11 → 1984-08
ended
|
CR21,YR20,21 MRF (E,X) | — | |
| 63311-87012-05 note |
Headlining, Roof NO.1
1982-11 → 1984-08
ended
|
CR21,YR20,21 MRF (E,X) | — | |
| 63311-87018 note |
Headlining, Roof NO.1
1983-05 → 1984-08
ended
|
YR21 G | — | |
| 63311-87019-03 note |
Headlining, Roof NO.1
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF (E,Q) | ¥93,100 | |
| 63311-87019-05 note |
Headlining, Roof NO.1
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF (E,Q) | ¥93,100 | |
| 63311-87020-03 note |
Headlining, Roof NO.1
1982-11 → 1984-08
ended
|
CR21,YR20,21 HRF (E,Q,X) | — | |
| 63311-87020-05 note |
Headlining, Roof NO.1
1982-11 → 1984-08
ended
|
CR21,YR20,21 HRF | — | |
| 63311-87025 note |
Headlining, Roof NO.1
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | — | |
| 63311-87026-03 note |
Headlining, Roof NO.1
1984-08 → 1985-08
ended
|
CR21,YR20 MRF E | ¥88,200 | |
| 63311-87026-05 note |
Headlining, Roof NO.1
1984-08 → 1985-08
ended
|
CR21,YR20 MRF E | ¥88,200 | |
| 63311-87027-05 note |
Headlining, Roof NO.1
1984-08 → 1985-08
ended
|
YR21 G | — | |
| 63311-87028-03 note |
Headlining, Roof NO.1
1984-08 → 1985-08
ended
|
CR21,YR20,21 HRF (E,Q,X) | ¥98,400 | |
| 63311-87028-05 note |
Headlining, Roof NO.1
1984-08 → 1985-08
ended
|
CR21,YR20,21 HRF | ¥98,400 | |
| 63311-87033-03 note |
Headlining, Roof NO.1
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥92,600 | |
| 63311-87033-05 note |
Headlining, Roof NO.1
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥92,600 | |
| 63312A — Headlining, Roof, NO.2 | ||||
| 63312-87003 |
Headlining, Roof, NO.2
1982-11 → 1984-08
ended
|
CR26,KR26,YR26 SRF | ¥10,300 | |
| 63312-87003-15 note |
Headlining, Roof, NO.2
1984-08 → 1985-08
ended
|
CR26,27,KR26,YR26 SRF | ¥12,600 | |
| 63312-87003-25 note |
Headlining, Roof, NO.2
1985-08 → 1988-08
ended
|
CR26,27,28,36,KR26,YR26,28 SRF | ¥12,600 | |
| 63312-87004 note |
Headlining, Roof, NO.2
1982-11 → 1984-08
ended
|
YR20 D | ¥13,500 | |
| 63312-87004-15 note |
Headlining, Roof, NO.2
1984-08 → 1985-08
ended
|
CR21,YR20 D | ¥13,500 | |
| 63312-87004-25 note |
Headlining, Roof, NO.2
1985-08 → 1988-08
ended
|
CR21,YR20 D | ¥13,500 | |
| 63312-87005 |
Headlining, Roof, NO.2
1982-11 → 1984-08
ended
|
CR26,YR26 HRF | ¥15,400 | |
| 63312-87005-15 note |
Headlining, Roof, NO.2
1984-08 → 1985-08
ended
|
CR26,27,KR26,YR26 HRF | ¥15,400 | |
| 63312-87005-25 note |
Headlining, Roof, NO.2
1985-08 → 1988-08
ended
|
CR26,27,28,36,37,KR26,YR26,28,36 HRF | ¥15,400 | |
| 63312-87006-03 note |
Headlining, Roof, NO.2
1982-11 → 1984-08
ended
|
CR21,YR20,21 MRF (E,X) | — | |
| 63312-87006-05 note |
Headlining, Roof, NO.2
1982-11 → 1984-08
ended
|
CR21,YR20,21 MRF (E,X) | — | |
| 63312-87007-03 note |
Headlining, Roof, NO.2
1986-08 → 1988-08
ended
|
CR21,30,YR21,30 Q | ¥103,000 | |
| 63312-87007-05 note |
Headlining, Roof, NO.2
1986-08 → 1988-08
ended
|
CR21,30,YR21,30 Q | ¥103,000 | |
| 63312-87008-03 note |
Headlining, Roof, NO.2
1982-11 → 1984-08
ended
|
YR20,21 Q | — | |
| 63312-87008-05 note |
Headlining, Roof, NO.2
1982-11 → 1984-08
ended
|
YR20,21 Q | — | |
| 63312-87009-03 note |
Headlining, Roof, NO.2
1982-11 → 1984-08
ended
|
CR21,YR20,21 HRF (E,Q,X) | — | |
| 63312-87009-05 note |
Headlining, Roof, NO.2
1982-11 → 1984-08
ended
|
CR21,YR20,21 HRF (E,Q,X) | — | |
| 63312-87010-03 note |
Headlining, Roof, NO.2
1986-08 → 1988-08
ended
|
CR21,YR21 Q | ¥107,000 | |
| 63312-87010-05 note |
Headlining, Roof, NO.2
1986-08 → 1988-08
ended
|
CR21,YR21 Q | ¥107,000 | |
| 63312-87019 note |
Headlining, Roof, NO.2
1982-11 → 1984-08
ended
|
YR20 HRF G | — | |
| 63312-87020-03 note |
Headlining, Roof, NO.2
1982-11 → 1984-08
ended
|
YR20,21 Q | — | |
| 63312-87020-05 note |
Headlining, Roof, NO.2
1982-11 → 1984-08
ended
|
YR20,21 Q | — | |
| 63312-87021-03 note |
Headlining, Roof, NO.2
1982-11 → 1984-08
ended
|
YR20,21 Q | ¥107,000 | |
| 63312-87021-05 note |
Headlining, Roof, NO.2
1982-11 → 1984-08
ended
|
YR20,21 Q | ¥107,000 | |
| 63312-87022-03 note |
Headlining, Roof, NO.2
1984-08 → 1985-08
ended
|
CR21,YR20 MRF E | ¥74,800 | |
| 63312-87022-05 note |
Headlining, Roof, NO.2
1984-08 → 1985-08
ended
|
CR21,YR20 MRF E | ¥74,800 | |
| 63312-87023-03 note |
Headlining, Roof, NO.2
1984-08 → 1985-08
ended
|
CR21,YR20,21 HRF (E,X) | ¥98,400 | |
| 63312-87023-05 note |
Headlining, Roof, NO.2
1984-08 → 1985-08
ended
|
CR21,YR20,21 HRF (E,X) | ¥98,400 | |
| 63312-87024-03 note |
Headlining, Roof, NO.2
1984-08 → 1985-08
ended
|
YR20,21 Q | ¥98,400 | |
| 63312-87024-05 note |
Headlining, Roof, NO.2
1984-08 → 1985-08
ended
|
YR20,21 Q | ¥98,400 | |
| 63312-87025-03 note |
Headlining, Roof, NO.2
1984-08 → 1985-08
ended
|
CR21,YR20 HRF E | ¥98,400 | |
| 63312-87025-05 note |
Headlining, Roof, NO.2
1984-08 → 1985-08
ended
|
CR21,YR20 HRF E | ¥98,400 | |
| 63312-87026-03 note |
Headlining, Roof, NO.2
1984-08 → 1985-08
ended
|
YR20,21 Q | ¥98,400 | |
| 63312-87026-05 note |
Headlining, Roof, NO.2
1984-08 → 1985-08
ended
|
YR20,21 Q | ¥98,400 | |
| 63312-87027-03 note |
Headlining, Roof, NO.2
1986-10 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF E | ¥103,000 | |
| 63312-87027-03 note |
Headlining, Roof, NO.2
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 Q | ¥103,000 | |
| 63312-87027-03 note |
Headlining, Roof, NO.2
1987-04 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF E | ¥103,000 | |
| 63312-87027-05 note |
Headlining, Roof, NO.2
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 Q | ¥103,000 | |
| 63312-87027-05 note |
Headlining, Roof, NO.2
1986-10 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF E | ¥103,000 | |
| 63312-87028-03 note |
Headlining, Roof, NO.2
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF E | ¥104,000 | |
| 63312-87028-05 note |
Headlining, Roof, NO.2
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF E | ¥104,000 | |
| 63312-87029-03 note |
Headlining, Roof, NO.2
1985-08 → 1986-08
ended
|
CR21,30,YR20,21 Q | ¥103,000 | |
| 63312-87029-05 note |
Headlining, Roof, NO.2
1985-08 → 1986-08
ended
|
CR21,30,YR20,21 Q | ¥103,000 | |
| 63312-87033-03 note |
Headlining, Roof, NO.2
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF E | — | |
| 63312-87033-05 note |
Headlining, Roof, NO.2
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF E | — | |
| 63312-87034-03 note |
Headlining, Roof, NO.2
1985-08 → 1988-08
ended
|
CR21,YR20,21 Q | ¥107,000 | |
| 63312-87034-05 note |
Headlining, Roof, NO.2
1985-08 → 1988-08
ended
|
CR21,YR20,21 Q | ¥107,000 | |
| 63312-87036-03 note |
Headlining, Roof, NO.2
1985-08 → 1986-08
ended
|
CR21,YR20,21 Q | ¥112,000 | |
| 63312-87036-05 note |
Headlining, Roof, NO.2
1985-08 → 1986-08
ended
|
CR21,YR20,21 Q | ¥112,000 | |
| 63318A — Moulding, Tilt Roof Opening Trim | ||||
| 63318-87002-03 note |
Moulding, Tilt Roof Opening Trim
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | ¥5,900 | |
| 63318-87002-03 note |
Moulding, Tilt Roof Opening Trim
1982-11 → 1984-08
ended
|
CR21,YR20,21 E,Q,X | ¥5,900 | |
| 63318-87002-05 note |
Moulding, Tilt Roof Opening Trim
1982-11 → 1984-08
ended
|
YR20 HRF;CR21,YR21 E,Q,X;YR20 MRF +1 | ¥5,900 | |
| 63318-87002-05 note |
Moulding, Tilt Roof Opening Trim
1983-05 → 1984-08
ended
|
YR21 G | ¥5,900 | |
| 63318-87002-13 note |
Moulding, Tilt Roof Opening Trim
1984-08 → 1985-08
ended
|
CR21,YR20,21 E,Q,X | ¥5,900 | |
| 63318-87002-15 note |
Moulding, Tilt Roof Opening Trim
1984-08 → 1985-08
ended
|
YR20 HRF;YR20 MRF E;CR21,YR21 +1 | ¥5,900 | |
| 63318-87002-15 note |
Moulding, Tilt Roof Opening Trim
1984-08 → 1985-08
ended
|
YR21 G | ¥5,900 | |
| 63318-87002-23 note |
Moulding, Tilt Roof Opening Trim
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥5,900 | |
| 63318-87002-25 note |
Moulding, Tilt Roof Opening Trim
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥5,900 | |
| 63320A — Moulding, Sun Roof OR Removable Roof Opening Trim | ||||
| 63329-87002-03 note |
Moulding, Sun Roof OR Removable Roof Opening Trim
1982-11 → 1984-08
ended
|
CR21,YR20,21 HRF (E,Q,X) | ¥8,200 | |
| 63329-87002-05 note |
Moulding, Sun Roof OR Removable Roof Opening Trim
1982-11 → 1984-08
ended
|
CR21,YR20,21 HRF | ¥8,200 | |
| 63329-87002-13 note |
Moulding, Sun Roof OR Removable Roof Opening Trim
1984-08 → 1985-08
ended
|
CR21,YR20,21 HRF (E,Q,X) | ¥8,200 | |
| 63329-87002-15 note |
Moulding, Sun Roof OR Removable Roof Opening Trim
1984-08 → 1985-08
ended
|
CR21,YR20,21 HRF | ¥8,200 | |
| 63329-87002-23 note |
Moulding, Sun Roof OR Removable Roof Opening Trim
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥8,200 | |
| 63329-87002-25 note |
Moulding, Sun Roof OR Removable Roof Opening Trim
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥8,200 | |
| 63329-87003-03 note |
Moulding, Sun Roof OR Removable Roof Opening Trim
1982-11 → 1984-08
ended
|
CR21,YR20,21 MRF (E,X) | ¥5,800 | |
| 63329-87003-05 note |
Moulding, Sun Roof OR Removable Roof Opening Trim
1982-11 → 1984-08
ended
|
CR21,YR20,21 MRF (E,X) | ¥5,800 | |
| 63329-87003-13 note |
Moulding, Sun Roof OR Removable Roof Opening Trim
1984-08 → 1985-08
ended
|
CR21,YR20 MRF (E,X) | ¥5,800 | |
| 63329-87003-15 note |
Moulding, Sun Roof OR Removable Roof Opening Trim
1984-08 → 1985-08
ended
|
CR21,YR20 MRF (E,X) | ¥5,800 | |
| 63320B — Joint, Sun Roof Opening Trim | ||||
| 63319-87003-03 note |
Joint, Sun Roof Opening Trim
1985-08 → 1986-06
ended
|
CR21,YR20,21 HRF (E,Q) | ¥370 | |
| 63319-87003-05 note |
Joint, Sun Roof Opening Trim
1985-08 → 1986-06
ended
|
CR21,YR20,21 HRF (E,Q) | ¥370 | |
| 63319-87004-03 note |
Joint, Sun Roof Opening Trim
1986-06 → 1987-12
ended
|
CR21,YR20,21 HRF (E,Q) | ¥350 | |
| 63319-87004-05 note |
Joint, Sun Roof Opening Trim
1986-06 → 1987-12
ended
|
CR21,YR20,21 HRF (E,Q) | ¥350 | |
| 63319-95701-03 note |
Joint, Sun Roof Opening Trim
1987-12 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF (E,Q) | ¥410 | |
| 63319-95701-05 note |
Joint, Sun Roof Opening Trim
1983-05 → 1984-08
ended
|
YR21 G | ¥410 | |
| 63319-95701-05 note |
Joint, Sun Roof Opening Trim
1987-12 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF (E,Q) | ¥410 | |
| 63319-95701-05 note |
Joint, Sun Roof Opening Trim
1982-11 → 1984-08
ended
|
CR21,YR20,21 HRF (E,X) | ¥410 | |
| 63319-95701-13 note |
Joint, Sun Roof Opening Trim
1982-11 → 1985-08
ended
|
CR21,YR20,21 E,Q,X | ¥410 | |
| 63319-95701-13 note |
Joint, Sun Roof Opening Trim
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | ¥410 | |
| 63319-95701-15 note |
Joint, Sun Roof Opening Trim
1984-08 → 1985-08
ended
|
YR20 HRF;YR20 MRF E;CR21,YR21 +1 | — | |
| 63319-95701-15 note |
Joint, Sun Roof Opening Trim
1984-08 → 1985-08
ended
|
YR21 G | — | |
| 63333B — Protector, Sunshade Trim | ||||
| 63333-30010 note |
Protector, Sunshade Trim
1982-11 → 1985-08
ended
|
YR20 HRF;CR21,YR21 E,Q,X;YR20 MRF +1 | ¥610 | |
| 63333-30010 note |
Protector, Sunshade Trim
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥610 | |
| 63333-95700-03 note |
Protector, Sunshade Trim
1982-11 → 1985-08
ended
|
CR21,YR20,21 E,Q,X | ¥300 | |
| 63333-95700-03 note |
Protector, Sunshade Trim
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥300 | |
| 63333-95700-05 note |
Protector, Sunshade Trim
1982-11 → 1984-08
ended
|
YR20 HRF;CR21,YR21 E,Q,X;YR20 MRF +1 | ¥300 | |
| 63333-95700-08 note |
Protector, Sunshade Trim
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥300 | |
| 63333-95700-15 note |
Protector, Sunshade Trim
1984-08 → 1985-08
ended
|
YR20 HRF;YR20 MRF E;CR21,YR21 +1 | ¥300 | |
| 63334B — Protector, Sunshade Trim, NO.1 | ||||
| 63334-95703 |
Protector, Sunshade Trim, NO.1
1982-11 → 1983-03
ended
|
YR20 HRF;YR20 MRF (E,X) | — | |
| 63334-95705 note |
Protector, Sunshade Trim, NO.1
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | ¥2,020 | |
| 63334-95705 |
Protector, Sunshade Trim, NO.1
1983-03 → 1985-08
ended
|
YR20 HRF;CR21,YR21 E,Q,X;YR20 MRF +1 | ¥2,020 | |
| 63334-95705 |
Protector, Sunshade Trim, NO.1
1983-05 → 1985-08
ended
|
YR21 G | ¥2,020 | |
| 63334-95705 |
Protector, Sunshade Trim, NO.1
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥2,020 | |
| 63335 — Protector, Sunshade Trim, NO.2 | ||||
| 63335-95703-05 note |
Protector, Sunshade Trim, NO.2
1982-11 → 1984-08
ended
|
YR20 HRF;CR21,YR21 E,Q,X;YR20 MRF +1 | ¥510 | |
| 63335-95703-05 note |
Protector, Sunshade Trim, NO.2
1983-05 → 1984-08
ended
|
YR21 G | ¥510 | |
| 63335-95703-13 note |
Protector, Sunshade Trim, NO.2
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | ¥510 | |
| 63335-95703-13 note |
Protector, Sunshade Trim, NO.2
1982-11 → 1985-08
ended
|
CR21,YR20,21 E,Q,X | ¥510 | |
| 63335-95703-13 note |
Protector, Sunshade Trim, NO.2
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥510 | |
| 63335-95703-15 note |
Protector, Sunshade Trim, NO.2
1984-08 → 1985-08
ended
|
YR21 G | ¥510 | |
| 63335-95703-15 note |
Protector, Sunshade Trim, NO.2
1984-08 → 1985-08
ended
|
YR20 HRF;YR20 MRF E;CR21,YR21 +1 | ¥510 | |
| 63335-95703-25 note |
Protector, Sunshade Trim, NO.2
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥510 | |
| 63337A — Piece, Sunshade Guide, NO.2 | ||||
| 63337-95700 |
Piece, Sunshade Guide, NO.2
1982-11 → 1985-08
ended
|
YR20 HRF;CR21,YR21 E,Q,X;YR20 MRF +1 | ¥680 | |
| 63337-95700 |
Piece, Sunshade Guide, NO.2
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥680 | |
| 63344C — Protector, Sunshade Trim, NO.4 | ||||
| 63344-95705-03 note |
Protector, Sunshade Trim, NO.4
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥260 | |
| 63344-95705-05 note |
Protector, Sunshade Trim, NO.4
1982-11 → 1984-08
ended
|
YR20 HRF;CR21,YR21 E,Q,X;YR20 MRF +1 | ¥260 | |
| 63344-95705-05 note |
Protector, Sunshade Trim, NO.4
1983-05 → 1984-08
ended
|
YR21 G | ¥260 | |
| 63344-95705-08 note |
Protector, Sunshade Trim, NO.4
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥260 | |
| 63344-95705-13 note |
Protector, Sunshade Trim, NO.4
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | ¥260 | |
| 63344-95705-13 note |
Protector, Sunshade Trim, NO.4
1982-11 → 1984-08
ended
|
CR21,YR20,21 E,Q,X | ¥260 | |
| 63344-95705-15 note |
Protector, Sunshade Trim, NO.4
1984-08 → 1985-08
ended
|
YR20 HRF;YR20 MRF E;CR21,YR21 +1 | ¥260 | |
| 63344-95705-15 note |
Protector, Sunshade Trim, NO.4
1984-08 → 1985-08
ended
|
YR21 G | ¥260 | |
| 63344-95705-23 note |
Protector, Sunshade Trim, NO.4
1984-08 → 1985-08
ended
|
CR21,YR20,21 E,Q,X | ¥260 | |
| 63345A — Protector, Sunshade Trim, NO.5 | ||||
| 63345-87004-03 note |
Protector, Sunshade Trim, NO.5
1982-11 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q,X) | ¥680 | |
| 63345-87004-05 note |
Protector, Sunshade Trim, NO.5
1982-11 → 1984-08
ended
|
CR21,YR20,21 HRF | ¥790 | |
| 63345-87004-15 note |
Protector, Sunshade Trim, NO.5
1984-08 → 1985-08
ended
|
CR21,YR20,21 HRF | ¥790 | |
| 63345-87004-25 note |
Protector, Sunshade Trim, NO.5
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥680 | |
| 63345-87005-03 note |
Protector, Sunshade Trim, NO.5
1982-11 → 1985-08
ended
|
CR21,YR20,21 MRF (E,X) | ¥810 | |
| 63345-87005-05 note |
Protector, Sunshade Trim, NO.5
1982-11 → 1984-08
ended
|
CR21,YR20,21 MRF (E,X) | — | |
| 63345-87005-15 note |
Protector, Sunshade Trim, NO.5
1984-08 → 1985-08
ended
|
CR21,YR20 MRF E | — | |
| 63346A — Protector, Sunshade Trim, NO.6 | ||||
| 63346-87001-05 note |
Protector, Sunshade Trim, NO.6
1983-11 → 1984-08
ended
|
YR20 HRF;CR21,YR21 E,Q,X;YR20 MRF +1 | ¥300 | |
| 63346-87001-15 note |
Protector, Sunshade Trim, NO.6
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥300 | |
| 63346-87001-15 note |
Protector, Sunshade Trim, NO.6
1984-08 → 1985-08
ended
|
YR20 HRF;YR20 MRF E;CR21,YR21 +1 | ¥300 | |
| 63346-95705 note |
Protector, Sunshade Trim, NO.6
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | ¥670 | |
| 63346-95705 note |
Protector, Sunshade Trim, NO.6
1982-11 → 1983-03
ended
|
YR20 HRF;YR20 MRF (E,X) | ¥670 | |
| 63346-95705 note |
Protector, Sunshade Trim, NO.6
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥670 | |
| 63346-95705 note |
Protector, Sunshade Trim, NO.6
1983-03 → 1985-08
ended
|
YR20 HRF;CR21,YR21 E,Q,X;YR20 MRF +1 | ¥670 | |
| 63346-95705 |
Protector, Sunshade Trim, NO.6
1983-05 → 1985-08
ended
|
YR21 G | ¥670 | |
| 63372 — Retainer, Headlining Support | ||||
| 63371-87001-03 note |
Retainer, Headlining Support
1982-11 → 1984-08
ended
|
CR21,YR20,21 HRF (E,Q,X) | — | |
| 63371-87001-05 note |
Retainer, Headlining Support
1982-11 → 1984-08
ended
|
CR21,YR20,21 HRF | — | |
| 63371-87002-03 note |
Retainer, Headlining Support
1982-11 → 1984-08
ended
|
CR21,YR20,21 MRF (E,X) | — | |
| 63371-87002-05 note |
Retainer, Headlining Support
1982-11 → 1984-08
ended
|
CR21,YR20,21 MRF (E,X) | — | |
| 63371-87003-03 note |
Retainer, Headlining Support
1984-08 → 1985-08
ended
|
CR21,YR20 MRF E | — | |
| 63371-87003-05 note |
Retainer, Headlining Support
1984-08 → 1985-08
ended
|
CR21,YR20 MRF E | — | |
| 63371-87004-03 note |
Retainer, Headlining Support
1984-08 → 1985-08
ended
|
CR21,YR20,21 HRF (E,Q,X) | — | |
| 63371-87004-05 note |
Retainer, Headlining Support
1984-08 → 1985-08
ended
|
CR21,YR20,21 HRF | — | |
| 63371-87006-03 note |
Retainer, Headlining Support
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF (E,Q) | ¥1,620 | |
| 63371-87006-05 note |
Retainer, Headlining Support
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF (E,Q) | — | |
| 63371-87010-03 note |
Retainer, Headlining Support
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥2,840 | |
| 63371-87010-05 note |
Retainer, Headlining Support
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | — | |
| 63374-87001-03 note |
Retainer, Headlining Support
1982-11 → 1984-08
ended
|
CR21,YR20,21 HRF (E,Q,X) | — | |
| 63374-87001-05 note |
Retainer, Headlining Support
1982-11 → 1984-08
ended
|
CR21,YR20,21 HRF | — | |
| 63374-87002-03 note |
Retainer, Headlining Support
1982-11 → 1984-08
ended
|
CR21,YR20,21 MRF (E,X) | — | |
| 63374-87002-05 note |
Retainer, Headlining Support
1982-11 → 1984-08
ended
|
CR21,YR20,21 MRF (E,X) | — | |
| 63374-87003-03 note |
Retainer, Headlining Support
1984-08 → 1985-08
ended
|
CR21,YR20 MRF E | — | |
| 63374-87003-05 note |
Retainer, Headlining Support
1984-08 → 1985-08
ended
|
CR21,YR20 MRF E | — | |
| 63374-87004-03 note |
Retainer, Headlining Support
1984-08 → 1985-08
ended
|
CR21,YR20,21 HRF (E,Q,X) | — | |
| 63374-87004-05 note |
Retainer, Headlining Support
1984-08 → 1985-08
ended
|
CR21,YR20,21 HRF | — | |
| 63374-87006-03 note |
Retainer, Headlining Support
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF (E,Q) | ¥1,620 | |
| 63374-87006-05 note |
Retainer, Headlining Support
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF (E,Q) | — | |
| 63374-87010-03 note |
Retainer, Headlining Support
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥2,840 | |
| 63374-87010-05 note |
Retainer, Headlining Support
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | — | |
| 63376 — Clip, Headlining | ||||
| 90044-67048-03 note |
Clip, Headlining
1982-11 → 1985-08
ended
|
CR21,YR20,21 E,Q,X | ¥180 | |
| 90044-67048-03 note |
Clip, Headlining
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥180 | |
| 90044-67048-05 note |
Clip, Headlining
1982-11 → 1984-08
ended
|
YR20 HRF;CR21,YR21 E,Q,X;YR20 MRF +1 | ¥180 | |
| 90044-67048-15 note |
Clip, Headlining
1984-08 → 1985-08
ended
|
YR20 HRF;YR20 MRF E;CR21,YR21 +1 | ¥180 | |
| 90044-67048-25 note |
Clip, Headlining
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥180 | |
| 63381A — Clip, Headlining Retainer | ||||
| 90044-67048-03 note |
Clip, Headlining Retainer
1982-11 → 1985-08
ended
|
CR21,YR20,21 E,Q,X | ¥180 | |
| 90044-67048-03 note |
Clip, Headlining Retainer
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF (E,Q) | ¥180 | |
| 90044-67048-05 note |
Clip, Headlining Retainer
1982-11 → 1984-08
ended
|
YR20 HRF;CR21,YR21 E,Q,X;YR20 MRF +1 | ¥180 | |
| 90044-67048-15 note |
Clip, Headlining Retainer
1984-08 → 1985-08
ended
|
YR20 HRF;YR20 MRF E;CR21,YR21 +1 | ¥180 | |
| 90044-67048-25 note |
Clip, Headlining Retainer
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF (E,Q) | ¥180 | |
| 63392 — Trim, Roof Headlining, Rear | ||||
| 63392-87007-03 note |
Trim, Roof Headlining, Rear
1982-11 → 1985-08
ended
|
CR21,YR20,21 MRF (E,X) | ¥6,000 | |
| 63392-87007-05 note |
Trim, Roof Headlining, Rear
1982-11 → 1984-08
ended
|
CR21,YR20,21 MRF (E,X) | — | |
| 63392-87007-15 note |
Trim, Roof Headlining, Rear
1984-08 → 1985-08
ended
|
CR21,YR20 MRF E | — | |
| 63392-87008-03 note |
Trim, Roof Headlining, Rear
1982-11 → 1985-08
ended
|
CR21,YR20,21 HRF (E,X) | ¥6,000 | |
| 63392-87008-03 note |
Trim, Roof Headlining, Rear
1984-08 → 1985-08
ended
|
YR20,21 Q | ¥6,000 | |
| 63392-87008-03 note |
Trim, Roof Headlining, Rear
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF (E,Q) | ¥6,000 | |
| 63392-87008-05 note |
Trim, Roof Headlining, Rear
1982-11 → 1984-08
ended
|
CR21,YR20,21 HRF (E,G,X) | ¥6,000 | |
| 63392-87008-15 note |
Trim, Roof Headlining, Rear
1984-08 → 1985-08
ended
|
YR20,21 Q | — | |
| 63392-87008-15 note |
Trim, Roof Headlining, Rear
1984-08 → 1985-08
ended
|
CR21,YR20,21 HRF (E,G,X) | — | |
| 63392-87008-25 note |
Trim, Roof Headlining, Rear
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF (E,Q) | ¥6,000 | |
| 63392-87010-03 note |
Trim, Roof Headlining, Rear
1982-11 → 1984-08
ended
|
YR20,21 Q | — | |
| 63392-87010-05 note |
Trim, Roof Headlining, Rear
1982-11 → 1984-08
ended
|
YR20,21 Q | — | |
| 63421A — Ornament, Roof Console | ||||
| 63421-87002 note |
Ornament, Roof Console
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | ¥180 | |
| 63421-87002 note |
Ornament, Roof Console
1982-11 → 1985-08
ended
|
YR20 HRF;CR21,YR21 E,Q,X;YR20 MRF +1 | ¥180 | |
| 63421-87002 |
Ornament, Roof Console
1983-05 → 1985-08
ended
|
YR21 G | ¥180 | |
| 63421-87002 |
Ornament, Roof Console
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥180 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
