Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

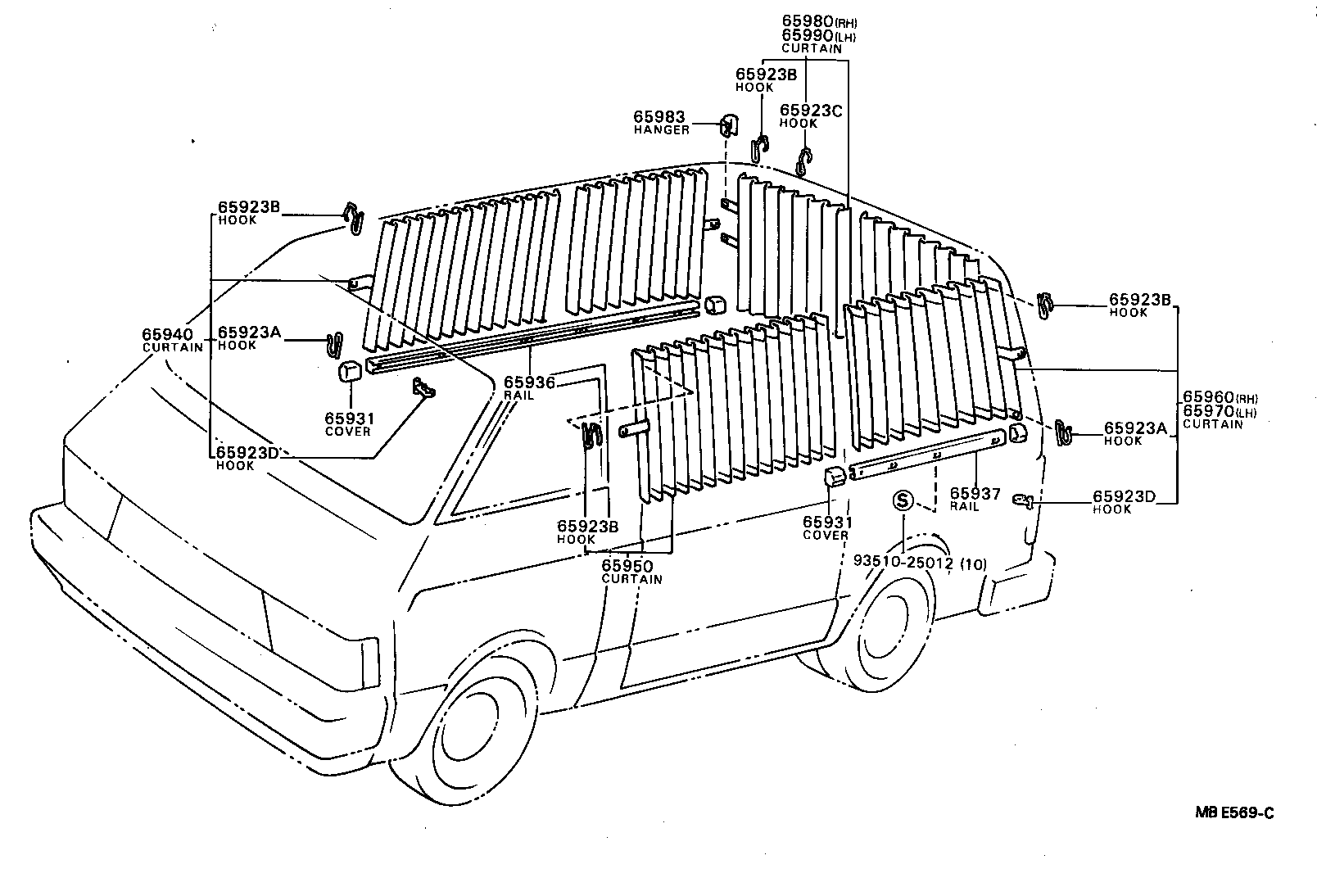

Exploded illustration MBE569C 65980 — CURTAIN ASSY, BACK DOOR, RH (6 parts) 65990 — CURTAIN ASSY, BACK DOOR, LH (6 parts) 65923B — HOOK, CURTAIN, NO.2 (4 parts) 65923C — HOOK, CURTAIN, NO.3 (1 parts) 65983 — HANGER, BACK WINDOW CURTAIN (2 parts) 65923B — HOOK, CURTAIN, NO.2 (4 parts) 65923B — HOOK, CURTAIN, NO.2 (4 parts) 65923A — HOOK, CURTAIN, NO.1 (10 parts) 65940 — CURTAIN ASSY, SIDE, FRONT RH (6 parts) 65936 — RAIL, CURTAIN, NO.1 (2 parts) 65960 — CURTAIN ASSY, SIDE, REAR RH (6 parts) 65970 — CURTAIN ASSY, SIDE, REAR LH (6 parts) 65931 — COVER, CURTAIN RAIL (4 parts) 65923A — HOOK, CURTAIN, NO.1 (10 parts) 65923D — HOOK, CURTAIN, NO.4 (1 parts) 65937 — RAIL, CURTAIN, NO.2 (2 parts) 65923D — HOOK, CURTAIN, NO.4 (1 parts) 65931 — COVER, CURTAIN RAIL (4 parts) 65923B — HOOK, CURTAIN, NO.2 (4 parts) 9351025012 — not listed in this catalogue 65950 — CURTAIN ASSY, SIDE, FRONT LH (6 parts)
MBE569C · 20 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
62 parts on this figure
Part number Description Fitment Price
65923A — Hook, Curtain, NO.1
65923-87002 Hook, Curtain, NO.1
1982-11 → 1986-08 ended
CR21,30,YR20,21 Q ¥270
65923-87002 note Hook, Curtain, NO.1
1986-12 → 1988-08 ended
CR21,30,YR21,30 Q ¥270
65923-87005 note Hook, Curtain, NO.1
1986-12 → 1987-08 ended
CR21,30,YR21,30 Q ¥310
65923-87006 note Hook, Curtain, NO.1
1987-08 → 1988-08 ended
CR21,30,YR21,30 Q ¥210
65923-95703 note Hook, Curtain, NO.1
1986-12 → 1987-03 ended
CR21,30,YR21,30 Q ¥320
65923-95703 note Hook, Curtain, NO.1
1987-03 → 1988-08 ended
CR21,30,YR21,30 Q ¥320
65923-95J01 note Hook, Curtain, NO.1
1986-12 → 1988-08 ended
CR21,30,YR21,30 Q ¥310
65923-95J02 note Hook, Curtain, NO.1
1987-03 → 1988-08 ended
CR21,30,YR21,30 Q ¥320
65923-95J02 note Hook, Curtain, NO.1
1986-12 → 1987-03 ended
CR21,30,YR21,30 Q ¥320
65923-95J10 note Hook, Curtain, NO.1
1986-12 → 1988-08 ended
CR21,30,YR21,30 Q ¥320
65923B — Hook, Curtain, NO.2
65909-95700 note Hook, Curtain, NO.2
1986-12 → 1988-08 ended
CR21,30,YR21,30 Q ¥450
65923-95700 Hook, Curtain, NO.2
1982-11 → 1982-12 ended
YR20 Q ¥270
65923-95700 Hook, Curtain, NO.2
1982-12 → 1985-12 ended
CR21,30,YR20,21 Q ¥270
65923-95700 Hook, Curtain, NO.2
1985-12 → 1986-08 ended
CR21,30,YR20,21 Q ¥270
65923C — Hook, Curtain, NO.3
65923-87004 Hook, Curtain, NO.3
1982-12 → 1986-08 ended
CR21,30,YR20,21 Q ¥320
65923D — Hook, Curtain, NO.4
65923-87003 Hook, Curtain, NO.4
1982-11 → 1986-08 ended
CR21,30,YR20,21 Q ¥310
65931 — Cover, Curtain Rail
65931-87002-03 note Cover, Curtain Rail
1982-11 → 1988-08 ended
CR21,30,YR20,21 Q ¥750
65931-87002-05 note Cover, Curtain Rail
1982-11 → 1984-08 ended
YR20,21 Q ¥750
65931-87002-15 note Cover, Curtain Rail
1984-08 → 1985-08 ended
YR20,21 Q ¥750
65931-87002-25 note Cover, Curtain Rail
1985-08 → 1988-08 ended
CR21,30,YR20,21 Q ¥750
65936 — Rail, Curtain, NO.1
65936-87001 Rail, Curtain, NO.1
1982-11 → 1986-08 ended
CR21,30,YR20,21 Q —
65936-87004 Rail, Curtain, NO.1
1986-08 → 1988-08 ended
CR21,30,YR21,30 Q ¥2,820
65937 — Rail, Curtain, NO.2
65937-87001 Rail, Curtain, NO.2
1982-11 → 1986-08 ended
CR21,30,YR20,21 Q —
65937-87002 Rail, Curtain, NO.2
1986-08 → 1988-08 ended
CR21,30,YR21,30 Q ¥1,540
65940 — Curtain Assy, Side, Front RH
65940-87002-03 note Curtain Assy, Side, Front RH
1982-11 → 1985-08 ended
YR20,21 Q ¥20,700
65940-87002-05 note Curtain Assy, Side, Front RH
1985-08 → 1986-08 ended
CR21,30,YR20,21 Q ¥20,700
65940-87002-08 note Curtain Assy, Side, Front RH
1982-11 → 1985-08 ended
YR20,21 Q —
65940-87002-13 note Curtain Assy, Side, Front RH
1985-08 → 1986-08 ended
CR21,30,YR20,21 Q —
65940-87003-03 note Curtain Assy, Side, Front RH
1986-08 → 1988-08 ended
CR21,30,YR21,30 Q ¥20,600
65940-87003-05 note Curtain Assy, Side, Front RH
1986-08 → 1988-08 ended
CR21,30,YR21,30 Q ¥20,600
65950 — Curtain Assy, Side, Front LH
65950-87001-03 note Curtain Assy, Side, Front LH
1982-11 → 1985-08 ended
YR20,21 Q ¥20,700
65950-87001-05 note Curtain Assy, Side, Front LH
1985-08 → 1986-08 ended
CR21,30,YR20,21 Q ¥20,700
65950-87001-08 note Curtain Assy, Side, Front LH
1982-11 → 1985-08 ended
YR20,21 Q —
65950-87001-13 note Curtain Assy, Side, Front LH
1985-08 → 1986-08 ended
CR21,30,YR20,21 Q —
65950-87002-03 note Curtain Assy, Side, Front LH
1986-08 → 1988-08 ended
CR21,30,YR21,30 Q ¥20,600
65950-87002-05 note Curtain Assy, Side, Front LH
1986-08 → 1988-08 ended
CR21,30,YR21,30 Q ¥20,600
65960 — Curtain Assy, Side, Rear RH
65960-87002-03 note Curtain Assy, Side, Rear RH
1982-11 → 1985-08 ended
YR20,21 Q ¥18,200
65960-87002-05 note Curtain Assy, Side, Rear RH
1985-08 → 1986-08 ended
CR21,30,YR20,21 Q ¥18,200
65960-87002-08 note Curtain Assy, Side, Rear RH
1982-11 → 1985-08 ended
YR20,21 Q —
65960-87002-13 note Curtain Assy, Side, Rear RH
1985-08 → 1986-08 ended
CR21,30,YR20,21 Q —
65960-87003-03 note Curtain Assy, Side, Rear RH
1986-08 → 1988-08 ended
CR21,30,YR21,30 Q ¥18,300
65960-87003-05 note Curtain Assy, Side, Rear RH
1986-08 → 1988-08 ended
CR21,30,YR21,30 Q ¥18,300
65970 — Curtain Assy, Side, Rear LH
65970-87002-03 note Curtain Assy, Side, Rear LH
1982-11 → 1985-08 ended
YR20,21 Q ¥18,200
65970-87002-05 note Curtain Assy, Side, Rear LH
1985-08 → 1986-08 ended
CR21,30,YR20,21 Q ¥18,200
65970-87002-08 note Curtain Assy, Side, Rear LH
1982-11 → 1985-08 ended
YR20,21 Q —
65970-87002-13 note Curtain Assy, Side, Rear LH
1985-08 → 1986-08 ended
CR21,30,YR20,21 Q —
65970-87003-03 note Curtain Assy, Side, Rear LH
1986-08 → 1988-08 ended
CR21,30,YR21,30 Q ¥18,300
65970-87003-05 note Curtain Assy, Side, Rear LH
1986-08 → 1988-08 ended
CR21,30,YR21,30 Q ¥18,300
65980 — Curtain Assy, Back Door, RH
65980-87003-03 note Curtain Assy, Back Door, RH
1982-11 → 1985-08 ended
YR20,21 Q ¥22,400
65980-87003-05 note Curtain Assy, Back Door, RH
1985-08 → 1986-08 ended
CR21,30,YR20,21 Q ¥22,400
65980-87003-08 note Curtain Assy, Back Door, RH
1982-11 → 1985-08 ended
YR20,21 Q —
65980-87003-13 note Curtain Assy, Back Door, RH
1985-08 → 1986-08 ended
CR21,30,YR20,21 Q ¥22,400
65980-87004-03 note Curtain Assy, Back Door, RH
1986-08 → 1988-08 ended
CR21,30,YR21,30 Q ¥13,500
65980-87004-05 note Curtain Assy, Back Door, RH
1986-08 → 1988-08 ended
CR21,30,YR21,30 Q ¥13,500
65983 — Hanger, Back Window Curtain
65983-87001 Hanger, Back Window Curtain
1982-11 → 1986-08 ended
CR21,30,YR20,21 Q ¥610
65983-87001 Hanger, Back Window Curtain
1986-08 → 1988-08 ended
CR21,30,YR21,30 Q ¥610
65990 — Curtain Assy, Back Door, LH
65990-87003-03 note Curtain Assy, Back Door, LH
1982-11 → 1985-08 ended
YR20,21 Q ¥22,400
65990-87003-05 note Curtain Assy, Back Door, LH
1985-08 → 1986-08 ended
CR21,30,YR20,21 Q ¥22,400
65990-87003-08 note Curtain Assy, Back Door, LH
1982-11 → 1985-08 ended
YR20,21 Q —
65990-87003-13 note Curtain Assy, Back Door, LH
1985-08 → 1986-08 ended
CR21,30,YR20,21 Q ¥22,400
65990-87004-03 note Curtain Assy, Back Door, LH
1986-08 → 1988-08 ended
CR21,30,YR21,30 Q ¥13,500
65990-87004-05 note Curtain Assy, Back Door, LH
1986-08 → 1988-08 ended
CR21,30,YR21,30 Q ¥13,500
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
