Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

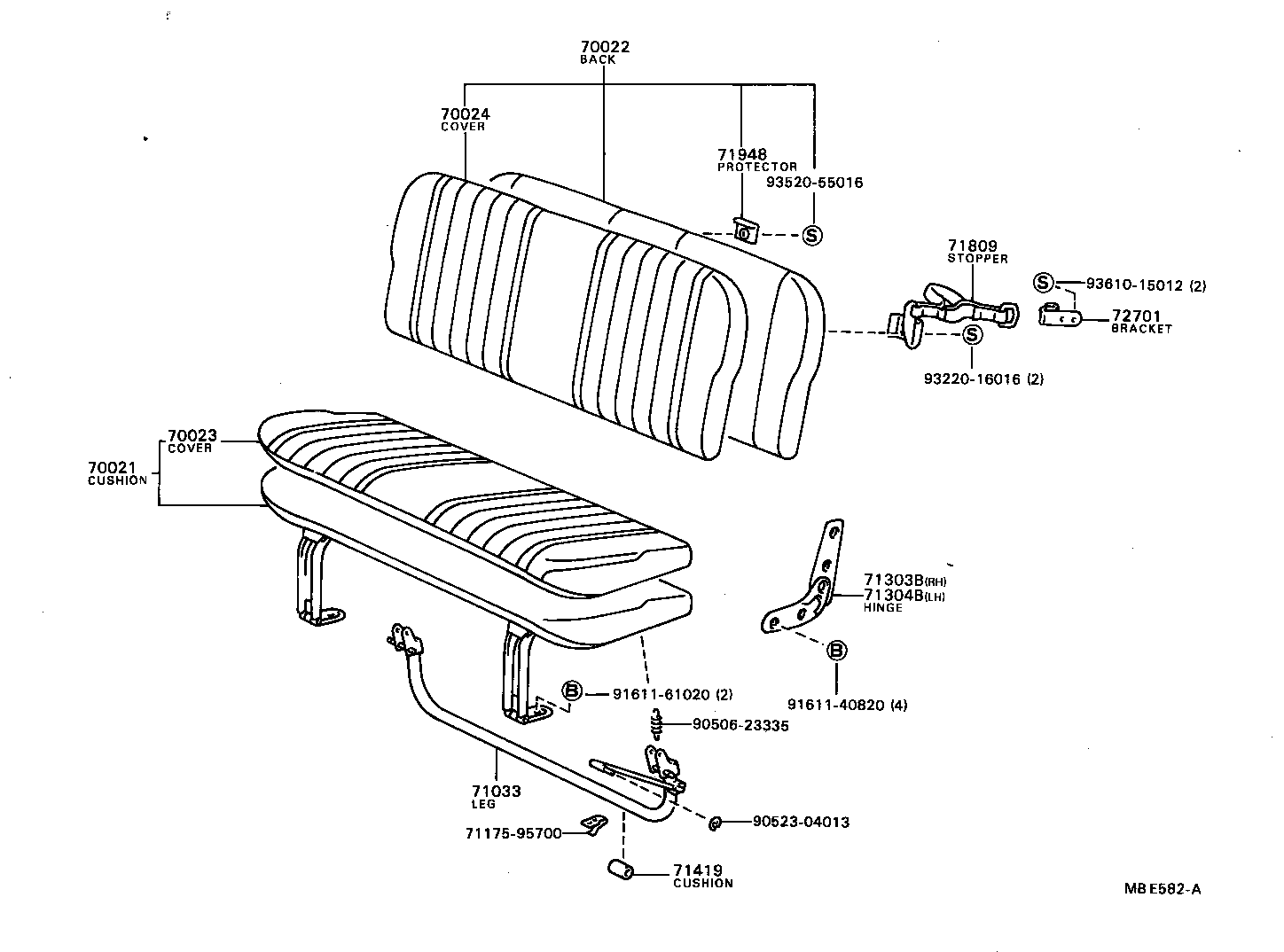

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 70021 — Cushion Assy, NO.2 Seat | ||||
| 71460-87030-06 note |
Cushion Assy, NO.2 Seat
1986-08 → 1988-08
ended
|
KR26 06S | — | |
| 71460-87031-06 note |
Cushion Assy, NO.2 Seat
1986-08 → 1988-08
ended
|
CR26,36,YR26 (05S,06S) D | — | |
| 71460-87036 note |
Cushion Assy, NO.2 Seat
1982-11 → 1984-08
ended
|
KR26 06S | ¥103,000 | |
| 71460-87036-02 note |
Cushion Assy, NO.2 Seat
1984-08 → 1985-08
ended
|
KR26 06S | ¥103,000 | |
| 71460-87036-06 note |
Cushion Assy, NO.2 Seat
1985-08 → 1986-08
ended
|
KR26 06S | ¥103,000 | |
| 71460-87037 note |
Cushion Assy, NO.2 Seat
1982-11 → 1984-08
ended
|
CR26,YR26 (05S,06S) D | ¥105,000 | |
| 71460-87037-02 note |
Cushion Assy, NO.2 Seat
1984-08 → 1985-08
ended
|
CR26,YR26 (05S,06S) D | ¥105,000 | |
| 71460-87037-06 note |
Cushion Assy, NO.2 Seat
1985-08 → 1986-08
ended
|
CR26,36,YR26 (05S,06S) D | ¥105,000 | |
| 71460-87038-02 note |
Cushion Assy, NO.2 Seat
1982-11 → 1983-08
ended
|
YR26 N | ¥111,000 | |
| 71460-87038-12 note |
Cushion Assy, NO.2 Seat
1983-08 → 1984-08
ended
|
YR26 N | ¥122,000 | |
| 71460-87040 note |
Cushion Assy, NO.2 Seat
1982-11 → 1984-08
ended
|
YR20 D | ¥83,400 | |
| 71460-87040-02 note |
Cushion Assy, NO.2 Seat
1984-08 → 1985-08
ended
|
CR21,YR20 D | ¥83,400 | |
| 71460-87040-06 note |
Cushion Assy, NO.2 Seat
1985-08 → 1988-08
ended
|
CR21,YR20 D | ¥83,400 | |
| 71460-87041-02 note |
Cushion Assy, NO.2 Seat
1982-11 → 1983-08
ended
|
YR20 G | ¥97,100 | |
| 71460-87041-12 note |
Cushion Assy, NO.2 Seat
1983-08 → 1984-08
ended
|
YR20 G | ¥97,100 | |
| 71460-87057-02 note |
Cushion Assy, NO.2 Seat
1984-08 → 1985-08
ended
|
CR26,27,YR26 N | — | |
| 71460-87057-06 note |
Cushion Assy, NO.2 Seat
1985-08 → 1986-08
ended
|
CR26,27,36,YR26 N | — | |
| 71460-87059-06 note |
Cushion Assy, NO.2 Seat
1985-08 → 1986-08
ended
|
CR28,YR28 | — | |
| 71460-87060-06 note |
Cushion Assy, NO.2 Seat
1986-08 → 1988-08
ended
|
CR26,27,36,YR26 N | — | |
| 71460-87064-06 note |
Cushion Assy, NO.2 Seat
1986-08 → 1988-08
ended
|
CR28,37,YR28,36 | — | |
| 71470-87020-02 note |
Cushion Assy, NO.2 Seat
1982-11 → 1983-08
ended
|
YR20 G | ¥50,000 | |
| 71470-87020-12 note |
Cushion Assy, NO.2 Seat
1983-08 → 1984-08
ended
|
YR20 G | ¥55,200 | |
| 71470-87021-02 note |
Cushion Assy, NO.2 Seat
1982-11 → 1983-08
ended
|
CR21,YR20 E | — | |
| 71470-87021-04 note |
Cushion Assy, NO.2 Seat
1982-11 → 1983-08
ended
|
CR21,YR20 E | — | |
| 71470-87021-12 note |
Cushion Assy, NO.2 Seat
1983-08 → 1984-08
ended
|
CR21,YR20 E | — | |
| 71470-87021-14 note |
Cushion Assy, NO.2 Seat
1983-08 → 1984-08
ended
|
CR21,YR20 E | — | |
| 71470-87022-02 note |
Cushion Assy, NO.2 Seat
1982-11 → 1983-08
ended
|
YR20,21 Q | ¥56,700 | |
| 71470-87022-04 note |
Cushion Assy, NO.2 Seat
1982-11 → 1983-08
ended
|
YR20,21 Q | ¥56,700 | |
| 71470-87022-12 note |
Cushion Assy, NO.2 Seat
1983-08 → 1984-08
ended
|
YR20,21 Q | — | |
| 71470-87022-14 note |
Cushion Assy, NO.2 Seat
1983-08 → 1984-08
ended
|
YR20,21 Q | — | |
| 71470-87025-02 note |
Cushion Assy, NO.2 Seat
1982-11 → 1983-08
ended
|
YR20,21 X | — | |
| 71470-87025-04 note |
Cushion Assy, NO.2 Seat
1982-11 → 1983-08
ended
|
YR20,21 X | ¥54,600 | |
| 71470-87025-12 note |
Cushion Assy, NO.2 Seat
1983-08 → 1984-08
ended
|
YR20,21 X | — | |
| 71470-87025-14 note |
Cushion Assy, NO.2 Seat
1983-08 → 1984-08
ended
|
YR20,21 X | — | |
| 71470-87026-02 note |
Cushion Assy, NO.2 Seat
1984-08 → 1985-08
ended
|
CR21,YR20 G | — | |
| 71470-87026-06 note |
Cushion Assy, NO.2 Seat
1985-08 → 1988-08
ended
|
YR20 HRF 5F G;CR21,YR20 +2 | — | |
| 71470-87028 note |
Cushion Assy, NO.2 Seat
1983-05 → 1984-08
ended
|
YR21 G | — | |
| 71470-87030-02 note |
Cushion Assy, NO.2 Seat
1984-08 → 1985-08
ended
|
CR21,YR20 E | — | |
| 71470-87030-04 note |
Cushion Assy, NO.2 Seat
1984-08 → 1985-08
ended
|
CR21,YR20 E | — | |
| 71470-87031-02 note |
Cushion Assy, NO.2 Seat
1984-08 → 1985-08
ended
|
YR20,21 X | — | |
| 71470-87031-04 note |
Cushion Assy, NO.2 Seat
1984-08 → 1985-08
ended
|
YR20,21 X | — | |
| 71470-87033-02 note |
Cushion Assy, NO.2 Seat
1984-08 → 1985-08
ended
|
YR21 G | — | |
| 71470-87034-02 note |
Cushion Assy, NO.2 Seat
1984-08 → 1985-08
ended
|
YR20,21 Q | — | |
| 71470-87034-04 note |
Cushion Assy, NO.2 Seat
1984-08 → 1985-08
ended
|
YR20,21 Q | — | |
| 79120-87012-04 note |
Cushion Assy, NO.2 Seat
1986-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E | — | |
| 79120-87012-06 note |
Cushion Assy, NO.2 Seat
1986-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E | — | |
| 79130-87001-04 note |
Cushion Assy, NO.2 Seat
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E | — | |
| 79130-87001-06 note |
Cushion Assy, NO.2 Seat
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E | — | |
| 79130-87002-04 note |
Cushion Assy, NO.2 Seat
1985-08 → 1987-06
ended
|
CR21,30,YR20,21,30 Q | — | |
| 79130-87002-06 note |
Cushion Assy, NO.2 Seat
1985-08 → 1987-06
ended
|
CR21,30,YR20,21,30 Q | — | |
| 79130-87017-04 note |
Cushion Assy, NO.2 Seat
1987-06 → 1988-08
ended
|
CR21,30,YR21,30 Q | — | |
| 79130-87017-06 note |
Cushion Assy, NO.2 Seat
1987-06 → 1988-08
ended
|
CR21,30,YR21,30 Q | — | |
| 70022 — Back Assy, NO.2 Seat | ||||
| 71480-87010-06 note |
Back Assy, NO.2 Seat
1986-08 → 1988-08
ended
|
YR20 MRF G;CR21,30,YR30 G;YR20 +3 | — | |
| 71480-87011 note |
Back Assy, NO.2 Seat
1982-11 → 1984-08
ended
|
KR26 06S | ¥52,100 | |
| 71480-87011-02 note |
Back Assy, NO.2 Seat
1984-08 → 1985-08
ended
|
KR26 06S | ¥52,100 | |
| 71480-87011-06 note |
Back Assy, NO.2 Seat
1985-08 → 1988-08
ended
|
KR26 06S | ¥52,100 | |
| 71480-87012 note |
Back Assy, NO.2 Seat
1982-11 → 1984-08
ended
|
CR26,YR26 (05S,06S) D | ¥54,100 | |
| 71480-87012-02 note |
Back Assy, NO.2 Seat
1984-08 → 1985-08
ended
|
CR26,YR26 (05S,06S) D | ¥54,100 | |
| 71480-87012-06 note |
Back Assy, NO.2 Seat
1985-08 → 1988-08
ended
|
CR26,36,YR26 (05S,06S) D | ¥54,100 | |
| 71480-87013-02 note |
Back Assy, NO.2 Seat
1982-11 → 1983-08
ended
|
YR26 N | ¥62,400 | |
| 71480-87013-12 note |
Back Assy, NO.2 Seat
1983-08 → 1984-08
ended
|
YR26 N | ¥68,600 | |
| 71480-87015 note |
Back Assy, NO.2 Seat
1982-11 → 1984-08
ended
|
YR20 D | ¥72,600 | |
| 71480-87015-02 note |
Back Assy, NO.2 Seat
1984-08 → 1985-08
ended
|
CR21,YR20 D | ¥72,600 | |
| 71480-87015-06 note |
Back Assy, NO.2 Seat
1985-08 → 1988-08
ended
|
CR21,YR20 D | ¥72,600 | |
| 71480-87016-02 note |
Back Assy, NO.2 Seat
1982-11 → 1983-08
ended
|
YR20 G | ¥87,500 | |
| 71480-87017-02 note |
Back Assy, NO.2 Seat
1982-11 → 1983-08
ended
|
YR20 G | ¥45,000 | |
| 71480-87017-12 note |
Back Assy, NO.2 Seat
1983-08 → 1984-08
ended
|
YR20 G | ¥49,700 | |
| 71480-87018-02 note |
Back Assy, NO.2 Seat
1982-11 → 1983-08
ended
|
CR21,YR20 E | — | |
| 71480-87018-04 note |
Back Assy, NO.2 Seat
1982-11 → 1983-08
ended
|
CR21,YR20 E | ¥47,300 | |
| 71480-87018-12 note |
Back Assy, NO.2 Seat
1983-08 → 1984-08
ended
|
CR21,YR20 E | — | |
| 71480-87018-14 note |
Back Assy, NO.2 Seat
1983-08 → 1984-08
ended
|
CR21,YR20 E | — | |
| 71480-87024 note |
Back Assy, NO.2 Seat
1983-05 → 1984-08
ended
|
YR21 G | ¥45,000 | |
| 71480-87024-02 note |
Back Assy, NO.2 Seat
1984-08 → 1985-08
ended
|
YR21 G | ¥45,000 | |
| 71480-87026-02 note |
Back Assy, NO.2 Seat
1984-08 → 1985-08
ended
|
CR21,YR20 G | — | |
| 71480-87026-06 note |
Back Assy, NO.2 Seat
1985-08 → 1986-08
ended
|
YR20 MRF G;CR21,30,YR30 G;YR20 +3 | — | |
| 71480-87027-02 note |
Back Assy, NO.2 Seat
1984-08 → 1985-08
ended
|
CR21,YR20 E | — | |
| 71480-87027-04 note |
Back Assy, NO.2 Seat
1984-08 → 1985-08
ended
|
CR21,YR20 E | — | |
| 71480-87031-02 note |
Back Assy, NO.2 Seat
1984-08 → 1985-08
ended
|
CR26,27,YR26 N | — | |
| 71480-87031-06 note |
Back Assy, NO.2 Seat
1985-08 → 1988-08
ended
|
CR26,27,36,YR26 N | — | |
| 71480-87032-06 note |
Back Assy, NO.2 Seat
1985-08 → 1988-08
ended
|
CR28,37,YR28,36 | — | |
| 71490-87021-02 note |
Back Assy, NO.2 Seat
1982-11 → 1983-08
ended
|
YR20,21 Q | ¥53,200 | |
| 71490-87021-04 note |
Back Assy, NO.2 Seat
1982-11 → 1983-08
ended
|
YR20,21 Q | ¥53,200 | |
| 71490-87021-12 note |
Back Assy, NO.2 Seat
1983-08 → 1984-08
ended
|
YR20,21 Q | — | |
| 71490-87021-14 note |
Back Assy, NO.2 Seat
1983-08 → 1984-08
ended
|
YR20,21 Q | — | |
| 71490-87022-02 note |
Back Assy, NO.2 Seat
1982-11 → 1983-08
ended
|
YR20,21 X | — | |
| 71490-87022-04 note |
Back Assy, NO.2 Seat
1982-11 → 1983-08
ended
|
YR20,21 X | ¥51,100 | |
| 71490-87022-12 note |
Back Assy, NO.2 Seat
1983-08 → 1984-08
ended
|
YR20,21 X | — | |
| 71490-87022-14 note |
Back Assy, NO.2 Seat
1983-08 → 1984-08
ended
|
YR20,21 X | — | |
| 71490-87025-02 note |
Back Assy, NO.2 Seat
1984-08 → 1985-08
ended
|
YR20,21 Q | — | |
| 71490-87025-04 note |
Back Assy, NO.2 Seat
1984-08 → 1985-08
ended
|
YR20,21 Q | — | |
| 71490-87027-02 note |
Back Assy, NO.2 Seat
1984-08 → 1985-08
ended
|
YR20,21 X | — | |
| 71490-87027-04 note |
Back Assy, NO.2 Seat
1984-08 → 1985-08
ended
|
YR20,21 X | — | |
| 79140-87001-04 note |
Back Assy, NO.2 Seat
1985-08 → 1986-08
ended
|
CR21,30,YR20,21,30 E | — | |
| 79140-87001-06 note |
Back Assy, NO.2 Seat
1985-08 → 1986-08
ended
|
CR21,30,YR20,21,30 E | — | |
| 79140-87009-04 note |
Back Assy, NO.2 Seat
1986-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E | — | |
| 79140-87009-06 note |
Back Assy, NO.2 Seat
1986-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E | — | |
| 79140-87010-04 note |
Back Assy, NO.2 Seat
1986-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E | — | |
| 79140-87010-06 note |
Back Assy, NO.2 Seat
1986-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E | — | |
| 79150-87001-04 note |
Back Assy, NO.2 Seat
1985-08 → 1986-08
ended
|
CR21,30,YR20,21 Q | — | |
| 79150-87001-06 note |
Back Assy, NO.2 Seat
1985-08 → 1986-08
ended
|
CR21,30,YR20,21 Q | — | |
| 79150-87006-04 note |
Back Assy, NO.2 Seat
1986-08 → 1988-01
ended
|
CR21,30,YR21,30 Q | — | |
| 79150-87006-06 note |
Back Assy, NO.2 Seat
1986-08 → 1988-01
ended
|
CR21,30,YR21,30 Q | — | |
| 79150-87018-04 note |
Back Assy, NO.2 Seat
1988-01 → 1988-08
ended
|
CR21,30,YR21,30 Q | — | |
| 79150-87018-06 note |
Back Assy, NO.2 Seat
1988-01 → 1988-08
ended
|
CR21,30,YR21,30 Q | — | |
| 70023 — Cover Assy, NO.2 Seat Cushion | ||||
| 71065-87002 note |
Cover Assy, NO.2 Seat Cushion
1982-11 → 1984-08
ended
|
YR20 D | ¥25,400 | |
| 71065-87002-02 note |
Cover Assy, NO.2 Seat Cushion
1984-08 → 1985-08
ended
|
CR21,YR20 D | ¥25,400 | |
| 71065-87002-06 note |
Cover Assy, NO.2 Seat Cushion
1985-08 → 1988-08
ended
|
CR21,YR20 D | ¥25,400 | |
| 71065-87003-02 note |
Cover Assy, NO.2 Seat Cushion
1982-11 → 1983-08
ended
|
YR20 G | ¥34,700 | |
| 71065-87003-12 note |
Cover Assy, NO.2 Seat Cushion
1983-08 → 1984-08
ended
|
YR20 G | ¥34,700 | |
| 71065-87029-04 note |
Cover Assy, NO.2 Seat Cushion
1986-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E | — | |
| 71065-87029-06 note |
Cover Assy, NO.2 Seat Cushion
1986-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E | — | |
| 71066-87004-02 note |
Cover Assy, NO.2 Seat Cushion
1982-11 → 1983-08
ended
|
YR20,21 Q | — | |
| 71066-87004-04 note |
Cover Assy, NO.2 Seat Cushion
1982-11 → 1983-08
ended
|
YR20,21 Q | — | |
| 71066-87004-12 note |
Cover Assy, NO.2 Seat Cushion
1983-08 → 1984-08
ended
|
YR20,21 Q | — | |
| 71066-87004-14 note |
Cover Assy, NO.2 Seat Cushion
1983-08 → 1984-08
ended
|
YR20,21 Q | — | |
| 71066-87005-02 note |
Cover Assy, NO.2 Seat Cushion
1982-11 → 1983-08
ended
|
YR20,21 X | — | |
| 71066-87005-04 note |
Cover Assy, NO.2 Seat Cushion
1982-11 → 1983-08
ended
|
YR20,21 X | ¥24,600 | |
| 71066-87005-12 note |
Cover Assy, NO.2 Seat Cushion
1983-08 → 1984-08
ended
|
YR20,21 X | — | |
| 71066-87005-14 note |
Cover Assy, NO.2 Seat Cushion
1983-08 → 1984-08
ended
|
YR20,21 X | — | |
| 71066-87006-02 note |
Cover Assy, NO.2 Seat Cushion
1982-11 → 1983-08
ended
|
YR20 G | ¥23,200 | |
| 71066-87006-12 note |
Cover Assy, NO.2 Seat Cushion
1983-08 → 1984-08
ended
|
YR20 G | ¥23,200 | |
| 71066-87007-02 note |
Cover Assy, NO.2 Seat Cushion
1982-11 → 1983-08
ended
|
CR21,YR20 E | ¥21,100 | |
| 71066-87007-04 note |
Cover Assy, NO.2 Seat Cushion
1982-11 → 1983-08
ended
|
CR21,YR20 E | ¥21,100 | |
| 71066-87007-12 note |
Cover Assy, NO.2 Seat Cushion
1983-08 → 1984-08
ended
|
CR21,YR20 E | ¥24,100 | |
| 71066-87007-14 note |
Cover Assy, NO.2 Seat Cushion
1983-08 → 1984-08
ended
|
CR21,YR20 E | ¥24,100 | |
| 71066-87007-24 note |
Cover Assy, NO.2 Seat Cushion
1984-04 → 1984-05
ended
|
YR20 HRF E | ¥24,100 | |
| 71066-87009 note |
Cover Assy, NO.2 Seat Cushion
1983-05 → 1984-08
ended
|
YR21 G | — | |
| 71066-87011 note |
Cover Assy, NO.2 Seat Cushion
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | — | |
| 71066-87012-02 note |
Cover Assy, NO.2 Seat Cushion
1984-08 → 1985-08
ended
|
CR21,YR20 G | — | |
| 71066-87012-06 note |
Cover Assy, NO.2 Seat Cushion
1985-08 → 1988-08
ended
|
YR20 MRF G;CR21,30,YR30 G;YR20 +3 | — | |
| 71066-87013-02 note |
Cover Assy, NO.2 Seat Cushion
1984-08 → 1985-08
ended
|
CR21,YR20 E | — | |
| 71066-87013-04 note |
Cover Assy, NO.2 Seat Cushion
1984-08 → 1985-08
ended
|
CR21,YR20 E | — | |
| 71066-87013-12 note |
Cover Assy, NO.2 Seat Cushion
1985-01 → 1985-02
ended
|
CR21,YR20 HRF E | — | |
| 71066-87014-02 note |
Cover Assy, NO.2 Seat Cushion
1984-08 → 1985-08
ended
|
YR20,21 Q | — | |
| 71066-87014-04 note |
Cover Assy, NO.2 Seat Cushion
1984-08 → 1985-08
ended
|
YR20,21 Q | — | |
| 71066-87015-02 note |
Cover Assy, NO.2 Seat Cushion
1984-08 → 1985-08
ended
|
YR20,21 X | — | |
| 71066-87015-04 note |
Cover Assy, NO.2 Seat Cushion
1984-08 → 1985-08
ended
|
YR20,21 X | — | |
| 71066-87017-02 note |
Cover Assy, NO.2 Seat Cushion
1984-08 → 1985-08
ended
|
YR21 G | — | |
| 71066-87019-04 note |
Cover Assy, NO.2 Seat Cushion
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E | ¥21,900 | |
| 71066-87019-06 note |
Cover Assy, NO.2 Seat Cushion
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E | — | |
| 71066-87020-04 note |
Cover Assy, NO.2 Seat Cushion
1985-08 → 1987-06
ended
|
CR21,30,YR20,21,30 Q | ¥26,000 | |
| 71066-87020-06 note |
Cover Assy, NO.2 Seat Cushion
1985-08 → 1987-06
ended
|
CR21,30,YR20,21,30 Q | ¥26,000 | |
| 71066-87024-02 note |
Cover Assy, NO.2 Seat Cushion
1985-04 → 1985-08
ended
|
CR21,YR20 HRF E | — | |
| 71066-87024-04 note |
Cover Assy, NO.2 Seat Cushion
1985-04 → 1985-08
ended
|
CR21,YR20 HRF E | — | |
| 71066-87024-06 note |
Cover Assy, NO.2 Seat Cushion
1986-12 → 1987-09
ended
|
CR21,30,YR20,21,30 HRF E | — | |
| 71066-87024-06 note |
Cover Assy, NO.2 Seat Cushion
1986-04 → 1986-08
ended
|
CR21,YR20,21 HRF E | — | |
| 71066-87024-06 note |
Cover Assy, NO.2 Seat Cushion
1986-10 → 1986-11
ended
|
CR21,30,YR20,21,30 HRF E | — | |
| 71066-87024-14 note |
Cover Assy, NO.2 Seat Cushion
1987-04 → 1987-09
ended
|
CR21,30,YR20,21,30 HRF E | — | |
| 71066-87024-14 note |
Cover Assy, NO.2 Seat Cushion
1986-04 → 1986-08
ended
|
CR21,YR20,21 HRF E | — | |
| 71066-87024-14 note |
Cover Assy, NO.2 Seat Cushion
1986-10 → 1986-11
ended
|
CR21,30,YR20,21,30 HRF E | — | |
| 71066-87035-04 note |
Cover Assy, NO.2 Seat Cushion
1987-06 → 1988-08
ended
|
CR21,30,YR21,30 Q | — | |
| 71066-87035-06 note |
Cover Assy, NO.2 Seat Cushion
1987-06 → 1988-08
ended
|
CR21,30,YR21,30 Q | — | |
| 71066-87037-04 note |
Cover Assy, NO.2 Seat Cushion
1987-09 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF E | — | |
| 71066-87037-06 note |
Cover Assy, NO.2 Seat Cushion
1987-09 → 1988-08
ended
|
CR21,30,YR21,30 E | — | |
| 71075-87011 note |
Cover Assy, NO.2 Seat Cushion
1982-11 → 1984-08
ended
|
KR26 06S | ¥22,400 | |
| 71075-87011-02 note |
Cover Assy, NO.2 Seat Cushion
1984-08 → 1985-08
ended
|
KR26 06S | ¥22,400 | |
| 71075-87011-06 note |
Cover Assy, NO.2 Seat Cushion
1985-08 → 1986-08
ended
|
KR26 06S | ¥22,400 | |
| 71075-87012 note |
Cover Assy, NO.2 Seat Cushion
1982-11 → 1984-08
ended
|
CR26,YR26 (05S,06S) D | ¥24,400 | |
| 71075-87012-02 note |
Cover Assy, NO.2 Seat Cushion
1984-08 → 1985-08
ended
|
CR26,YR26 (05S,06S) D | ¥24,400 | |
| 71075-87012-06 note |
Cover Assy, NO.2 Seat Cushion
1985-08 → 1986-08
ended
|
CR26,36,YR26 (05S,06S) D | ¥24,400 | |
| 71075-87013-02 note |
Cover Assy, NO.2 Seat Cushion
1982-11 → 1983-08
ended
|
YR26 N | ¥33,300 | |
| 71075-87013-12 note |
Cover Assy, NO.2 Seat Cushion
1983-08 → 1984-08
ended
|
YR26 N | ¥36,700 | |
| 71075-87015-02 note |
Cover Assy, NO.2 Seat Cushion
1984-08 → 1985-08
ended
|
CR26,27,YR26 N | — | |
| 71075-87015-06 note |
Cover Assy, NO.2 Seat Cushion
1985-08 → 1986-08
ended
|
CR26,27,36,YR26 N | — | |
| 71075-87016-06 note |
Cover Assy, NO.2 Seat Cushion
1985-08 → 1986-08
ended
|
CR28,YR28 | — | |
| 71075-87017-06 note |
Cover Assy, NO.2 Seat Cushion
1986-08 → 1988-08
ended
|
KR26 06S | — | |
| 71075-87018-06 note |
Cover Assy, NO.2 Seat Cushion
1986-08 → 1988-08
ended
|
CR26,36,YR26 (05S,06S) D | — | |
| 71075-87019-06 note |
Cover Assy, NO.2 Seat Cushion
1986-08 → 1988-08
ended
|
CR26,27,36,YR26 N | — | |
| 71075-87020-06 note |
Cover Assy, NO.2 Seat Cushion
1986-08 → 1988-08
ended
|
CR28,37,YR28,36 | ¥21,900 | |
| 70024 — Cover Assy, NO.2 Seatback | ||||
| 71077-87011 note |
Cover Assy, NO.2 Seatback
1982-11 → 1984-08
ended
|
KR26 06S | ¥26,200 | |
| 71077-87011-02 note |
Cover Assy, NO.2 Seatback
1984-08 → 1985-08
ended
|
KR26 06S | ¥26,200 | |
| 71077-87011-06 note |
Cover Assy, NO.2 Seatback
1985-08 → 1988-08
ended
|
KR26 06S | ¥26,200 | |
| 71077-87012 note |
Cover Assy, NO.2 Seatback
1982-11 → 1984-08
ended
|
CR26,YR26 (05S,06S) D | ¥28,400 | |
| 71077-87012-02 note |
Cover Assy, NO.2 Seatback
1984-08 → 1985-08
ended
|
CR26,YR26 (05S,06S) D | ¥28,400 | |
| 71077-87012-06 note |
Cover Assy, NO.2 Seatback
1985-08 → 1988-08
ended
|
CR26,36,YR26 (05S,06S) D | ¥28,400 | |
| 71077-87013-02 note |
Cover Assy, NO.2 Seatback
1982-11 → 1983-08
ended
|
YR26 N | ¥32,500 | |
| 71077-87013-12 note |
Cover Assy, NO.2 Seatback
1983-08 → 1984-08
ended
|
YR26 N | ¥36,100 | |
| 71077-87015 note |
Cover Assy, NO.2 Seatback
1982-11 → 1984-08
ended
|
YR20 D | ¥26,800 | |
| 71077-87015-02 note |
Cover Assy, NO.2 Seatback
1984-08 → 1985-08
ended
|
CR21,YR20 D | ¥26,800 | |
| 71077-87015-06 note |
Cover Assy, NO.2 Seatback
1985-08 → 1988-08
ended
|
CR21,YR20 D | ¥26,800 | |
| 71077-87016-02 note |
Cover Assy, NO.2 Seatback
1982-11 → 1983-08
ended
|
YR20 G | ¥37,500 | |
| 71077-87016-12 note |
Cover Assy, NO.2 Seatback
1983-08 → 1984-08
ended
|
YR20 G | ¥37,500 | |
| 71077-87017-02 note |
Cover Assy, NO.2 Seatback
1982-11 → 1983-08
ended
|
YR20 G | ¥20,200 | |
| 71077-87017-12 note |
Cover Assy, NO.2 Seatback
1983-08 → 1984-08
ended
|
YR20 G | ¥22,200 | |
| 71077-87018-02 note |
Cover Assy, NO.2 Seatback
1982-11 → 1983-08
ended
|
CR21,YR20 E | — | |
| 71077-87018-04 note |
Cover Assy, NO.2 Seatback
1982-11 → 1983-08
ended
|
CR21,YR20 E | — | |
| 71077-87018-12 note |
Cover Assy, NO.2 Seatback
1983-08 → 1984-08
ended
|
CR21,YR20 E | — | |
| 71077-87018-14 note |
Cover Assy, NO.2 Seatback
1983-08 → 1984-08
ended
|
CR21,YR20 E | — | |
| 71077-87018-24 note |
Cover Assy, NO.2 Seatback
1984-04 → 1984-05
ended
|
YR20 HRF E | — | |
| 71077-87024 note |
Cover Assy, NO.2 Seatback
1983-05 → 1984-08
ended
|
YR21 G | ¥20,000 | |
| 71077-87024-02 note |
Cover Assy, NO.2 Seatback
1984-08 → 1985-08
ended
|
YR21 G | ¥20,000 | |
| 71077-87026 note |
Cover Assy, NO.2 Seatback
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | — | |
| 71077-87027-02 note |
Cover Assy, NO.2 Seatback
1984-08 → 1985-08
ended
|
CR21,YR20 G | — | |
| 71077-87027-06 note |
Cover Assy, NO.2 Seatback
1985-08 → 1988-08
ended
|
YR20 MRF G;CR21,30,YR30 G;YR20 +3 | — | |
| 71077-87028-02 note |
Cover Assy, NO.2 Seatback
1984-08 → 1985-08
ended
|
CR21,YR20 E | — | |
| 71077-87028-04 note |
Cover Assy, NO.2 Seatback
1984-08 → 1985-08
ended
|
CR21,YR20 E | — | |
| 71077-87028-12 note |
Cover Assy, NO.2 Seatback
1985-01 → 1985-02
ended
|
CR21,YR20 HRF E | — | |
| 71077-87032-02 note |
Cover Assy, NO.2 Seatback
1984-08 → 1985-08
ended
|
CR26,27,YR26 N | — | |
| 71077-87032-06 note |
Cover Assy, NO.2 Seatback
1985-08 → 1988-08
ended
|
CR26,27,36,YR26 N | — | |
| 71077-87033-04 note |
Cover Assy, NO.2 Seatback
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E | — | |
| 71077-87033-06 note |
Cover Assy, NO.2 Seatback
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E | ¥21,100 | |
| 71077-87034-04 note |
Cover Assy, NO.2 Seatback
1986-02 → 1987-06
ended
|
CR21,30,YR20,21,30 Q | ¥24,900 | |
| 71077-87034-06 note |
Cover Assy, NO.2 Seatback
1986-02 → 1987-06
ended
|
CR21,30,YR20,21,30 Q | ¥24,900 | |
| 71077-87038-06 note |
Cover Assy, NO.2 Seatback
1985-08 → 1988-08
ended
|
CR28,37,YR28,36 | — | |
| 71077-87039-04 note |
Cover Assy, NO.2 Seatback
1986-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E | — | |
| 71077-87039-06 note |
Cover Assy, NO.2 Seatback
1986-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E | — | |
| 71077-87041-02 note |
Cover Assy, NO.2 Seatback
1985-04 → 1985-08
ended
|
CR21,YR20 HRF E | — | |
| 71077-87041-04 note |
Cover Assy, NO.2 Seatback
1985-04 → 1985-08
ended
|
CR21,YR20 HRF E | — | |
| 71077-87041-06 note |
Cover Assy, NO.2 Seatback
1986-12 → 1987-09
ended
|
CR21,30,YR20,21,30 HRF E | — | |
| 71077-87041-06 note |
Cover Assy, NO.2 Seatback
1986-10 → 1986-11
ended
|
CR21,30,YR20,21,30 HRF E | — | |
| 71077-87041-06 note |
Cover Assy, NO.2 Seatback
1986-04 → 1986-08
ended
|
CR21,YR20,21 HRF E | — | |
| 71077-87041-14 note |
Cover Assy, NO.2 Seatback
1986-04 → 1986-08
ended
|
CR21,YR20,21 HRF E | — | |
| 71077-87041-14 note |
Cover Assy, NO.2 Seatback
1987-04 → 1987-09
ended
|
CR21,30,YR20,21,30 HRF E | — | |
| 71077-87041-14 note |
Cover Assy, NO.2 Seatback
1986-10 → 1986-11
ended
|
CR21,30,YR20,21,30 HRF E | — | |
| 71077-87043-04 note |
Cover Assy, NO.2 Seatback
1988-01 → 1988-08
ended
|
CR21,30,YR21,30 Q | — | |
| 71077-87043-06 note |
Cover Assy, NO.2 Seatback
1988-01 → 1988-08
ended
|
CR21,30,YR21,30 Q | — | |
| 71077-87050-04 note |
Cover Assy, NO.2 Seatback
1987-06 → 1988-01
ended
|
CR21,30,YR21,30 Q | — | |
| 71077-87050-06 note |
Cover Assy, NO.2 Seatback
1987-06 → 1988-01
ended
|
CR21,30,YR21,30 Q | ¥24,900 | |
| 71077-87052-04 note |
Cover Assy, NO.2 Seatback
1987-09 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF E | — | |
| 71077-87052-06 note |
Cover Assy, NO.2 Seatback
1987-09 → 1988-08
ended
|
CR21,30,YR21,30 E | — | |
| 71078-87005-02 note |
Cover Assy, NO.2 Seatback
1982-11 → 1983-08
ended
|
YR20,21 Q | ¥26,200 | |
| 71078-87005-04 note |
Cover Assy, NO.2 Seatback
1982-11 → 1983-08
ended
|
YR20,21 Q | ¥26,200 | |
| 71078-87005-12 note |
Cover Assy, NO.2 Seatback
1983-08 → 1984-08
ended
|
YR20,21 Q | — | |
| 71078-87005-14 note |
Cover Assy, NO.2 Seatback
1983-08 → 1984-08
ended
|
YR20,21 Q | — | |
| 71078-87006-02 note |
Cover Assy, NO.2 Seatback
1982-11 → 1983-08
ended
|
YR20,21 X | — | |
| 71078-87006-04 note |
Cover Assy, NO.2 Seatback
1982-11 → 1983-08
ended
|
YR20,21 X | ¥23,500 | |
| 71078-87006-12 note |
Cover Assy, NO.2 Seatback
1983-08 → 1984-08
ended
|
YR20,21 X | — | |
| 71078-87006-14 note |
Cover Assy, NO.2 Seatback
1983-08 → 1984-08
ended
|
YR20,21 X | — | |
| 71078-87009-02 note |
Cover Assy, NO.2 Seatback
1984-08 → 1985-08
ended
|
YR20,21 Q | — | |
| 71078-87009-04 note |
Cover Assy, NO.2 Seatback
1984-08 → 1985-08
ended
|
YR20,21 Q | — | |
| 71078-87011-02 note |
Cover Assy, NO.2 Seatback
1984-08 → 1985-08
ended
|
YR20,21 X | — | |
| 71078-87011-04 note |
Cover Assy, NO.2 Seatback
1984-08 → 1985-08
ended
|
YR20,21 X | — | |
| 71078-87013-04 note |
Cover Assy, NO.2 Seatback
1985-08 → 1986-02
ended
|
CR21,30,YR20,21 Q | ¥24,800 | |
| 71078-87013-06 note |
Cover Assy, NO.2 Seatback
1985-08 → 1986-02
ended
|
CR21,30,YR20,21 Q | ¥24,800 | |
| 71033 — Leg Sub-assy, Rear Seat Cushion | ||||
| 71033-87002 |
Leg Sub-assy, Rear Seat Cushion
1982-11 → 1986-08
ended
|
CR26,27,36,KR26,YR26 05S,06S | — | |
| 71309-87004 |
Leg Sub-assy, Rear Seat Cushion
1986-08 → 1988-08
ended
|
CR28,37,YR28,36 | ¥4,960 | |
| 71303B — Hinge Sub-assy, Rear NO.2 Seat, RH | ||||
| 71302-87003-02 note |
Hinge Sub-assy, Rear NO.2 Seat, RH
1982-11 → 1985-08
ended
|
YR20,21 07S | — | |
| 71302-87003-04 note |
Hinge Sub-assy, Rear NO.2 Seat, RH
1982-11 → 1985-08
ended
|
YR20,21 07S | — | |
| 71302-87003-06 note |
Hinge Sub-assy, Rear NO.2 Seat, RH
1985-08 → 1985-10
ended
|
CR21,YR20,21 Q | — | |
| 71302-87003-14 note |
Hinge Sub-assy, Rear NO.2 Seat, RH
1985-08 → 1985-10
ended
|
CR21,YR20,21 Q | — | |
| 71302-87005-04 note |
Hinge Sub-assy, Rear NO.2 Seat, RH
1985-10 → 1988-08
ended
|
CR21,30,YR20,21,30 Q | ¥5,300 | |
| 71302-87005-04 note |
Hinge Sub-assy, Rear NO.2 Seat, RH
1986-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E | ¥5,300 | |
| 71302-87005-06 note |
Hinge Sub-assy, Rear NO.2 Seat, RH
1985-10 → 1988-08
ended
|
CR21,30,YR20,21,30 Q | ¥5,300 | |
| 71302-87005-06 note |
Hinge Sub-assy, Rear NO.2 Seat, RH
1986-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E | ¥5,300 | |
| 71303-87001 |
Hinge Sub-assy, Rear NO.2 Seat, RH
1982-11 → 1988-08
ended
|
CR26,36,KR26,YR26 (05S,06S) D | ¥3,410 | |
| 71303-87005 |
Hinge Sub-assy, Rear NO.2 Seat, RH
1982-11 → 1988-08
ended
|
CR26,27,36,YR26 N | — | |
| 71304B — Hinge Sub-assy, Rear NO.2 Seat, LH | ||||
| 71301-87002-02 note |
Hinge Sub-assy, Rear NO.2 Seat, LH
1982-11 → 1985-08
ended
|
CR21,YR20,21 E,G | — | |
| 71301-87002-04 note |
Hinge Sub-assy, Rear NO.2 Seat, LH
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | — | |
| 71301-87002-04 note |
Hinge Sub-assy, Rear NO.2 Seat, LH
1982-11 → 1985-08
ended
|
CR21,YR20 E | — | |
| 71301-87002-06 note |
Hinge Sub-assy, Rear NO.2 Seat, LH
1985-08 → 1988-08
ended
|
YR20 HRF E;YR20 MRF +5 | — | |
| 71301-87002-14 note |
Hinge Sub-assy, Rear NO.2 Seat, LH
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E | ¥5,400 | |
| 71304-87001 |
Hinge Sub-assy, Rear NO.2 Seat, LH
1982-11 → 1988-08
ended
|
CR26,36,KR26,YR26 (05S,06S) D | ¥3,410 | |
| 71304-87002 |
Hinge Sub-assy, Rear NO.2 Seat, LH
1982-11 → 1988-08
ended
|
CR26,27,36,YR26 N | — | |
| 71419 — Cushion (FOR REAR SEAT LEG) | ||||
| 90446-28284 |
Cushion (FOR REAR SEAT LEG)
1982-11 → 1985-11
ended
|
CR26,27,36,KR26,YR26 05S,06S | ¥640 | |
| 90540-06021 |
Cushion (FOR REAR SEAT LEG)
1986-08 → 1988-08
ended
|
CR26,27,36,KR26,YR26 05S,06S | ¥330 | |
| 90540-22007 |
Cushion (FOR REAR SEAT LEG)
1985-11 → 1986-08
ended
|
CR26,27,36,KR26,YR26 05S,06S | ¥340 | |
| 71809 — Stopper Sub-assy, Rear Seatback, LH | ||||
| 71409-87002 |
Stopper Sub-assy, Rear Seatback, LH
1982-11 → 1988-08
ended
|
CR26,27,36,KR26,YR26 05S,06S | ¥5,200 | |
| 71948 — Protector, Passenger Seatback | ||||
| 71899-87001 |
Protector, Passenger Seatback
1982-11 → 1988-08
ended
|
CR26,27,36,KR26,YR26 05S,06S | ¥320 | |
| 72701 — Bracket Sub-assy, Rear Seatback Stopper | ||||
| 72687-87001 |
Bracket Sub-assy, Rear Seatback Stopper
1982-11 → 1988-08
ended
|
CR26,27,36,KR26,YR26 05S,06S | ¥1,020 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
